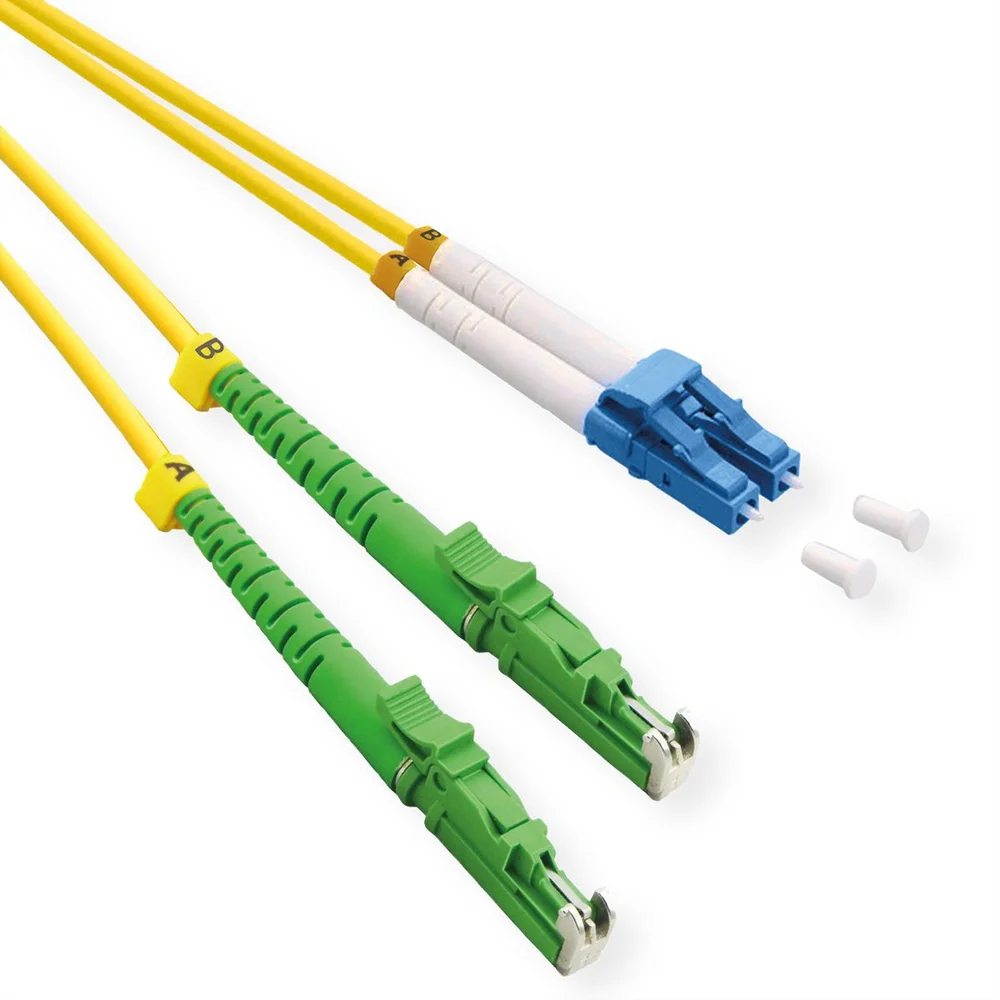

ROLINE FO Jumper Cable Duplex, 9/125µm, OS2, LSH APC / LC UPC, LSOH, yellow, 5 m
ROLINE

ROLINE FO Jumper Cable Duplex, 9/125µm, OS2, LSH APC / LC UPC, LSOH, yellow, 5 m

Item number
21.15.9515-5
Part number
21.15.9515
EAN
7611990958061
Brand
ROLINE
Weight
80.7 g

High-quality fibre optic cable with the high protective, secured APC polished LSH connection on one side and UPC polished LC plug on the other side.

This product is not sold online — send an enquiry and we will reply with price and lead time.

Request a quote

Description

High-quality fibre optic cable with the high protective, secured APC polished LSH connection on one side and UPC polished LC plug on the other side.

  • Duplex cable with fiber type 9/125µm OS2
  • Cable material: sheath halogen-free and flame-retardant, yellow, solid core with aramid strain relief
  • LC connector: connector with high mechanical load capacity, push-pull latched with anti-rotation lock, APC ground joint, ceramic ferrule
  • LSH connectors: precision-manufactured connectors with low return loss, APC ground joint, ceramic ferrule, grey
  • The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
  • LSH APC Polish (8°) / LC UPC Polish

  • IL < 0.25dB, RL > 25dB
  • IL (typical) < 0.12dB
  • Cable OD (outer diameter): 3.0 x 6.0mm

Specifications

Product

Manufacturer
ROLINE
Product group
Fibre optic cable
Product type
Fibre Optic Jumper Cables OS2
Colour
yellow
Length
5 m
Quantity of fibre
2
Cable type
Duplex Cable
External cable
no
Fibre section
Single mode 9/125µm OS2
Connection ports
LSH / LC
Side 1 Connector Type
LSH
side 1 connector ferrules
APC Polish
Side 2 Connector Type
LC
side 2 connector ferrules
UPC Polish
Min. Bending radius, static
30 mm
Min. Bending radius, dynamic
60 mm
Aramid strain relief
yes
Cable LSOH
yes
Flame retardant according to IEC 60332-1-2
yes
Low smoke according to IEC 61034-2
yes
Halogen free according to IEC 60754-2
yes
Max. insertion loss
0.2 dB
Min. return loss
50 dB
Weight
80.7 g

Packaging

Height of packaging (single piece)
40 mm
Width of packaging (single piece)
190 mm
Depth of packaging (single piece)
190 mm
Package weight (single piece)
0.082 kg
