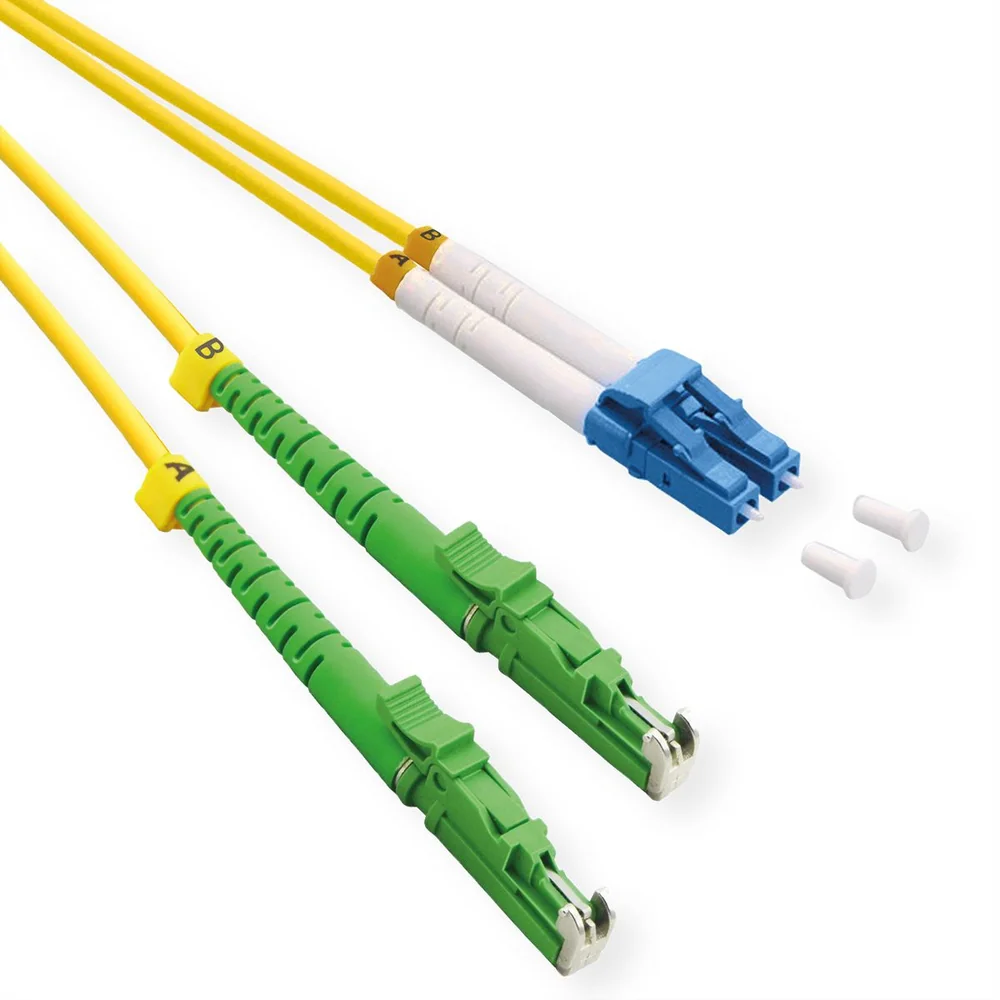

ROLINE FO Jumper Cable Duplex, 9/125µm, OS2, LSH APC / LC UPC, LSOH, yellow, 10 m
- Item number
- 21.15.9517-5
- Part number
- 21.15.9517
- EAN
- 7611990958122
- Brand
- ROLINE
- Weight
- 149.6 g
High-quality fibre optic cable with the high protective, secured APC polished LSH connection on one side and UPC polished LC plug on the other side.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
High-quality fibre optic cable with the high protective, secured APC polished LSH connection on one side and UPC polished LC plug on the other side.
- Duplex cable with fiber type 9/125µm OS2
- Cable material: sheath halogen-free and flame-retardant, yellow, solid core with aramid strain relief
- LC connector: connector with high mechanical load capacity, push-pull latched with anti-rotation lock, APC ground joint, ceramic ferrule
- LSH connectors: precision-manufactured connectors with low return loss, APC ground joint, ceramic ferrule, grey
- The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
- LSH APC Polish (8°) / LC UPC Polish
- IL < 0.25dB, RL > 25dB
- IL (typical) < 0.12dB
- Cable OD (outer diameter): 3.0 x 6.0mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OS2
- Colour
- yellow
- Length
- 10 m
- Quantity of fibre
- 2
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Single mode 9/125µm OS2
- Connection ports
- LSH / LC
- Side 1 Connector Type
- LSH
- side 1 connector ferrules
- APC Polish
- Side 2 Connector Type
- LC
- side 2 connector ferrules
- UPC Polish
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Aramid strain relief
- yes
- Cable LSOH
- yes
- Flame retardant according to IEC 60332-1-2
- yes
- Low smoke according to IEC 61034-2
- yes
- Halogen free according to IEC 60754-2
- yes
- Max. insertion loss
- 0.2 dB
- Min. return loss
- 50 dB
- Weight
- 149.6 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 160 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.15 kg
