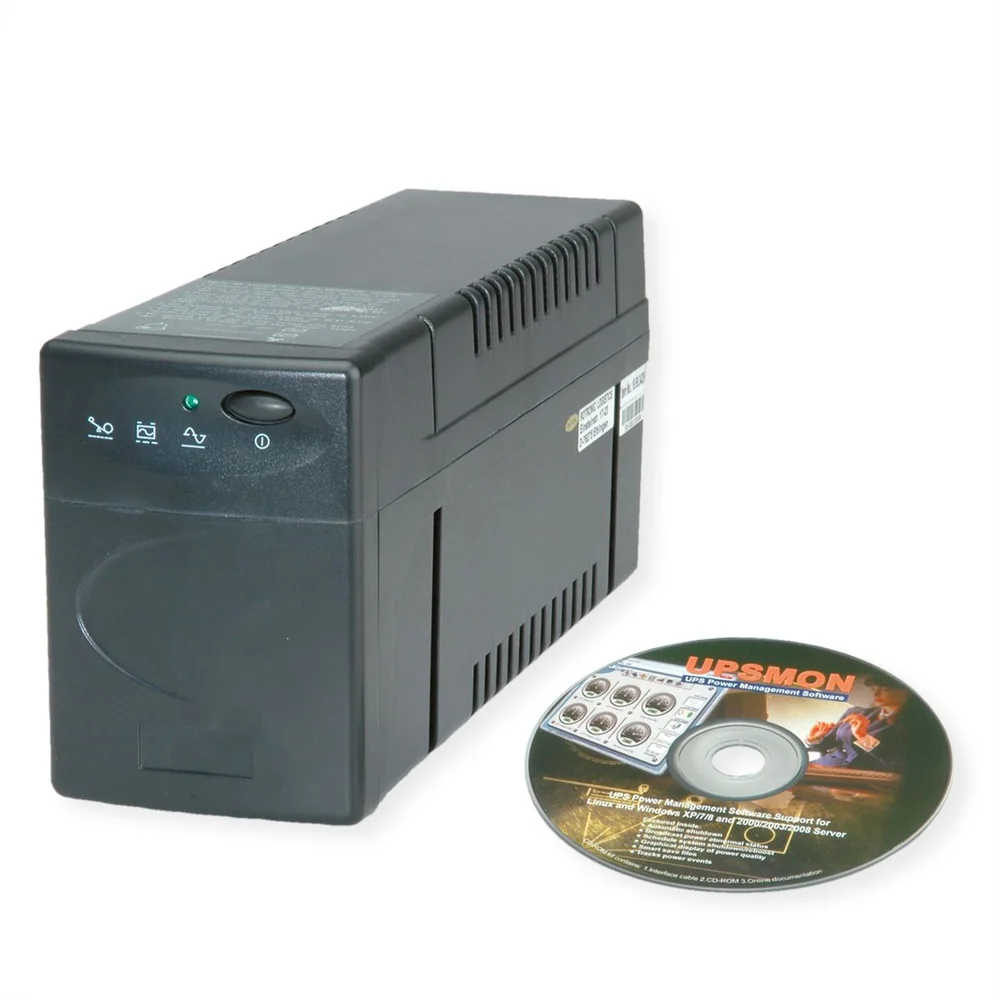

VALUE UPS, Line-Interactive, 1200VA, USB Port
- Item number
- 19.99.3430
- Part number
- 19.99.3430
- EAN
- 7611990930685
- Brand
- VALUE
- Weight
- 14000 g
Quality Protection for Small Servers, Workstation & PC Line interactive design Boost and buck AVR (Auto voltage regulation) Fully digitized microprocessor controlled Energy saving function (UPS green mode) 50Hz…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Quality Protection for Small Servers, Workstation & PC
- Line interactive design
- Boost and buck AVR (Auto voltage regulation)
- Fully digitized microprocessor controlled
- Energy saving function (UPS green mode)
- 50Hz frequency auto sensing and selection
- Cold start function (DC power on)
- Lightning and surge protection
- Short circuit and overload protection
- Advanced battery management (ABM technology)
- Tel/Modem internet surge suppression
- SmartUSB communication port
- Automatically charging when UPS off
- History record of power failure events
- Back up, on-line, battery status, power status display by software
- Schedule shutdown & reboot
- Windows 98/Me/NT/2000/XP/2003/7/8
Specifications
Product
- Manufacturer
- VALUE
- Product group
- UPS
- Product type
- UPS Line Interactive
- Colour
- black
- Scope of delivery
- UPS, Software, Cable Set
- Classification (IEC 62040-3)
- VI-SS-333
- UPS technology
- Line Interactive
- Power class
- 1000 ... 1900 VA
- Output (VA/W)
- 1200 / 720
- Efficiency
- 95 %
- Backup time
- 3 min
- Backup time full/half-load
- 3 / 6 min
- Dimensions (HxWxD)
- 192 x 382 x 130 mm
- Mounting form
- Tower
- Voltage (input)
- 230 V
- Voltage (output)
- 230 V
- Output voltage regulation
- ± 15 %
- Frequency
- 50 Hz

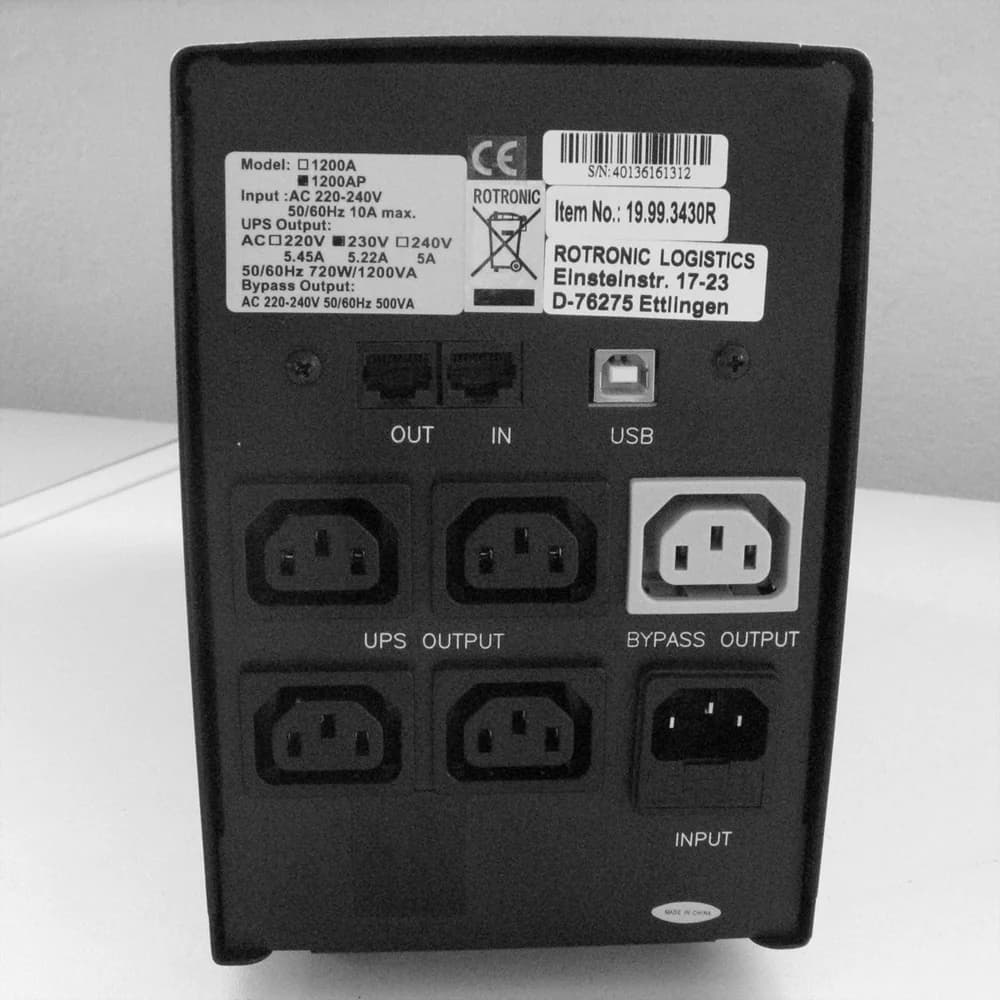

- Connector type (input)
- cold connector IEC320 C 14
- Outputs
- 4
- Connector type (output)
- 4x cold connector IEC320 C 13
- Phase in/output
- 230V/230V / 50Hz
- Over current protection
- EMI,- RFI-Filter
- Max. quantity of delay expansion units
- 0
- Delay expansion unit
- --
- Slots for adapter card
- 0
- Slot for adapter card
- --
- Interface
- USB
- USB 2.0 Interface
- yes
- Hot swap batteries
- no
- Bypass
- no
- Additional over current protector
- Telephone/Fax
- Activity
- LED
- Activity LED
- 1 LED
- Activity Display
- --
- incl.Management Software
- Windows
- Internal cooling
- Passive
- Ambient temperature
- 0-40°C
- Mains connection
- Cold appliance connection
- Battery category
- Industrial battery
- Number of batteries
- 2 pieces
- Battery Voltage
- 12 V
- Battery Capacity
- 7 Ah
- Battery type
- Pack
- Battery
- built-in
- Battery technology
- Lead-acid
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 192 mm
- Width
- 382 mm
- Depth
- 130 mm
- Weight
- 14 kg
- Capacity (VA / W)
- minutes
- 200/120
- 40
- 400/240
- 18
- 600/360
- 9
- 800/480
- 5
- 1000/600
- 3
- 1200/720
- 2
Packaging
- Height of packaging (single piece)
- 320 mm
- Width of packaging (single piece)
- 260 mm
- Depth of packaging (single piece)
- 490 mm
- Package weight (single piece)
- 14.64 kg
