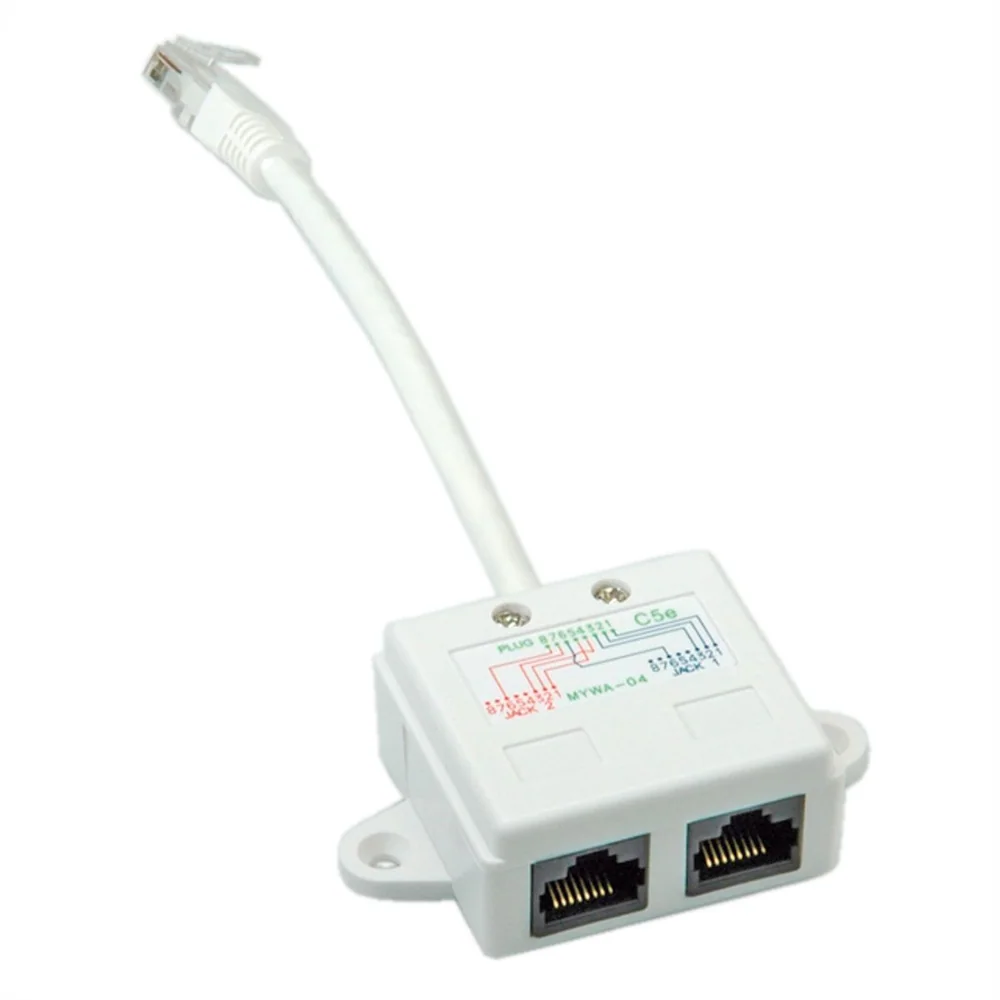

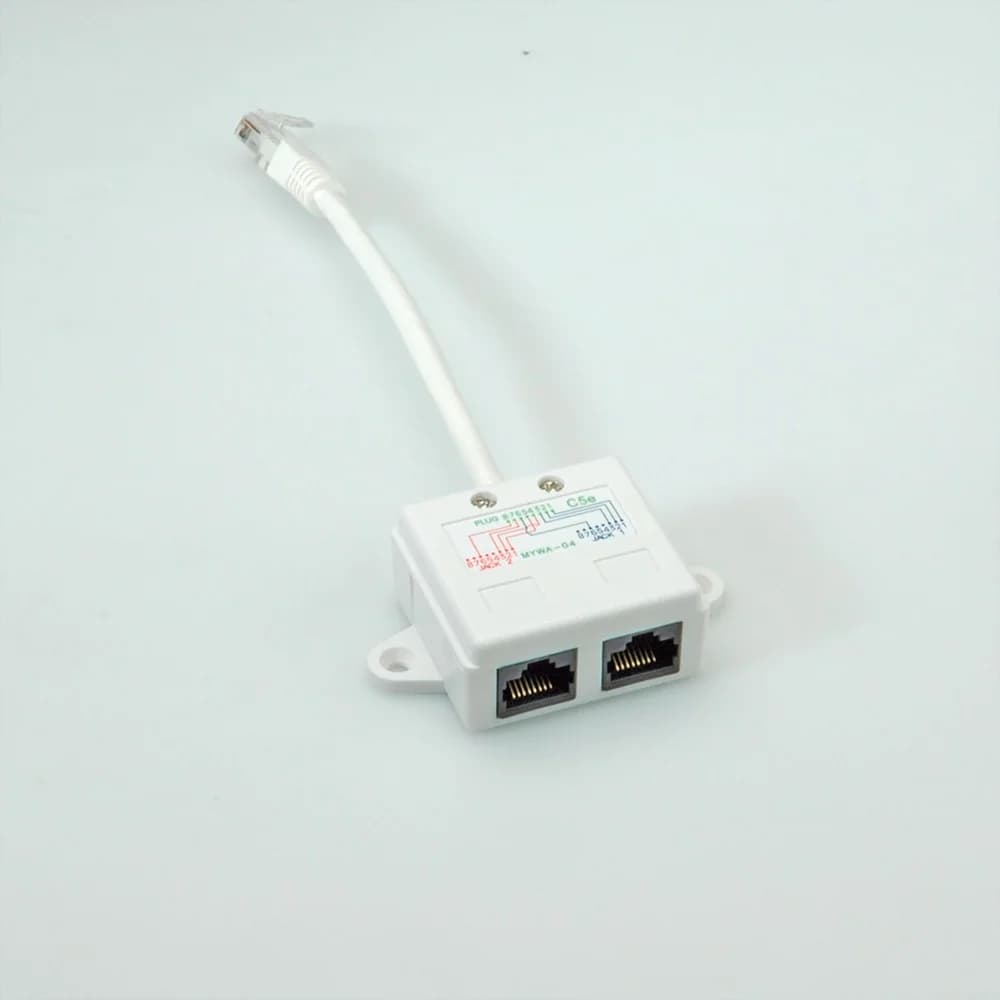

VALUE T-Adapter Cat.5e (Class D), UTP, white
- Item number
- 21.99.3045-50
- Part number
- 21.99.3045
- EAN
- 7611990943913
- Brand
- VALUE
- Weight
- 38.6 g
For the use with two 10/100 LAN connections over one (full wired) 8-wire cable Connection cable (17 cm) with RJ-45 plug; adapter with two RJ-45 jacks Pin assignment of connectors: pairs 1, 2 and 3, 6 Wiring scheme on…
Description

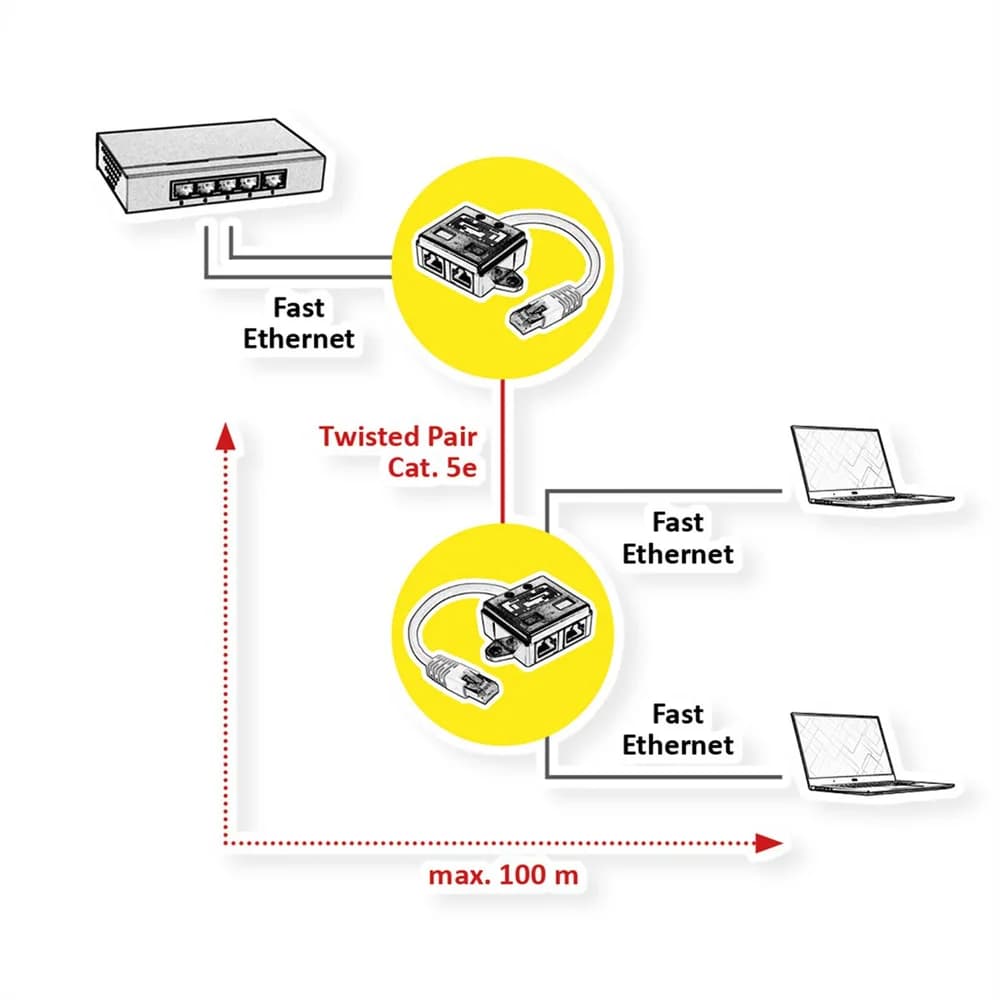

- For the use with two 10/100 LAN connections over one (full wired) 8-wire cable
- Connection cable (17 cm) with RJ-45 plug; adapter with two RJ-45 jacks
- Pin assignment of connectors: pairs 1, 2 and 3, 6

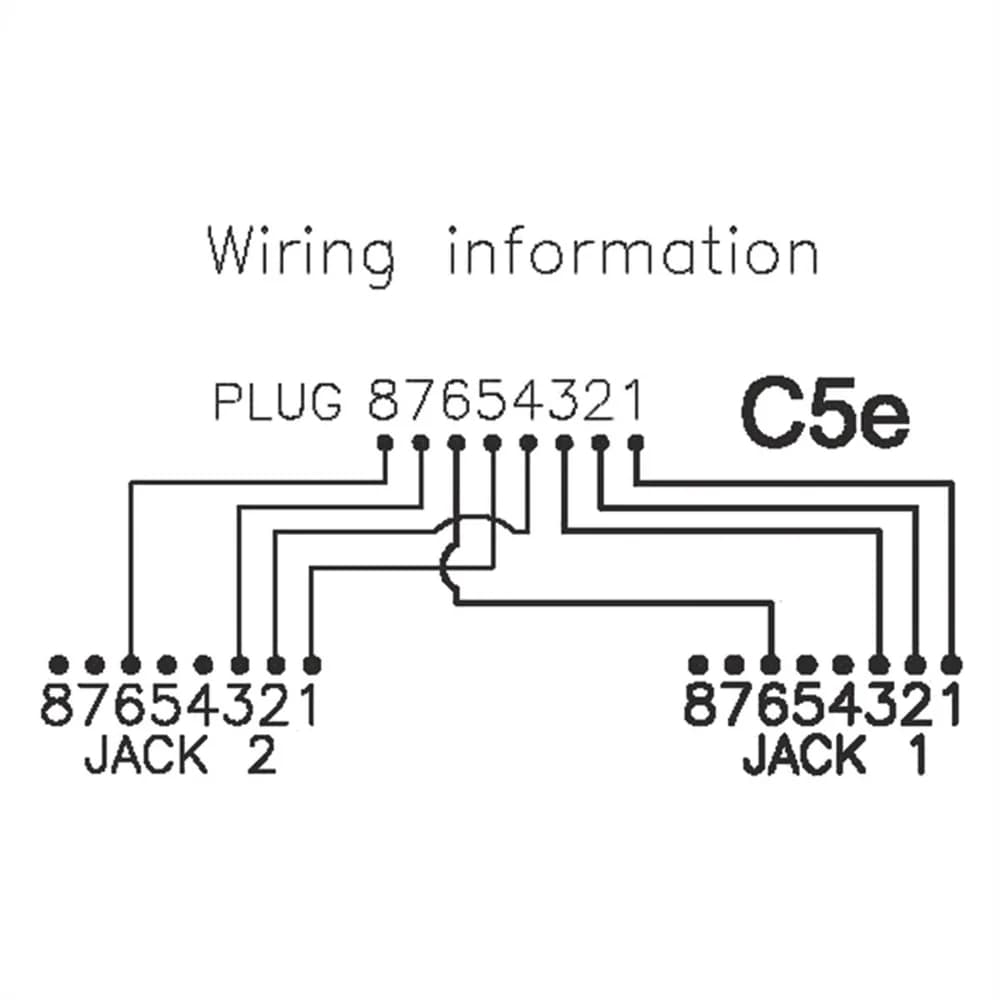

- Wiring scheme on the adapter
- For Cat. 5e installations
- Note: The adapters can be used only pairwise
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Network adapters
- Colour
- white
- Length
- 0.15 m
- Shield type
- Not screened
- Transfer quality
- Cat5e / Class D
- Quantity of ports
- 2
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45 RJ-45
- Side 2 Connector Gender
- Female
- Material (casing)
- Plastic
- Shield contacts
- No
- separate strain relief
- no
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 22.5 mm
- Width
- 58 mm
- Depth
- 42 mm
- Weight
- 38.6 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 30 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.05 kg
