VALUE Outdoor Surface Mounted Wall Mount Box for 2x Keystones, grey
- Item number
- 25.99.8493-20
- Part number
- 25.99.8493
- EAN
- 7630049679207
- Brand
- VALUE
- Weight
- 133 g
Wall-mounted enclosure with 2 ports for use with keystones, suitable for outdoor use and anywhere where connections need to be protected (protection class IP44)
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Wall-mounted enclosure with 2 ports for use with keystones, suitable for outdoor use and anywhere where connections need to be protected (protection class IP44)
- Suitable for production process / outdoor / industrial application (IP44)
- Compatible with all snap-in connectors (keystones) that can be attached and detached with a simple click.
- Box for 2 keystones
- Keystone output: 90° (straight down)

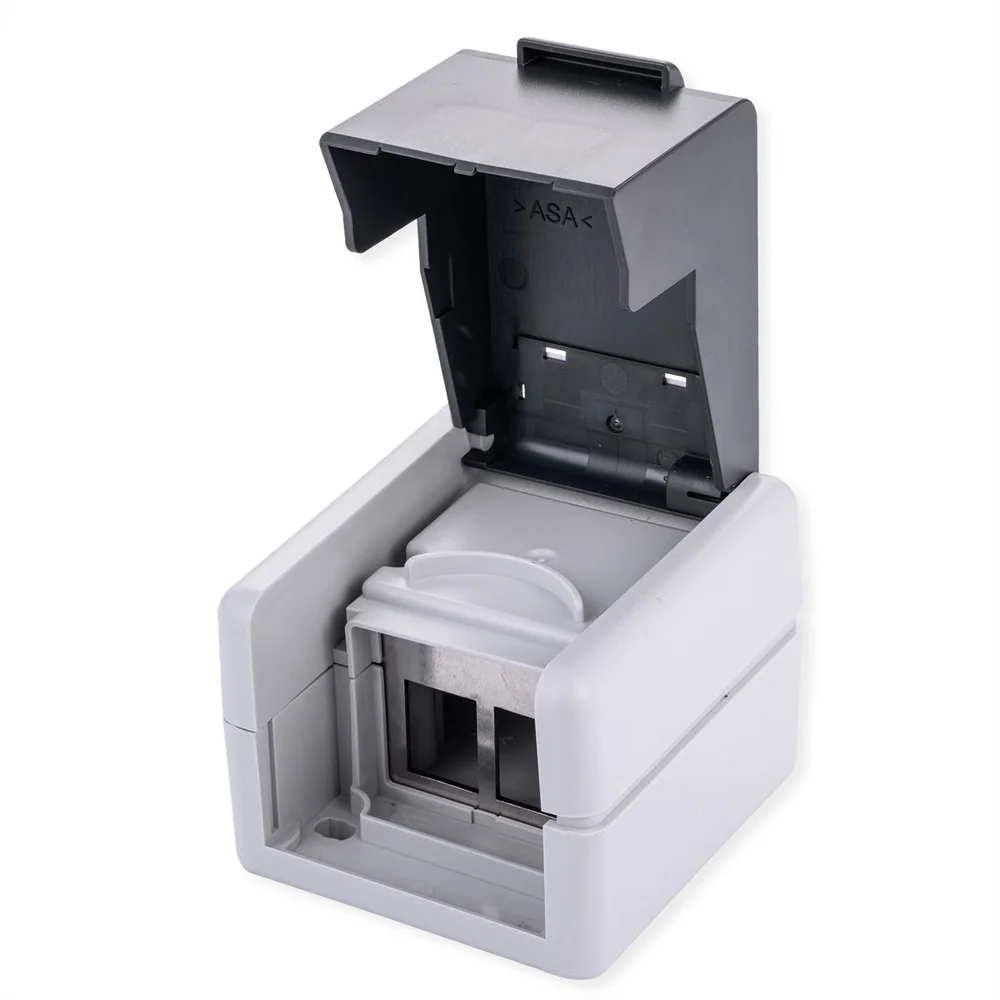

- The keystones are protected by a hinged cover
- Cable openings protected at the front by a hinged cover and at the rear by a dust cover
- Individual markings are possible thanks to an integrated labeling field.
- Material: Thermoplastic (ABS); metal keystone holder

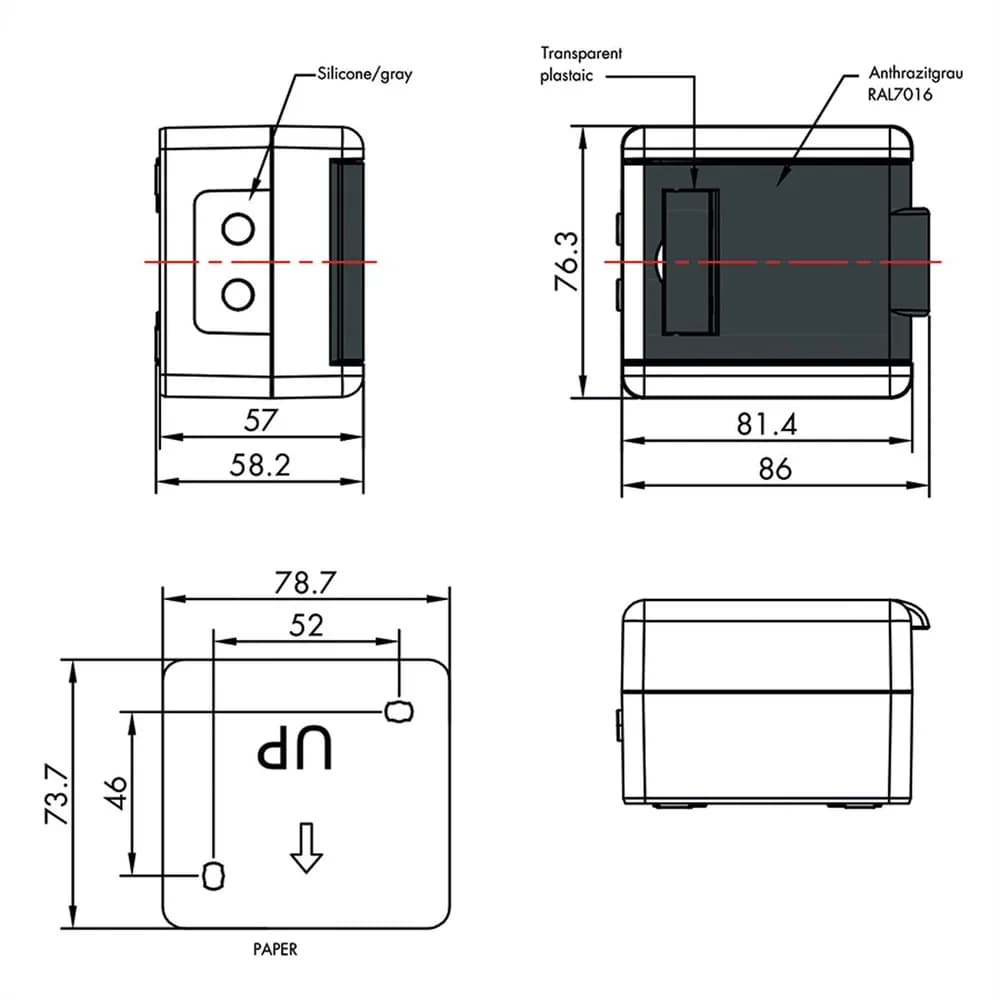

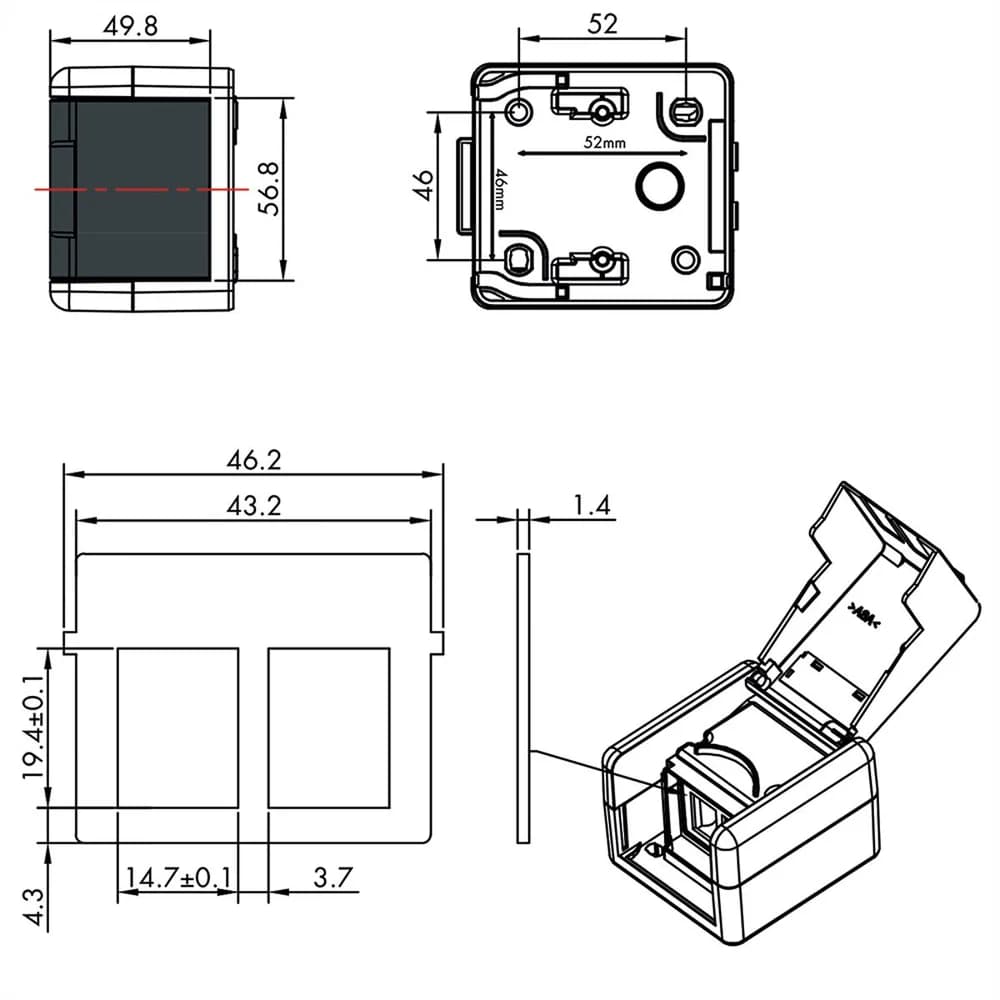

- Dimensions: HxWxD: 58 x 76 x 86 mm
- Color: Light gray with anthracite cover
- Space-saving, easy to install
- Note: Keystones are not included. Please order them separately.
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Accessories
- Colour
- grey
- Scope of delivery
- Outdoor Box
- Wall fixening
- Wall mount
- Cabinet system
- 19"-Technique
- Quantity of ports
- 2
- Modular assembly
- yes
- Material (casing)
- ABS
- Protection class (IP Code)
- IP44
- Connection direction
- Straight
- Dimensions (HxWxD)
- 58 x 76 x 86 x mm
- Battery category
- not applicable
- Height
- 58 mm
- Width
- 76 mm
- Depth
- 86 mm
- Weight
- 133 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 90 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.17 kg
