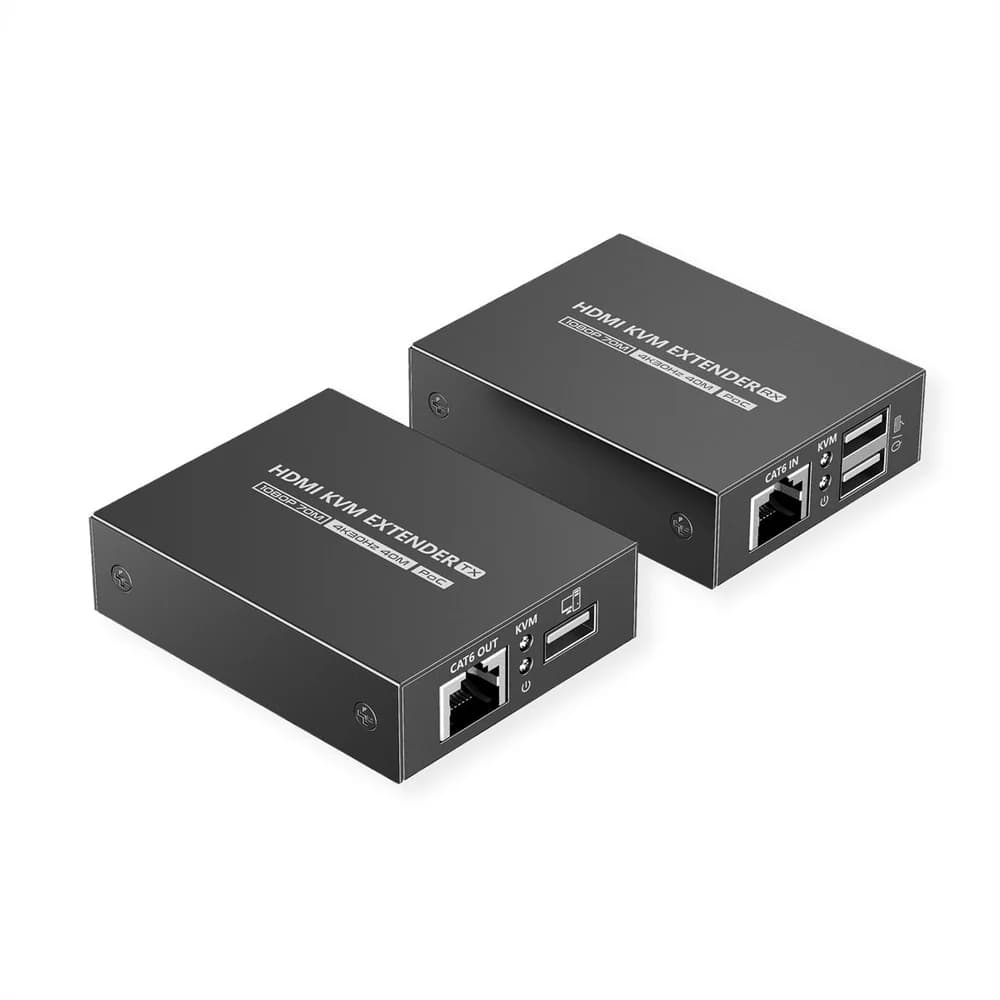

VALUE KVM Extender over Cat. 6/6A, HDMI, 4K@30Hz, max. 40m
- Item number
- 14.99.3043-4
- Part number
- 14.99.3043
- EAN
- 7630049673434
- Brand
- VALUE
- Weight
- 246 g
KVM Extension over a Cat. 6/6A/7 network cable of up to 70 meters at a resolution of 1080p@60Hz and up to 40 meters at a resolution of 4K@30Hz - perfect for advertising, monitoring systems, home entertainment,…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

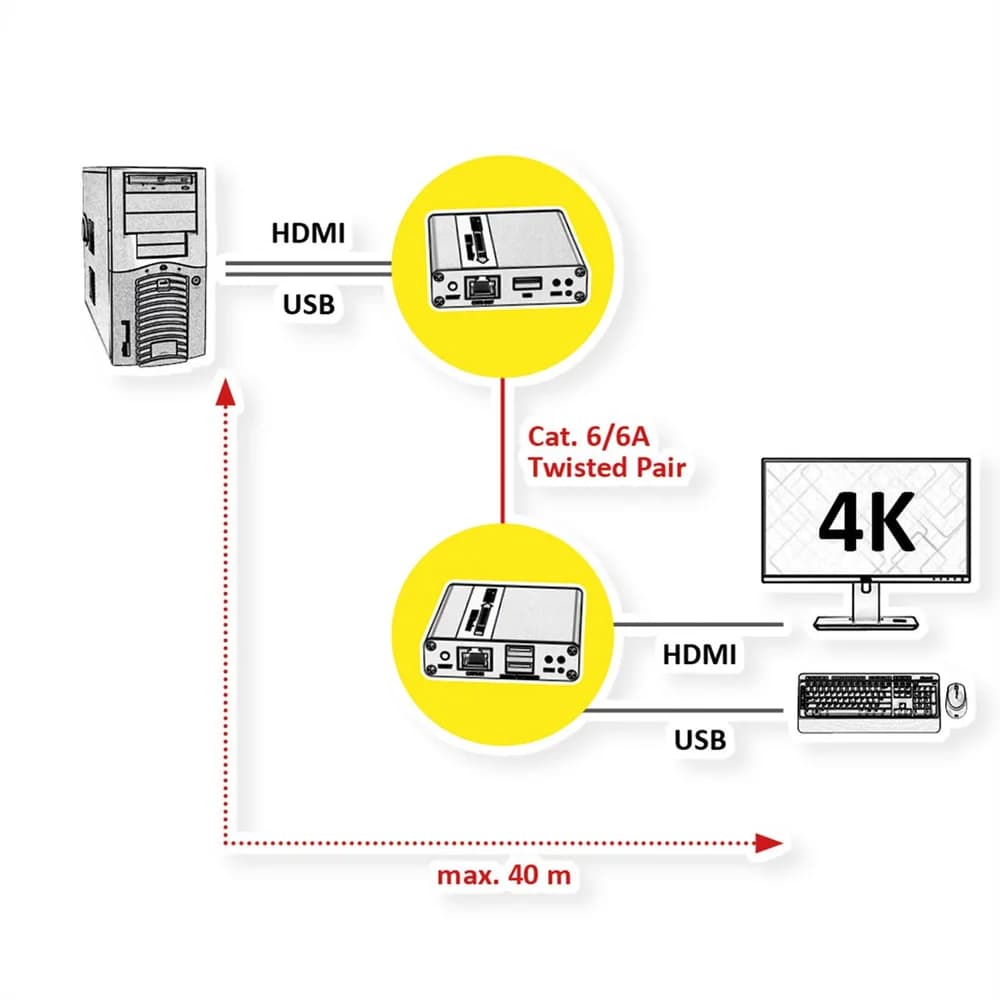

KVM Extension over a Cat. 6/6A/7 network cable of up to 70 meters at a resolution of 1080p@60Hz and up to 40 meters at a resolution of 4K@30Hz - perfect for advertising, monitoring systems, home entertainment, conferences, etc.
- Supports KVM functionality
- Resolution up to 4K@30Hz
- Transmission distance: 1080p@60Hz up to 70m, 4K@30Hz up to 40m, by using Cat. 6 or higher network cables
- Supports HDR10
- Automatically adjusts parameters to match different network cables and achieve the best display performance
- No latency
- Plug & Play
- Supports PoC (Power over Cable) - receiver is supplied via the transmitter

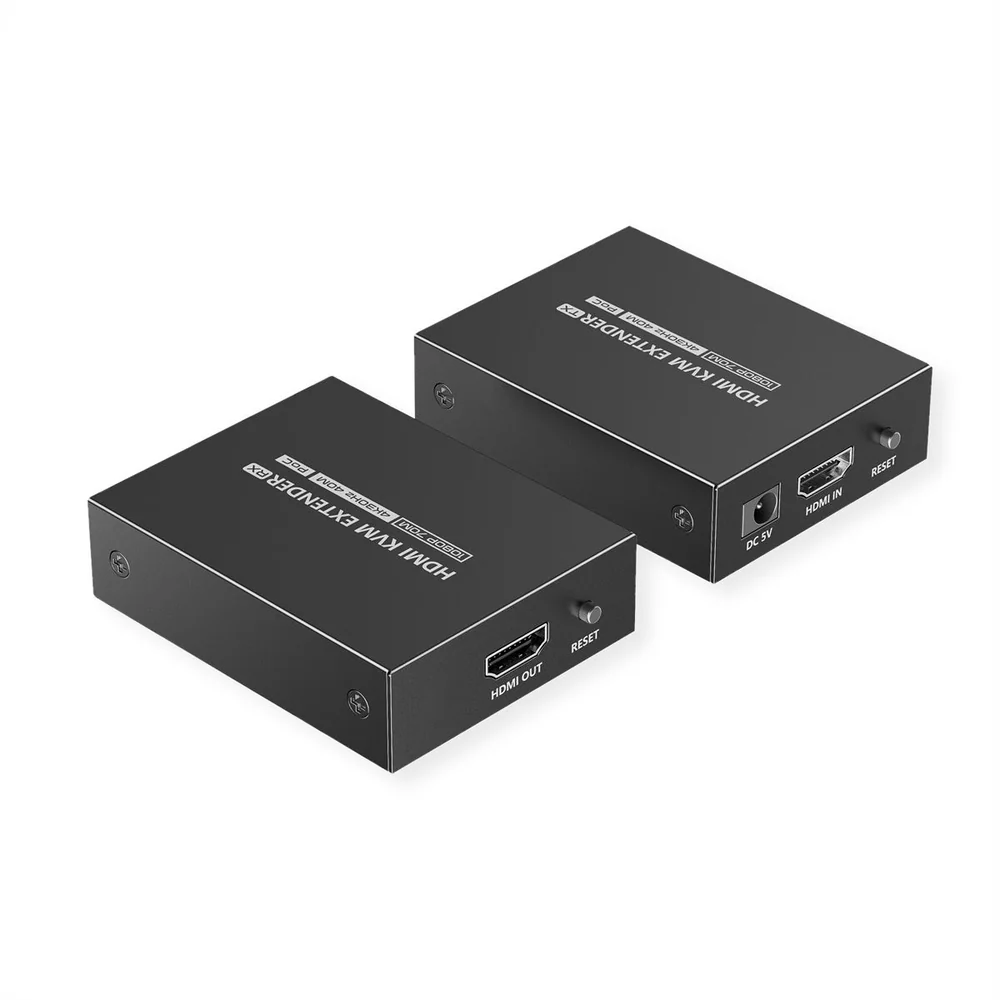

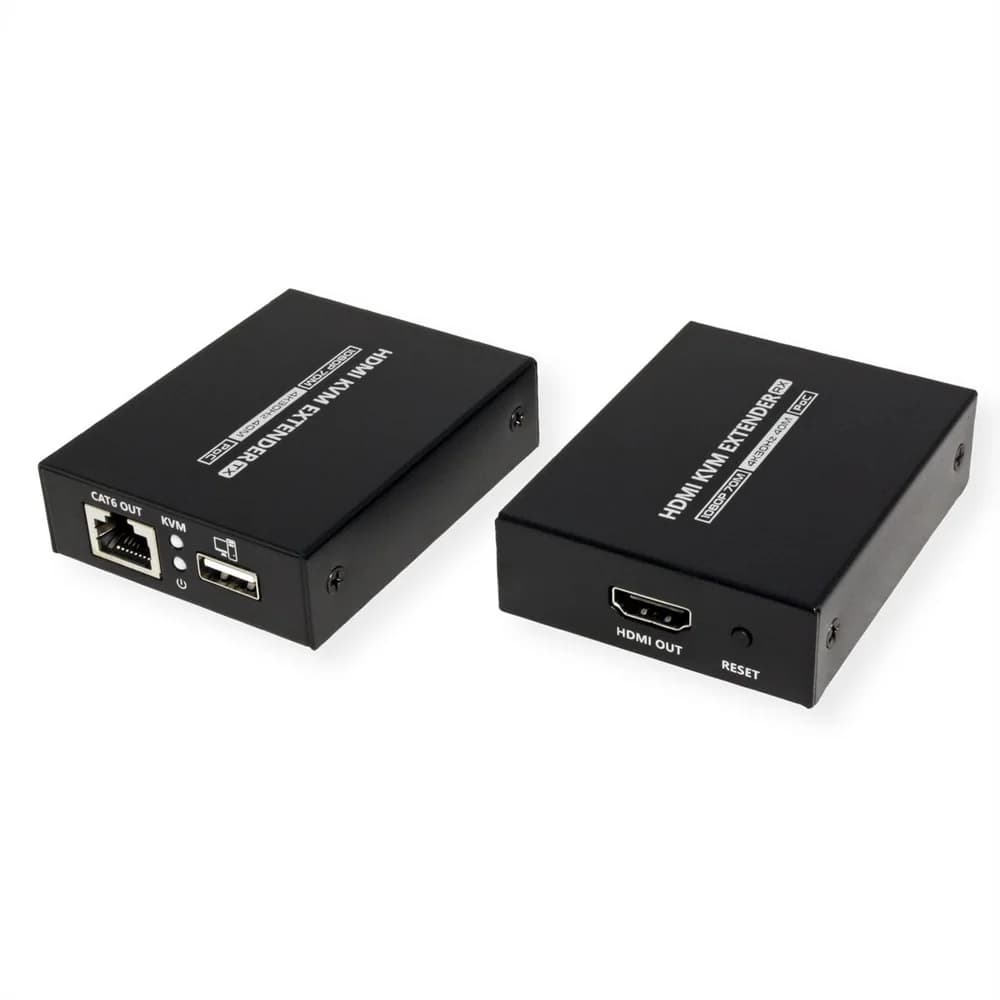

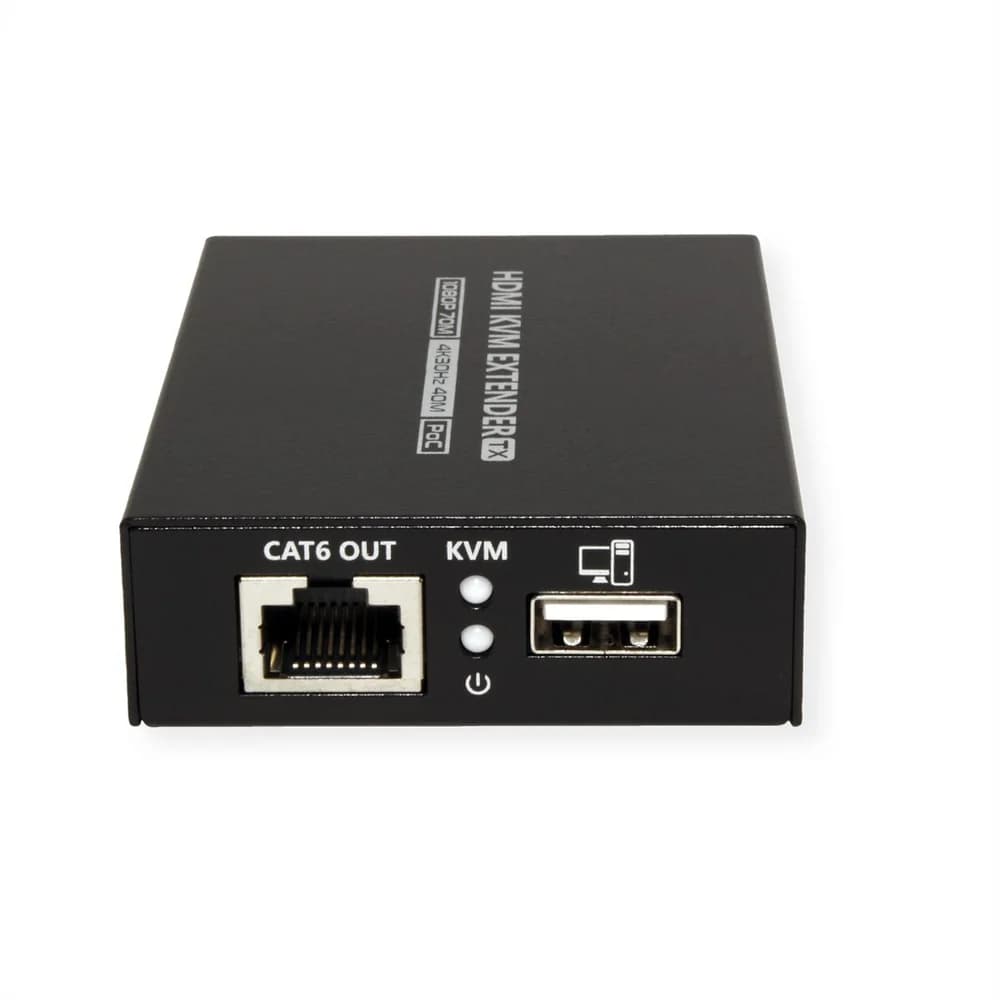

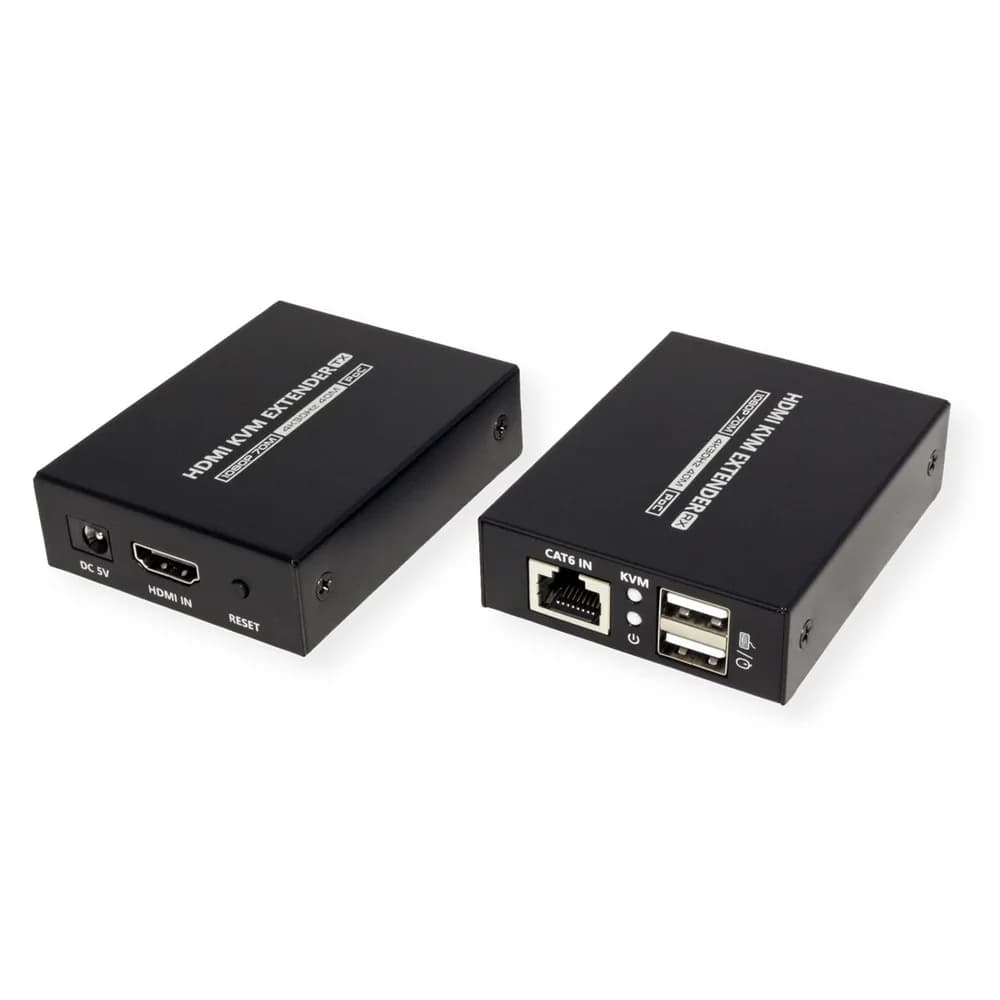

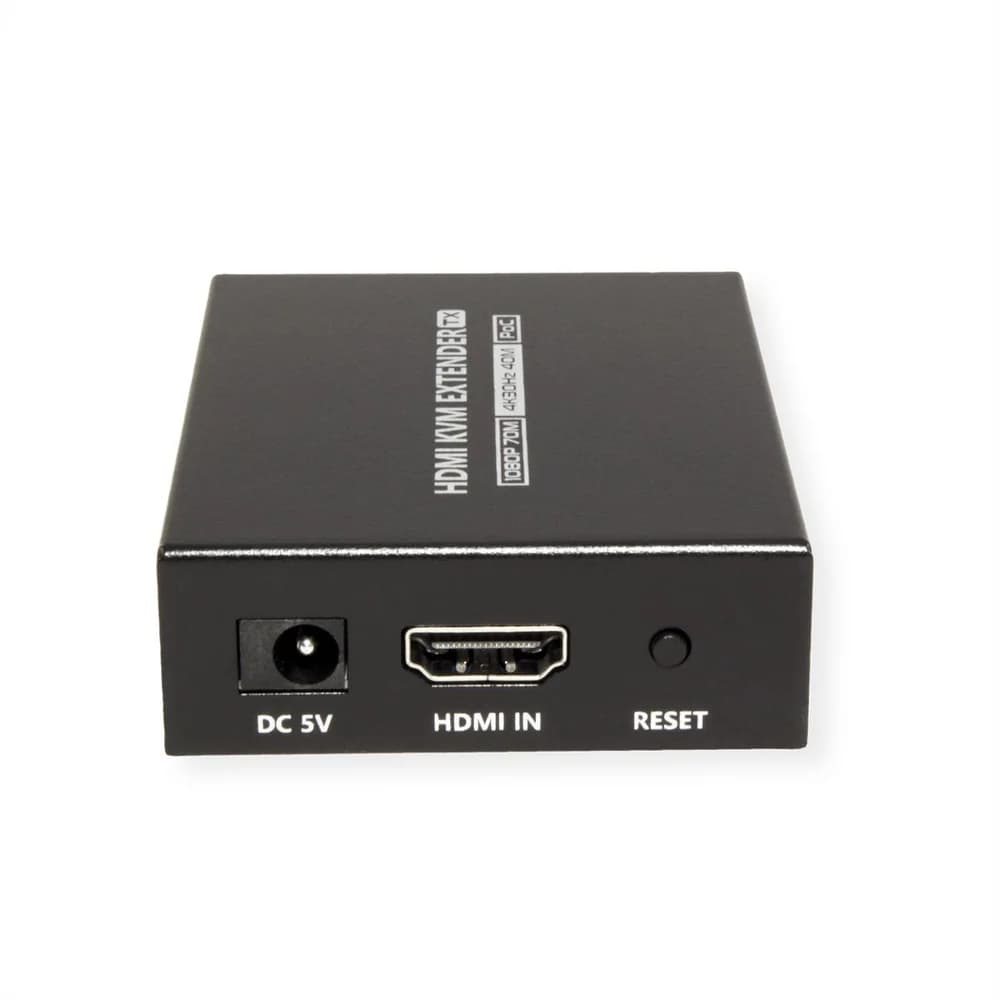

- Transmitter (TX) ports: 1x HDMI, 1x RJ-45, 1x USB A

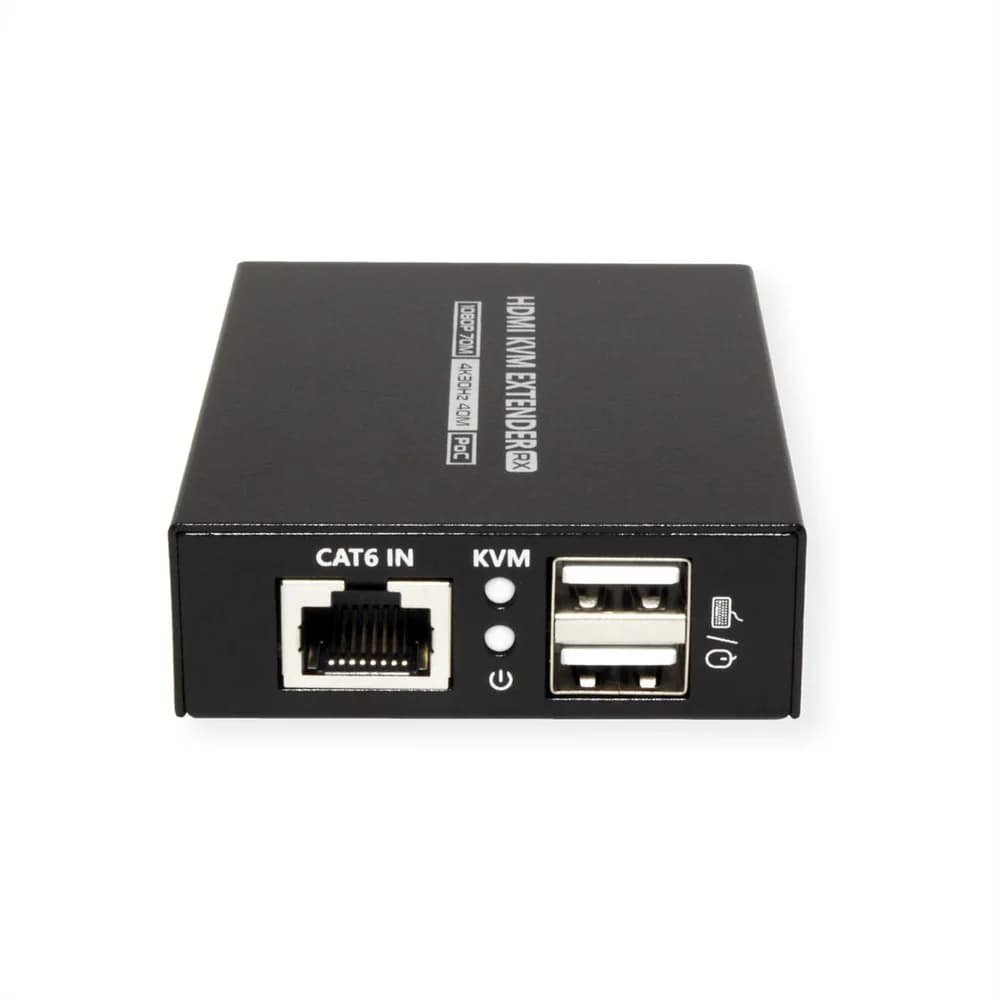

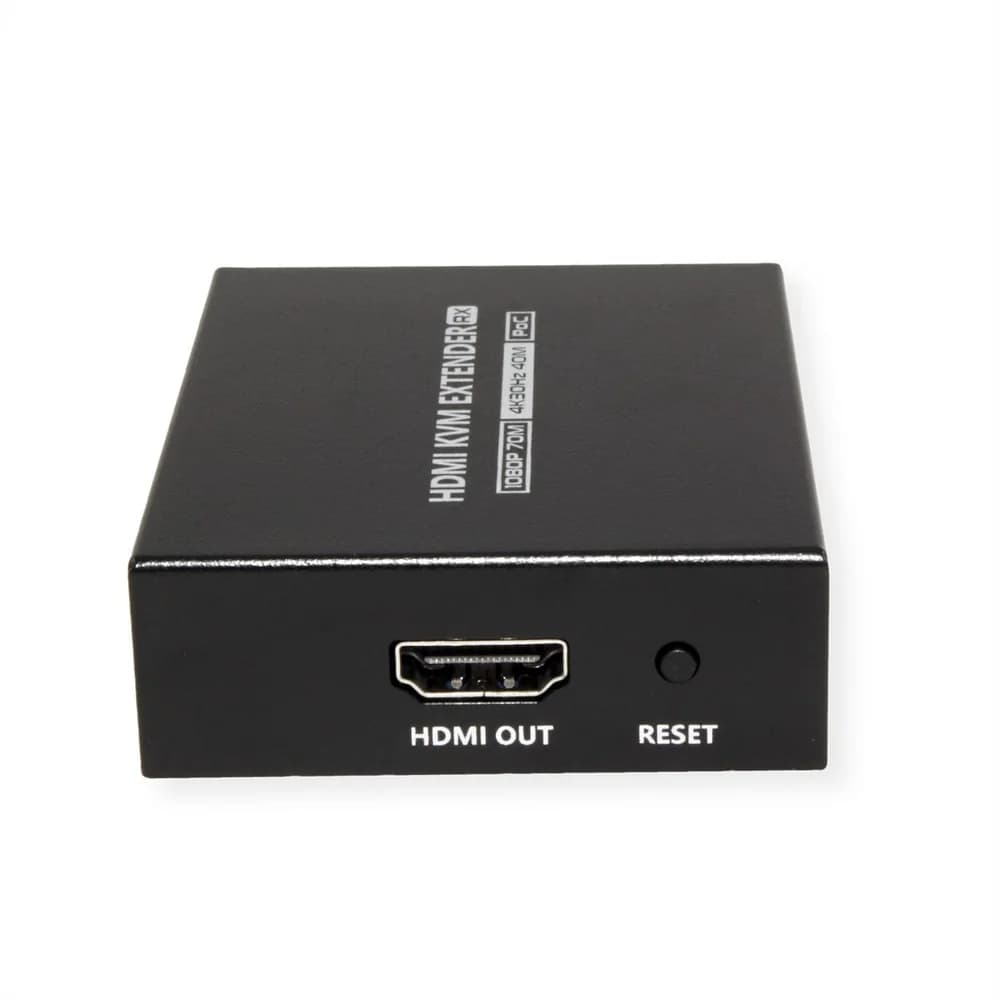

- Receiver (RX) ports: 1x HDMI, 1x RJ-45, 2x USB A
- Dimensions Transmitter/Receiver (each): 20 x 60 x 75 mm
- Weight Transmitter/Receiver (each): 123 g
- Contents: Transmitter, Receiver, Power Supply DC 5V 2A, USB Cable A-A, User Manual
Specifications
Product
- Manufacturer
- VALUE
- Product group
- KVM (IP) extensions
- Product type
- KVM-Extender, HDMI
- Colour
- black
- Scope of delivery
- Transmitter, Receiver, Power Supply DC 5V 2A, USB Cable, User Manual
- Interface
- HDMI
- Inputs
- 2
- Outputs
- 3
- Max. distance
- 40 m
- PC/Switch: monitor connection
- HDMI
- PC/Switch: mouse/keyboard connection
- USB
- Remote Console: Monitor connection
- HDMI
- Remote Console: Mouse/Keyboard connection
- USB
- Max. distance local-remote unit
- 40
- Max. resolution (nominal)
- 3840 x 2160 @30Hz (max.)
- Colour (Design profile)
- black
- Material (casing)
- metal
- Dimensions (HxWxD)
- 20 x 60 x 75 mm
- Power supply unit required
- yes
- Power supply output
- DC 5V 2A
- Mains connection
- Appliance Europlug, Type-C
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 70 °C
- Height
- 20 mm
- Width
- 60 mm
- Depth
- 75 mm
- Weight
- 246 g
Packaging
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 280 mm
- Depth of packaging (single piece)
- 320 mm
- Package weight (single piece)
- 0.5 kg
