VALUE Junction Box Cat.6A (Class EA), UTP
- Item number
- 21.99.3048-25
- Part number
- 21.99.3048
- EAN
- 7611990944040
- Brand
- VALUE
- Weight
- 47.5 g
The VALUE Junction box is used to repair or extend unshielded Cat.6a cables With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed Equipped with the modern…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

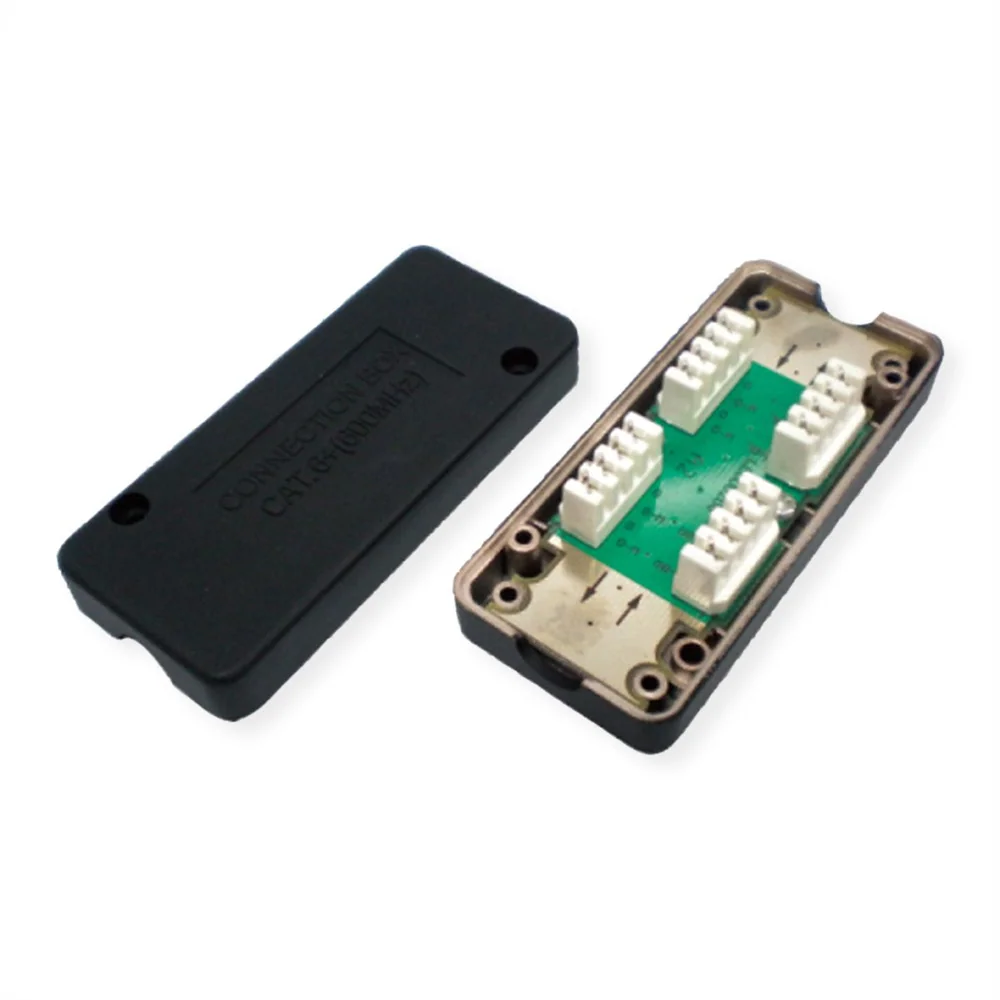

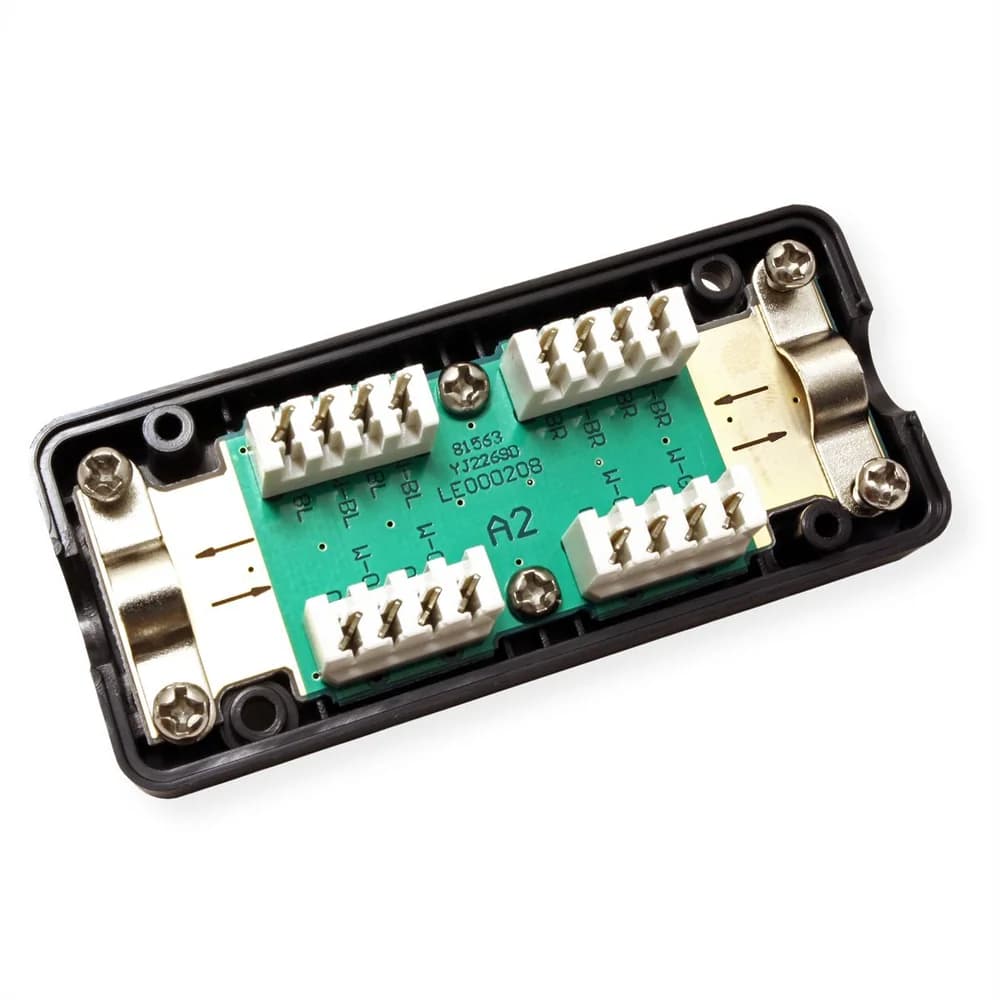

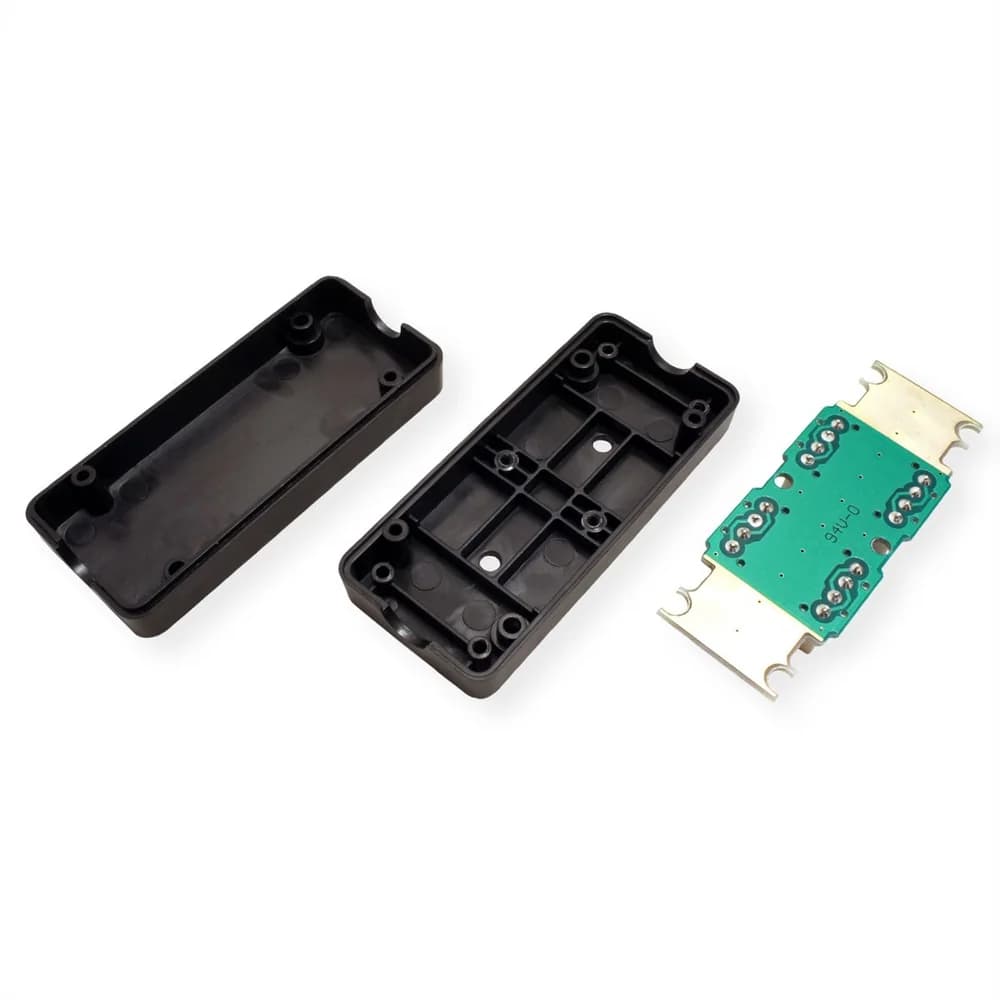

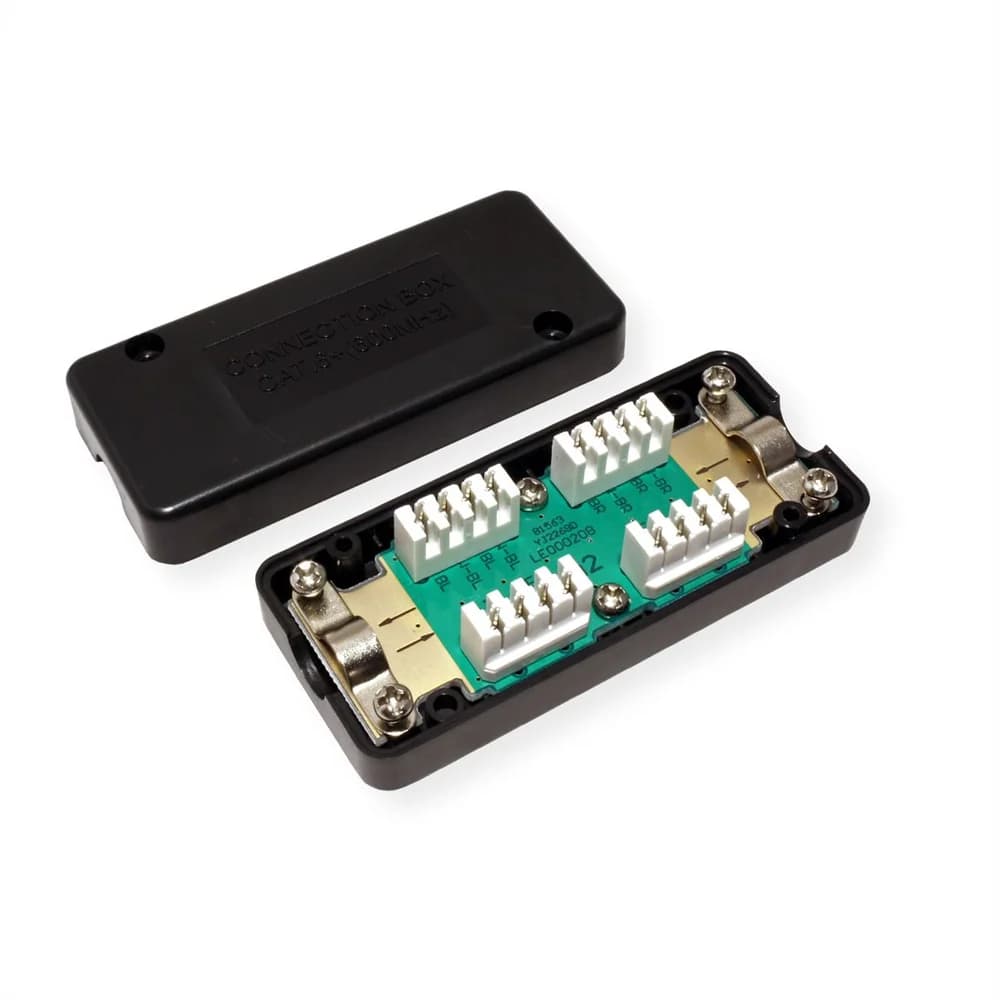

- The VALUE Junction box is used to repair or extend unshielded Cat.6a cables
- With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Network junction box
- Colour
- black
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568B
- Shield contacts
- No
- separate strain relief
- no
- Connection direction
- Straight
- Dimensions (HxWxD)
- 23 x 37 x 84 mm
- Height
- 23 mm
- Width
- 37 mm
- Depth
- 84 mm
- Weight
- 47.5 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 40 mm
- Depth of packaging (single piece)
- 90 mm
- Package weight (single piece)
- 0.01 kg
