VALUE IP Power Strip, 8-way
- Item number
- 19.99.3420-2
- Part number
- 19.99.3420
- EAN
- 7630049690349
- Brand
- VALUE
- Weight
- 1638.8 g
The VALUE IP power strip provides the on/off-switching of electrical devices over a TCP/IP network. Easily connect the VALUE IP power strip to a power supply system and the network. After allocating a free IP address,…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

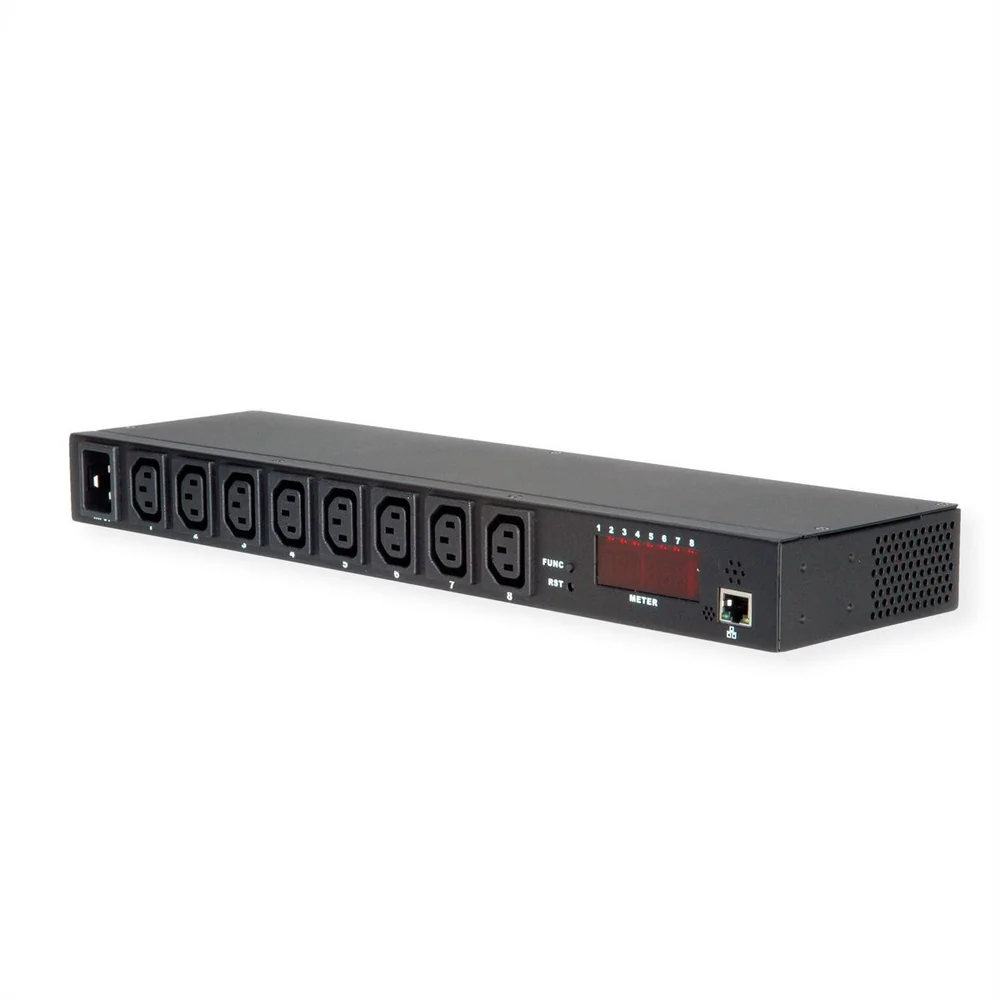

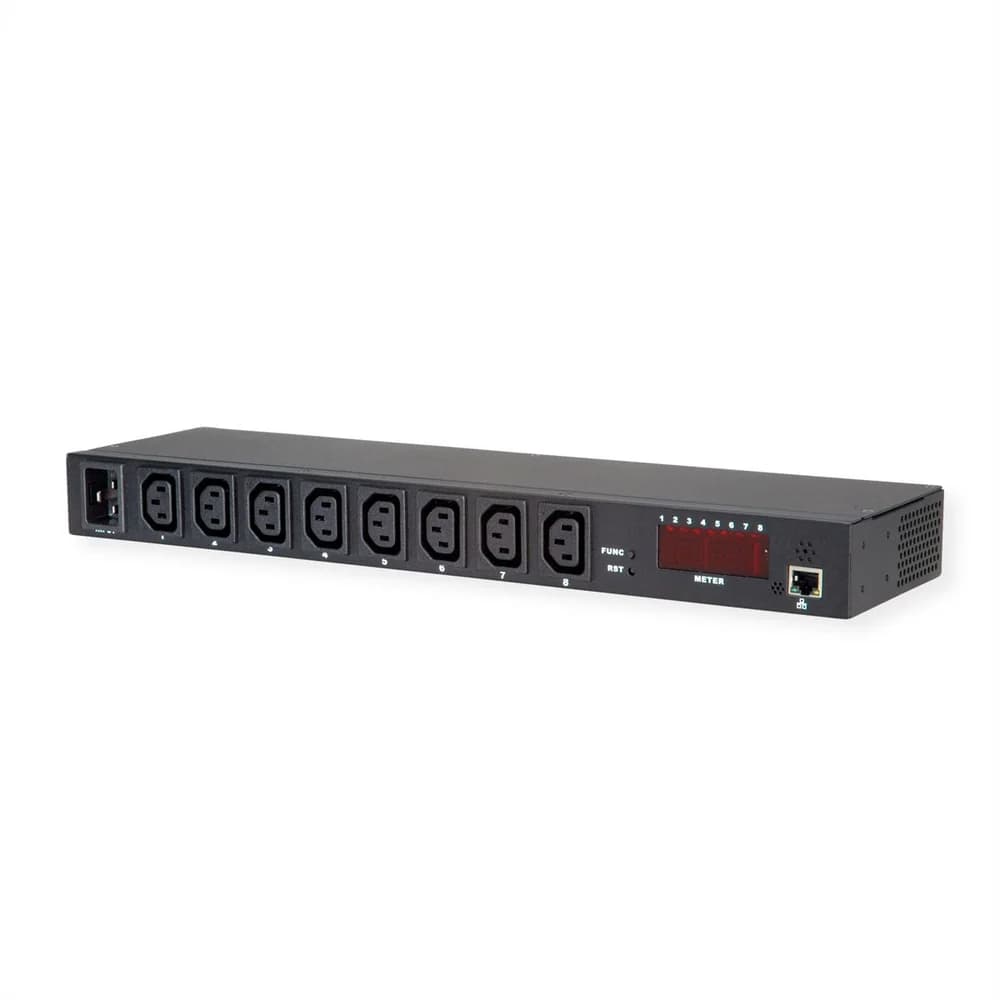

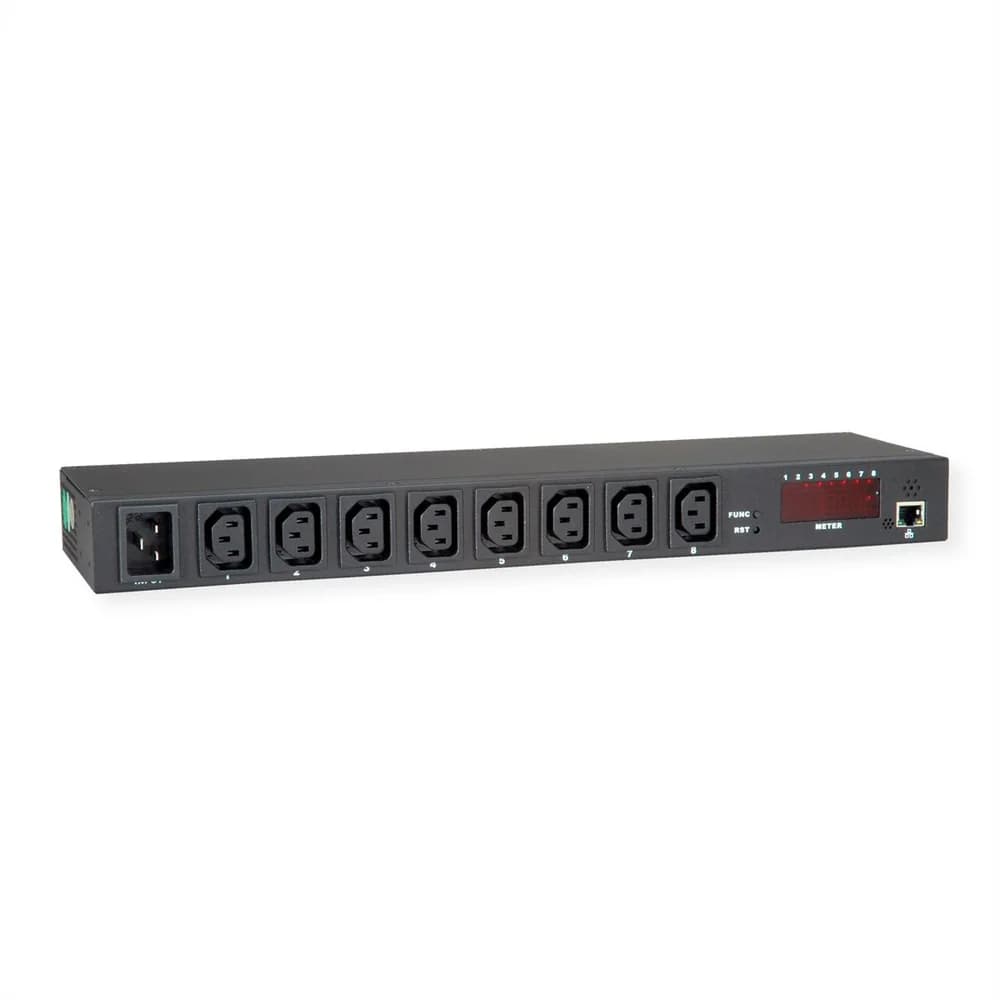

The VALUE IP power strip provides the on/off-switching of electrical devices over a TCP/IP network. Easily connect the VALUE IP power strip to a power supply system and the network. After allocating a free IP address, every single port can be independantly switched with every common webbrowser.
- For installation in a 19" cabinet, hight: 1U
- Easy and quick plug & play installation
- Easy and flexible configuration over a webbrowser
- IP adress fix or over DHCP
- Built-in temperature and humidity sensor to monitor your used infrastructure
- Setting of the circuit delay time for On/Off function of each C13 port to prevent the impact of power surge to the system
- LED indication for power status of every port
- Digital display for total power
- Automatic circuit breaker protection
- Technical data:
Output: 8x IEC320 C13 (10A)
Input: 1x IEC320 C20 (16A)
Rocker switch: Back side, lighted, 2-pole
Indication: 8 LEDs
Protocol: http
Addressing: DHCP or constant IP address
Dimensions (WxDxH): 430 x 90 x 44
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Power Bars
- Product type
- IP Power Switch
- Colour
- black
- Length
- 1.8 m
- Scope of delivery
- IP power bar
- Function
- remote switching over IP
- Mounting form
- 19" Rackmount
- Max. capacitance
- 3600W
- Max. voltage
- 230V
- ON/OFF Switch
- yes
- Switch type
- IP
- Number of socket pots
- 8
- Quantity of outputs/angles
- 8 / straight
- Output alignment
- straight, backside
- Socket type
- IEC320 C13, 10A
- Material (casing)
- metal
- Colour (Design profile)
- black
- Connection cable
- IEC320 C20
- Colour (Cable)
- black
- Plug type
- IEC320 C20, 16A
- Over current protection
- yes
- Height
- 44 mm
- Width
- 430 mm
- Depth
- 90 mm
- Weight
- 1638.8 g
Packaging
- Height of packaging (single piece)
- 110 mm
- Width of packaging (single piece)
- 210 mm
- Depth of packaging (single piece)
- 500 mm
- Package weight (single piece)
- 2.25 kg
