VALUE HDMI Splitter, 1x2, 4K60Hz

This 4K@60Hz HDMI Splitter1x2 allows you to share two HDMI displays or projectors with an HDMI-enabled audio/video source device. It is backwards compatible with previous HDMI revisions and therefore also supports HDMI devices with 1080p / 720p video resolution. It has three different EDID modes: Auto/Copy/Downscaler.

• Duplicates a HDMI video signal to two HDMI video signals with a resolution of up to 4K@60Hz

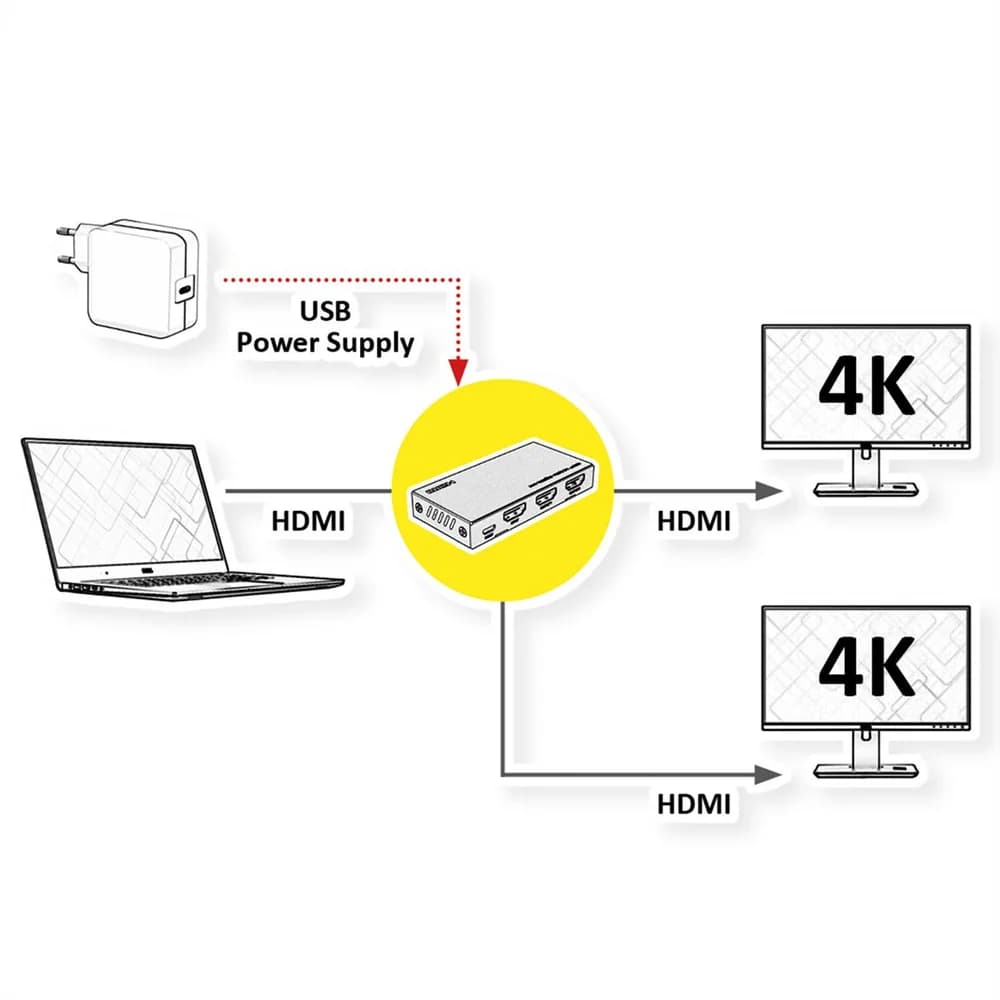

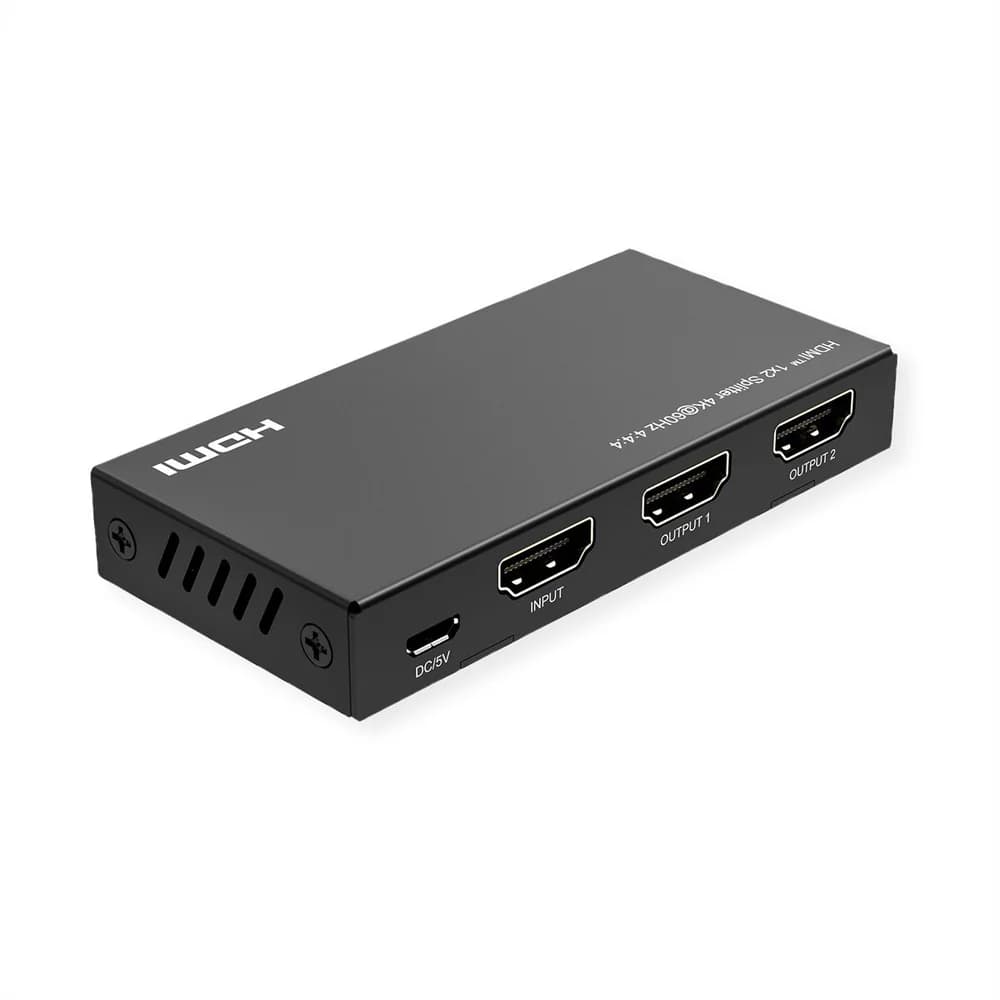

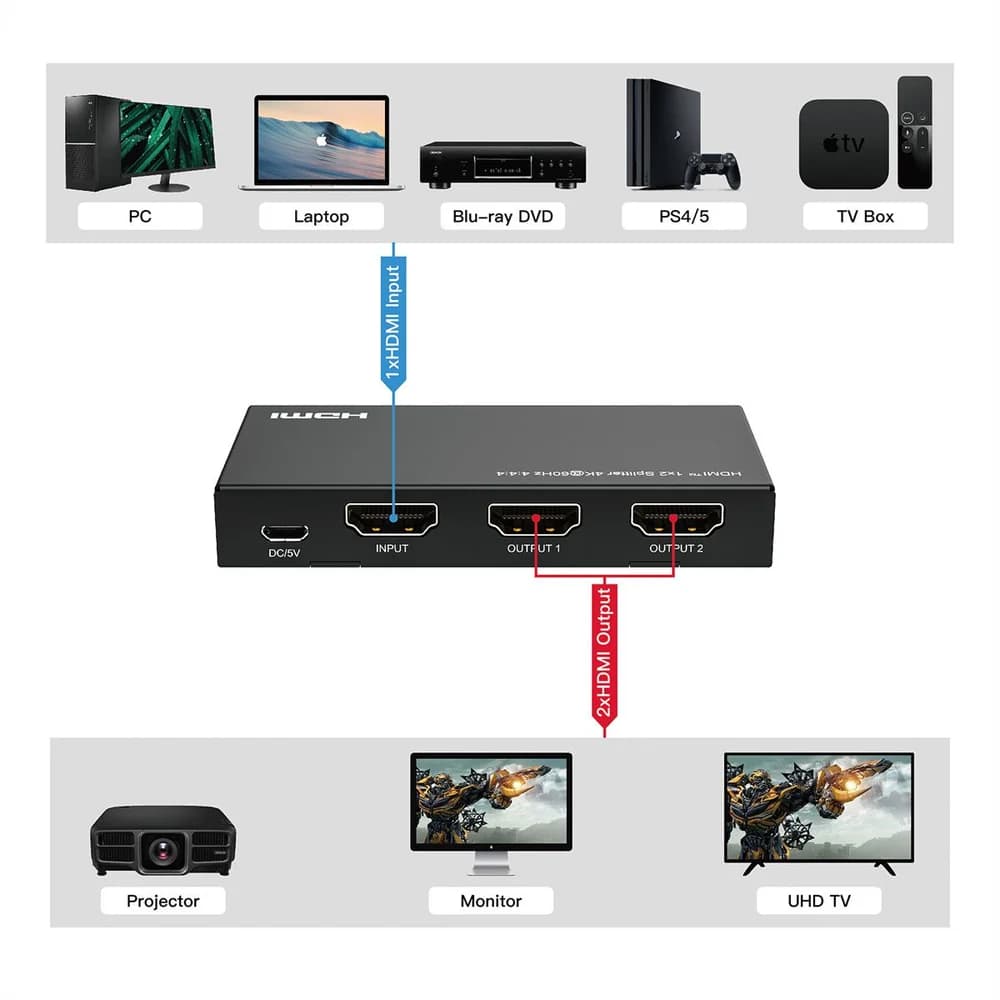

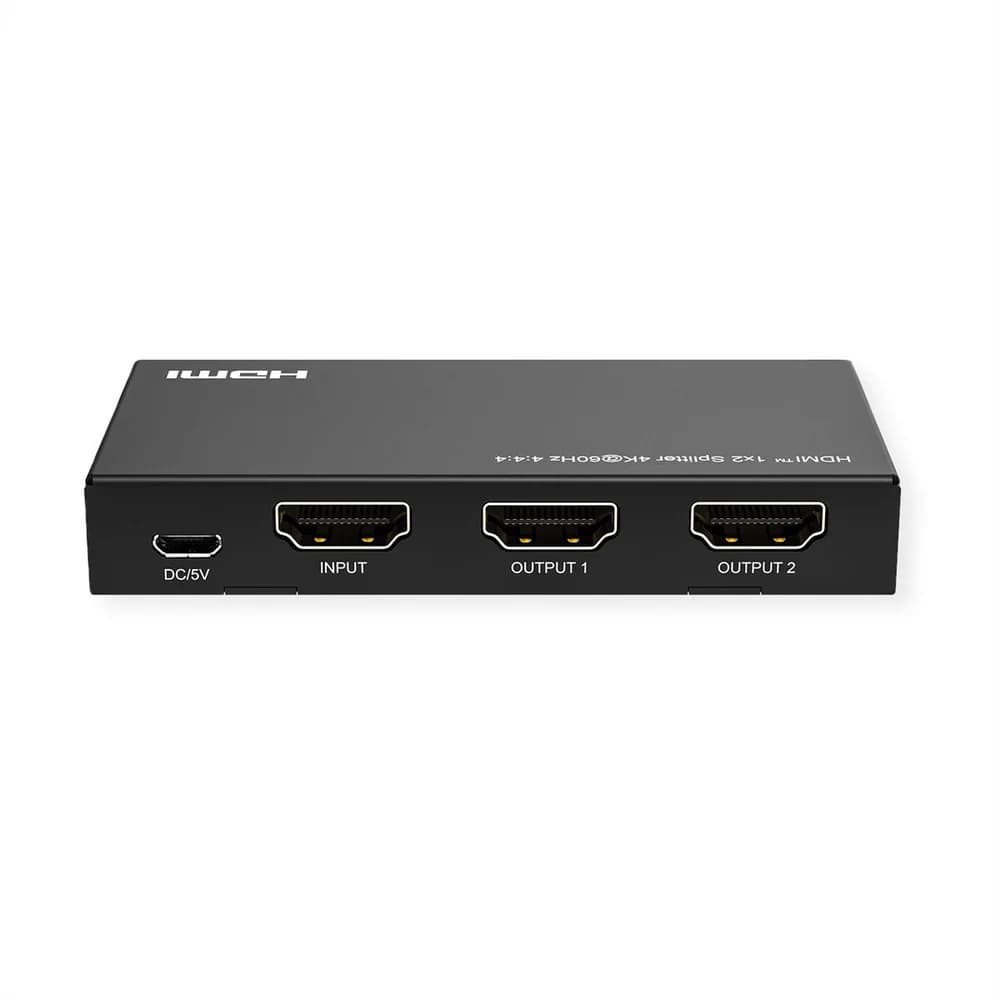

• Connectors: 1 HDMI Input (e.g. DVD-player) and 2 HDMI outputs
• Supports max. 3840 x 2160 @60Hz
• Plug & play, easy to install and simple to operate
• No software installation required

High resolution up to 4K@60Hz YUV 4:4:4 and full 3D video format
HDCP 2.2 and HDCP 1.4 / High Dynamic Range (HDR) video.
600MHz/6Gbps per channel (18Gbps all channels) bandwidth / 12bit per channel (36bit all channels) deep color.
Uncompressed audio such as LPCM.
Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby Tru

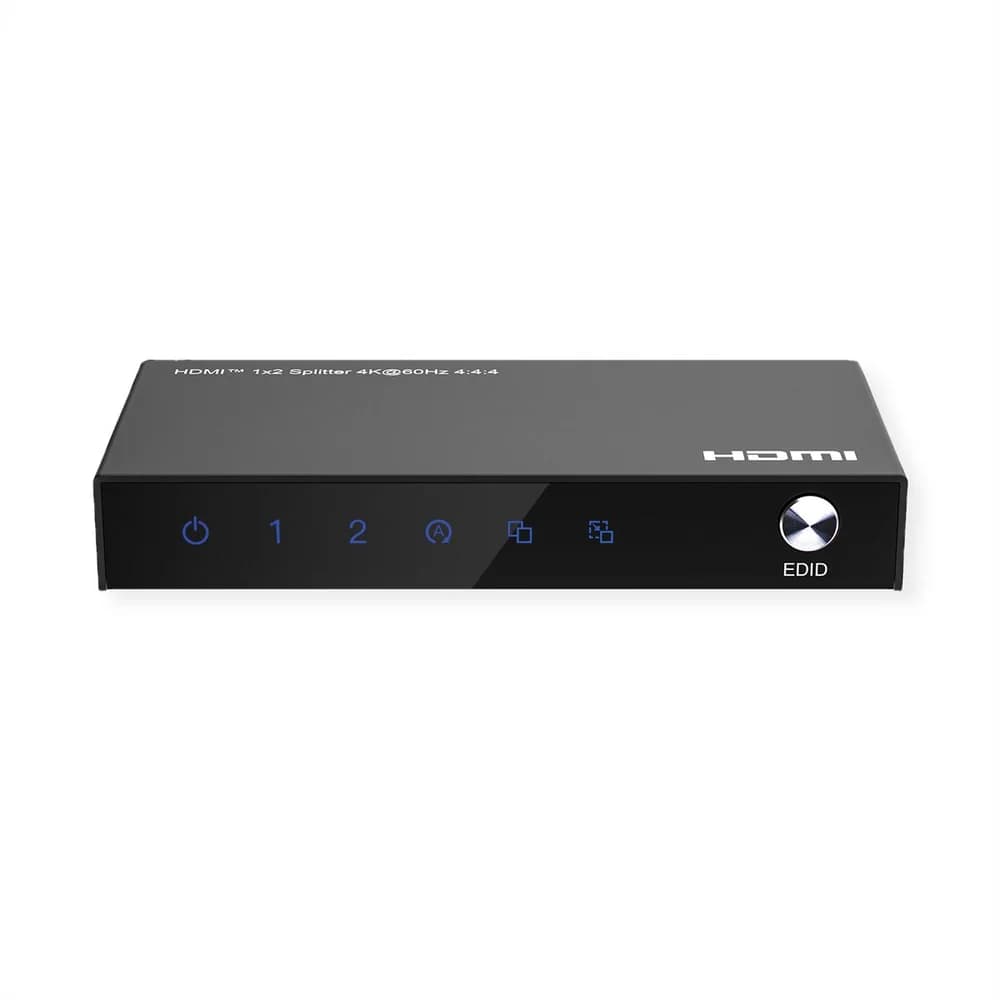

3 different EDID modes - Auto/Copy/Downscaler.

1. Normal Auto EDID Mode:
Retrieves the lower resolution and audio format of both outputs for the input device to output that signal to both outputs.

2. Copy EDID Mode:
Copies the resolution and audio format of output 1 for the input device to output that signal to both outputs.

3. Downscaler EDID Mode:
Mixed resolutions are supported. For two screens with same refresh rates, but different resolutions, one of the two output signals can be
downscaled from 4K to 1080p.
