VALUE HDMI Extender over Twisted Pair, 60m
- Item number
- 14.99.3569-2
- Part number
- 14.99.3569
- EAN
- 7630049673403
- Brand
- VALUE
- Weight
- 234 g
With this VALUE HDMI Extender Kit, you can extend HDMI Audio/Video signals up to 60 meters over a single CAT6 cable with a Full HD 1920 x 1080 @60Hz resolution. The Extender Kit includes both the local transmitter and…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

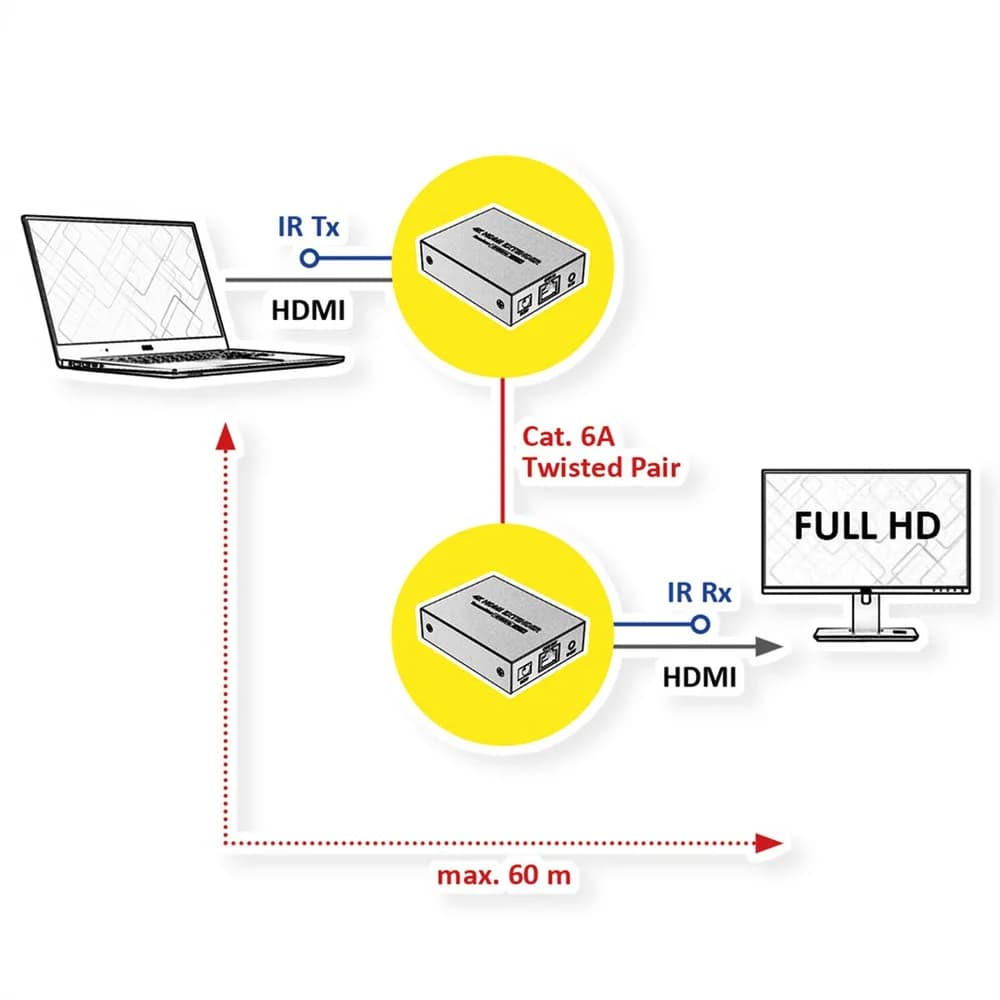

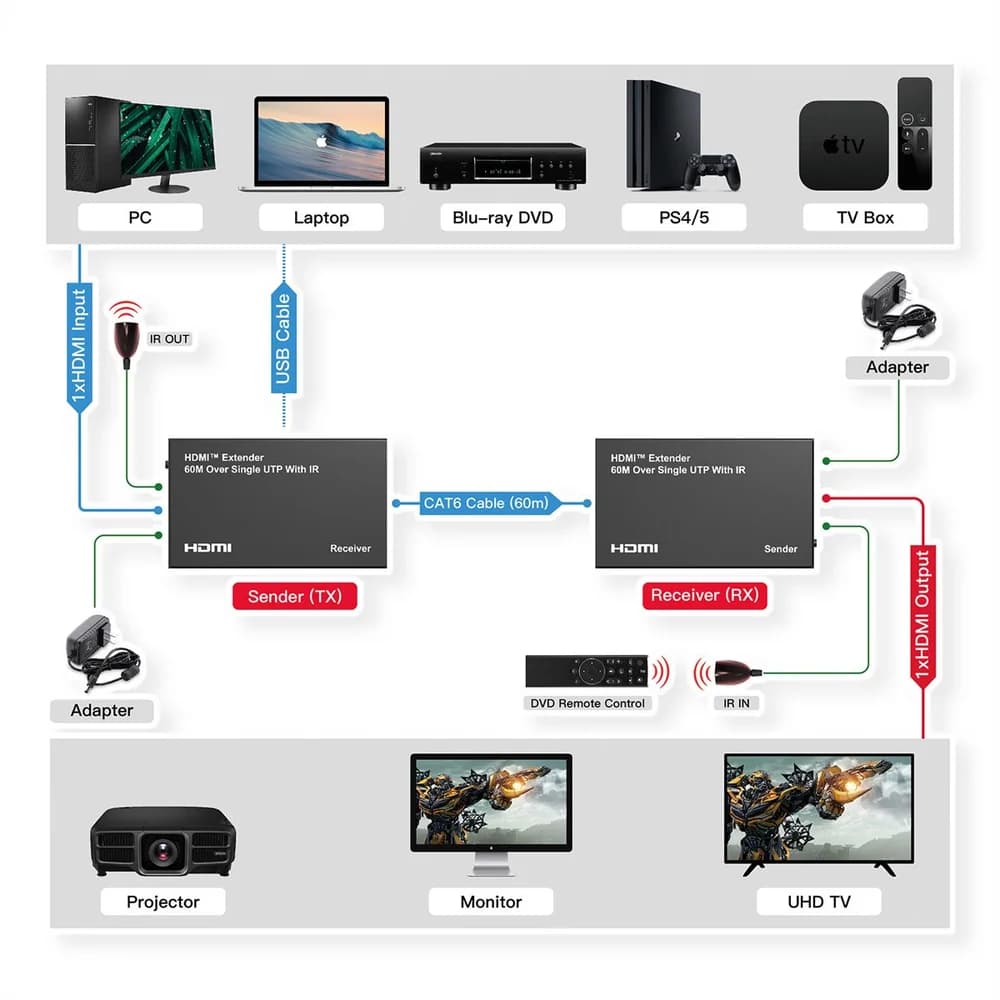

With this VALUE HDMI Extender Kit, you can extend HDMI Audio/Video signals up to 60 meters over a single CAT6 cable with a Full HD 1920 x 1080 @60Hz resolution. The Extender Kit includes both the local transmitter and the remote receiver and is perfect for point-to-point digital signage applications that require high HDMI video quality. The extender can also transmit signals from remote controls - ideal for controlling your video source from your video destination.
- Transmission distance up to 60 meters by using a Cat 6 cable or higher
- Max. resolution Full HD 1920 x 1080 @60Hz
- Supports transmitting lossless uncompressed A/V signal
- IR signal transmission for convenient remote control of the source device
- Supports 3D video format
- Stable metal casing
- Power supply included in delivery
- Receiver is powered via the transmitter
- Weight: Transmitter / Receiver (each) 117 g
- Contents: 1x Transmitter, 1x Receiver, 1x Power Supply DC 5V 1A, 1x IR TX Cable, 1x IR RX Cable, 4x Mounting Ears, 1x User Manual
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Video Extender
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- 1x Transmitter, 1x Receiver, 1x Power Supply DC 5V 1A, 1x IR TX Cable, 1x IR RX Cable, 4x Mounting Ears, 1x User Manual
- Interface
- HDMI
- Inputs
- 1
- Outputs
- 1
- Max. distance
- 60 m
- Video input
- HDMI
- Video output
- HDMI
- Max. resolution (nom.)
- Supports 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
- Max. resolution
- 1920 x 1080 @60Hz (2K, Full HD)
- Dimensions (HxWxD)
- 26 x 48 x 84 mm
- Power supply unit
- 1x
- Power supply output
- DC 5V 1A
- Technical particularity
- Extends the signal up to 60m
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Storage temperature min.
- -10 °C
- Storage temperature max.
- 80 °C
- Height
- 26 mm
- Width
- 48 mm
- Depth
- 84 mm
- Weight
- 234 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 190 mm
- Depth of packaging (single piece)
- 210 mm
- Package weight (single piece)
- 0.65 kg
