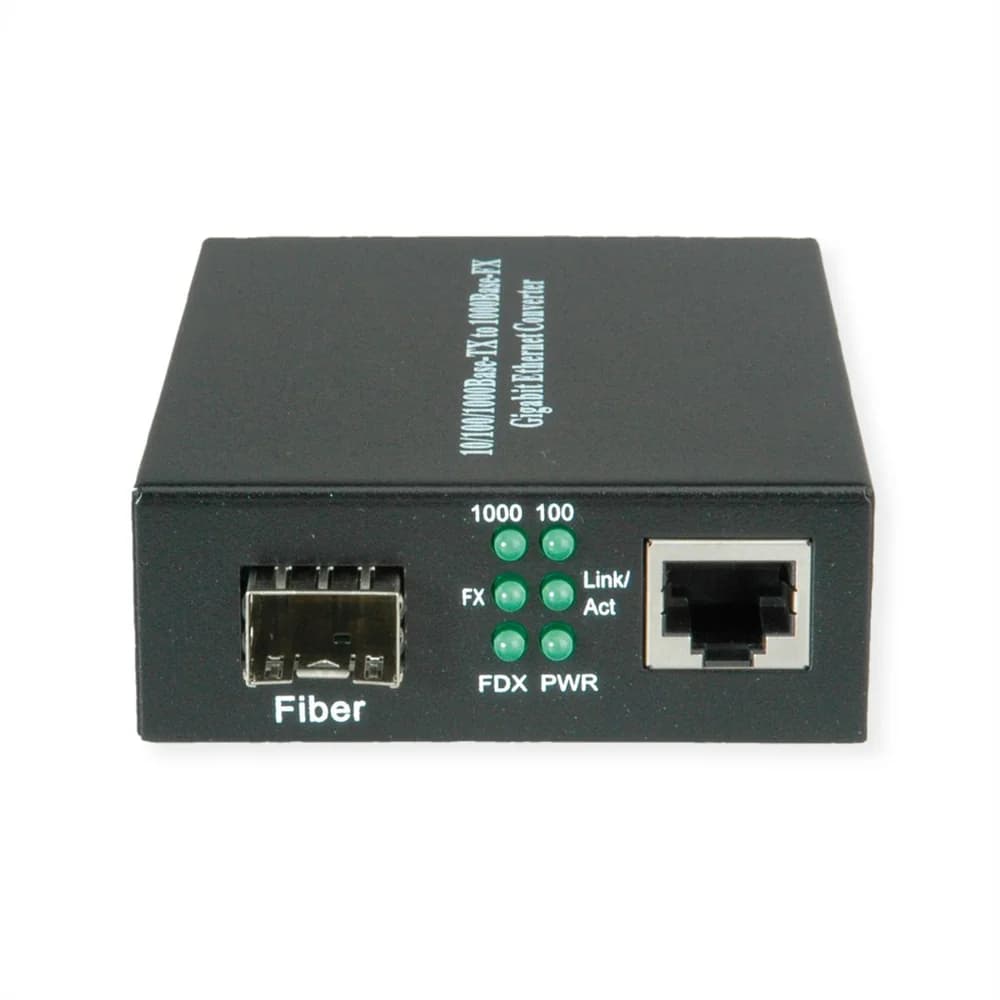

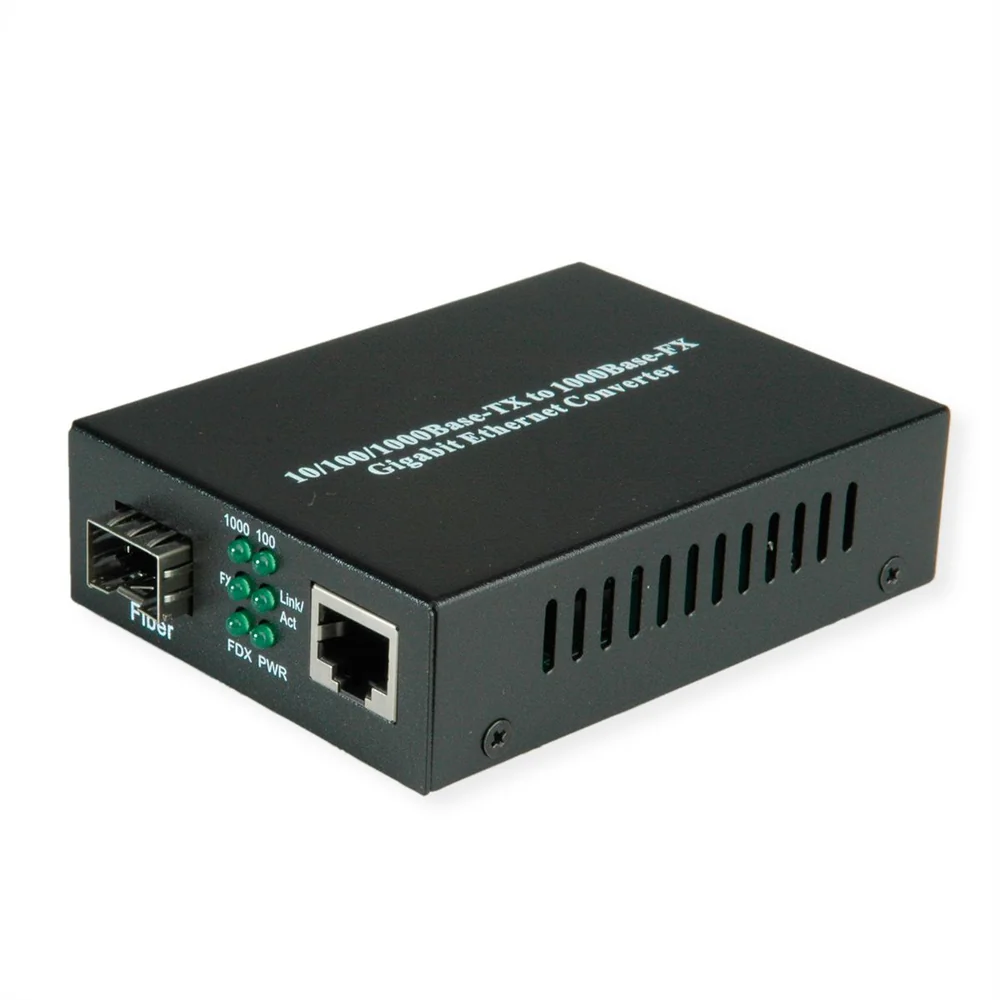

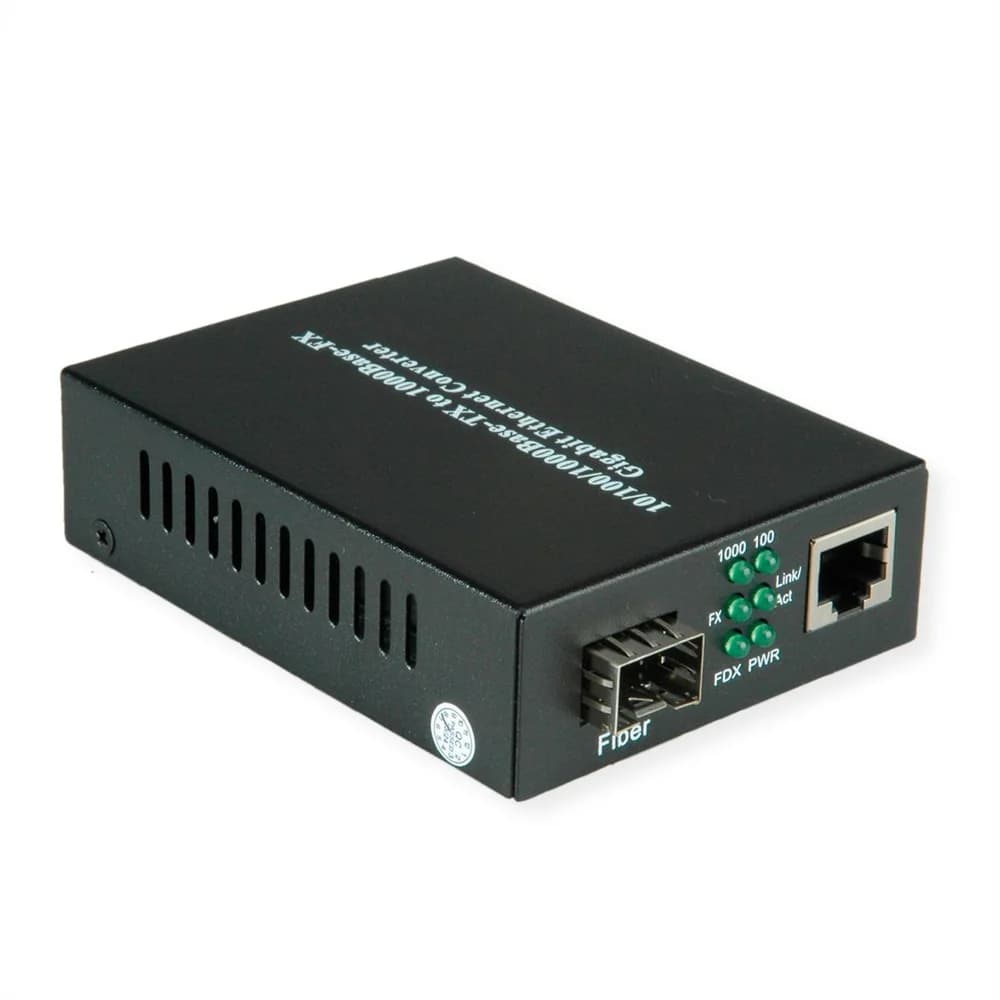

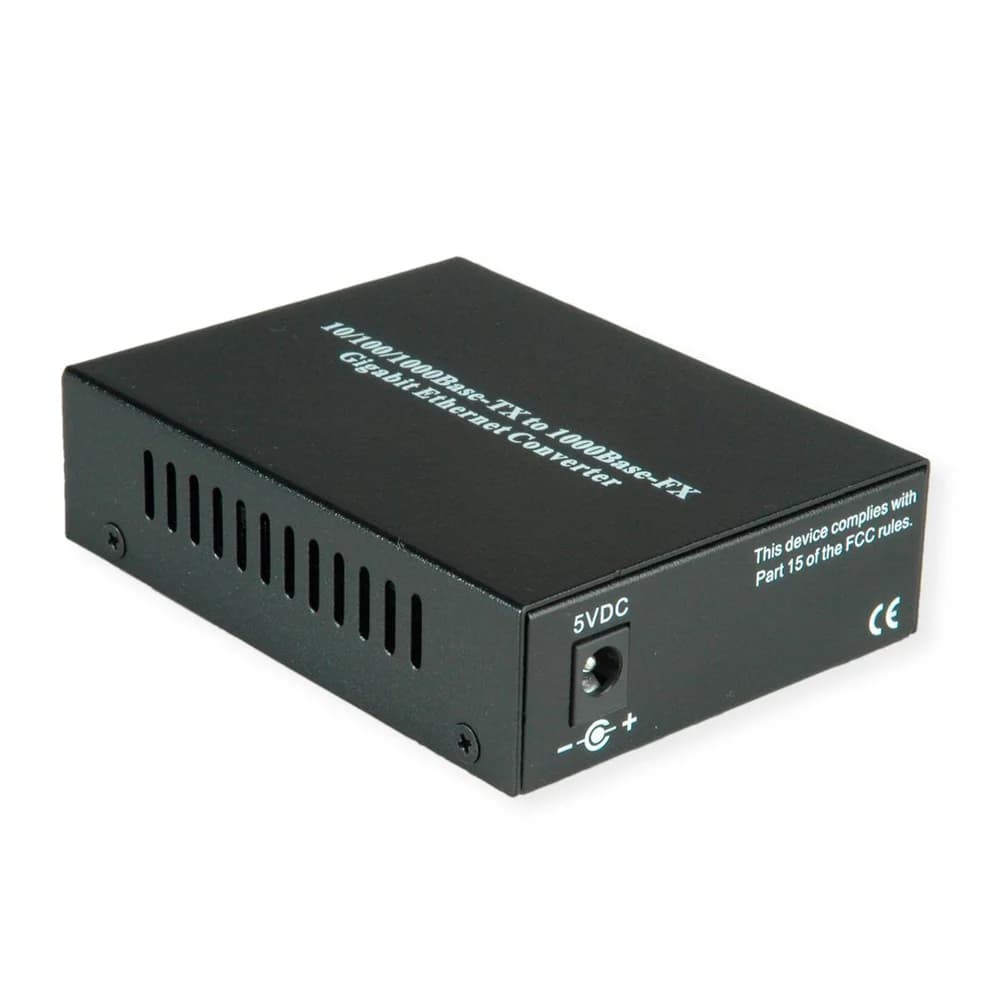

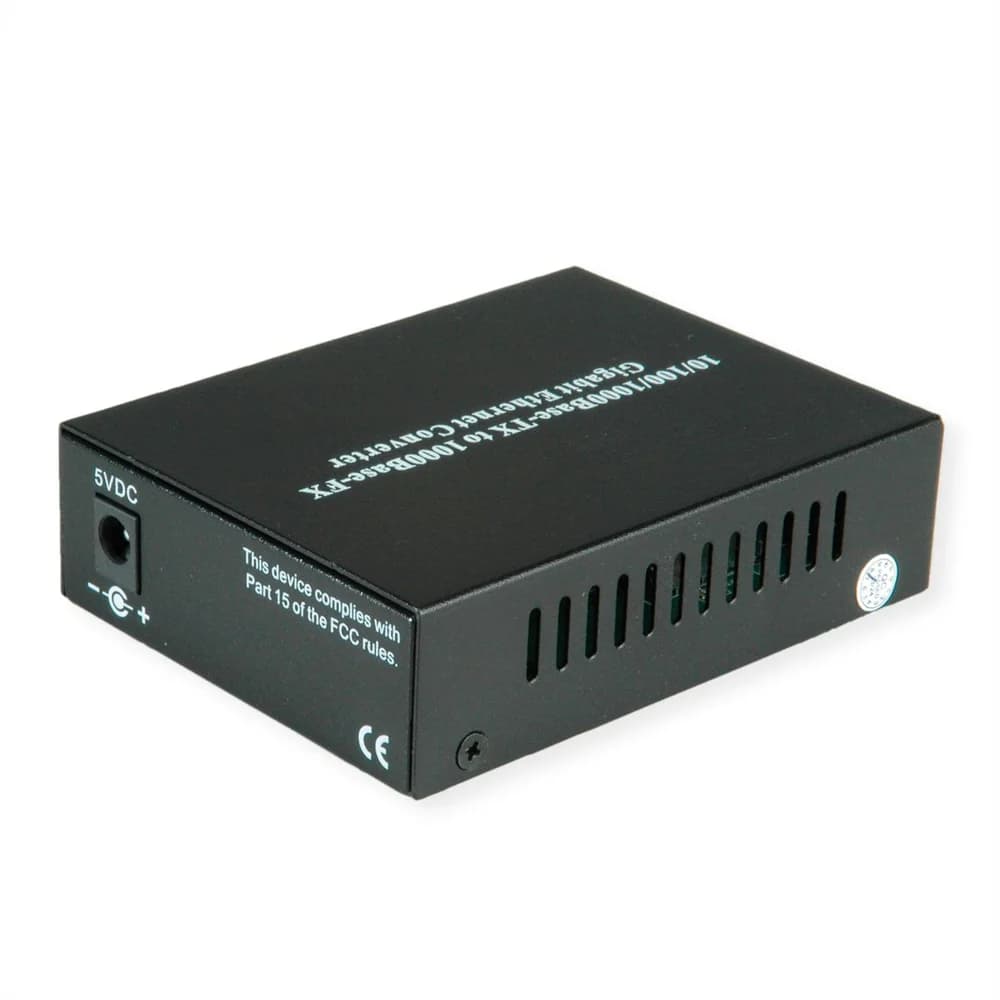

VALUE Gigabit Ethernet Media Converter
- Item number
- 21.99.1199-10
- Part number
- 21.99.1199
- EAN
- 7630049688629
- Brand
- VALUE
- Weight
- 243 g
Converts a 10/100/1000 Mbit/s TP port to Gigabit Ethernet fiber - single mode or multimode, depending on the SFP used
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Converts a 10/100/1000 Mbit/s TP port to Gigabit Ethernet fiber - single mode or multimode, depending on the SFP used
- Supports full wire speed conversion for 10/100/1000 Mbit/s speed and media types
- Protocols: IEEE802.3 Ethernet / IEEE802.3i 10Base-Tx / IEEE802.3u 100Base-Tx/Fx / IEEE802.3z 1000Base-X / IEEE802.3ab 1000Base-Tx / IEEE802.3x Flow control
- TP port:
- Shielded RJ-45 jacks with auto MDI/MDI-X detection
- Auto-negotiation for speed and duplex auto detection
- Speed for 10/100/1000 Mbit/s, Full/half-duplex support
- FX port:
- Forced 100Mbit/s, Full-duplex
- For multimode fibre cable: 62.5/125µm and 50/125µm
- Low power consumption: 3W
- Power over included power supply (5VDC, 1A)
- Remark: The converters do not offer a repeater function!
- Contents: Converter, power supply, manual
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Network converters
- Product type
- Network Media Converters
- Colour
- black
- Scope of delivery
- Converter, power supply (5V DC, 1000mA), manual
- RJ-45 Port (Mbps/s)
- 10/100/1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Quantity of fibre LC ports
- 1
- Converts to
- RJ-45/LC
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 65 °C
- Height
- 26 mm
- Width
- 71 mm
- Depth
- 94 mm
- Weight
- 243 g
Packaging
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 80 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.32 kg
