VALUE Field Plug Cat.6 (Class E), STP
- Item number
- 26.99.0371-50
- Part number
- 26.99.0371
- EAN
- 7630049690073
- Brand
- VALUE
- Weight
- 20.3 g
Fast and easy tool-free installable shielded RJ45 connector Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7 Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable…
Description

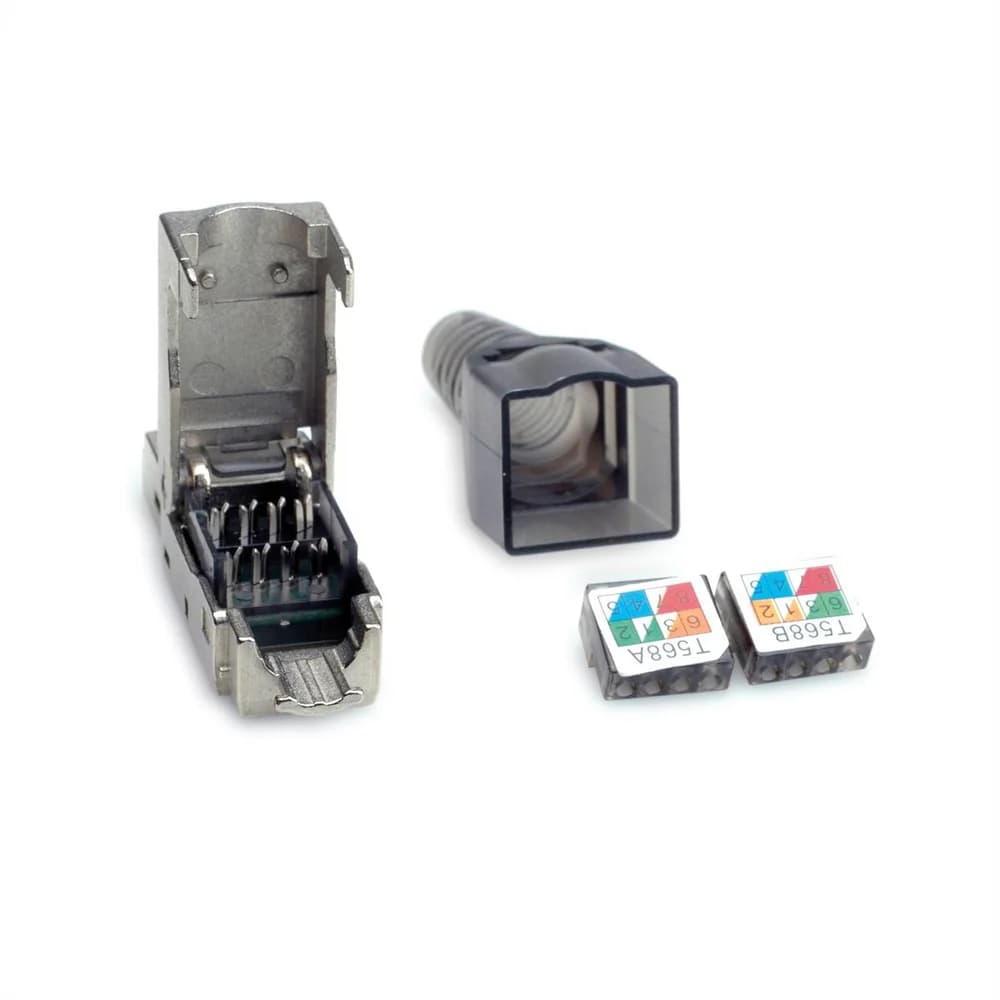

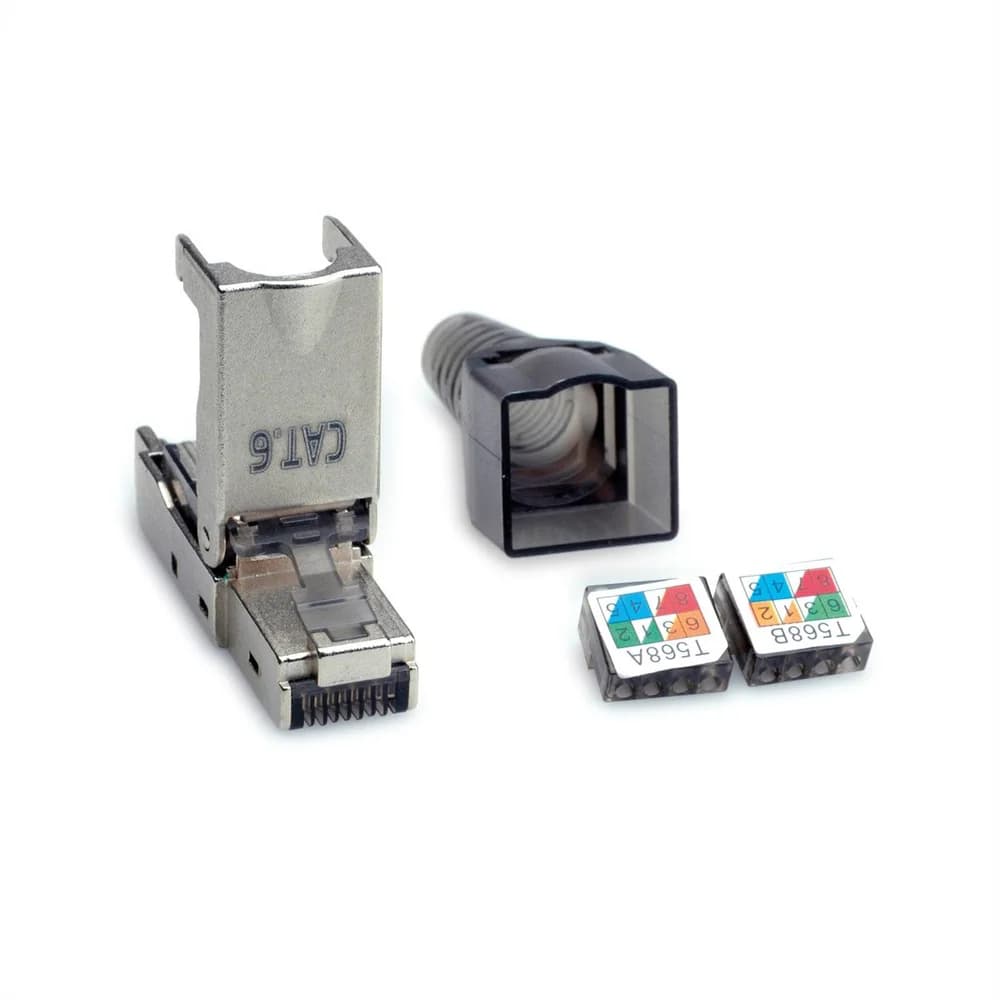

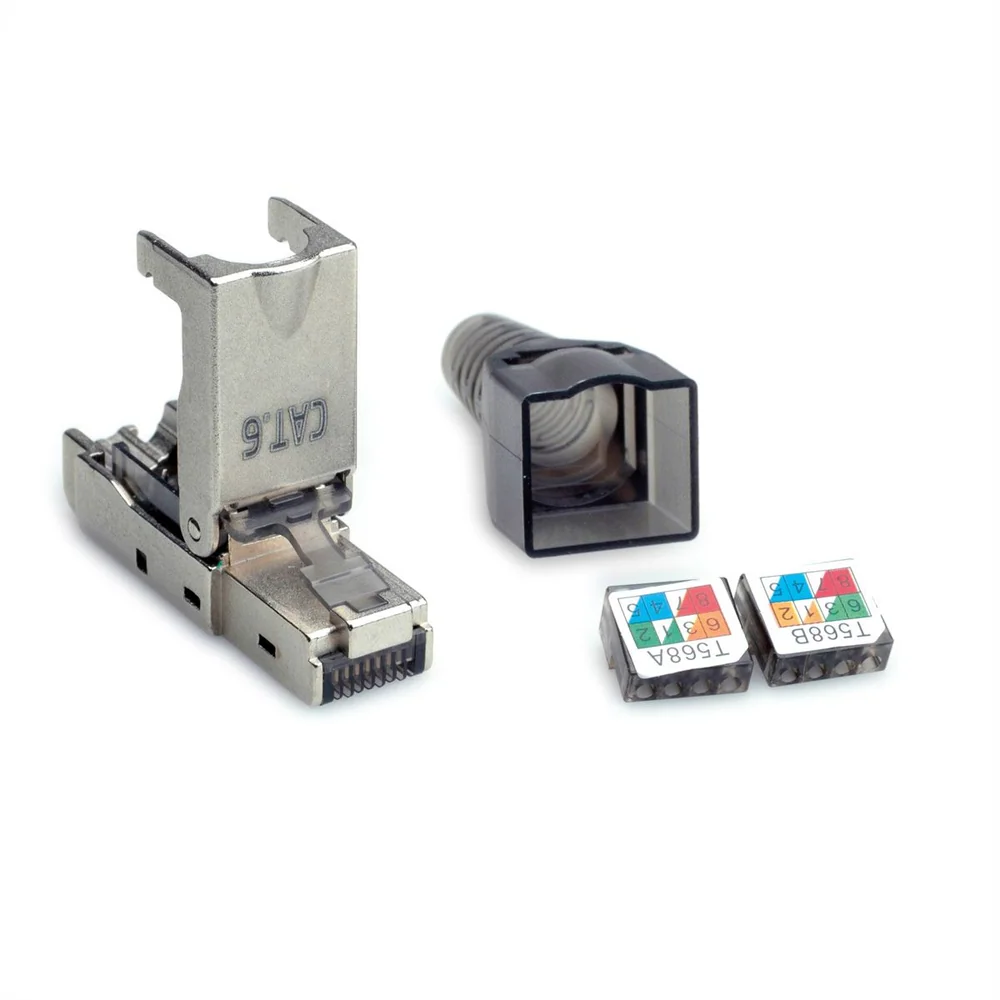

- Fast and easy tool-free installable shielded RJ45 connector
- Cat.6/Class E performance according to ISO/IEC11801 and IEC60603-7
- Compact cable manager for round Solid cable AWG 23-26(1/0.41-1/0.575mm) and stranded cable AWG 24-26(7/0.16-7/0.20mm)
- For cable with outer diameter OD: 6.0 - 9.0mm

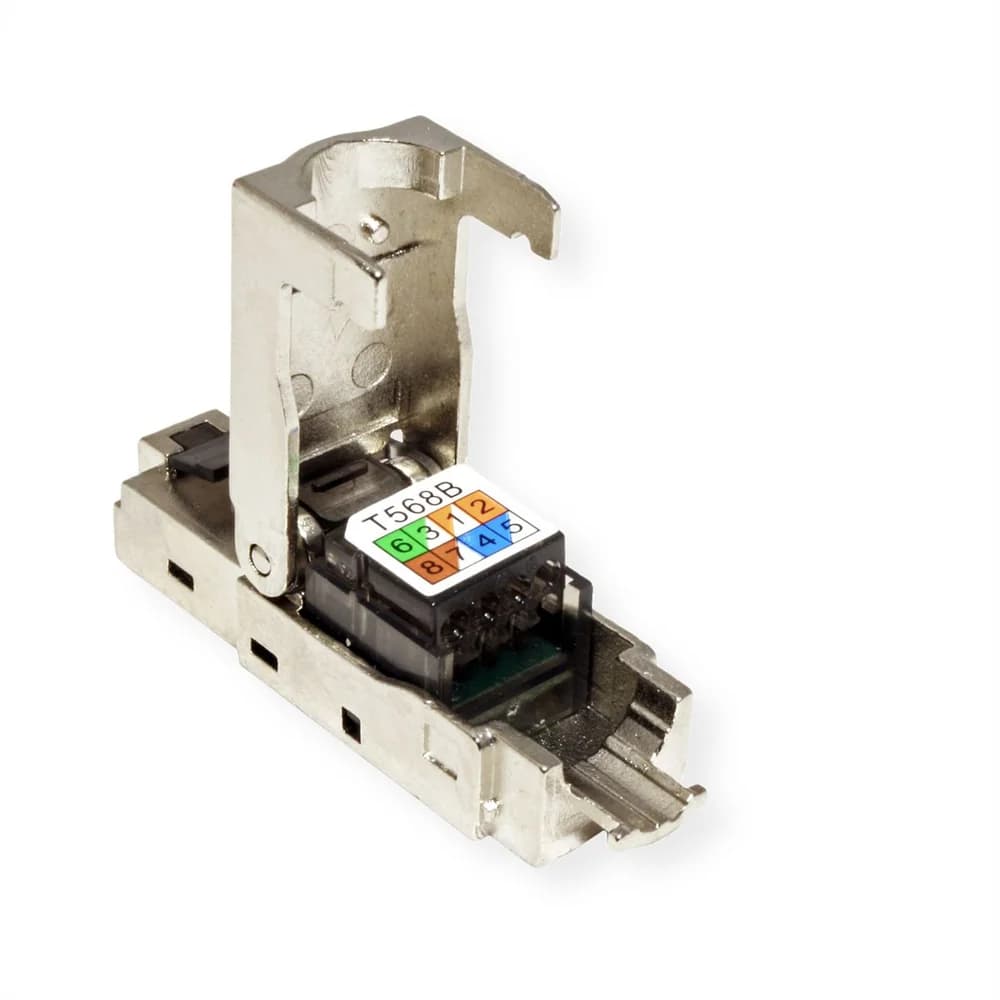

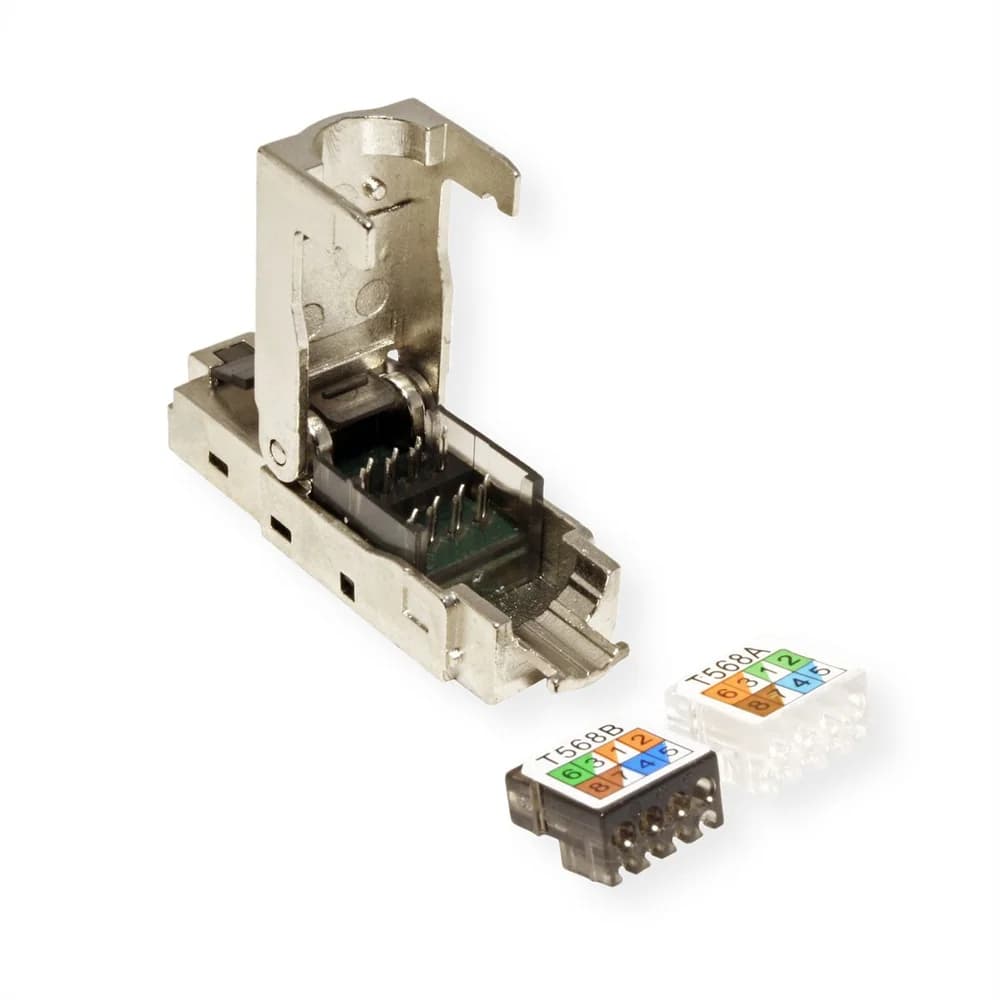

- Pair management according to TIA 568B and TIA 568A colour codes
- Robust zinc die-cast housing

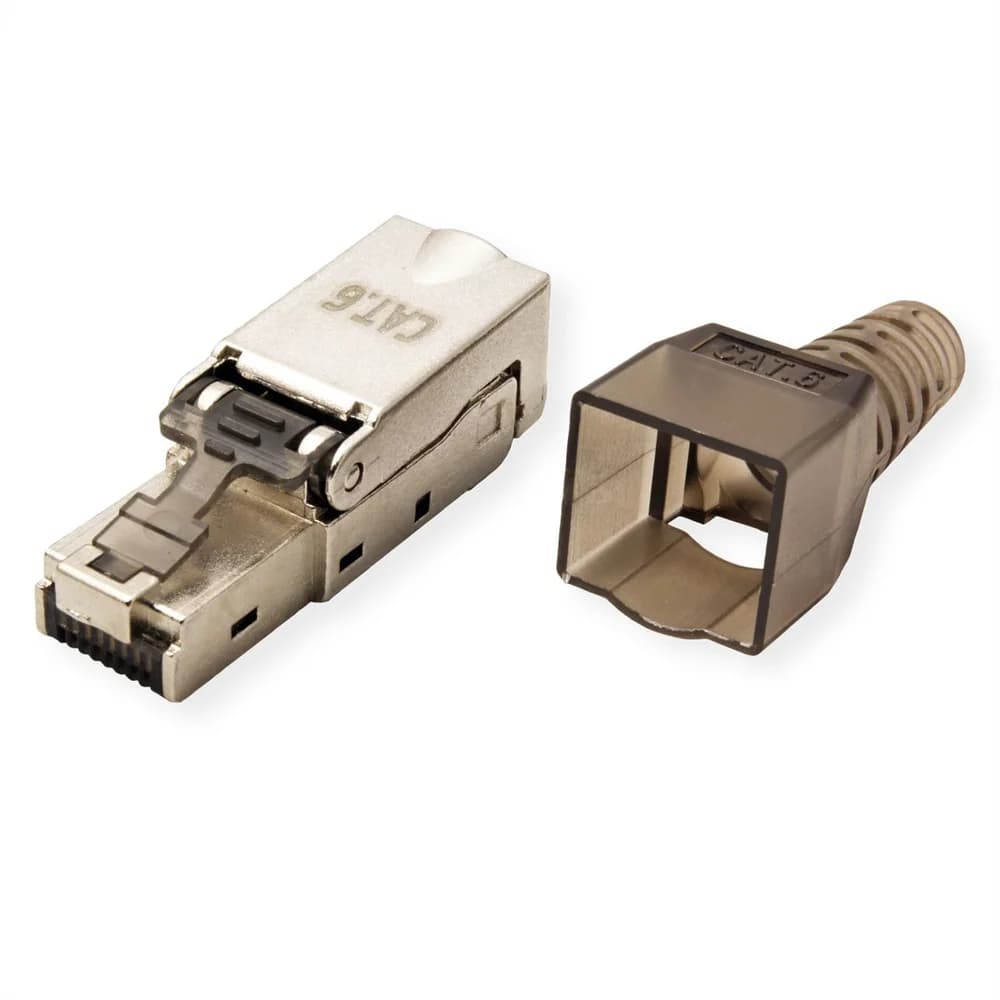

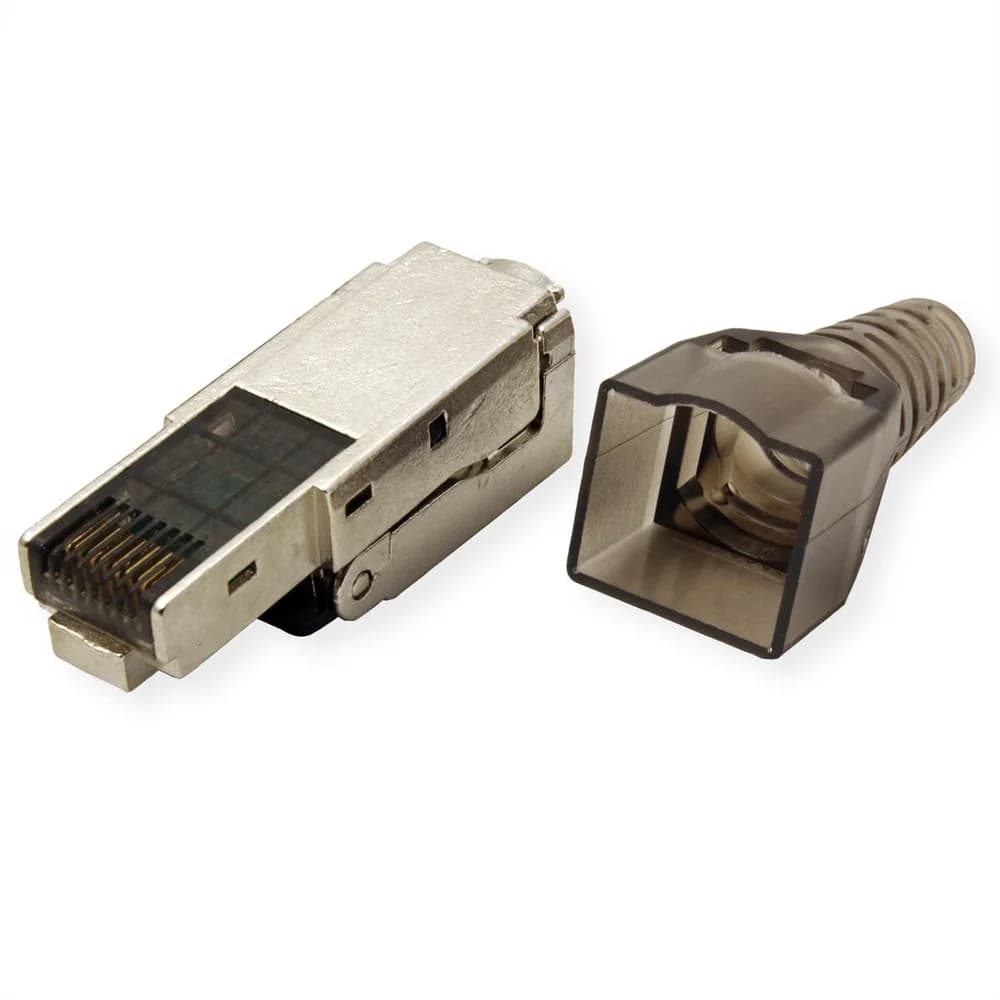

- Strain relief with cable tie and black transparent dust cup and boot
- Color: silver
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- Connectors RJ-45
- Colour
- silver
- Scope of delivery
- 1x RJ-45 plug
- Shield type
- Screened
- Transfer quality
- Cat6 / Class E
- Quantity of ports
- 1
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- separate strain relief
- yes
- Height
- 15.3 mm
- Width
- 14.1 mm
- Depth
- 67.8 mm
- Weight
- 20.3 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 10 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.022 kg
