21.99.8761-10

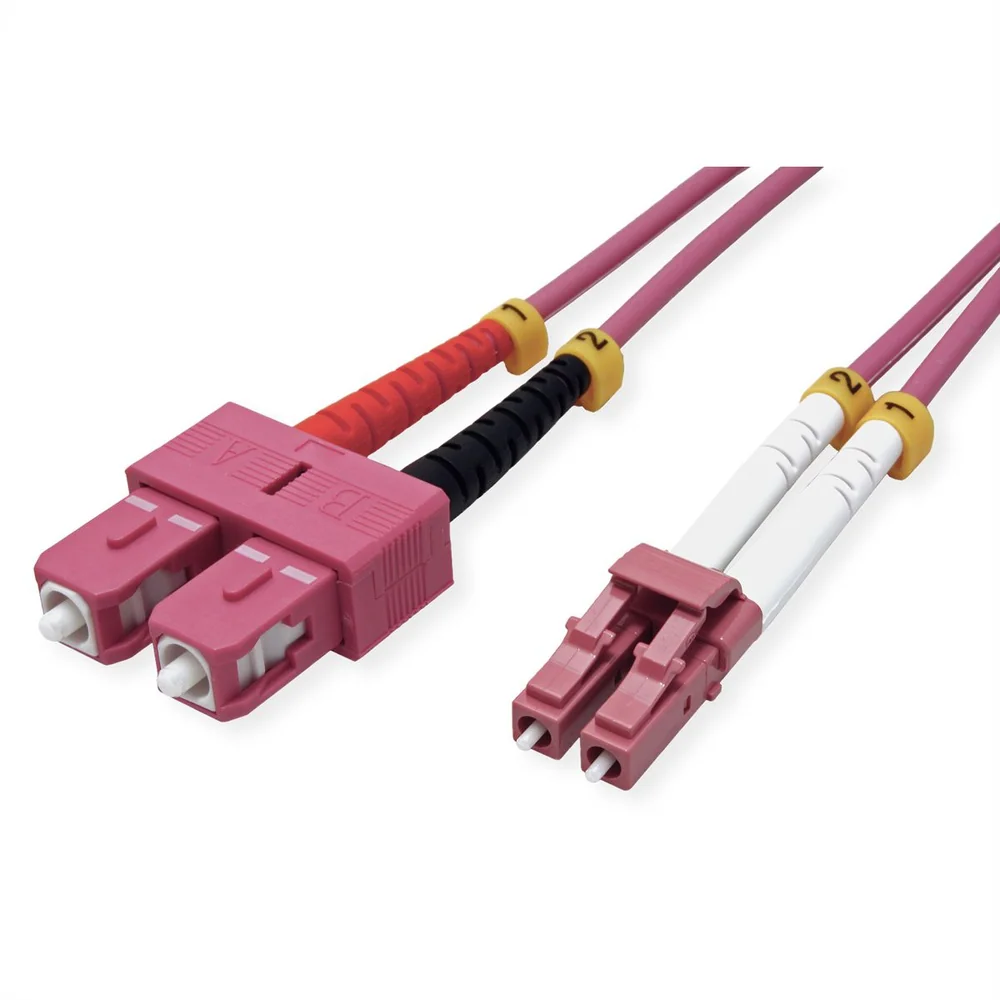

VALUE Fibre Optic Jumper Cable, 50/125µm, LC/SC, OM4, LSOH, violet, 1 m
LC / SC · 1 m · violet
VALUE Fibre Optic Jumper Cable, 50/125µm, LC/SC, OM4, LSOH, violet, 0.5 m
- Item number
- 21.99.8760-10
- Part number
- 21.99.8760
- EAN
- 7611990998333
- Brand
- VALUE
- Weight
- 18.3 g
OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.
- VALUE OM4 Fibre Optic Jumper cable LC/SC with fiber type 50/125 µm
- Color: violet
- Available lengths: 0.5m 1m 2m 3m, 5m and 10m
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Fibre optic cable
- Product type
- Fibre Optic Jumper Cables OM4
- Colour
- violet
- Length
- 0.5 m
- Quantity of fibre
- 2
- Conductor composition
- Compact conductor
- Cable type
- Duplex Cable
- External cable
- no
- Fibre section
- Multi mode 50/125µm OM4
- Connection ports
- LC / SC
- Side 1 Connector Type
- LC
- Side 2 Connector Type
- SC
- Min. Bending radius, static
- 30 mm
- Min. Bending radius, dynamic
- 60 mm
- Colour (Cable)
- violet
- Aramid strain relief
- yes
- External cable diameter
- 2.8x6 mm
- Mantle of external cable
- LSOH
- Cable LSOH
- yes
- Max. insertion loss
- 0.3 dB
- Min. return loss
- 30 dB
- Weight
- 18.3 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 140 mm
- Package weight (single piece)
- 0.05 kg
