VALUE Cat.6A (Class EA) Keystone, RJ-45, UTP, tool-free, silver, white
- Item number
- 26.99.0377-50
- Part number
- 26.99.0377
- EAN
- 7630049690103
- Brand
- VALUE
- Weight
- 6.9 g
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s! Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.

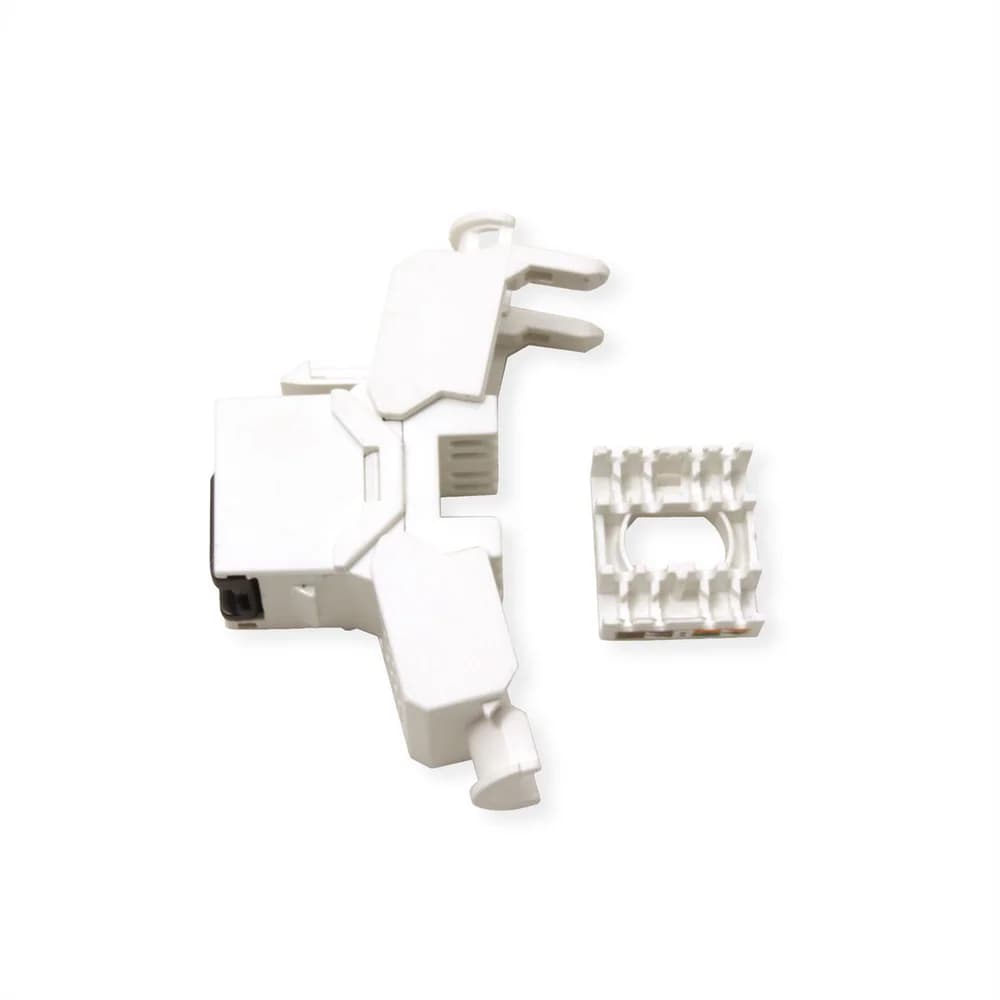

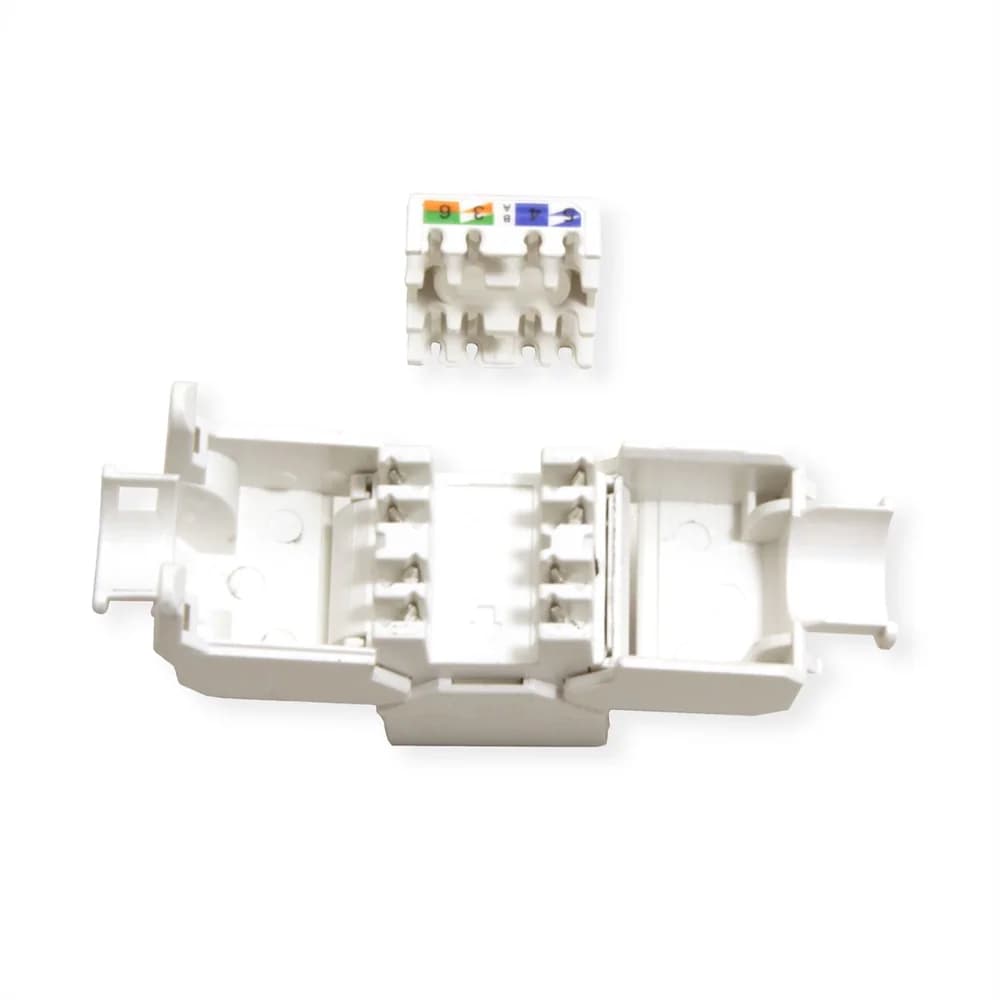

- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) UTP
- Unshielded housing
- Contacts gold plated
- Slim type
- With plastic internal shutter black
- 180 degree cable entry
- Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
- For cable AWG 22-24(0.45-0.65mm)
- For cable OD: 5.0-8.5mm
- Color code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 37.9× 15.8 × 22.2mm
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- white
- Scope of delivery
- 1x Keystone
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Height
- 22.2 mm
- Width
- 15.8 mm
- Depth
- 37.9 mm
- Weight
- 6.9 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.02 kg
