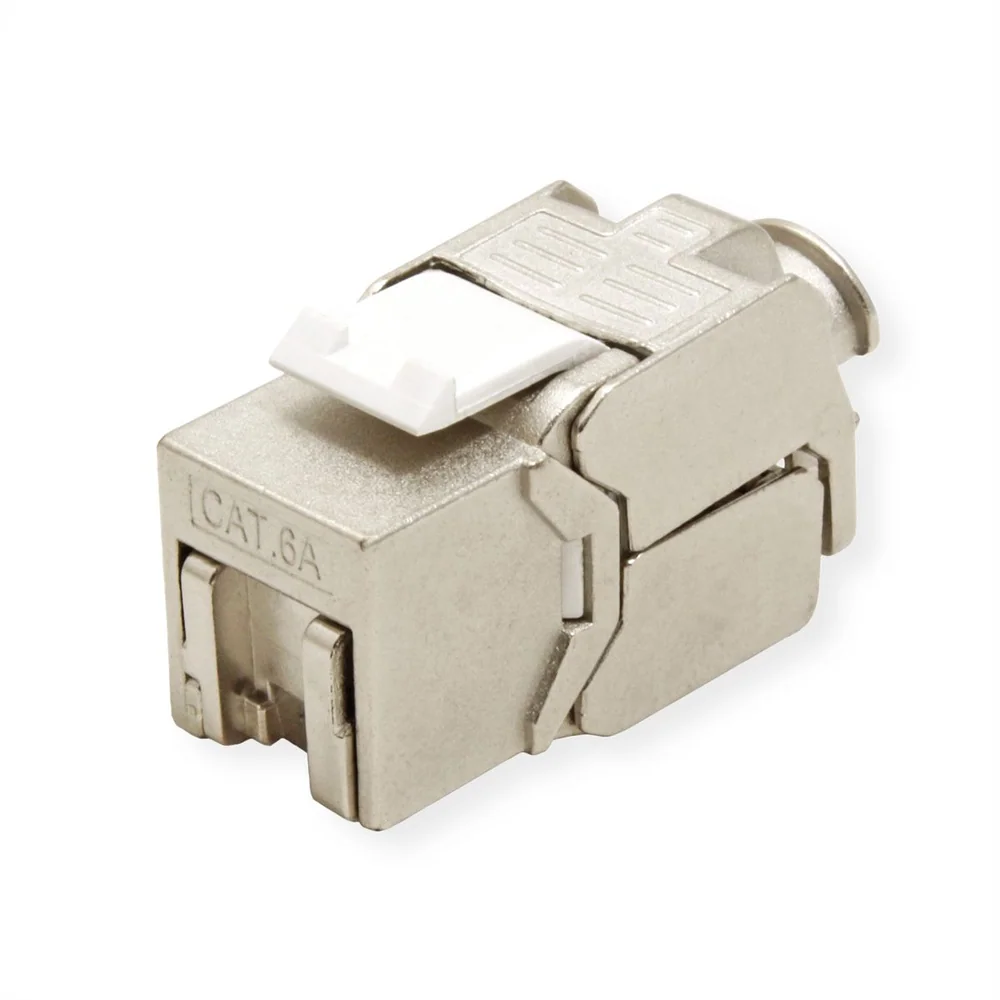

VALUE Cat.6A (Class EA) Keystone, RJ-45, STP, tool-free, silver
- Item number
- 26.99.0378-50
- Part number
- 26.99.0378
- EAN
- 7630049690110
- Brand
- VALUE
- Weight
- 20.6 g
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s! Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The low-cost solution for Cat.6A cabling for data rates up to 10Gbit/s!
Cat.6A/Class EA Keystone jack for installation in a Keystone blank 19" patch panel module frame.
- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing(zinc alloy)
- 360 degree fully shielded
- Slim type
- With internal plastic shutter, black
- 180 degree cable entry
- Support PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
- For cables with AWG 22-24 (0.45-0.65mm)
- For cables with OD: 5.0-8.5mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 37.9×15.8×22.2mm
- Colour: silver
Specifications
Product
- Manufacturer
- VALUE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Scope of delivery
- 1x Keystone
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Height
- 22.2 mm
- Width
- 15.8 mm
- Depth
- 37.9 mm
- Weight
- 20.6 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 40 mm
- Depth of packaging (single piece)
- 40 mm
- Package weight (single piece)
- 0.01 kg
