STANDARD Cableadapter, DP M - DVI F
- Item number
- 11.55.3202-10
- Part number
- 11.55.3202
- EAN
- 7630049662018
- Brand
- SECOMP
- Weight
- 35 g

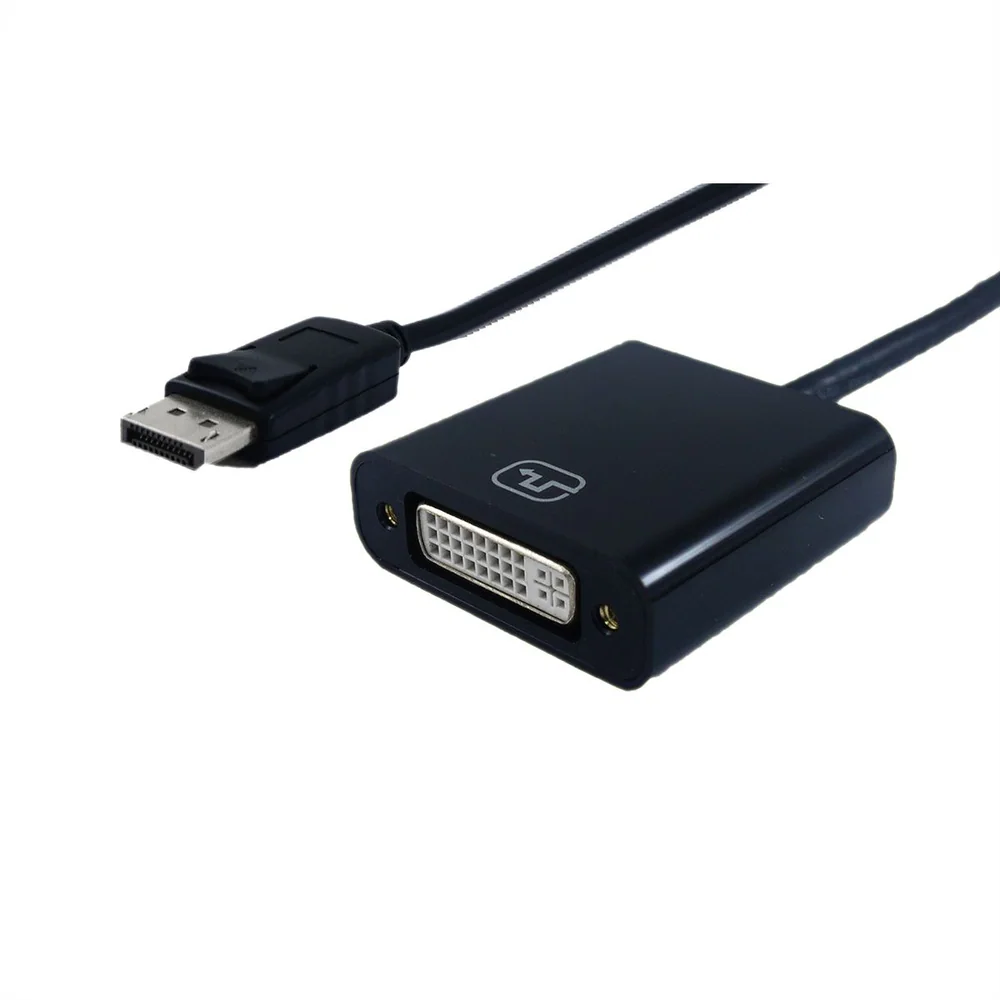

DisplayPort to DVI Cableadapter to connect a graphics card with DisplayPort (DP) to a monitor with DVI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
DisplayPort to DVI Cableadapter to connect a graphics card with DisplayPort (DP) to a monitor with DVI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz.
- If you want to connect a graphic card with DisplayPort Female to a monitor by using a DVI cable, you need this DisplayPort to DVI adapter
- Connectors: DisplayPort Male, DVI Female
- Total length (including plug and socket): about 25 cm
- Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)
Specifications
Product
- Manufacturer
- SECOMP
- Product group
- Adapters, Terminators, Converters
- Product type
- DisplayPort-DVI Adapter
- Colour
- black
- Length
- 0.25 m
- Scope of delivery
- Cableadapter
- Max. resolution
- 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
- Side 1 connection (PC)
- DisplayPort Plug
- Side 2 connection (Peripherals)
- DVI Socket
- Side 1 Connector Type
- DisplayPort
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- DVI-D 24+1, Dual-Link
- Side 2 Connector Gender
- Female
- Colour (Cable)
- black
- Area of application
- External
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 55 °C
- Storage temperature min.
- 0 °C
- Storage temperature max.
- 70 °C
- Weight
- 35 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 80 mm
- Depth of packaging (single piece)
- 80 mm
- Package weight (single piece)
- 0.06 kg
