ROLINE UTP Patch Cord, Cat.6 (Class E), black, 3 m
- Item number
- 21.15.1555-50
- Part number
- 21.15.1555
- EAN
- 7611990956395
- Brand
- ROLINE
- Weight
- 114.5 g

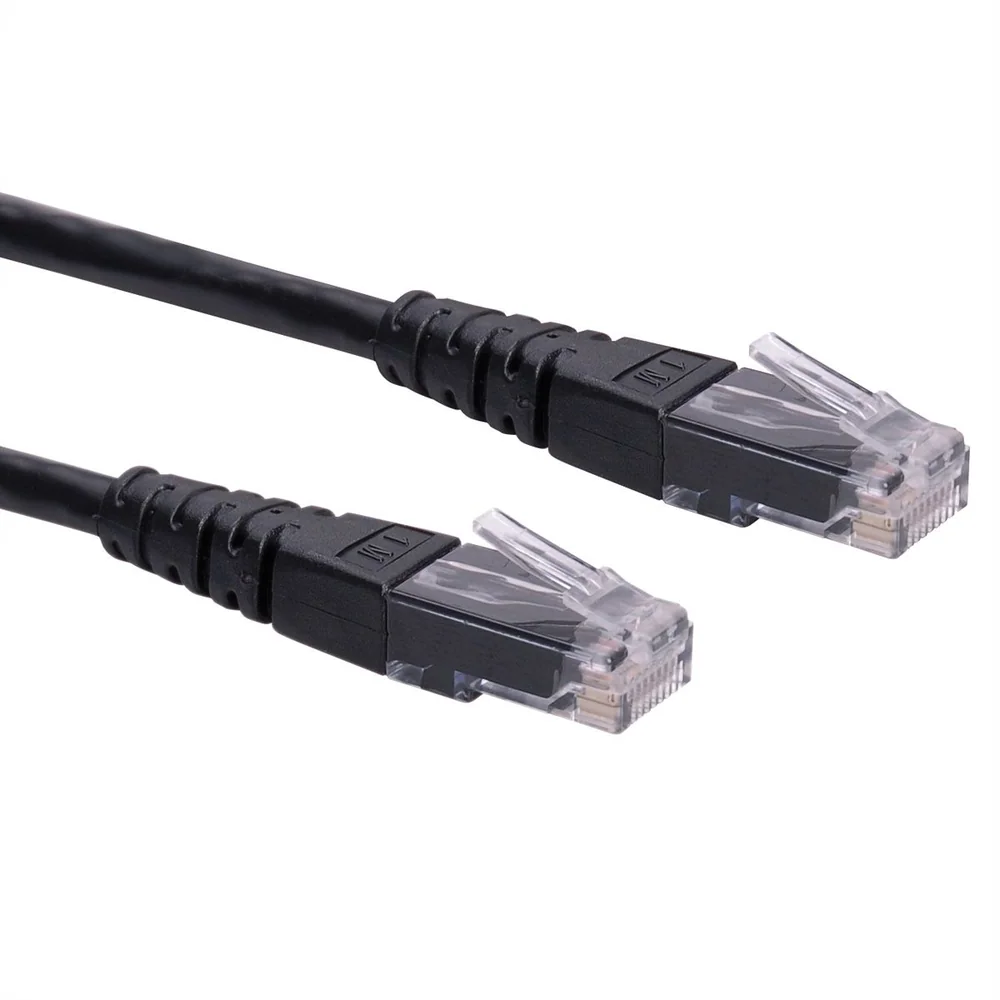

Patch cable for networking connections between devices. Prepared unshielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending.…
Description
Patch cable for networking connections between devices. Prepared unshielded Twisted Pair cable with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. High quality plugs with gold plated contacts. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 4-pair stranded copper wire.
For a structured cabling system we recommend to use the following components: ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m); ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory); ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory); ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black); ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935. The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2329b-10-E (with flush mount)/z2330b-10-E (with surface mount).
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- U/UTP patch cord
- Colour
- black
- Length
- 3 m
- Shield type
- U/UTP
- Transfer quality
- Cat6 / Class E
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 24
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Locking lever
- no
- Anti-kink sleeve
- Moulded-on
- Colour (Spout)
- black
- Cable LSOH
- no
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Weight
- 114.5 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 180 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 0.12 kg
