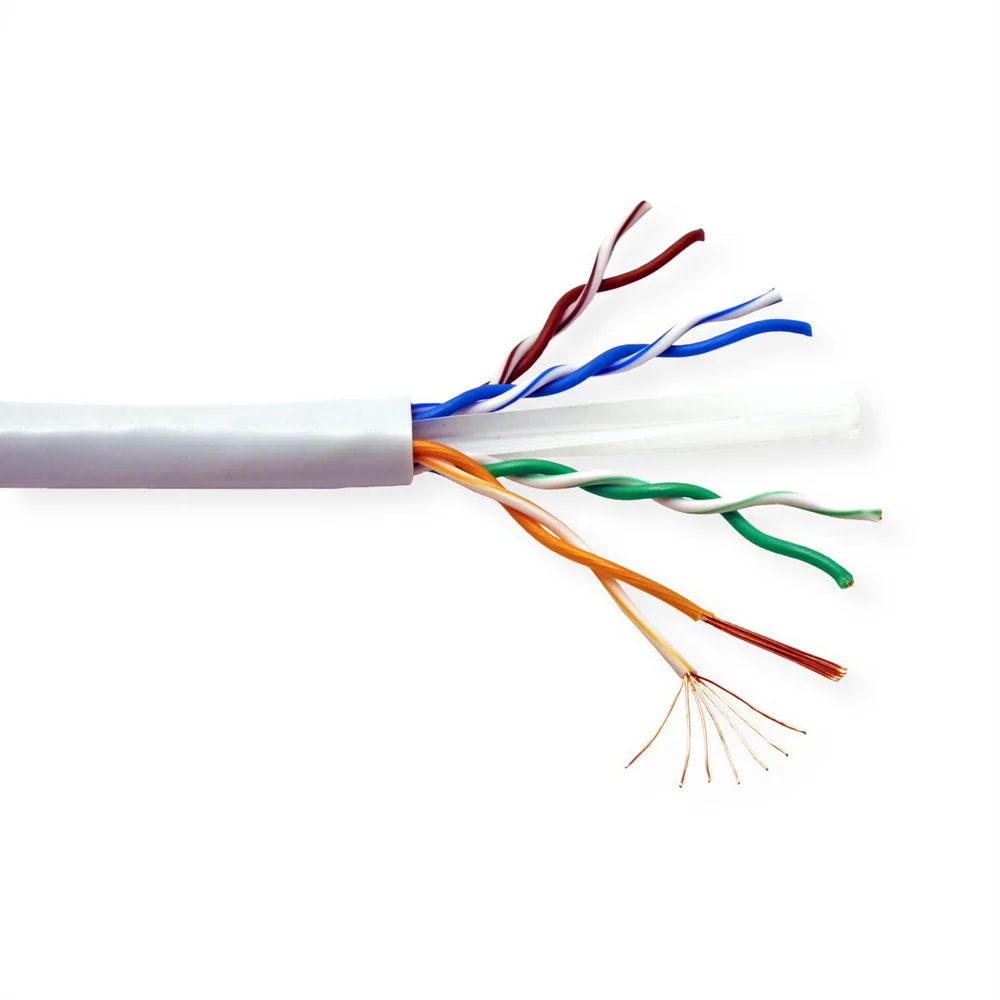

ROLINE UTP Cable Cat.6 (Class E) / Class E, Stranded, 300 m
- Item number
- 21.15.0992-1
- Part number
- 21.15.0992
- EAN
- 7611990910342
- Brand
- ROLINE
- Weight
- 10500 g
Twisted pair network cable for assembly with RJ45 plugs
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Twisted pair network cable for assembly with RJ45 plugs
- Structured building wiring
- Impedance: 100 Ohm
- Colour: Grey
- Construction: 8 lines, copper, stranded wire AWG23
For a structured cabling system we recommend to use the following components:
ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935
The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2329b-10-E (with flush mount)/z2330b-10-E (with surface mount).
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- Raw cable Cat.6
- Colour
- grey
- Length
- 300 m
- Contents
- 300 m
- Shield type
- U/UTP
- Transfer quality
- Cat6 / Class E
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 24
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Cable LSOH
- no
- Material (external cable mantle)
- PVC
- Weight
- 10.5 kg
Packaging
- Height of packaging (single piece)
- 200 mm
- Width of packaging (single piece)
- 400 mm
- Depth of packaging (single piece)
- 400 mm
- Package weight (single piece)
- 12 kg
