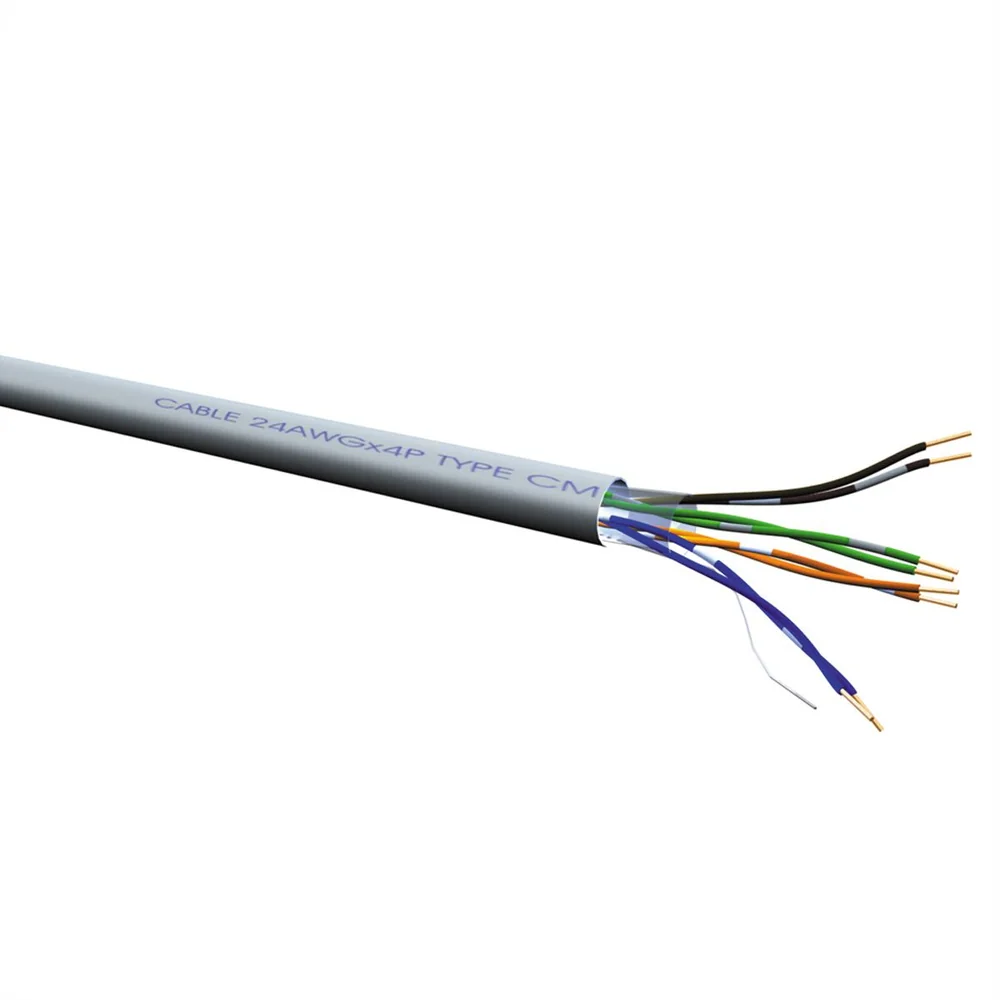

ROLINE UTP Cable Cat.5e (Class D), Stranded Wire, 300 m
- Item number
- 21.15.0520-1
- Part number
- 21.15.0520
- EAN
- 7611990937189
- Brand
- ROLINE
- Weight
- 10330 g
Structured building wiring Impedance: 100 Ohm 3P verified Colour: Grey Construction 21.15.0520: 8 lines, copper, stranded wire AWG24 Diagram: attenuation/near end crosstalk For a structured cabling system we recommend…
Description
- Structured building wiring
- Impedance: 100 Ohm
- 3P verified
- Colour: Grey
- Construction 21.15.0520: 8 lines, copper, stranded wire AWG24
- Diagram: attenuation/near end crosstalk
For a structured cabling system we recommend to use the following components:
ROLINE Cat.5e UTP Cable, Solid Wire, AWG24: 21.15.0512 (100 m), 21.15.0511 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, unshielded: 25.16.8506 (white), 25.16.8501 (ivory)/25.16.8406 (white), 25.16.8401 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, unshielded: 26.11.0349 (black), 26.11.0347 (light grey)
ROLINE Cat.5e UTP Patch Cord, grey, 5 m: 21.15.0505
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- Raw cable Cat.5e
- Colour
- grey
- Length
- 300 m
- Contents
- 300 m
- Shield type
- U/UTP
- Transfer quality
- Cat5e / Class D
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 24
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Cable LSOH
- no
- Material (external cable mantle)
- PVC
- Weight
- 10.33 kg
Packaging
- Height of packaging (single piece)
- 250 mm
- Width of packaging (single piece)
- 380 mm
- Depth of packaging (single piece)
- 370 mm
- Package weight (single piece)
- 12.4 kg
