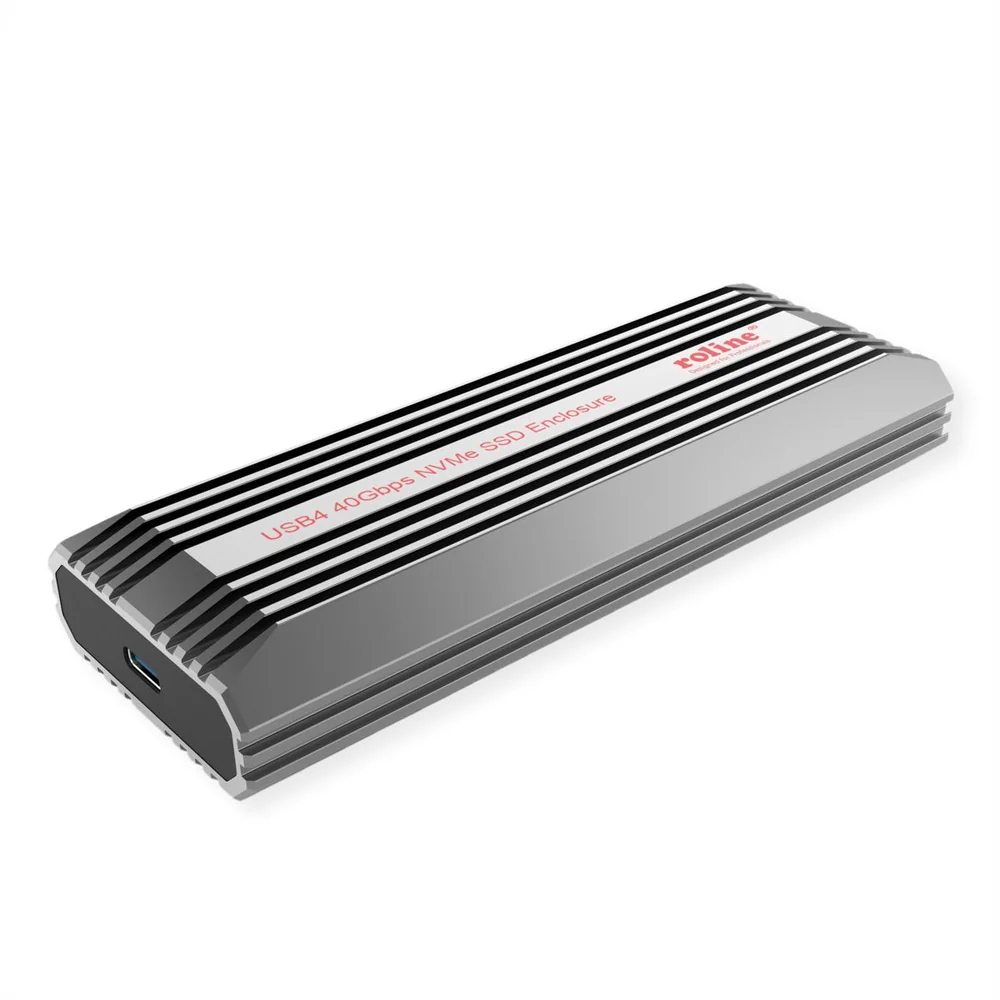

ROLINE USB4 Gen 3x2 NVMe M.2 SSD Enclosure
- Item number
- 16.01.4149-10
- Part number
- 16.01.4149
- EAN
- 7630049674318
- Brand
- ROLINE
- Weight
- 227 g
Extra narrow empty SSD enclosure, made of aluminium, with USB4 Gen3x2 host connection for M.2 NVMe SSDs.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Extra narrow empty SSD enclosure, made of aluminium, with USB4 Gen3x2 host connection for M.2 NVMe SSDs.
- Empty housing for M.2 NVMe SSDs
- External interface: USB Type-C
- Supports USB4 Gen 3x2 Type-C host connection of up to 40 Gbps
- Bus-powered
- Supports PCIe Gen4x4 NVMe SSD with 2280, 2260, 2242 or 2230 M.2 form factors
- Toolless design for easy installation of NVME M.2 SSDs
- Plug & Play, no installation of software driver needed
- Aluminium housing
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Drive housing
- Product type
- M.2 SSD Enclosure
- Colour
- anthracite
- Scope of delivery
- SSD Enclosure, USB Type-C Cable (ca. 30 cm), Thermal Pad, User Manual
- Quantity of Drives
- 1
- Drive form
- M.2
- External connections
- USB4 Gen3x2, Type C
- Dimensions (HxWxD)
- 15 x 46 x 124 mm
- Material (casing)
- Aluminum
- Power supply
- Over USB port
- Storage temperature min.
- -10 °C
- Storage temperature max.
- 70 °C
- Height
- 15 mm
- Width
- 46 mm
- Depth
- 124 mm
- Weight
- 227 g
Packaging
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.3 kg
