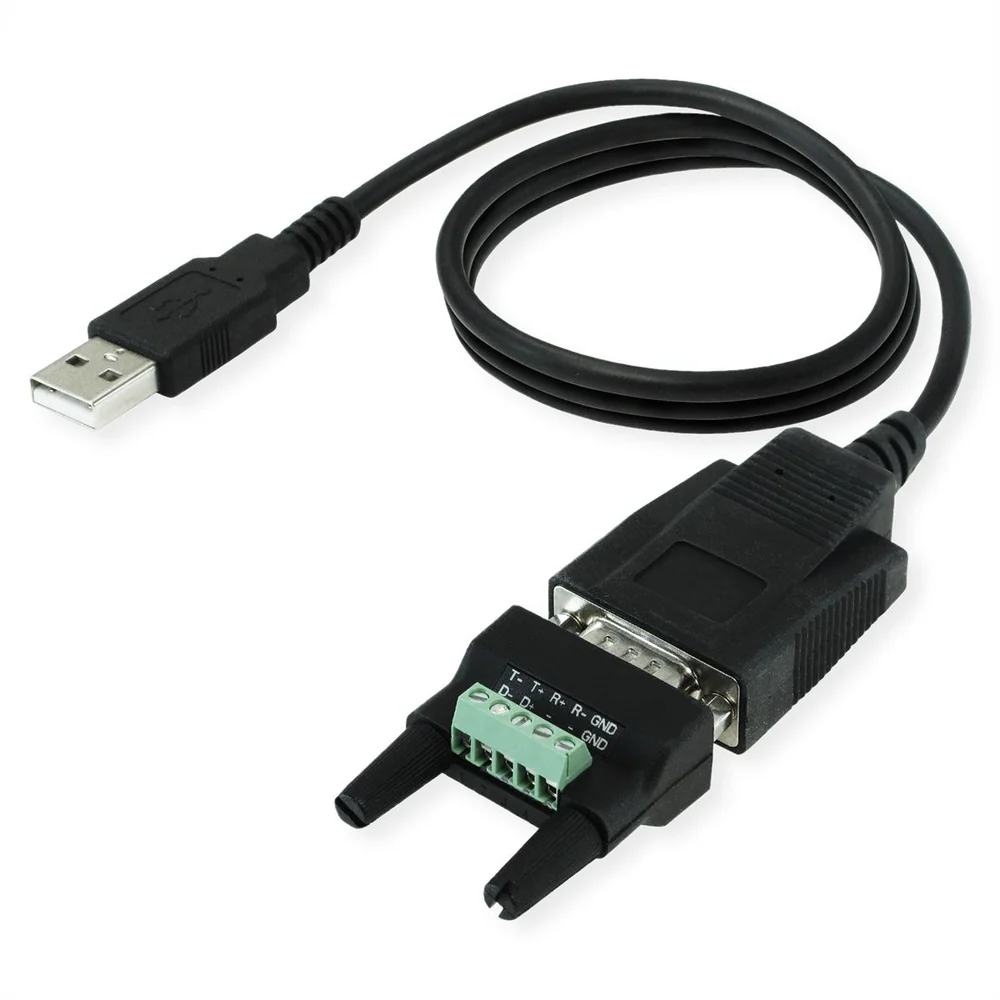

ROLINE USB to RS-422/485 Converter
- Item number
- 12.02.1174-5
- Part number
- 12.02.1174
- EAN
- 7630049674325
- Brand
- ROLINE
- Weight
- 80.5 g
USB-to-serial converter for use with computers without a serial interface and mobile devices, which often only offer USB interfaces.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
USB-to-serial converter for use with computers without a serial interface and mobile devices, which often only offer USB interfaces.
This converter provides an extra Serial RS-422/485 port via USB connection- To connect serial devices (e.g. modem) to one USB port
- Built-in +/- 15 KV ESD protection
- DB9 female to 5 pin terminal block adapter included
- Supports data transfer rates of up to 921.6 kbit/s
- Power supply via USB interface from PC / notebook
- Plug & play
- Supports Microsoft Windows and Linux
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- USB - Serial Converter
- Colour
- black
- Length
- 1.2 m
- Scope of delivery
- Converter Cable, DB9 Female - to 5 Pin Terminal Block Adapter, User Manual
- Side 1 connection (PC)
- USB A Male
- Side 2 connection (Peripherals)
- DB9 Male
- Side 1 Connector Type
- USB 2.0 Type A
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- D-Sub 9-pin (DE-9)
- Side 2 Connector Gender
- Male
- Conversion direction
- USB - RS422/485
- Colour (Cable)
- black
- Area of application
- External
- Hand locking screws
- yes
- Technical particularity
- Windows 7 / 8 / 10 / 11 and Linux 2.6.x or later
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 85 °C
- Height
- 15 mm
- Width
- 33 mm
- Depth
- 45 mm
- Weight
- 80.5 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.25 kg
