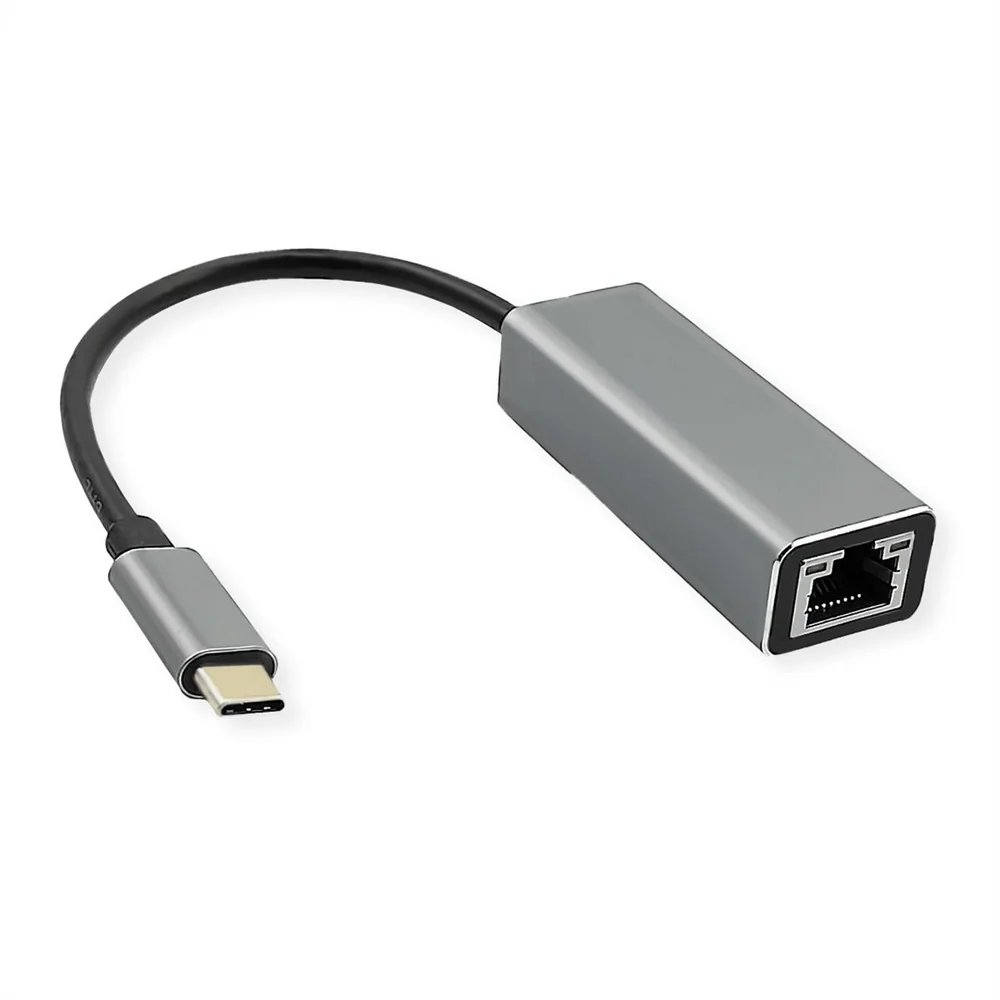

ROLINE USB 3.2 Gen 2 Type C, to 5 Gigabit Ethernet Converter
- Item number
- 12.02.1113-10
- Part number
- 12.02.1113
- EAN
- 7630049675551
- Brand
- ROLINE
- Weight
- 31.3 g

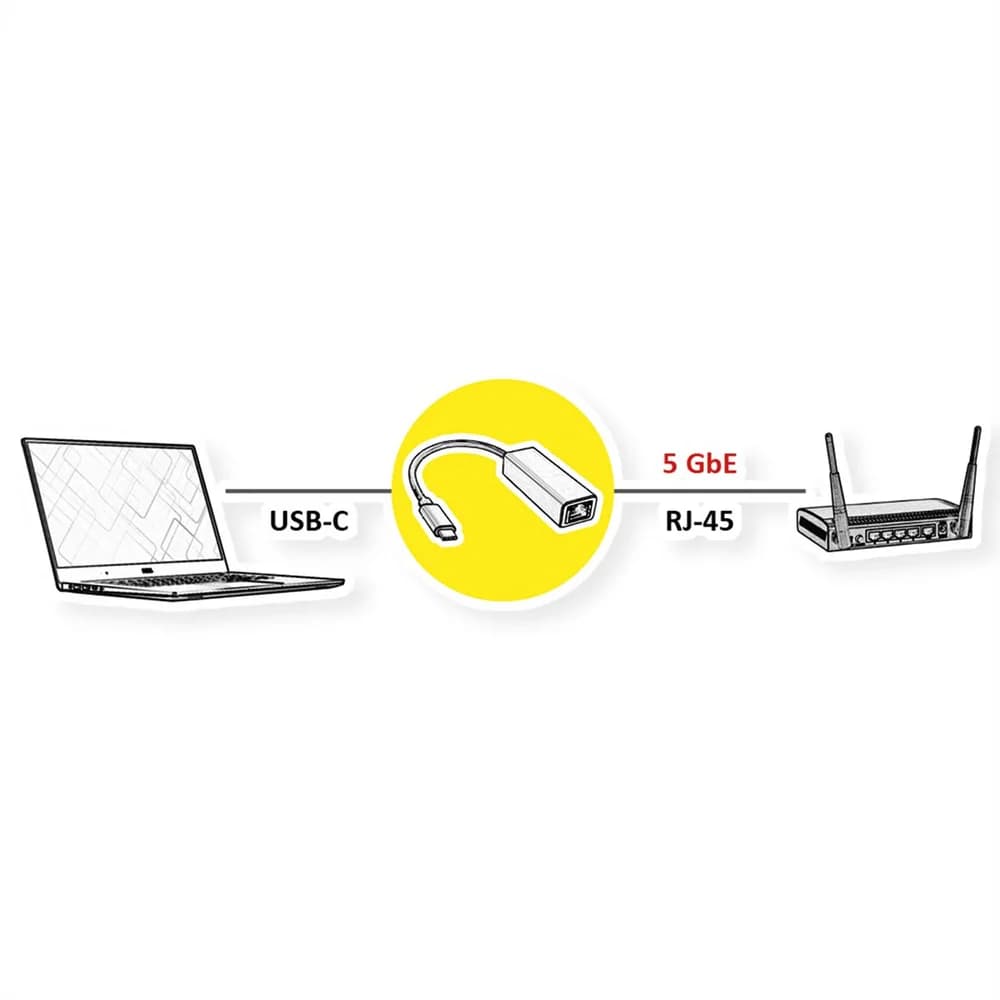

With this converter you can connect your PC or notebook with USB Type-C interface to a network with up to 5 Gigabit Ethernet.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
With this converter you can connect your PC or notebook with USB Type-C interface to a network with up to 5 Gigabit Ethernet.
- Supports USB 3.2 Gen 2, backwards to USB 3.2. Gen 1 amd USB 2.0
- Easy installation - just plug the converter into the USB port, connect the LAN cable - done!
- Bus Powered - no external power supply required
- USB Type-C connector
- Supports 5 Gigabit Ethernet with Auto Negotiation, Auto MDI/-MDIX and Half/Full Duplex
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network adapters
- Product type
- Gigabit Ethernet Converter
- Colour
- grey
- Scope of delivery
- Converter
- BUS system
- USB
- Network standard
- 5 Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000/2500/5000
- Quantity of ports
- 1
- Connection ports
- 1x RJ-45 F, 1x USB 3.2 Gen. 2 Type C M
- Side 1 Connector Type
- USB Type C (USB-C)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Female
- Full duplex
- yes
- Auto-Negotiation
- yes
- Wake on LAN
- yes
- Network topology
- Ethernet
- Technical particularity
- Link Activity
- Dimensions (HxWxD)
- 16 x 23 x 64 mm
- Power supply
- Power supply via USB
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 45 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 70 °C
- Height
- 16 mm
- Width
- 23 mm
- Depth
- 64 mm
- Weight
- 31.3 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 180 mm
- Package weight (single piece)
- 0.03 kg
