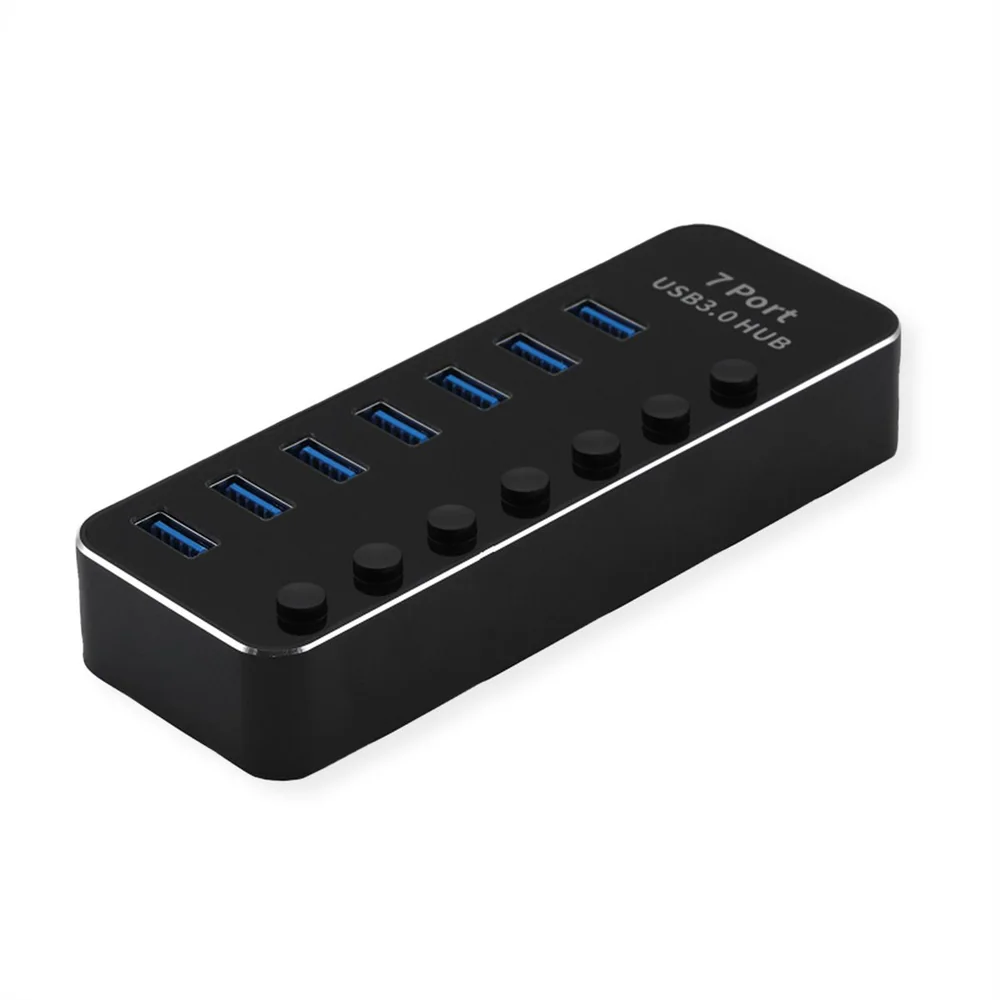

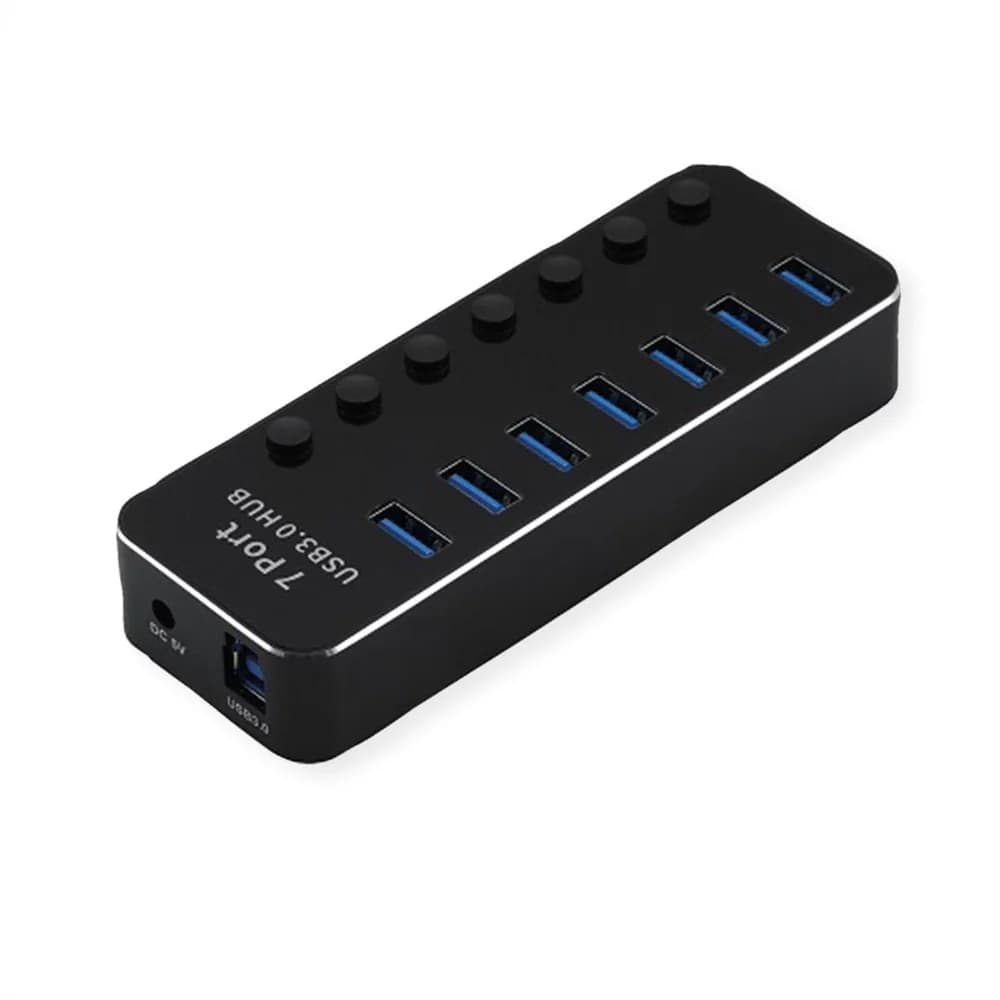

ROLINE USB 3.2 Gen 1 Hub, 7 Ports, switchable

Item number: 14.02.5057-5
Part number: 14.02.5057
EAN: 7630049681538
Brand: ROLINE
Weight: 105.4 g

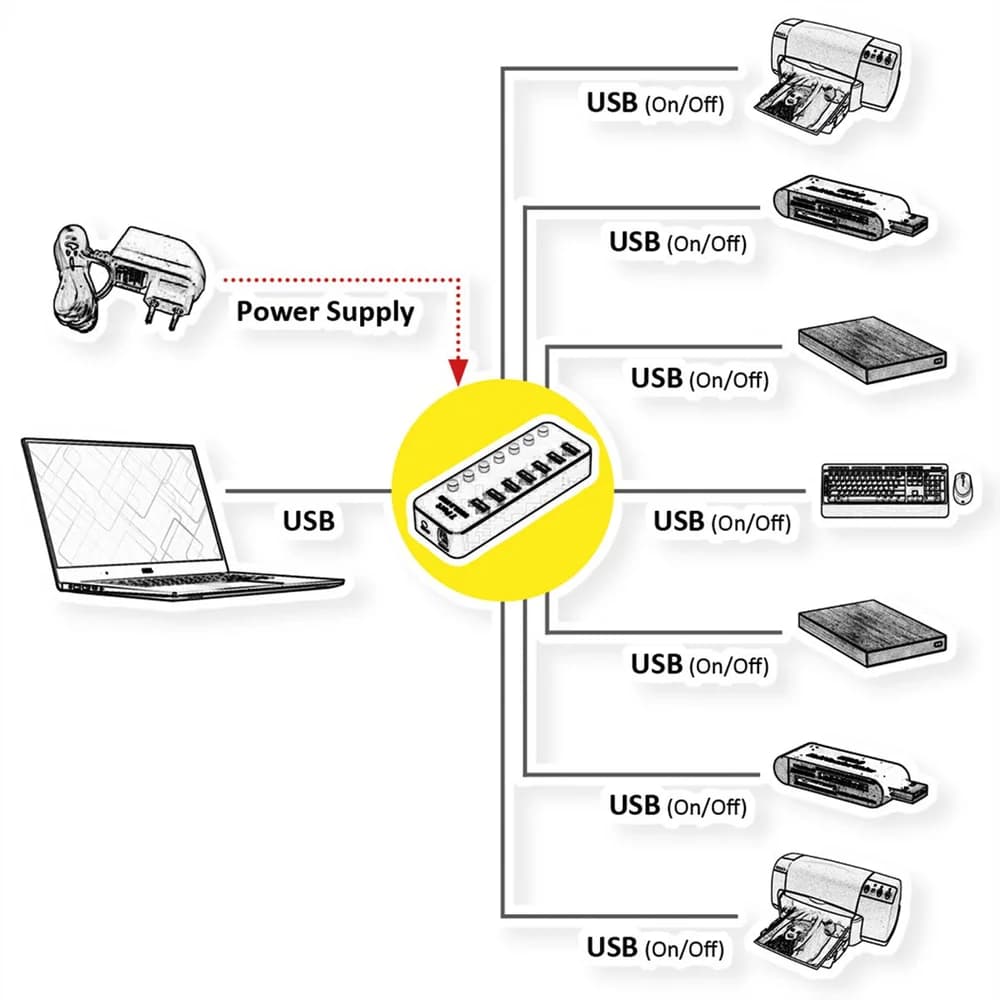

This hub can connect up to seven USB devices with SuperSpeed

This product is not sold online — send an enquiry and we will reply with price and lead time.

Compare

Description

This hub can connect up to seven USB devices with SuperSpeed

Data transfer rates of up to 5 Gbit/s
Fully backwards compatible with USB 2.0, USB 1.1
PC connection: 1x USB 3.0 Type A
Input: 7 USB 3.0 Type A SuperSpeed ports
LED status indicator for each port
Individual power switch and blue LED indicators controlling each port.
Supports auto switching between self-power and bus-power mode
Hot-swappable
Housing: aluminum
Colour: Black

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Product

Manufacturer: ROLINE
Product group: Hubs
Product type: USB Hub
Colour: black

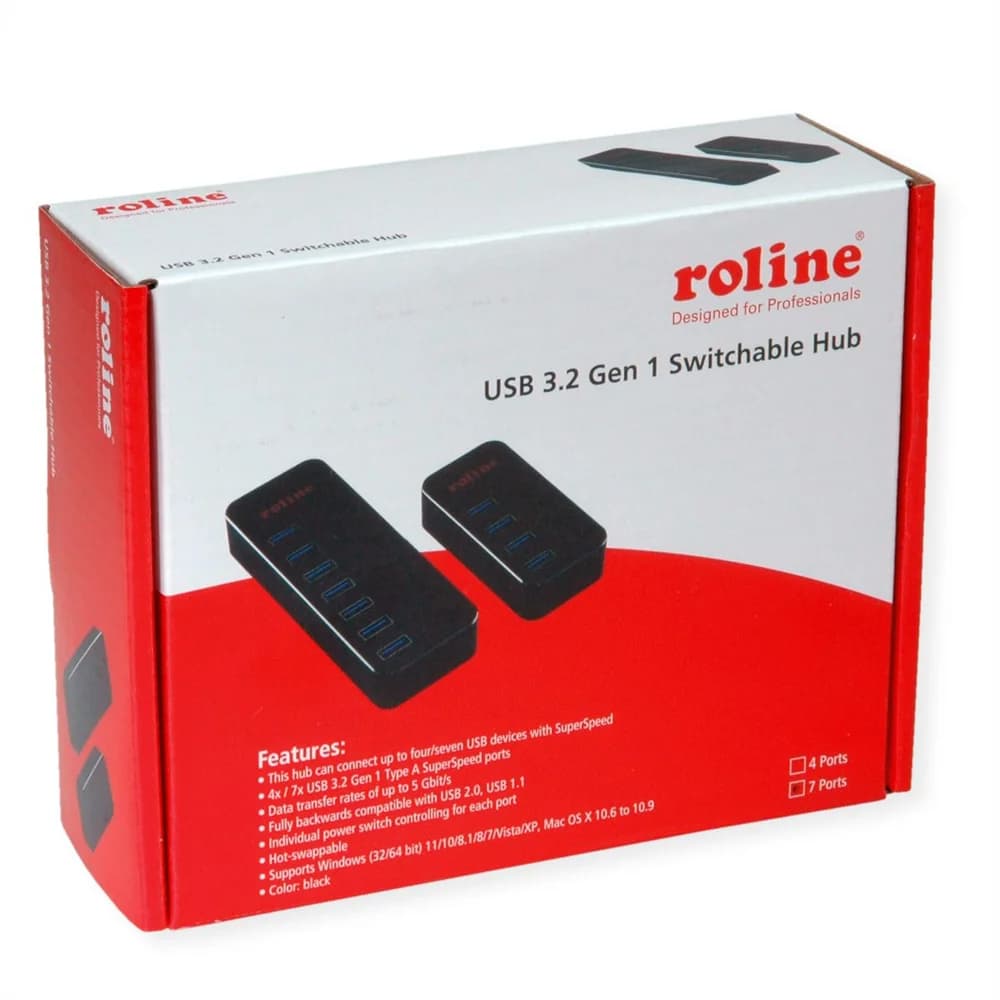

Scope of delivery: Hub, power supply, USB 3.0 cable (A-B, 1m)
Device connection: 7x USB Typ A
Transfer quality: USB 3.2 Gen 1 SuperSpeed 5 Gbit/s (USB 3.1 Gen 1, USB 3.0)
Side 1 Connector Type: USB 3 Type B
Side 1 Connector Gender: Female
Side 2 Connector Type: USB 3 Type A
Side 2 Connector Gender: Female
Quantity of ports: 7
Area of application: External
Material (casing): Metal
Dimensions (HxWxD): 22 x 46 x 128 mm
Power supply unit required: yes
Power supply included: yes
Technical particularity: Individual power switch and blue LED indicators controlling each port
Height: 22 mm
Width: 46 mm
Depth: 128 mm
Weight: 105.4 g

Packaging

Height of packaging (single piece): 40 mm
Width of packaging (single piece): 120 mm
Depth of packaging (single piece): 150 mm
Package weight (single piece): 0.2 kg
