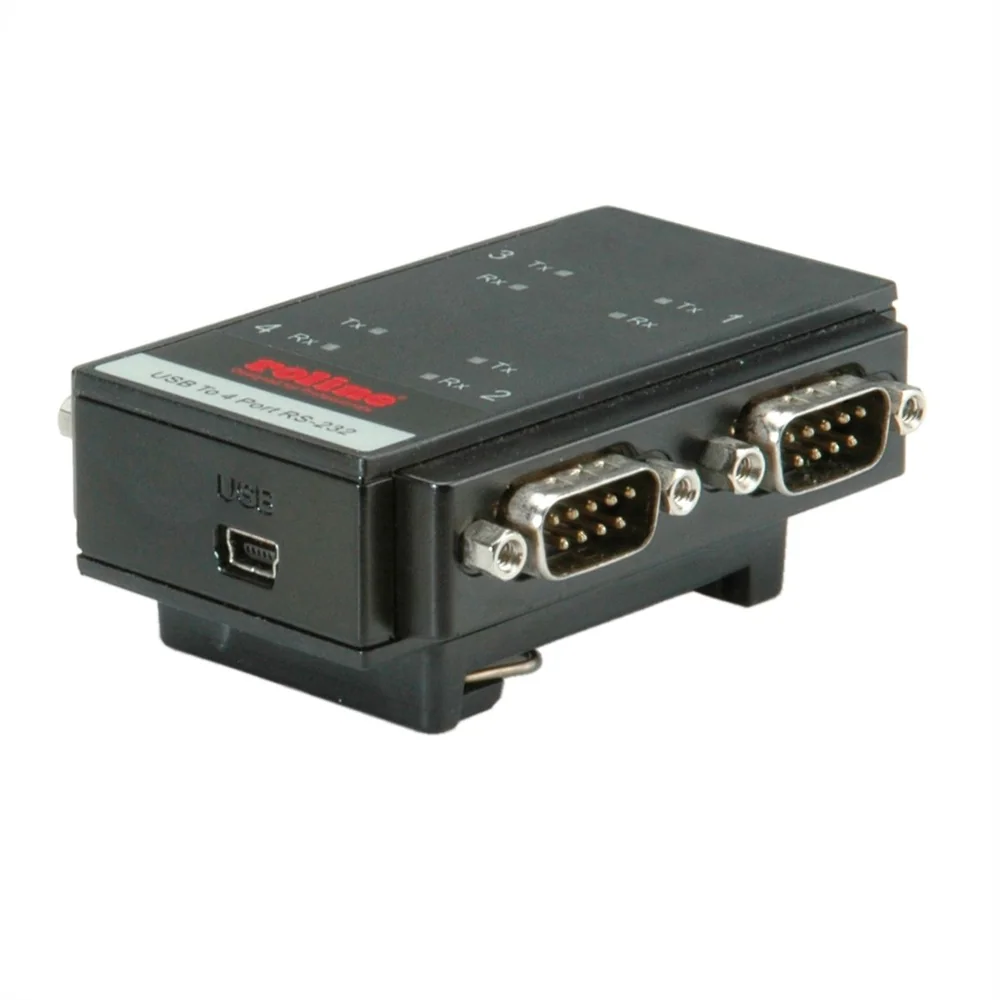

ROLINE USB 2.0 to RS232 Adapter, for DIN Rail, 4 Ports
- Item number
- 12.02.1003-4
- Part number
- 12.02.1003
- EAN
- 7611990994830
- Brand
- ROLINE
- Weight
- 149.3 g
Converter to connect serial devices to a USB port on your PC Compatible with USB 2.0, USB 1.1, USB 1.0 Data transfer rate of up to 115 Kbit/s 15 KV ESD protection for all RS232 ports Connectors: 4x DB9 Male, 1x Mini USB…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

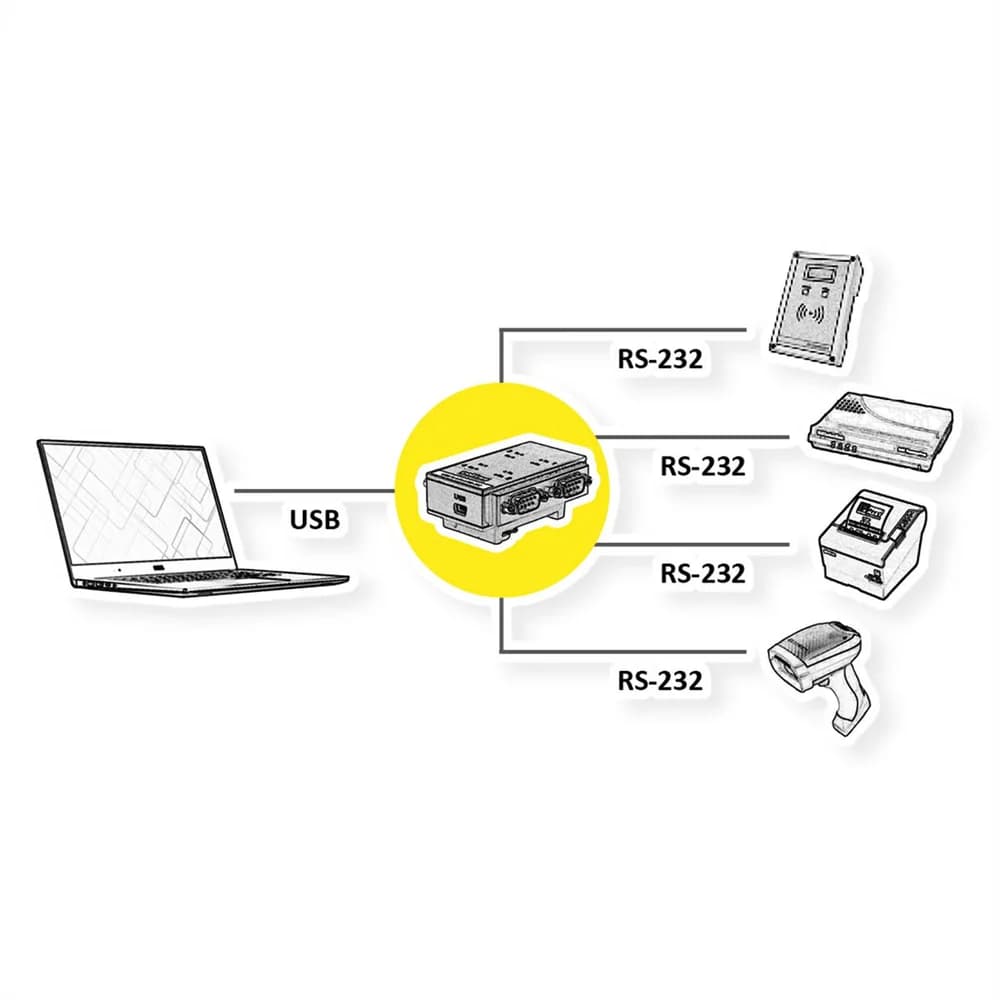

Converter to connect serial devices to a USB port on your PC
- Compatible with USB 2.0, USB 1.1, USB 1.0
- Data transfer rate of up to 115 Kbit/s
- 15 KV ESD protection for all RS232 ports
- Connectors: 4x DB9 Male, 1x Mini USB type B

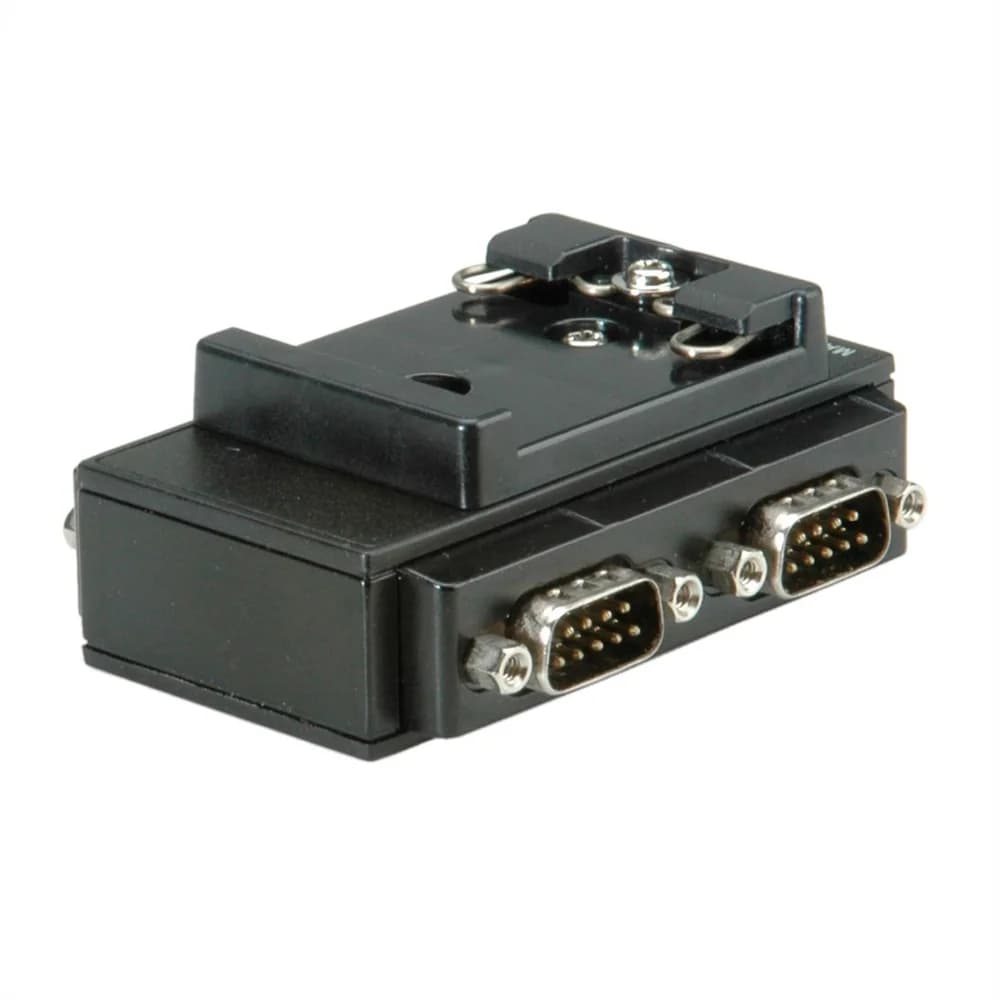

- For DIN Rail mounting
- Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11
- Power supply over Mini USB type B connector (40mA)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- USB - Serial Converter
- Colour
- black
- Scope of delivery
- converter, driver CD, manual
- Side 1 connection (PC)
- 1x USB Typ A Stecker
- Side 2 connection (Peripherals)
- 4 x DB9 Male
- Side 1 Connector Type
- USB 2.0 Type A
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- D-Sub 9-pin (DE-9)
- Side 2 Connector Gender
- Male
- Conversion direction
- serial - USB
- Area of application
- External
- Dimensions (HxWxD)
- 22.5 x 63.5 x 80.5 mm
- Technical particularity
- for DIN Rail
- Height
- 22.5 mm
- Width
- 63.5 mm
- Depth
- 80.5 mm
- Weight
- 149.3 g
Packaging
- Height of packaging (single piece)
- 45 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 0.22 kg
