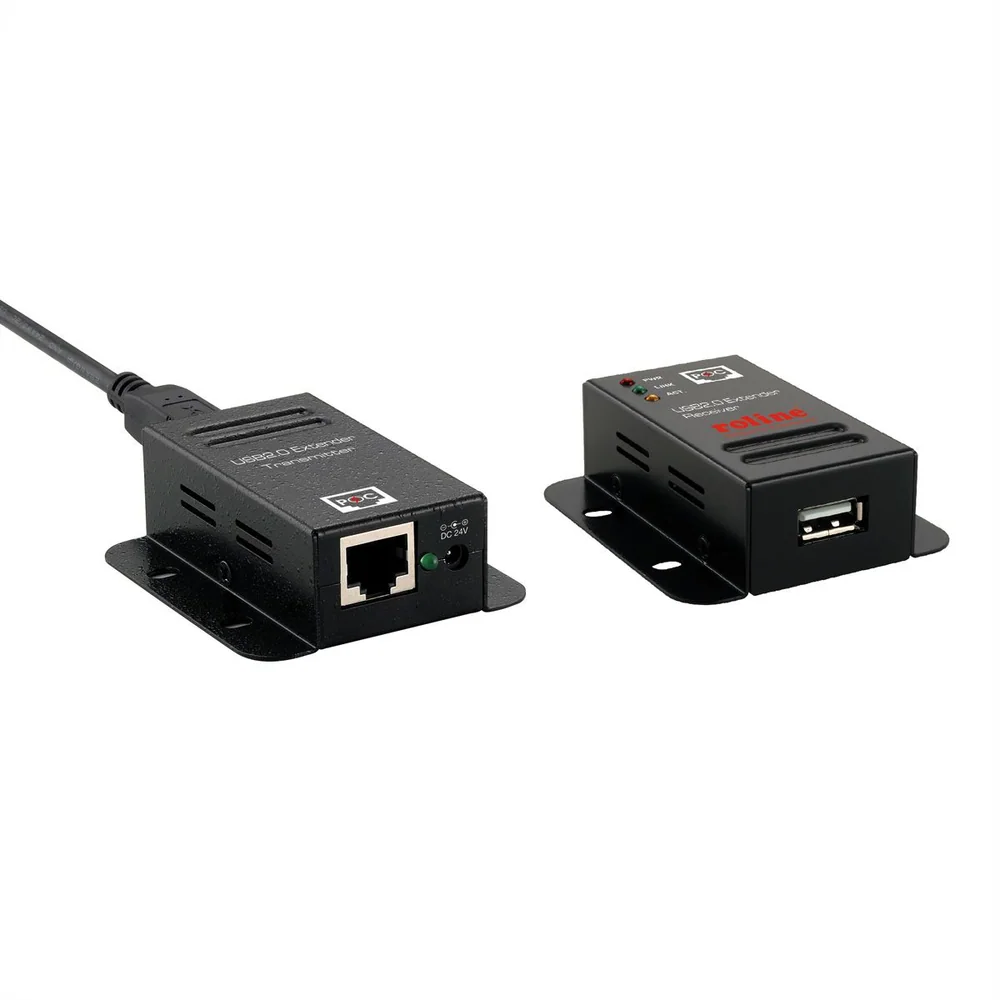

ROLINE USB 2.0 Extender over RJ-45, PoC, 1x USB, max. 50m
- Item number
- 12.04.1102-4
- Part number
- 12.04.1102
- EAN
- 7611990946624
- Brand
- ROLINE
- Weight
- 354.7 g
Extends your USB Port over RJ45 (up to 50 meters) and allows the connection of one (1x) USB2.0 device (hub functionality) For example to connect an USB printer in another room with your PC Supports USB 2.0, downwards…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Extends your USB Port over RJ45 (up to 50 meters) and allows the connection of one (1x) USB2.0 device (hub functionality)
- For example to connect an USB printer in another room with your PC
- Supports USB 2.0, downwards compatible with USB 1.1/1.0
- Hot plug
- No additional software for extender required
- Connection via Cat.5e/Cat. 6 Twisted Pair cable
- Supports data rates up to 480Mbit/s
- Transmitter: USB A Male connector / RJ45
- Receiver: 1x USB A Female connector / RJ45
- Supports PoC (Power over Cable)
- External power supply is needed for transmitter (included, 24 VDC, 0.5A)
- Metal case, wall mounting option
- Contents: Master unit (RJ45 Female; USB Type A Male), remote unit (RJ45 Female; USB Type A Female), power supply (24 VDC, 0.5A)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- USB extension
- Colour
- black
- Scope of delivery
- Master unit (RJ45F, USB Type A M with 28cm cable), Remote unit (RJ45F, USB Type A F)
- Transfer quality
- USB 2.0 Hi-Speed 480 Mbit/s
- Side 1 connection (PC)
- USB A Male
- Side 2 connection (Peripherals)
- USB A Female
- Side 1 Connector Type
- USB 2.0 Type B
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- USB 2.0 Type A
- Side 2 Connector Gender
- Female
- Conversion direction
- USB - TP - USB
- Maximum data transfer rate
- 480 Mbit/s
- Area of application
- External
- Technical particularity
- Connection over Twisted Pair Cable
- Weight
- 354.7 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 240 mm
- Package weight (single piece)
- 0.55 kg
