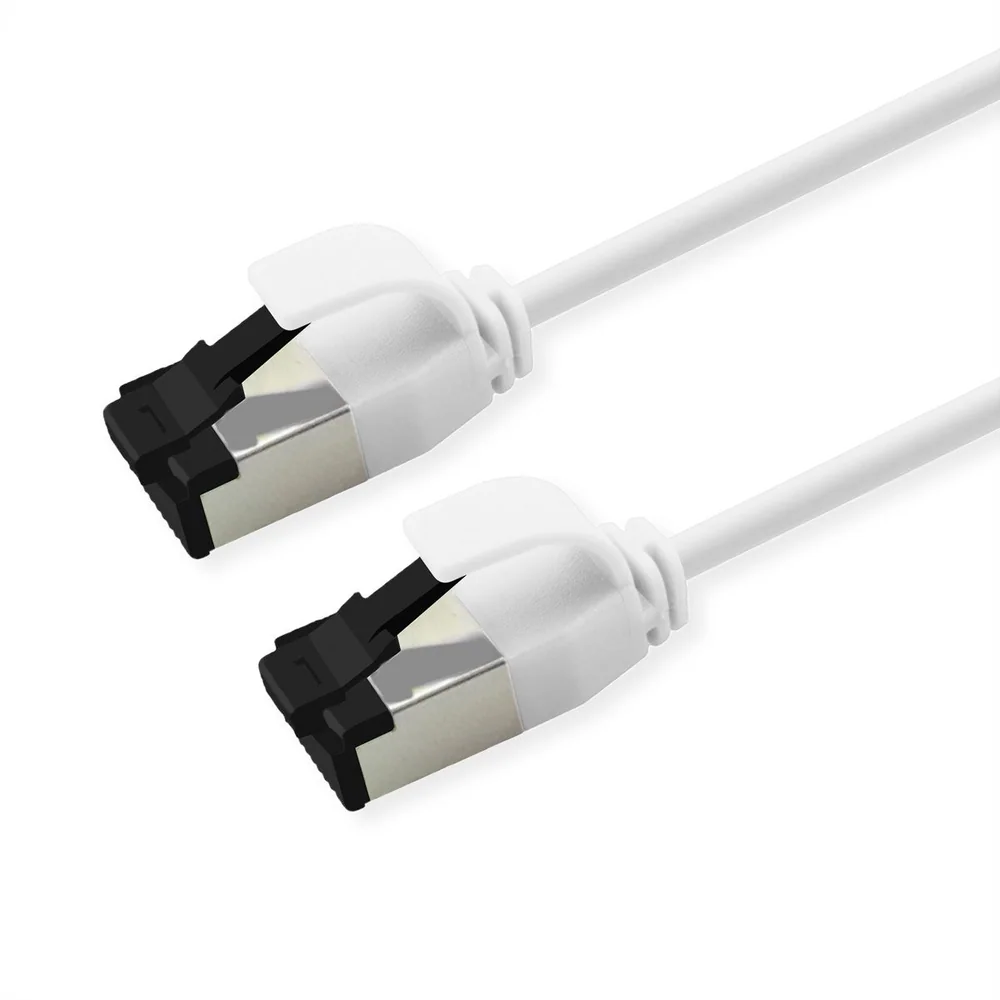

ROLINE U/FTP Patch Cord Cat. 8.1 (Class I), LSOH, SLIM, white, 0.3 m
- Item number
- 21.15.3271-100
- Part number
- 21.15.3271
- EAN
- 7630049676725
- Brand
- ROLINE
- Weight
- 11 g
High-quality, pre-assembled, slim, foil-shielded Category 8.1 (Class I) patch cord with shielded RJ-45 connectors on both ends for data rates of up to 40 gigabits per second. Suitable for use in patch panels or as a…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
High-quality, pre-assembled, slim, foil-shielded Category 8.1 (Class I) patch cord with shielded RJ-45 connectors on both ends for data rates of up to 40 gigabits per second. Suitable for use in patch panels or as a device connection cable. Moreover, it is halogen-free and flame-retardant (LSOH).
- Pre-assembled foil-shielded Cat.8.1 (Class I) patch cord
- With shielded RJ-45 connectors on both ends
- Suitable for 40 Gigabit Ethernet networks
- Durable thanks to molded kink protection
- Pin assignment: 1:1 according to EIA/TIA568B, 8 wires
- Construction: 8-wire stranded cable, pair shielding with aluminum foil
- High-quality gold-plated contacts
- Halogen-free, flame-retardant, low-smoke (LSOH)
- Slim thanks to an a small outer cable diameter of only 3.8 ± 0.2mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- U/FTP patch cord
- Colour
- white
- Length
- 0.3 m
- Scope of delivery
- Patch Cord
- Shield type
- U/FTP
- Transfer quality
- Cat8.1 / Class I
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 32
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Slim cable
- yes
- Bend radius
- 15.2mm
- Assignment
- EIA/TIA 568B
- Locking lever
- yes
- Anti-kink sleeve
- Moulded-on
- External cable diameter
- 3.8mm +/- 0.2mm
- Cable LSOH
- yes
- Material (external cable mantle)
- TPE-LSZH
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 75 °C
- Weight
- 11 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 40 mm
- Depth of packaging (single piece)
- 40 mm
- Package weight (single piece)
- 0.016 kg
