- Item number
- 11.04.5496-10
- Part number
- 11.04.5496
- EAN
- 7630049681132
- Brand
- ROLINE
- Weight
- 66.4 g
For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

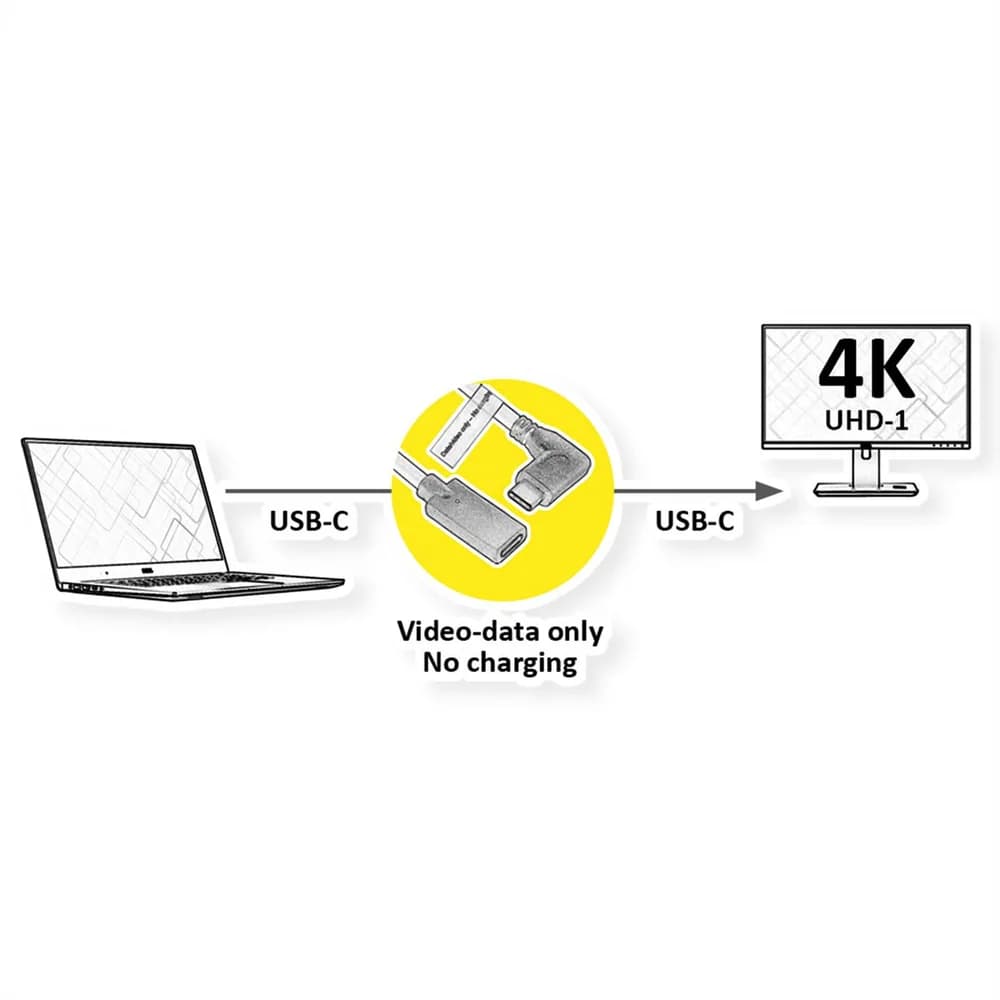

What is a USB-C DisplayPort (DP Alt Mode) Cable?- Cables with Type-C connector can offer DisplayPort technology via an alternative mode (Alt mode).
- Alt Mode allows USB-C ports to transfer data/video via multiple interfaces, including DisplayPort video interface
- The USB-C ports capable of transferring DisplayPort signals are called USB-C DisplayPort or DP Alt Mode
- Allow to connect video sources (e.g. PCs, Blu-Ray players, etc.) and display devices (e.g. TVs, projectors, etc.) that support DisplayPort to each other via their USB-C ports
- The main confusion over USB-C DisplayPort cables emerges because not all USB-C ports, available on the hardware (e.g. notebooks…) features the DisplayPort Alt Mode functionality
- For screen transmissions in excellent quality with resolutions of up to 3840x2160 / 4096x2560 @60Hz!

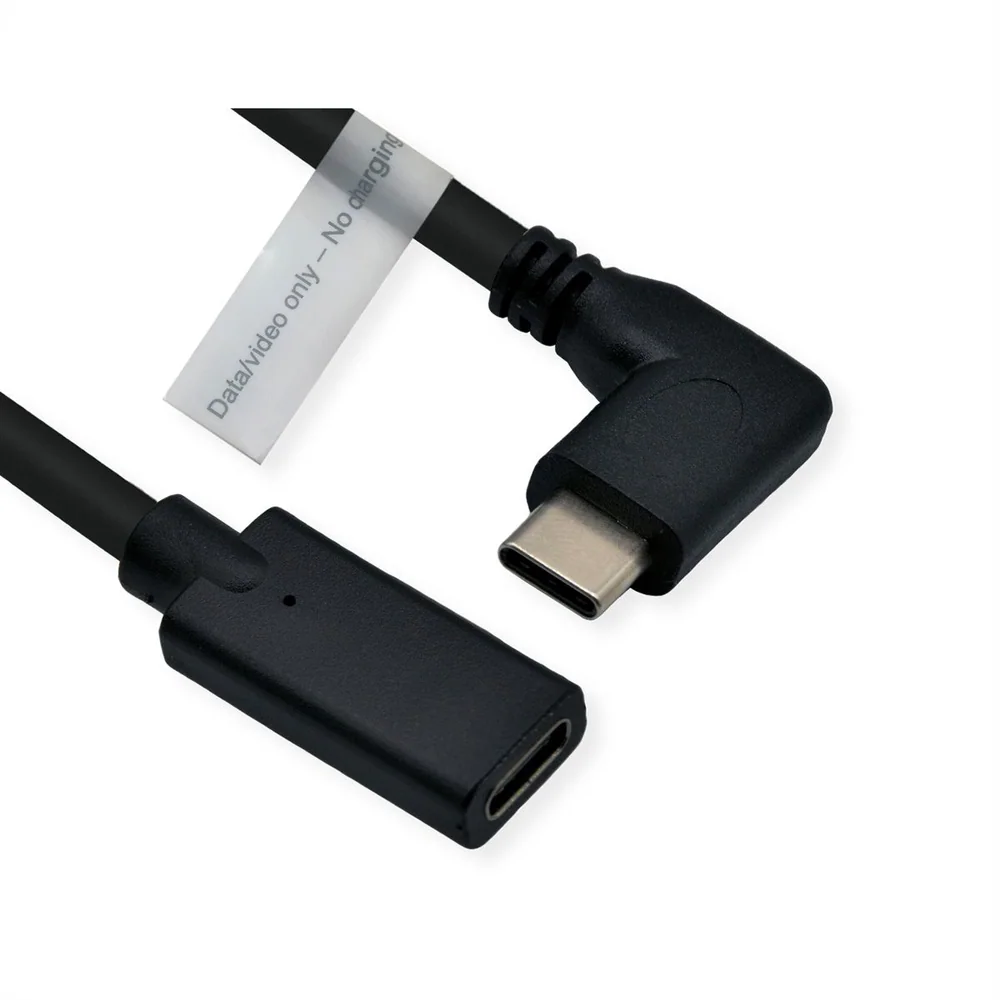

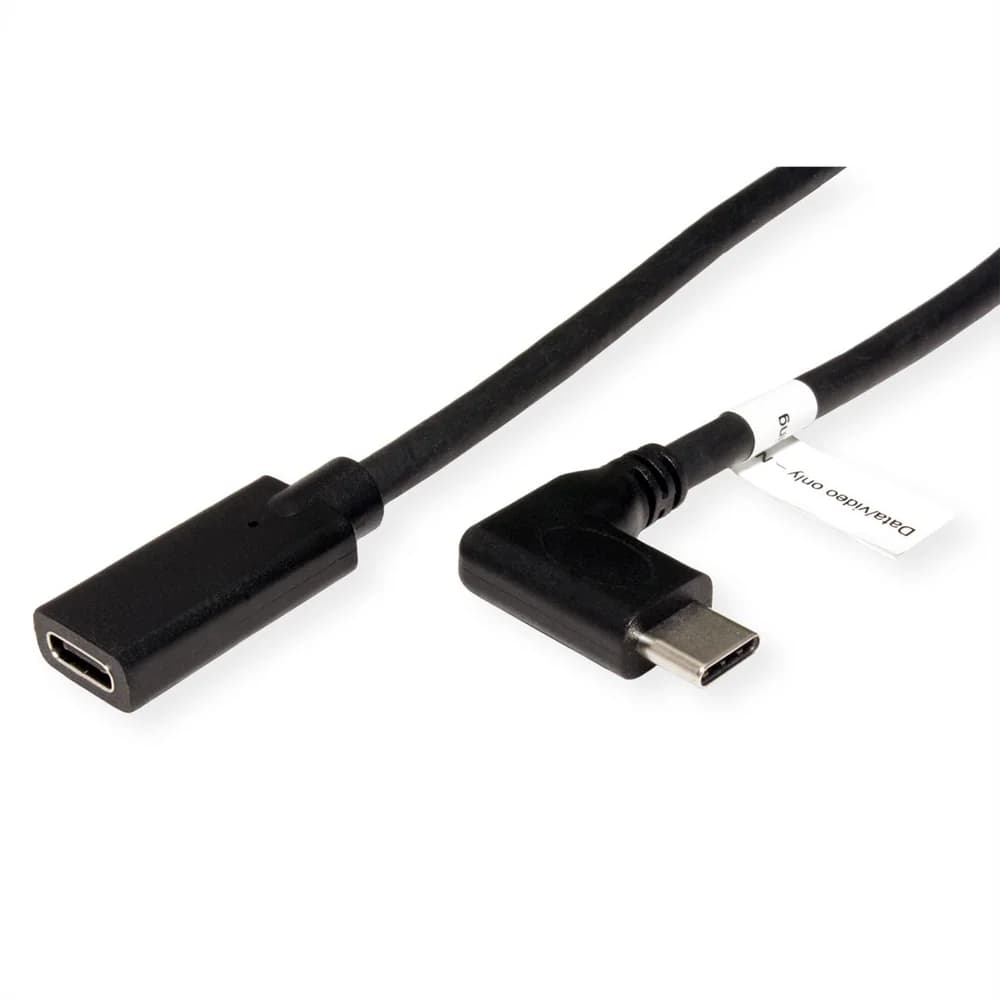

- Angled 90° at one end
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Cable
- Product type
- USB-C-Display cable
- Colour
- black
- Length
- 2 m
- Transfer quality
- DisplayPort v1.2
- Max. resolution
- 3840 x 2160 @60Hz (4K, UHD-1)
- side 1 connector
- DisplayPort M
- side 2 connector
- DisplayPort F
- Side 1 Connector Type
- USB Type C (USB-C)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- USB Type C (USB-C)
- Side 2 Connector Gender
- Female
- Area of application
- External
- Cable shielding
- Screened
- Weight
- 66.4 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.075 kg
