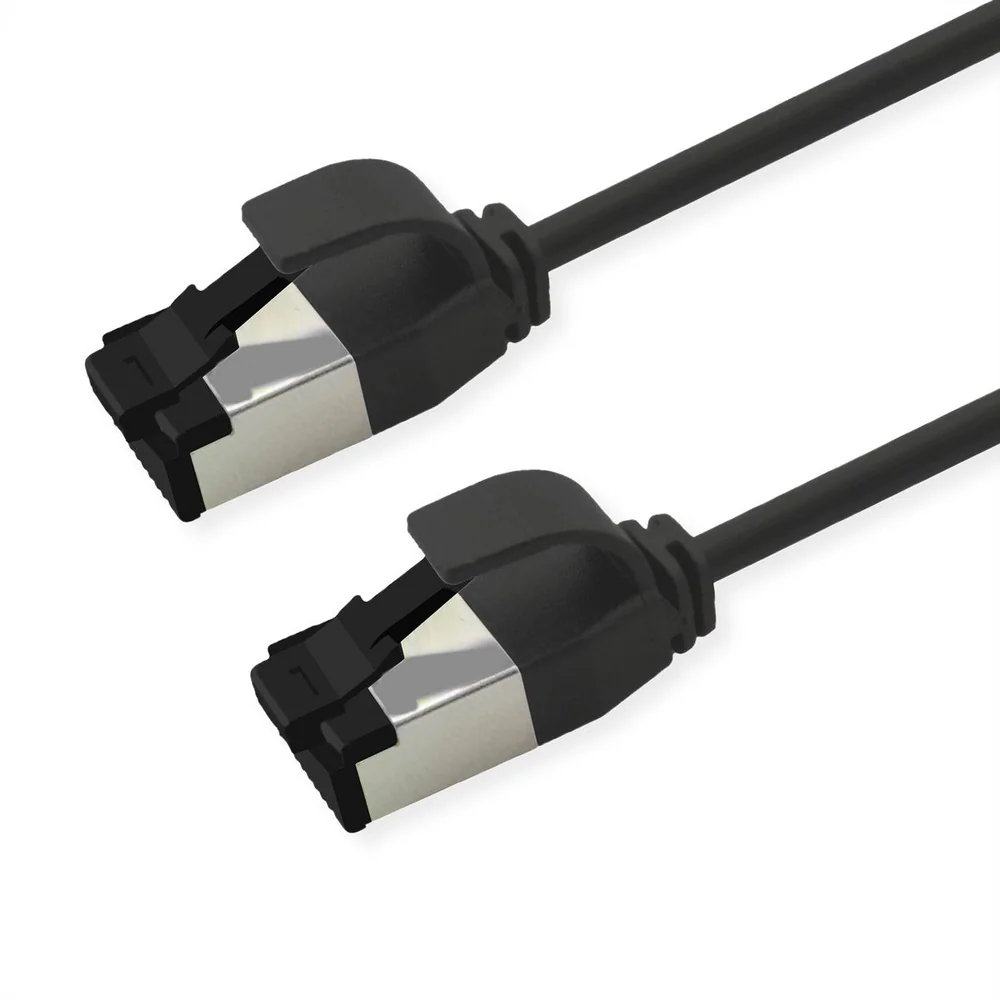

ROLINE S/FTP Patch Cord Cat. 8.1 (Class I), LSOH, Slim, PoE, black, 2 m
- Item number
- 21.15.3452-100
- Part number
- 21.15.3452
- EAN
- 7630049678866
- Brand
- ROLINE
- Weight
- 44 g
High-quality, slim and double shielded Category 8.1 (Class I) Patch Cord with screened RJ-45 connectors on both ends – for data rates of up to 40 gigabits per second. Moreover, this patch cord is halogen-free,…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
High-quality, slim and double shielded Category 8.1 (Class I) Patch Cord with screened RJ-45 connectors on both ends – for data rates of up to 40 gigabits per second. Moreover, this patch cord is halogen-free, flame-retardant and low-smoke (LSOH) and also suitable for PoE.
- Double shielded Cat. 8.1 (Class I) patch cord with screened RJ-45 connectors on both ends
- Bare copper wires
- Supports PoE
- Suitable for 40 Gigabit Ethernet networks
- High-quality gold-plated contacts
- Halogen-free, flame-retardant and low-smoke (LSOH)
- Durable thanks to molded kink protection
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 8-wire stranded cable, pairs foil-shielded, overall shielding braid
- Slim thanks to a small outer cable diameter of only 4.5 ± 0.2mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Twisted Pair Cable
- Product type
- S/FTP patch cord (PiMF)
- Colour
- black
- Length
- 2 m
- Scope of delivery
- Patchcord
- Shield type
- S/FTP (PiMF)
- Transfer quality
- Cat8.1 / Class I
- Impedance
- 100 Ohm
- Quantity of wires
- 8
- Conductor cross section (AWG)
- AWG 28
- Power over Ethernet (PoE)
- yes
- Inner conductor material
- BC (Bare Copper)
- Conductor type
- Stranded
- Crossed
- no
- Slim cable
- yes
- Bend radius
- 27 mm
- Assignment
- EIA/TIA 568B
- Locking lever
- yes
- Anti-kink sleeve
- Moulded-on
- External cable diameter
- 4.5 mm +/- 0.2 mm
- Cable LSOH
- yes
- Material (external cable mantle)
- TPE
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Male
- Connector Type RJ45
- Standard
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 75 °C
- Weight
- 44 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 100 mm
- Package weight (single piece)
- 0.05 kg
