ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered
- Item number
- 12.02.1008-4
- Part number
- 12.02.1008
- EAN
- 7611990998661
- Brand
- ROLINE
- Weight
- 62.9 g
Converts RS-422 or RS-485 devices to a RS-232 port Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block High speed baud rate up to 921.6 Kbit/s Data transfer rate of up to 115.2 Kbit/s at 1.2 km Built-in…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

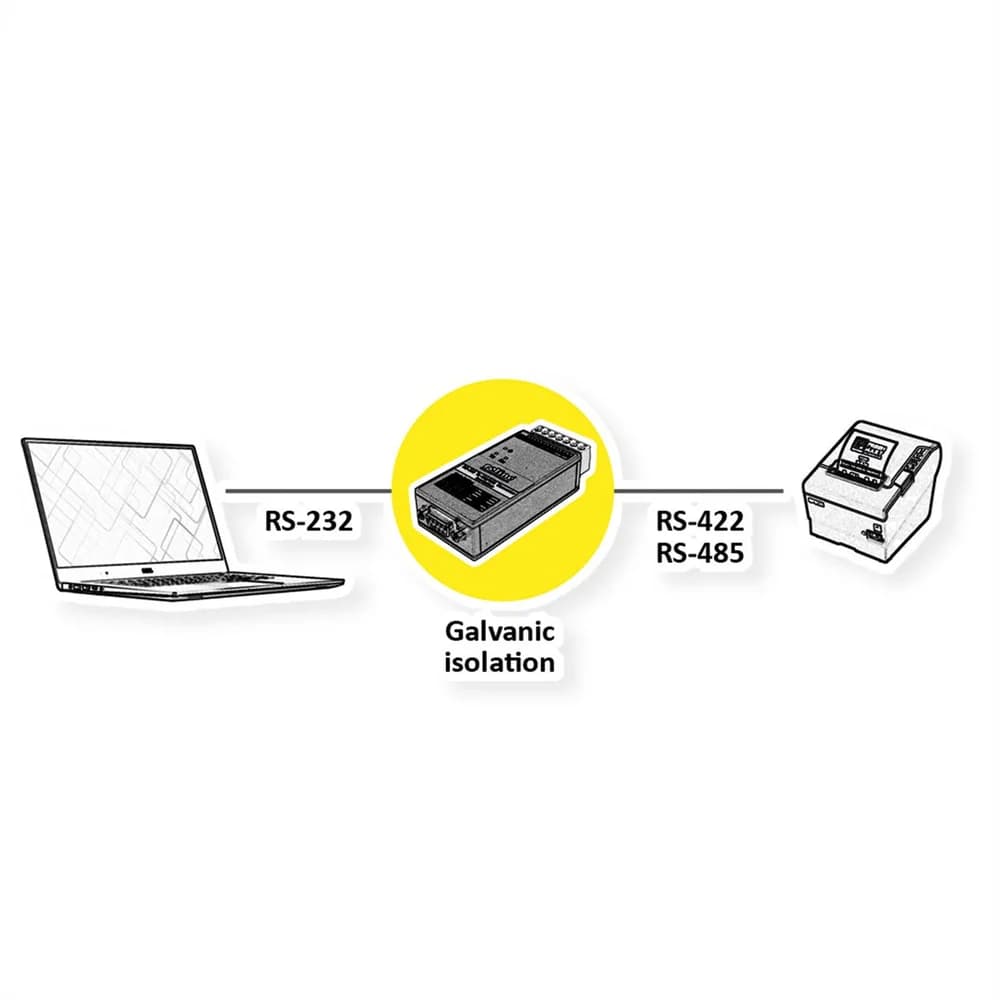

Converts RS-422 or RS-485 devices to a RS-232 port

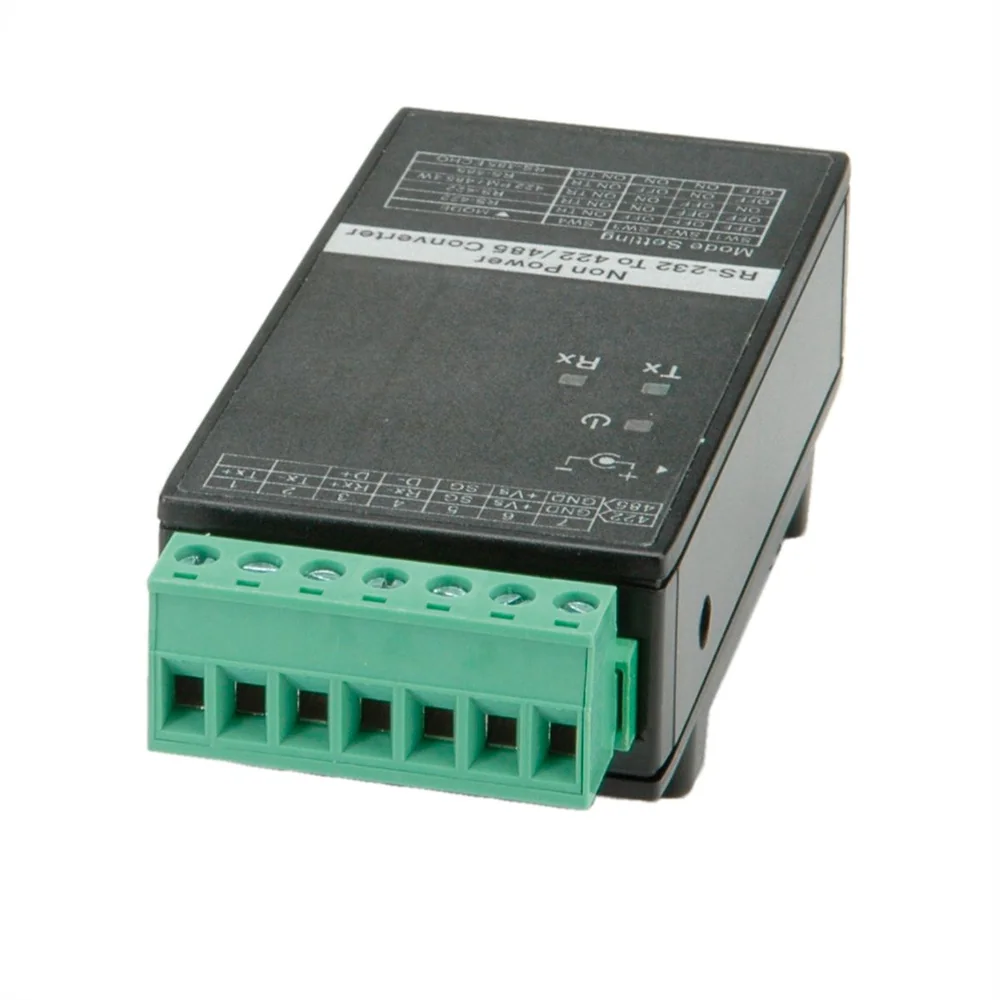

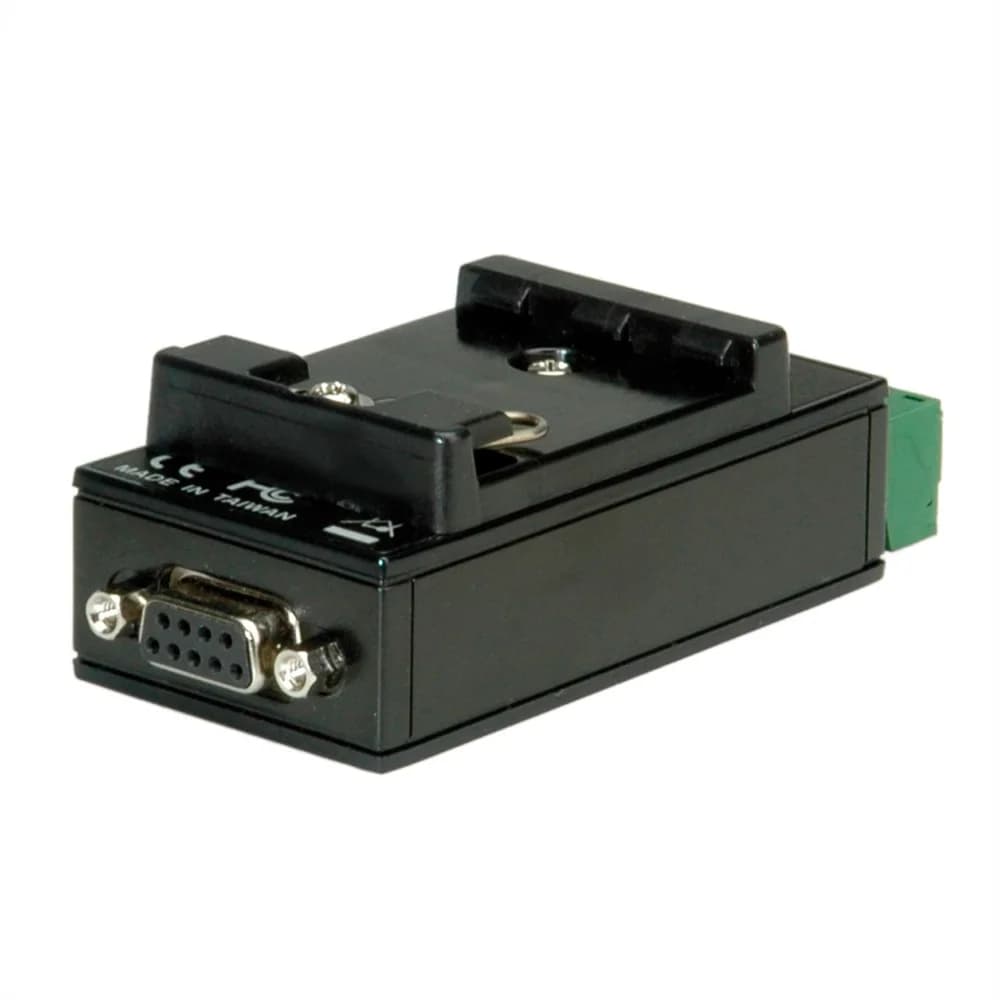

- Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
- High speed baud rate up to 921.6 Kbit/s
- Data transfer rate of up to 115.2 Kbit/s at 1.2 km
- Built-in Terminator 120 Ohm by DIP switch settings
- Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Signals for RS-422/4-wire: Tx+, Tx-, Rx+, Rx-, GND
- Signals for RS-485/2-wire: D+, D-, GND
- Windows ME/2000/Server 2003/XP/Server 2008/XP/Vista/7/10/11
- Protection: 15 KV ESD protection for all signals, 600 W surge protection for RS-422/485 signals

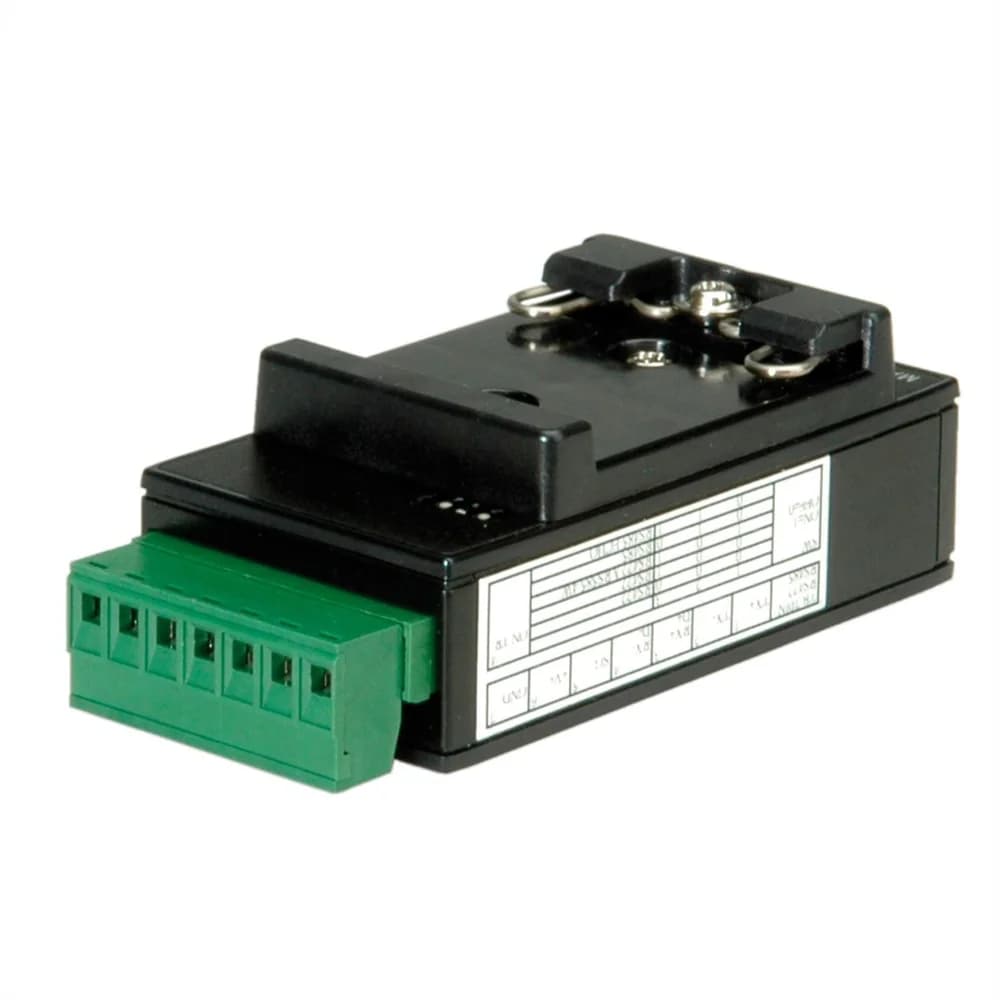

- For DIN rail mounting (DIN rail kit included) or desktop use
- Hardware solution, no software required
- RS-232 port powered technology, optional: Power input 10~30 VDC
- Contents: Converter, manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- Serial interface converter
- Colour
- black
- Scope of delivery
- Converter, manual
- Dimensions (HxWxD)
- 22 x 42 x 97.2 mm
- Height
- 22 mm
- Width
- 42 mm
- Depth
- 97.2 mm
- Weight
- 62.9 g
Packaging
- Height of packaging (single piece)
- 40 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.14 kg
