ROLINE RJ-45 Modular Coupler, Cat. 6A (Class EA), shielded, metal housing
- Item number
- 21.17.3097-10
- Part number
- 21.17.3097
- EAN
- 7630049673489
- Brand
- ROLINE
- Weight
- 16.4 g
ROLINE Cat. 6A Modular Coupler with shielded metal housing for the connection or extention of RJ-45 network cables.
Description
ROLINE Cat. 6A Modular Coupler with shielded metal housing for the connection or extention of RJ-45 network cables.
- Shielded metal housing to protect the signals against electrical and magnetic interference
- The coupler is able to extend Cat. 6A cables
- 8 contacts, 1:1 connected

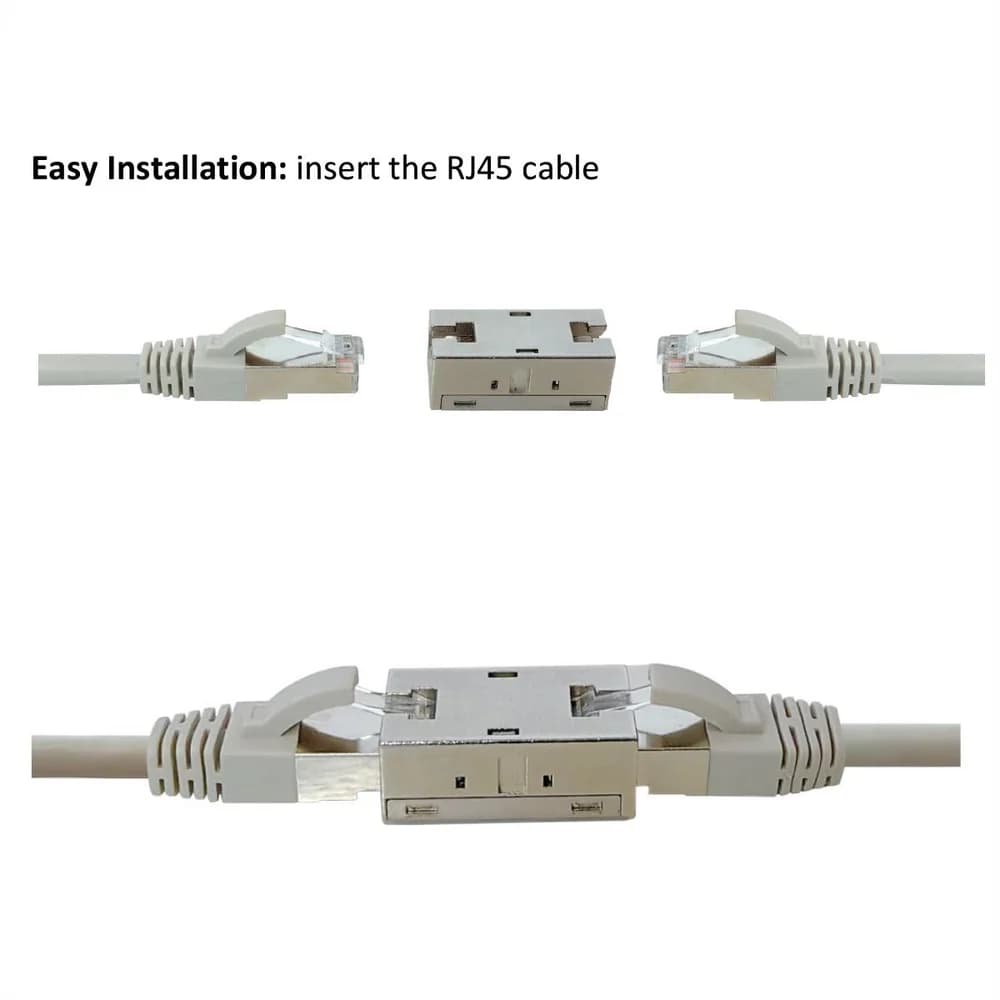

- Easy installation
- Colour: silver
Remark: Picture similar
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ-45 Implementing clutch
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A
- Side 1 Connector Type
- RJ-45
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- RJ-45
- Side 2 Connector Gender
- Female
- Material (casing)
- metal
- Shield contacts
- yes
- separate strain relief
- no
- Connection direction
- Straight
- Technical particularity
- 1 : 1 connected
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 85 °C

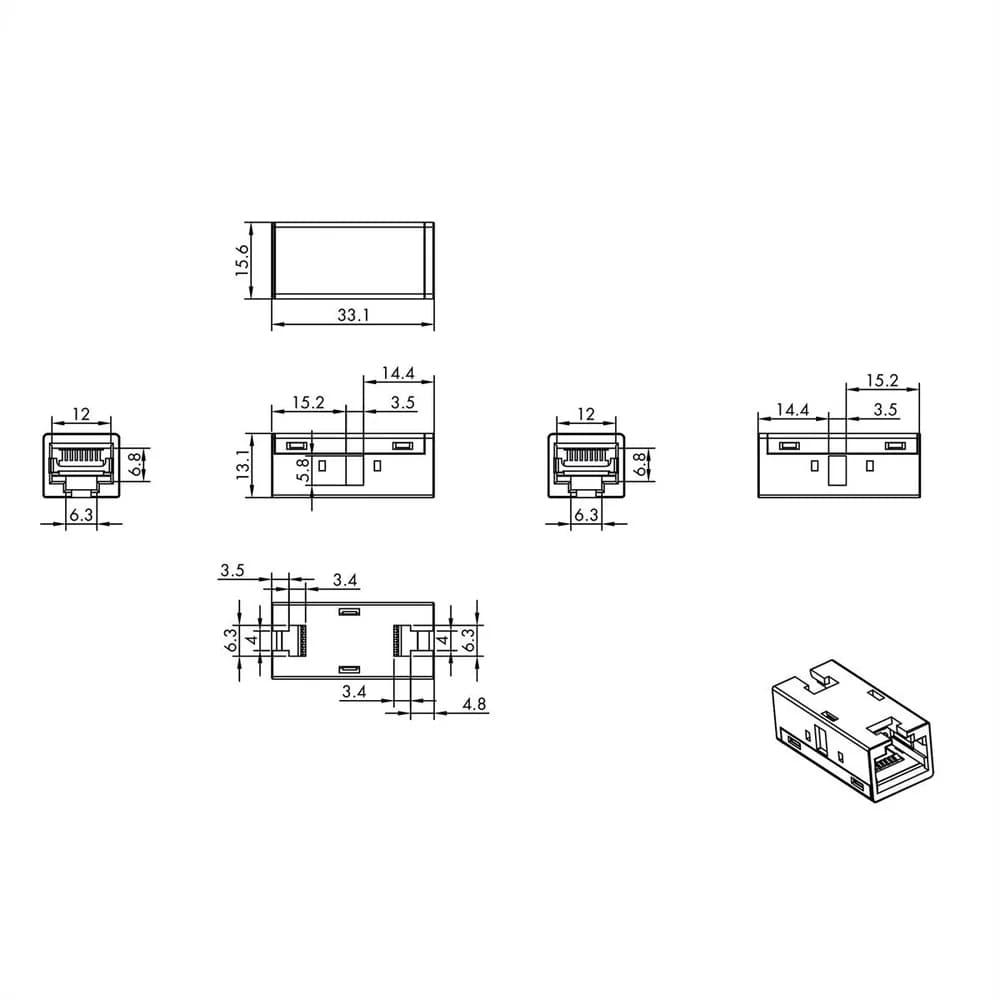

- Height
- 13.1 mm
- Width
- 15.6 mm
- Depth
- 33.1 mm
- Weight
- 16.4 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 180 mm
- Package weight (single piece)
- 0.32 kg
