ROLINE Opto Bridge USB-USB
- Item number
- 12.02.1091-30
- Part number
- 12.02.1091
- EAN
- 7630049692930
- Brand
- ROLINE
- Weight
- 48.7 g
This small, industrial - grade isolator is very easy to use and provides a high-voltage barrier protection against surges, noise and ground loop errors. Suitable for use in sensitive applications like automotive…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
This small, industrial - grade isolator is very easy to use and provides a high-voltage barrier protection against surges, noise and ground loop errors. Suitable for use in sensitive applications like automotive measurements.
- Effective protection of the USB interface through galvanic isolation (opto-coupler)

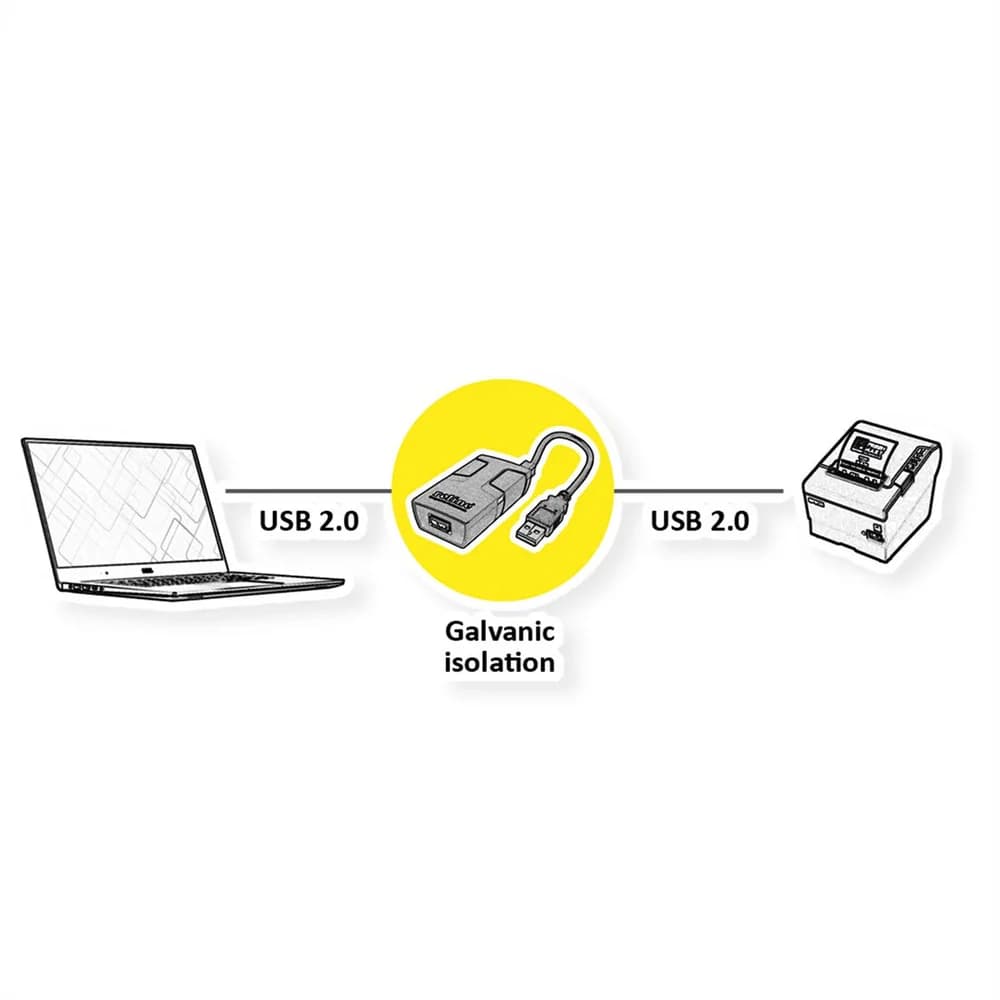

- Isolates a USB device galvanically from the USB host
- Insulation voltage max. 5000V eff.
- LED indicators
- Data transfer rate: max. 12MBit/s, USB 2.0 compatible
- Connections: USB A connector and USB A plug cable
- Optional: External power supply 19.11.1097 (500mA), e.g. for powering larger hard disks (3.5" HDDs)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- Galvanic isolation interface
- Colour
- black
- Side 1 connection (PC)
- USB Stecker
- Side 2 connection (Peripherals)
- USB Buchse
- Side 1 Connector Type
- USB 2.0 Type A
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- USB 2.0 Type A
- Side 2 Connector Gender
- Female
- Area of application
- External
- Dimensions (HxWxD)
- 20x39x66mm
- Technical particularity
- Isolation voltage 5000V
- Height
- 20 mm
- Width
- 39 mm
- Depth
- 66 mm
- Weight
- 48.7 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 50 mm
- Depth of packaging (single piece)
- 50 mm
- Package weight (single piece)
- 0.07 kg
