ROLINE M.2 to SATA III SSD H/W adapter, 2x M.2 NGFF SSD, bootable and RAID-capable
- Item number
- 16.01.4145-10
- Part number
- 16.01.4145
- EAN
- 7611990934942
- Brand
- ROLINE
- Weight
- 41 g

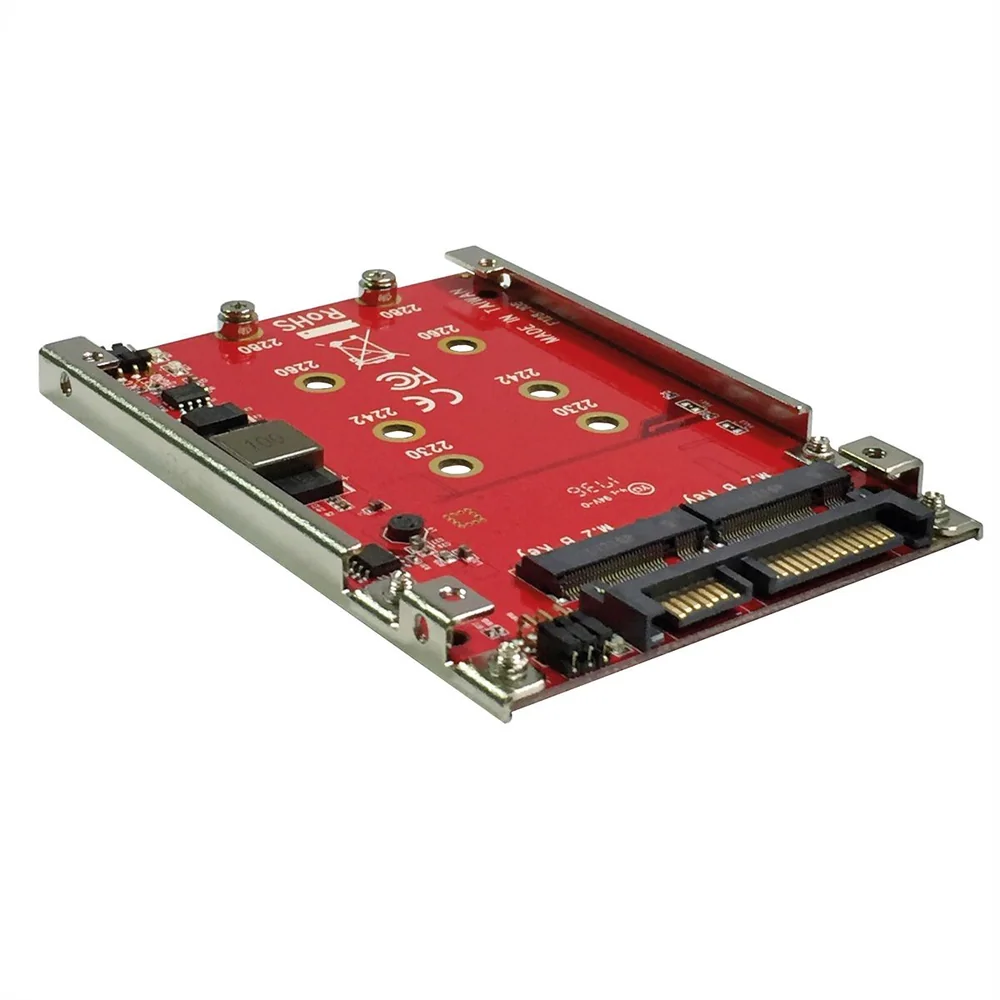

2.5-inch H/W adapter for the installation of two M. 2 SSDs (NGFF), bootable and RAID-compatible and with 6Gbit/s SATA connection!
Description
2.5-inch H/W adapter for the installation of two M. 2 SSDs (NGFF), bootable and RAID-compatible and with 6Gbit/s SATA connection!
- Supports two M. 2 NGFF SSDs with B-Key and form factor 2230, 2242, 2260 and 2280
- M.2 NGFF SATA SSDs can be primary boot device and contain operating system and applications.
- RAID 0 and RAID 1 configurable via hardware or software; configuration on the hardware side via 6 pins with jumper (jumper table on the back of the board)
- The 2.5 inch H/W adapter can be installed in a 2.5" housing and is therefore perfectly suited for mobile use.
- No drivers required
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Drive housing
- Product type
- Plug-In Casing S-ATA
- Colour
- red
- Scope of delivery
- HDD adapter
- Quantity of Drives
- 1
- Drive form
- 2.5
- Material (casing)
- Metal
- Weight
- 41 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 160 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.156 kg
