- Item number
- 14.01.3427-4
- Part number
- 14.01.3427
- EAN
- 7630049672390
- Brand
- ROLINE
- Weight
- 261 g

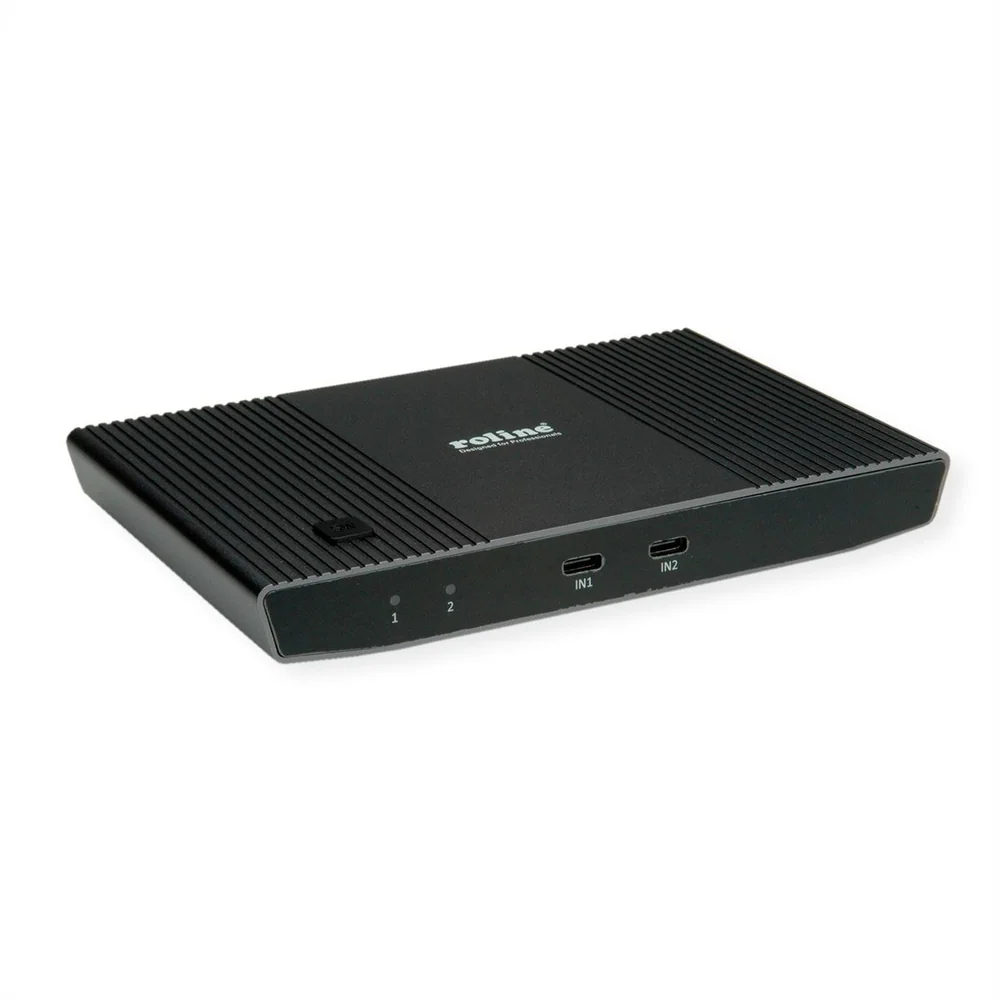

This is a KVM switch, including an USB Hub. You can operate two USB-C devices with just one USB mouse, one USB keyboard and one HDMI monitor - with a resolution of up to 3840x2160 @60Hz!
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
This is a KVM switch, including an USB Hub. You can operate two USB-C devices with just one USB mouse, one USB keyboard and one HDMI monitor - with a resolution of up to 3840x2160 @60Hz!
KVM switch
- Switching between the devices is done via a button on the switch
- LED display provides information about the active connection to the device
- Max. Video display resolution: 3840x2160 @60Hz
- Solid metal housing
USB Hub
- Three USB 3.2 Gen. 1 / USB 3.0 (2x Type A, 1x Type C) ports for connecting e.g. keyboard and mouse, external hard disk, printer, scanner or other peripheral devices
- 1 port with USB type C PD for connecting a PD charger (min. 100 W)
- If two devices are connected, they are charged via PD with 60W (port 1) and 20W (port 2);
if only one device is connected, it can be charged with up to 80W.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, HDMI
- Colour
- black
- Scope of delivery
- Main Unit, 2 USB-C cables, User Manual
- Interface
- HDMI
- Inputs
- 2
- Outputs
- 1
- Quantity of PCs
- 2
- Supported PC-Systems
- USB
- PC: monitor connection
- HDMI
- PC: mouse/keyboard connection
- 2x USB
- PC: connection on moulded cables
- no
- Analogue Console: Mouse/Keyboard connection
- USB
- Integrated console
- no
- Switching over Scan Run
- no
- Print button on device
- yes
- Switching over Hot Keys
- no
- Switching over OSD
- no
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 3
- Keyboard/mouse emulation
- yes
- 19" compatible
- no
- Cascadable
- no
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 3840 x 2160 @60Hz
- Colour (Design profile)
- black
- Material (casing)
- Metal
- Power supply unit required
- yes
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 20 mm
- Width
- 161 mm
- Depth
- 100 mm
- Weight
- 261 g
Packaging
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.8 kg
