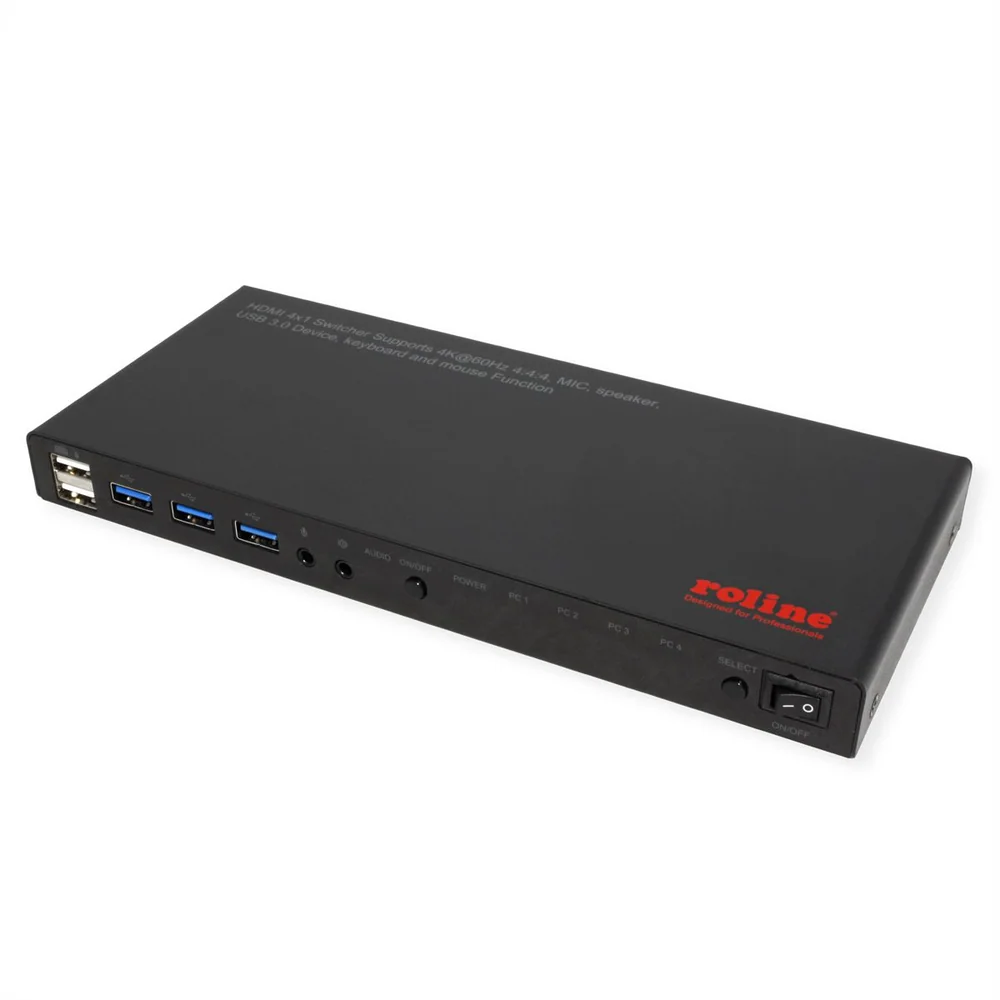

ROLINE KVM Switch, 4 PCs, HDMI 4K@60Hz, with 3 Port USB 3.2 Gen1 / USB 3.0 Hub
- Item number
- 14.01.3428-10
- Part number
- 14.01.3428
- EAN
- 7630049675735
- Brand
- ROLINE
- Weight
- 621 g
With this ROLINE 4-Port HDMI KVM Switch you can control four computers with only one mouse, one keyboard and one monitor - with a resolution of up to 3840x2160@60Hz! Moreover, it features a 3-Port USB 3.0 / USB 3.2 Gen…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
With this ROLINE 4-Port HDMI KVM Switch you can control four computers with only one mouse, one keyboard and one monitor - with a resolution of up to 3840x2160@60Hz! Moreover, it features a 3-Port USB 3.0 / USB 3.2 Gen 1 Hub to connect additional USB devices.
- Switching between the PCs is done via hotkey on the keyboard or via push button on the KVM.
- Max. Resolution: 3840x2160@60Hz
- Four computers can be controlled
- Integrated 3-Port USB 3.2 Gen1 / USB 3.0 Hub
- Supports Mic In and Stereo Audio Out
- Offers full 3D video format
- Features Consumer Electronics Control and High Dynamic Range (HDR)
- Solid metal housing
- Supports Windows 7 / 8 / 10 / 11
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, HDMI
- Colour
- black
- Scope of delivery
- KVM Switch, Power Adapter, Operating Instructions
- Interface
- HDMI
- Audio
- Stereo Audio
- Inputs
- 4
- Outputs
- 1
- Quantity of PCs
- 4
- Supported PC-Systems
- USB
- PC: monitor connection
- 4x HDMI 4K@60Hz
- PC: mouse/keyboard connection
- 4x USB 3.2 Gen 1 / USB 3.0 Type B
- Analogue Console: Monitor connection
- 1x HDMI
- Analogue Console: Mouse/Keyboard connection
- 2x USB 2.0 Type A
- Print button on device
- yes
- Switching over Hot Keys
- Keyboard
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 3
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 3840 x 2160 @60Hz
- Colour (Design profile)
- black
- Material (casing)
- Metal
- Dimensions (HxWxD)
- 23 x 231 x 108 mm
- Power supply unit required
- yes
- Power supply output
- DC 5V 3A
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Height
- 23 mm
- Width
- 231 mm
- Depth
- 108 mm
- Weight
- 621 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 220 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.84 kg
