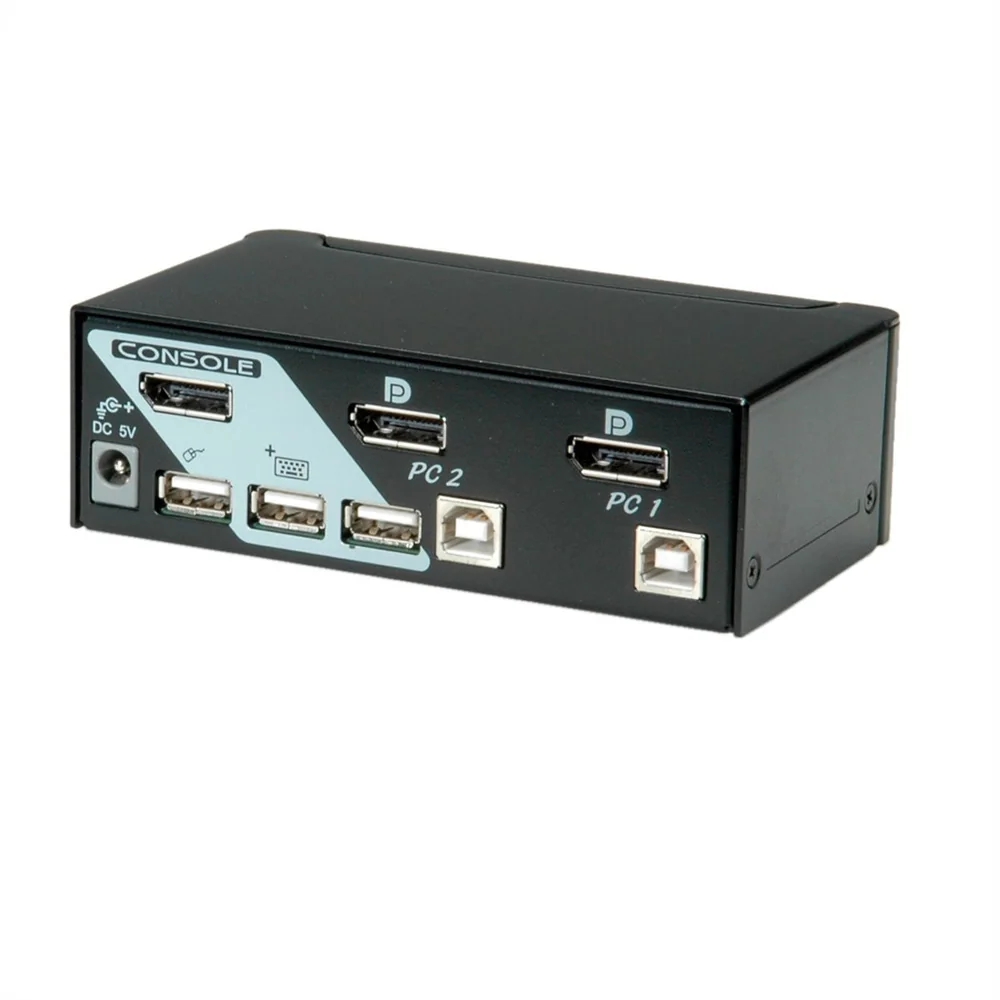

ROLINE KVM Switch, 1 User - 2 PCs, DisplayPort, with USB Hub
- Item number
- 14.01.3327-4
- Part number
- 14.01.3327
- EAN
- 7611990989089
- Brand
- ROLINE
- Weight
- 416.2 g
Control 2 computers from a single USB console (DisplayPort monitor, USB mouse and keyboard) Supports DisplayPort with a resolution up to 2560 x 1600 Integrated 1-port USB 2.0 hub allows 2 computers to share a USB device…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Control 2 computers from a single USB console (DisplayPort monitor, USB mouse and keyboard)
- Supports DisplayPort with a resolution up to 2560 x 1600
- Integrated 1-port USB 2.0 hub allows 2 computers to share a USB device
- Front panel push button or hot-key function for easy computer selection
- No software required
- Dimensions: 40 x 125 x 70 mm
- Supports Windows
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- KVM switches / PC shares
- Product type
- KVM-Switch, DP
- Colour
- black
- Scope of delivery
- KVM switch, power supply, manual
- Quantity of PCs
- 2
- Supported PC-Systems
- USB
- PC: monitor connection
- 2x DisplayPort
- PC: mouse/keyboard connection
- 2x USB Type B F
- PC: connection on moulded cables
- no
- Quantity of digital consoles
- 1
- Integrated console
- no
- Switching over Scan Run
- yes
- Print button on device
- no
- Switching over Hot Keys
- Keyboard
- Switching over OSD
- no
- Audio switching separately
- no
- Integrated Hub
- yes
- Quantity of USB-Hub ports
- 1
- Keyboard/mouse emulation
- yes
- 19" compatible
- no
- Cascadable
- no
- Hot plug compatible
- yes
- Max. resolution (nominal)
- 1920 x 1200
- Colour (Design profile)
- black
- Material (casing)
- Metal
- Dimensions (HxWxD)
- 40 x 125 x 70 mm
- Power supply unit required
- yes
- Technical particularity
- LEDs for easy status monitoring
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 40 mm
- Width
- 125 mm
- Depth
- 70 mm
- Weight
- 416.2 g
Packaging
- Height of packaging (single piece)
- 100 mm
- Width of packaging (single piece)
- 180 mm
- Depth of packaging (single piece)
- 240 mm
- Package weight (single piece)
- 0.806 kg
