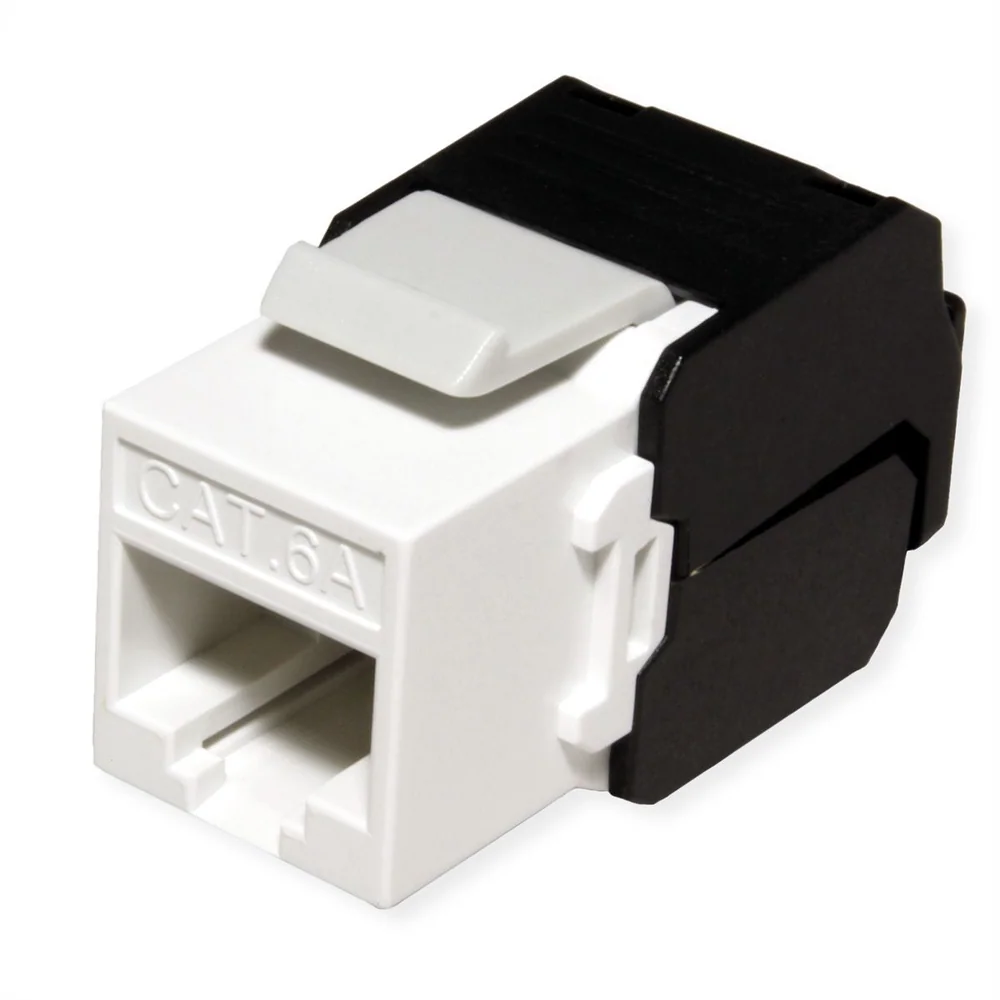

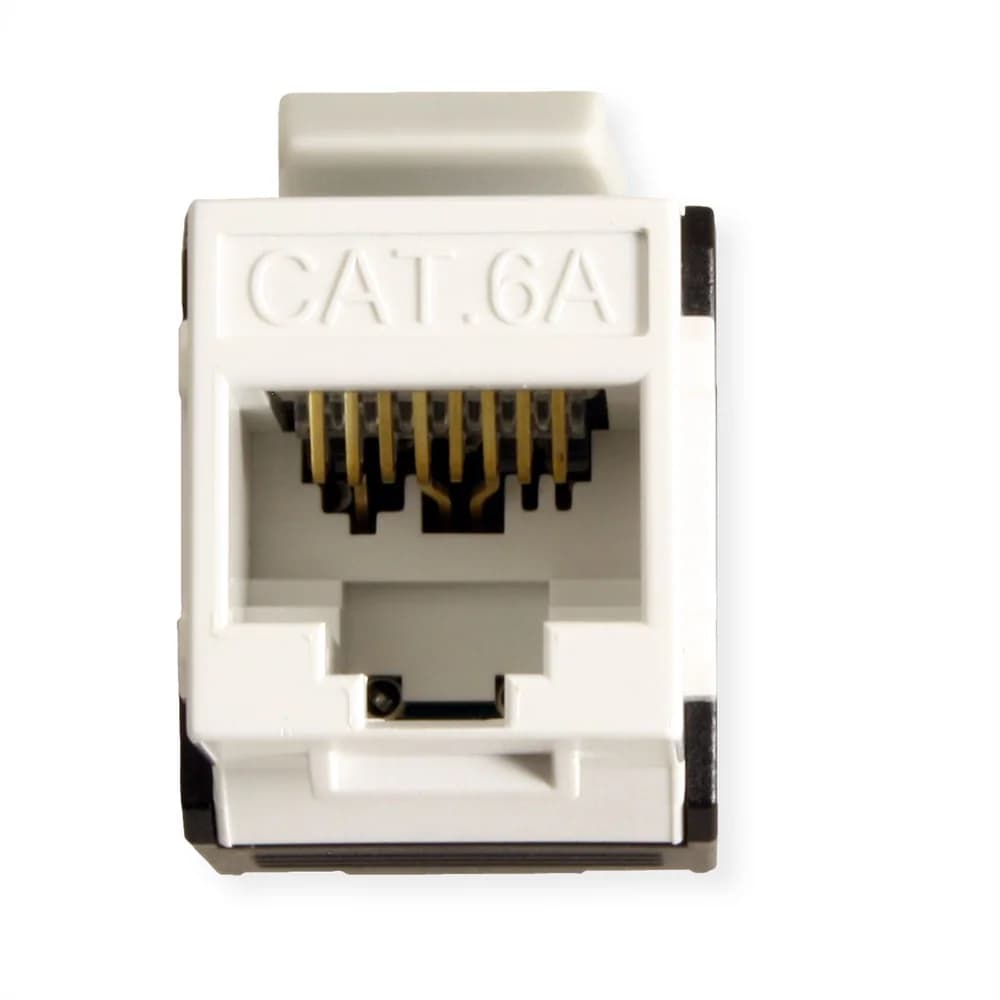

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, UTP, tool-free, white
- Item number
- 26.11.0337-50
- Part number
- 26.11.0337
- EAN
- 7611990998487
- Brand
- ROLINE
- Weight
- 7.8 g
The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz Assembling takes place over LSA plus Colour code on the keystone jacks is based on the standard EIA/TIA 568 Can be used…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz

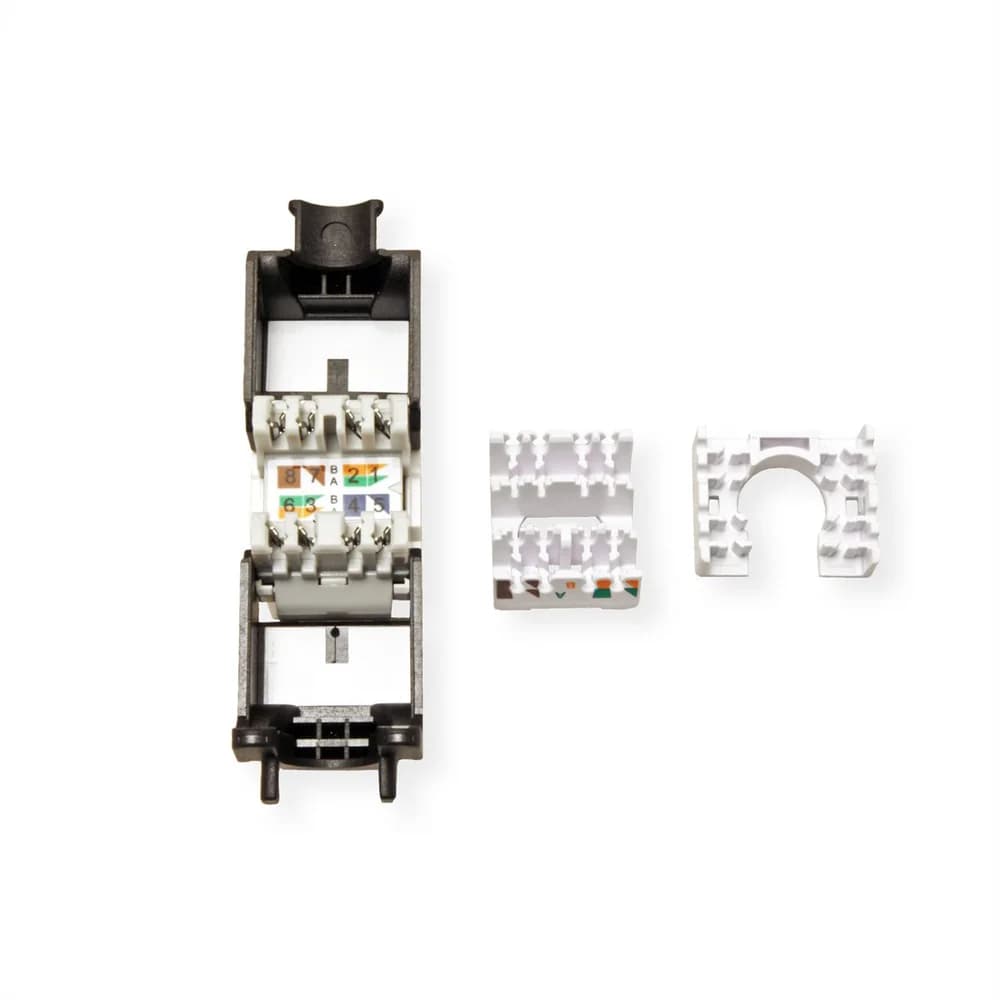

- Assembling takes place over LSA plus

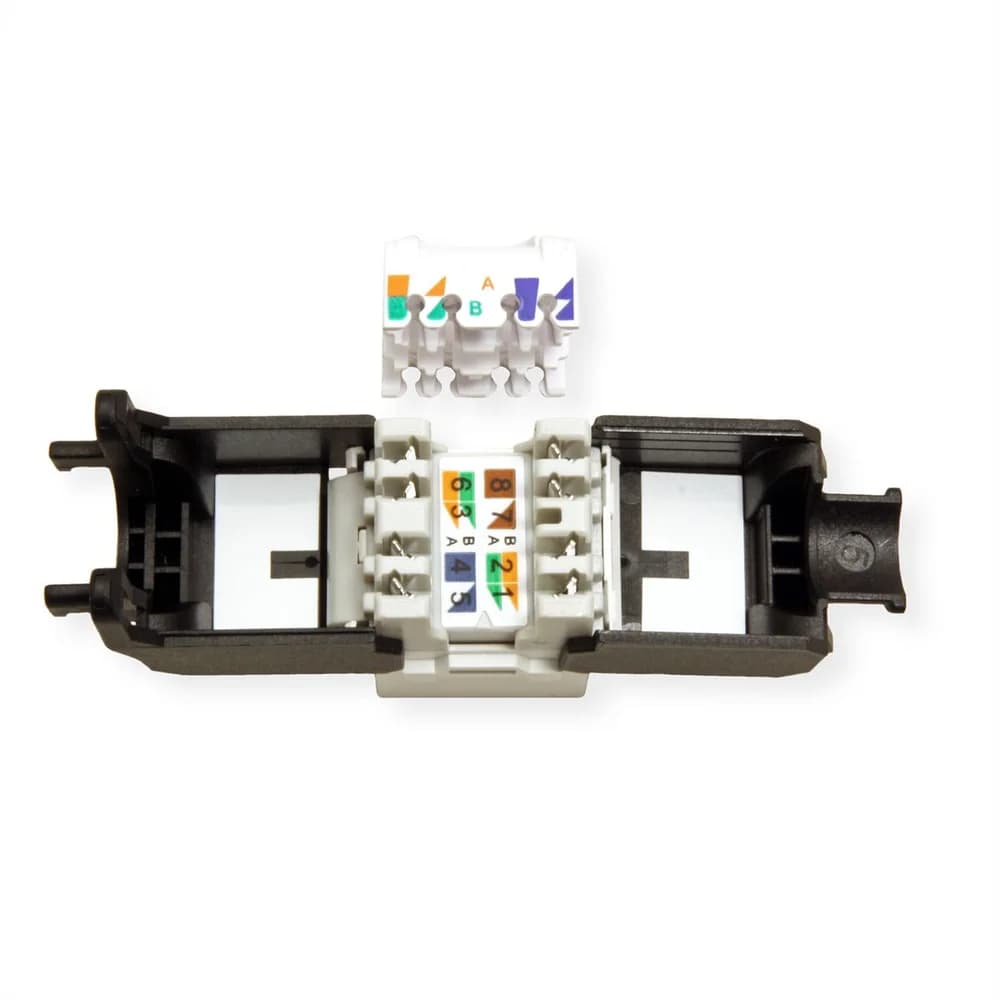

- Colour code on the keystone jacks is based on the standard EIA/TIA 568
- Can be used together with Keystone Module frame 26.11.0357 (black) or 26.11.0356 (light grey), Flush Mount Wall Oulet for Keystones, 2-port (25.16.8579)
- Colour: white
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- white
- Scope of delivery
- 1x Keystone
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 23 mm
- Width
- 16 mm
- Depth
- 38 mm
- Weight
- 7.8 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 70 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.02 kg
