ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, STP, tool-free, SLIM and SHORT, silver
- Item number
- 26.11.0391-10
- Part number
- 26.11.0391
- EAN
- 7630049675025
- Brand
- ROLINE
- Weight
- 16.4 g
ROLINE Cat. 6A Keystone for use in a 10 Gigabit network, using a bandwith of 500 MHz, shielded, with a very small form factor!
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE Cat. 6A Keystone for use in a 10 Gigabit network, using a bandwith of 500 MHz, shielded, with a very small form factor!

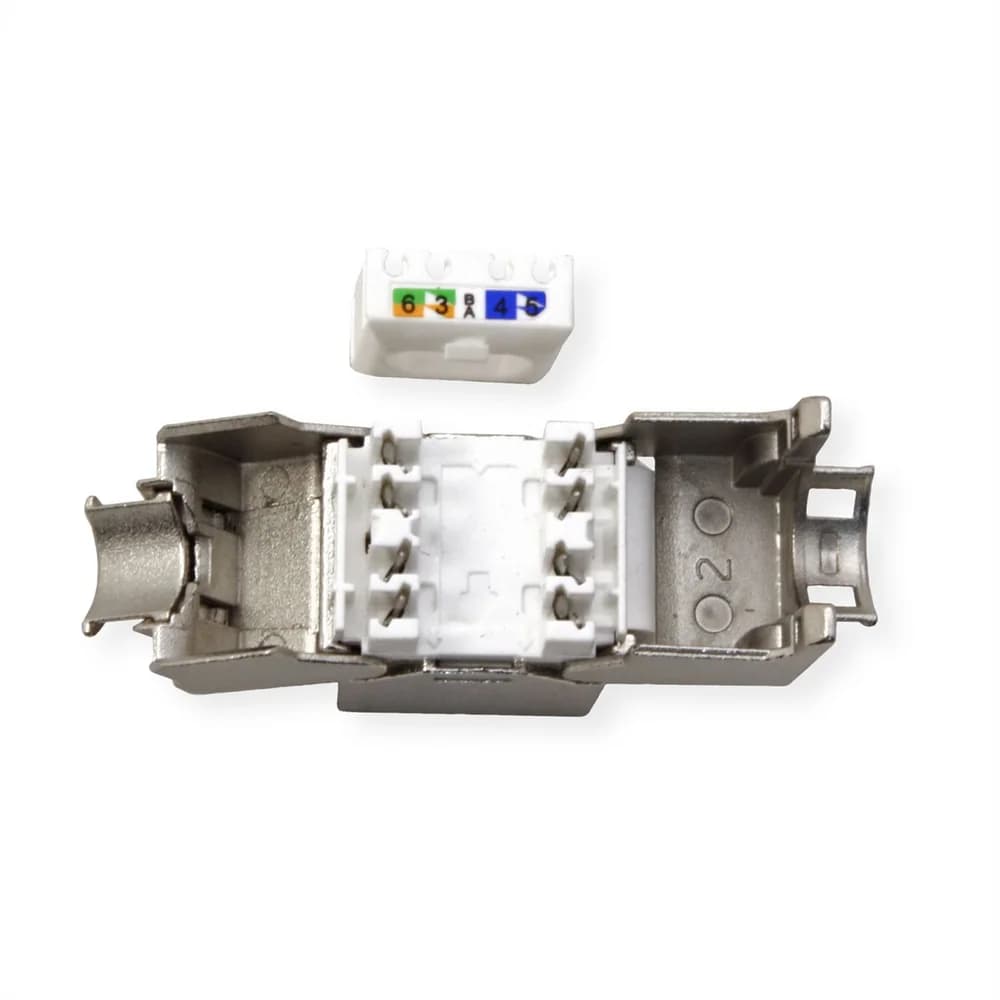

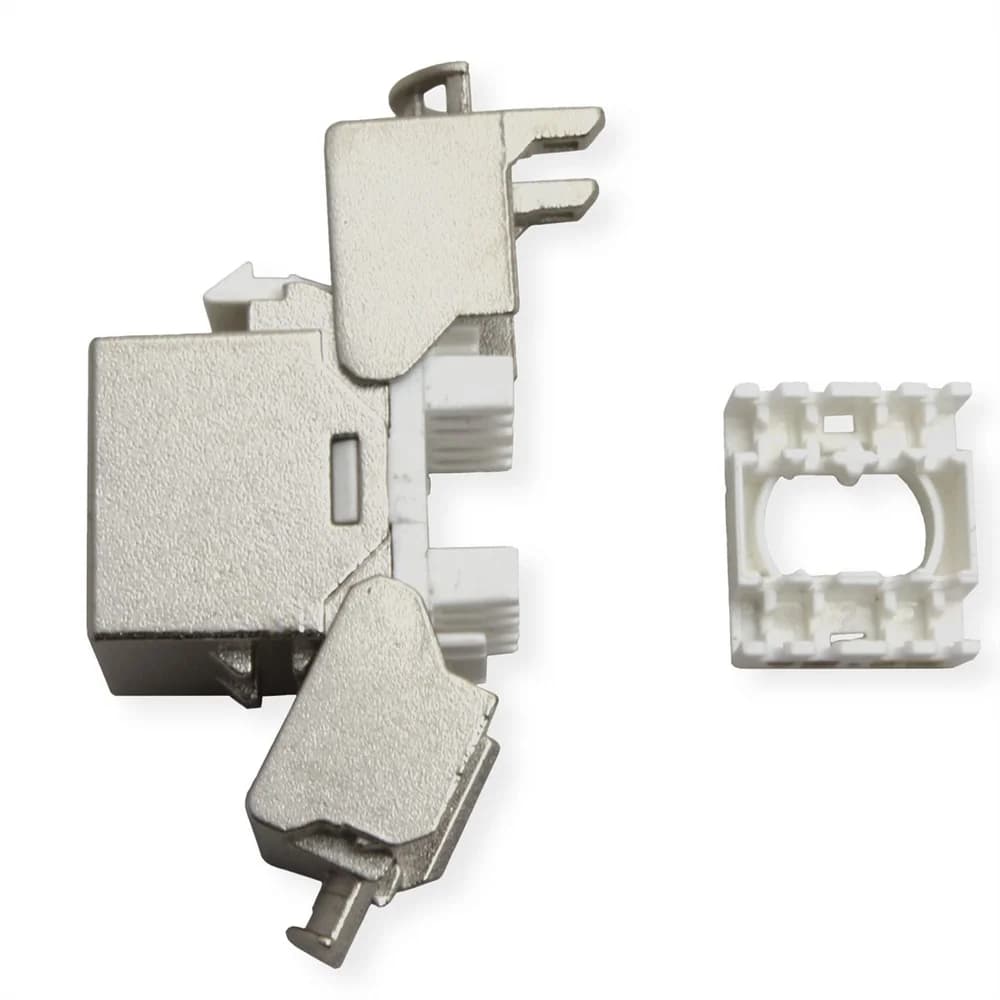

- The cables are connected to the Keystone without tools - the cable cores are simply placed in the guides, the module is closed and pressed together - the connection is complete
- Keystone with printed color coding in accordance with EIA / TIA 568
- The ROLINE Cat.6/Class E 19" keystones meet the transmission properties of a Cat.6A/Class EA link
- Shielded
- Slim and short
- Color: silver
- The Keystone modules can be clipped into a 19" module support (26.11.0360 in black or 26.11.0359 in light gray) with an earthing connection. Or they can be used together with a module holder 25.16.8579 to form a junction box.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- silver
- Scope of delivery
- Keystone, Cable Tie
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 70 °C
- Height
- 21 mm
- Width
- 15 mm
- Depth
- 30 mm
- Weight
- 16.4 g
Packaging
- Height of packaging (single piece)
- 40 mm
- Width of packaging (single piece)
- 20 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.005 kg
