ROLINE Keystone Holder, with Cat.6A Keystone, shielded, DIN-Rail, 45°
- Item number
- 26.11.0379-10
- Part number
- 26.11.0379
- EAN
- 7630049675698
- Brand
- ROLINE
- Weight
- 36.5 g

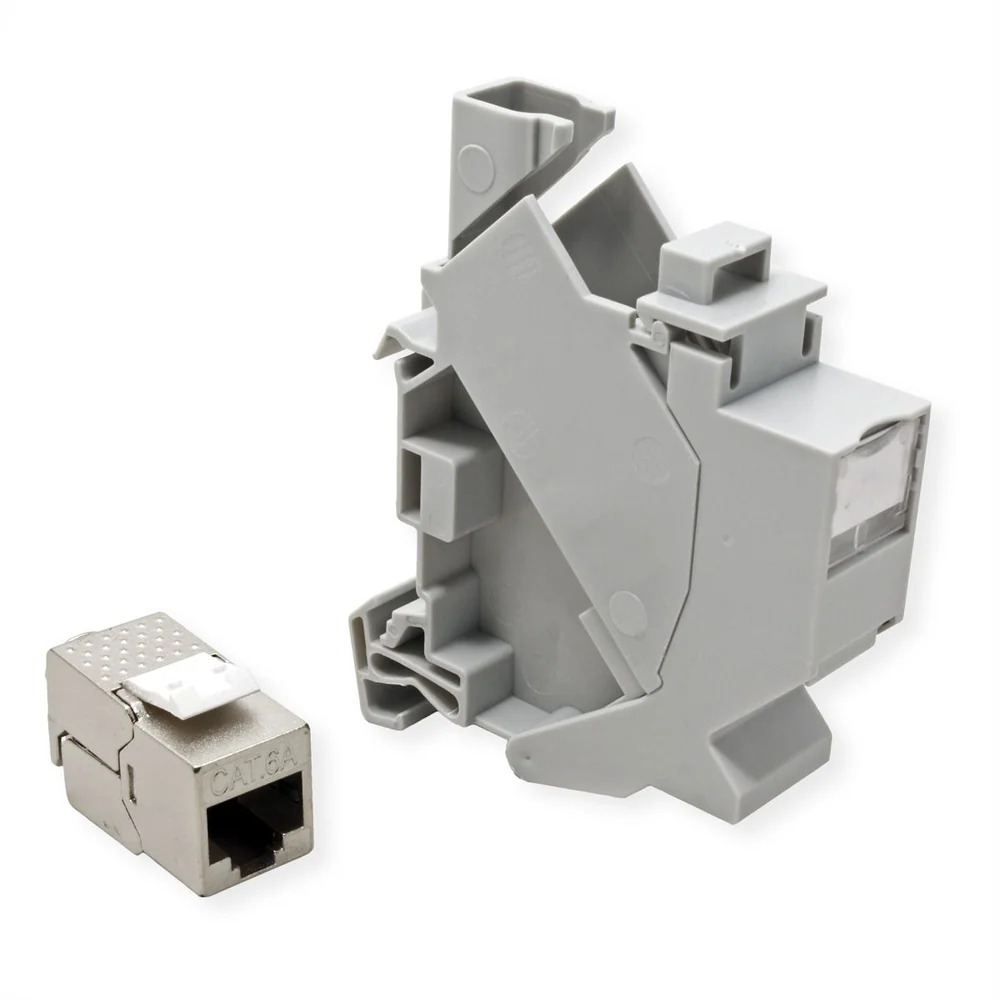

Keystone holder including shielded Cat.6A keystone, for installation on DIN rail
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
Keystone holder including shielded Cat.6A keystone, for installation on DIN rail
- Cable access 45° from the top or bottom, connection direction 45° downwards
- With shielded plate (grounding)
- Keystones with printed colour coding in accordance with EIA/TIA 568
- Cables can be connected to the keystones without tools – simply place the cable wires in the guides, close the module and press it together – and the connection is complete
- Holder with integrated dust cover
- For cables with outer diameter: 5.0 - 8.0mm
- Suitable for 26AWG (0.40mm) - 22AWG (0.65mm) cables
- Dimensions Keystone Holder: 78.25 x 17.7 x 63.9mm
- Dimensions Keystone: 21.5 x 14.7 x 34.5 mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- DIN rail adapter
- Colour
- grey
- Scope of delivery
- DIN-Rail Keystone Holder and Keystone, Installation Guide, Cable Tie
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A & 568B
- Material (casing)
- ABS + Zinc Alloy
- Connection direction
- 45°-inclination
- Dimensions (HxWxD)
- Keystone Holder: 78.25 x 17.7 x 63.9mm, Keystone: 21.5 x 14.7 x 34.5 mm
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -40 °C
- Storage temperature max.
- 70 °C
- Height
- 78.25 mm
- Width
- 17.7 mm
- Depth
- 63.9 mm
- Weight
- 36.5 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 60 mm
- Package weight (single piece)
- 0.05 kg
