ROLINE Junction Box Cat.6 (Class E), UTP
- Item number
- 21.17.3066-20
- Part number
- 21.17.3066
- EAN
- 7611990986668
- Brand
- ROLINE
- Weight
- 30.5 g

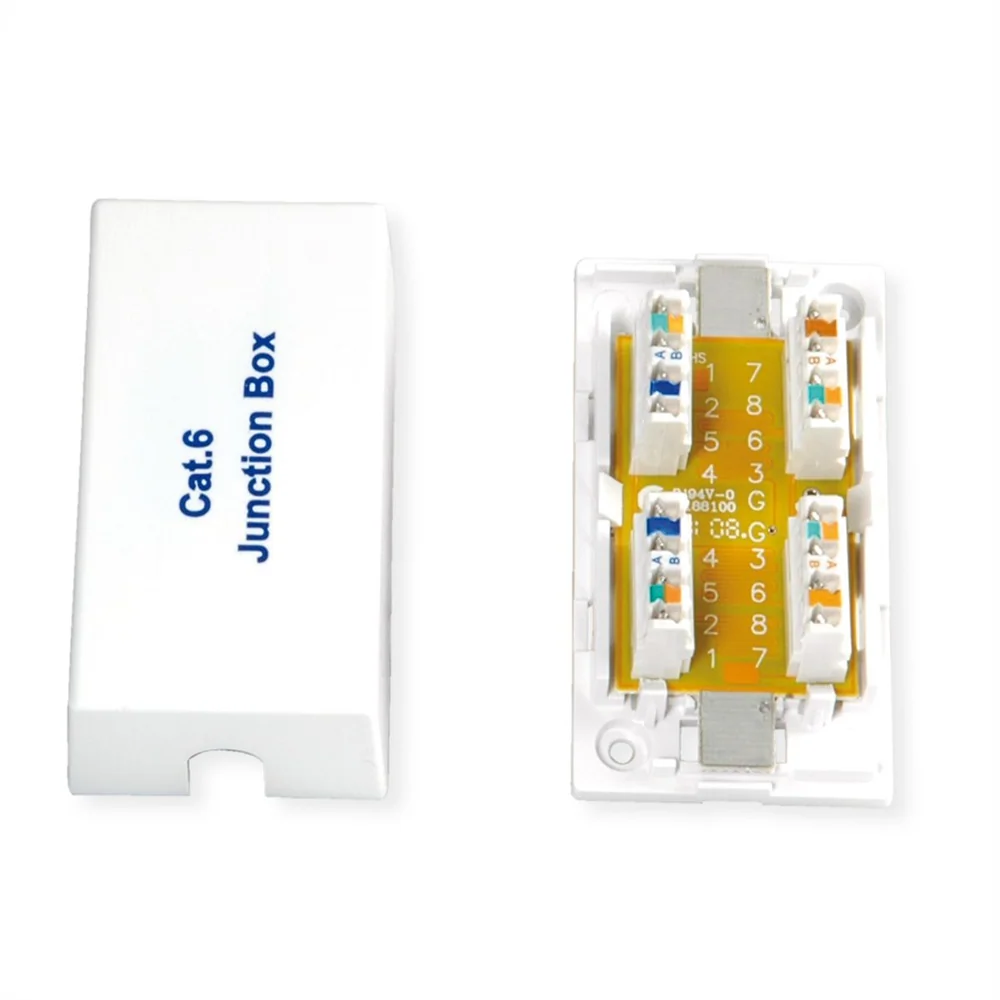

The ROLINE Junction box is used to repair or extend unshielded Cat.6 cables With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed Equipped with the modern…
Description
- The ROLINE Junction box is used to repair or extend unshielded Cat.6 cables
- With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed
- Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Network junction box
- Colour
- white
- Shield type
- Not screened
- Transfer quality
- Cat6 / Class E
- Quantity of ports
- 1
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568B
- Shield contacts
- No
- separate strain relief
- no
- Connection direction
- Straight
- Dimensions (HxWxD)
- 26 x 32 x 60 mm
- Height
- 26 mm
- Width
- 32 mm
- Depth
- 60 mm
- Weight
- 30.5 g
Packaging
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 30 mm
- Depth of packaging (single piece)
- 110 mm
- Package weight (single piece)
- 0.036 kg
