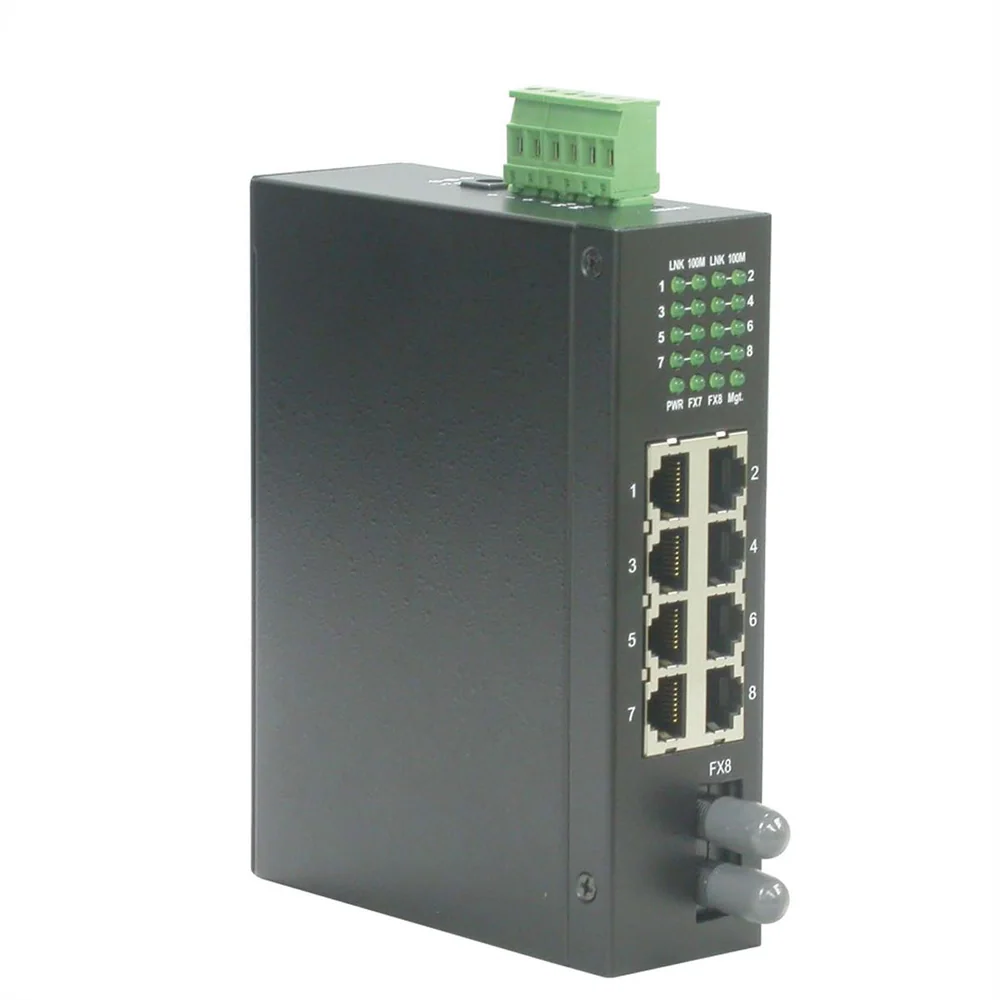

ROLINE Industrial Switch, 7x RJ-45, 1x ST, unmanaged
- Item number
- 21.13.1151-1
- Part number
- 21.13.1151
- EAN
- 7611990176694
- Brand
- ROLINE
- Weight
- 640 g
Fast Ethernet switch with 7x 10/100Base-T ports and 1x 100Base-FX port Wide operating temperature range for temperature critical environment Support DIN rail mounting Industrial-rated Emission and Immunity performance…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Fast Ethernet switch with 7x 10/100Base-T ports and 1x 100Base-FX port
- Wide operating temperature range for temperature critical environment
- Support DIN rail mounting
- Industrial-rated Emission and Immunity performance
- Provides wire speed store-and-forward switching
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Power: Input: 7 - 30V DC, Consumption: 6.5W (max.)
- DC Input via terminal block or DC power jack (6.3mm/2.0mm)
- Operating Temperature: - 20 °C - +70 °C
- As Power Supply Unit we recommend 21.13.1226
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- Network Switch
- Colour
- black
- Scope of delivery
- 1x switching unit, 1x DIN rail mounting kit, 1x product CD-ROM
- Network standard
- Fast Ethernet
- LAN (Mbps)
- 10/100
- Quantity of ports
- 8
- Fast Ethernet Ports RJ-45
- 7
- Fast Ethernet Ports Fibre
- 1
- Mounting form
- DIN Rail
- Management
- no
- Stackable
- no
- Dimensions (HxWxD)
- 106 x 40 x 140 mm
- Power supply
- External power supply unit
- Mains connection
- Loose cable / screw terminals
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Height
- 106 mm
- Width
- 40 mm
- Depth
- 140 mm
- Weight
- 0.64 kg
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 210 mm
- Package weight (single piece)
- 0.637 kg
