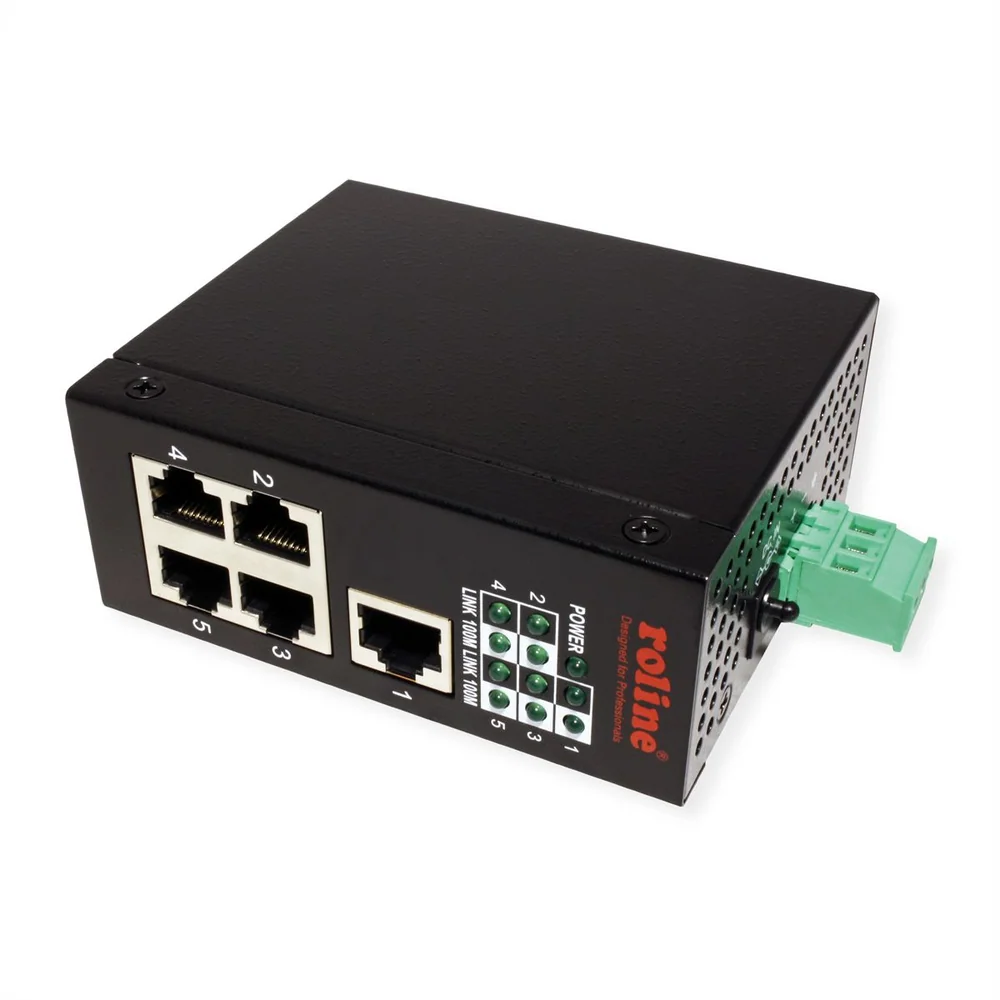

ROLINE Industrial Switch, 5x RJ-45, unmanaged
- Item number
- 21.13.1155-1
- Part number
- 21.13.1155
- EAN
- 7611990189151
- Brand
- ROLINE
- Weight
- 281.09 g
1x switch, 1x terminal block, 1x product CD-ROM
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
1x switch, 1x terminal block, 1x product CD-ROM
- Fast Ethernet switch with 5 shielded 10/100 Base-T copper ports
- Wide operating temperature range for temperature critical environment
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Supports DIN-rail mounting
- Power: Input: 5 - 30V DC, Consumption: 2.2W (max.)
- Operating Temperature: - 10 °C - +70 °C
- DC Input via terminal block or DC power jack ( 6.3mm / 2.0mm)
- Dimensions: 40 x 80 x 95 mm (WxDxH)
- As according power supply we recommend 21.13.1226
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Industrial Networking
- Product type
- Network Switch
- Colour
- black
- Scope of delivery
- Switch
- Network standard
- Fast Ethernet
- LAN (Mbps)
- 10/100
- Quantity of ports
- 5
- Fast Ethernet Ports RJ-45
- 5
- Mounting form
- DIN Rail
- Management
- no
- Stackable
- no
- Dimensions (HxWxD)
- 95 x 40 x 80 mm
- Power supply
- External power supply unit
- Mains connection
- Loose cable / screw terminals
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 70 °C
- Height
- 95 mm
- Width
- 40 mm
- Depth
- 80 mm
- Weight
- 281.09 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.274 kg
