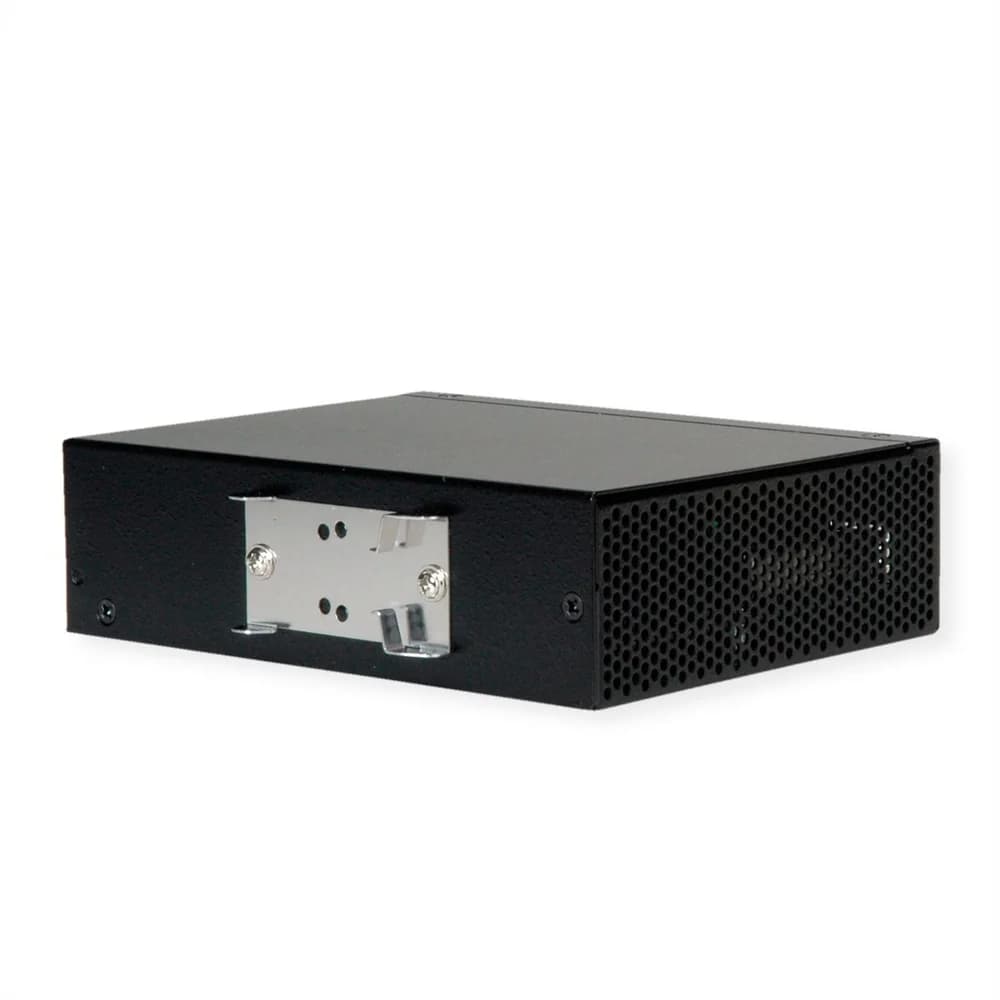

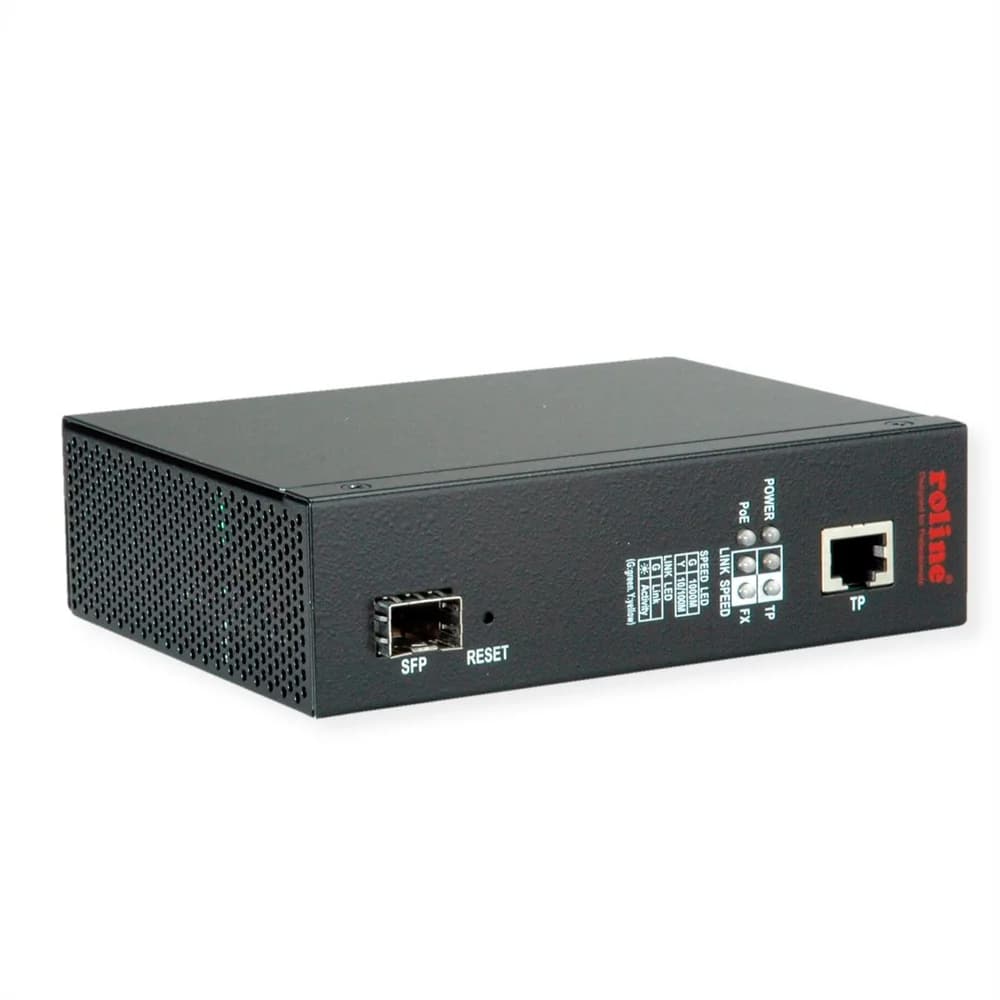

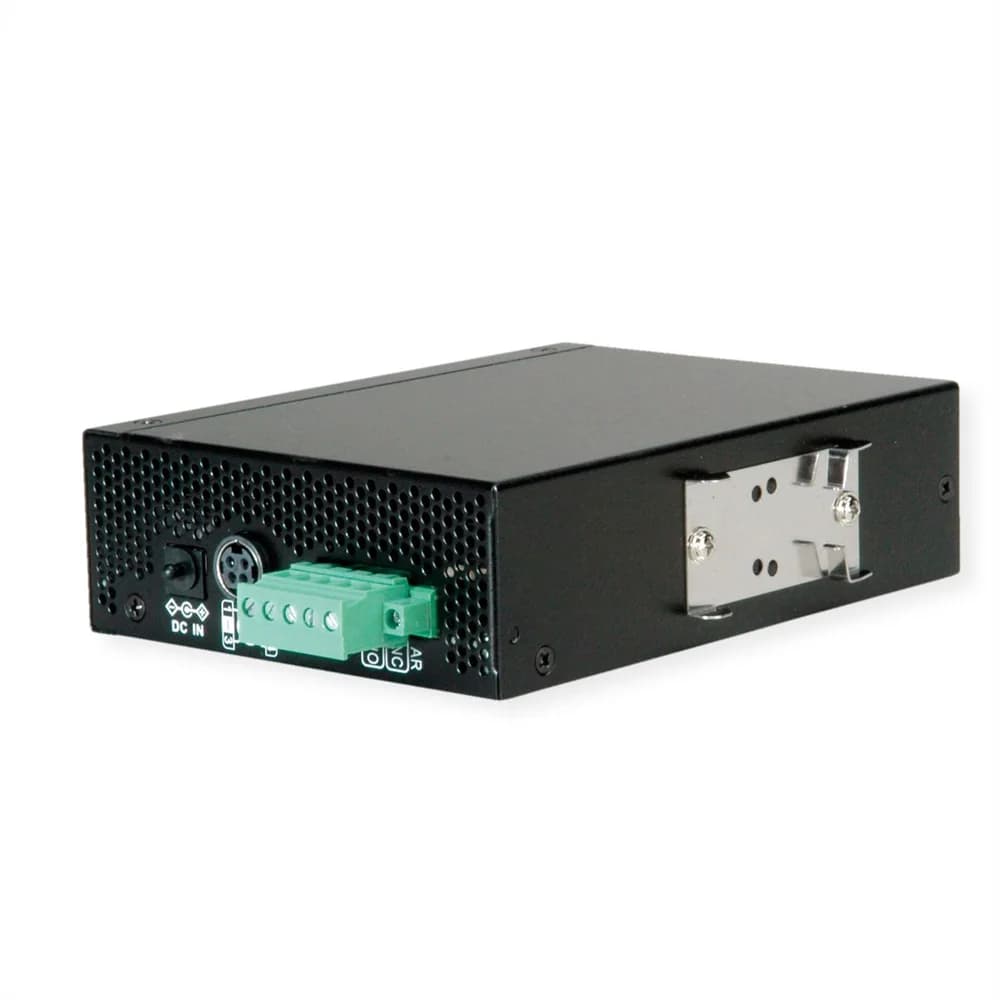

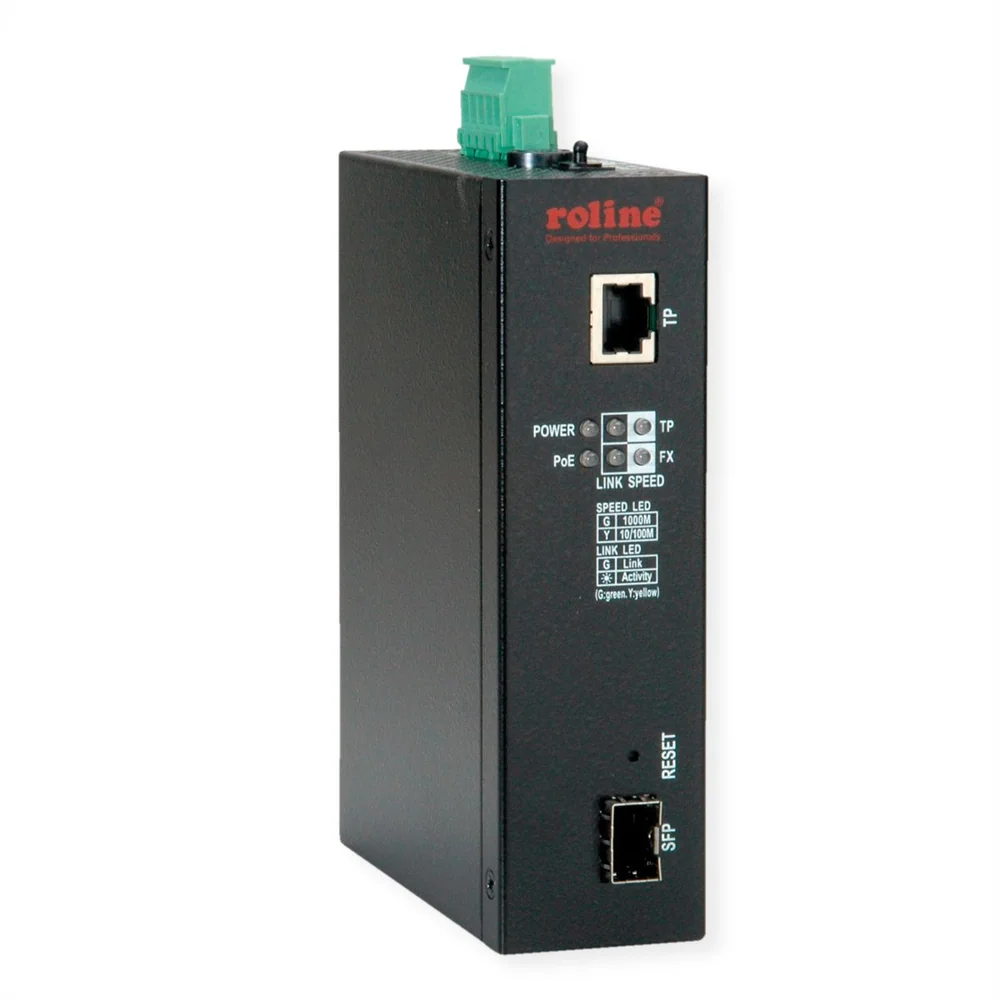

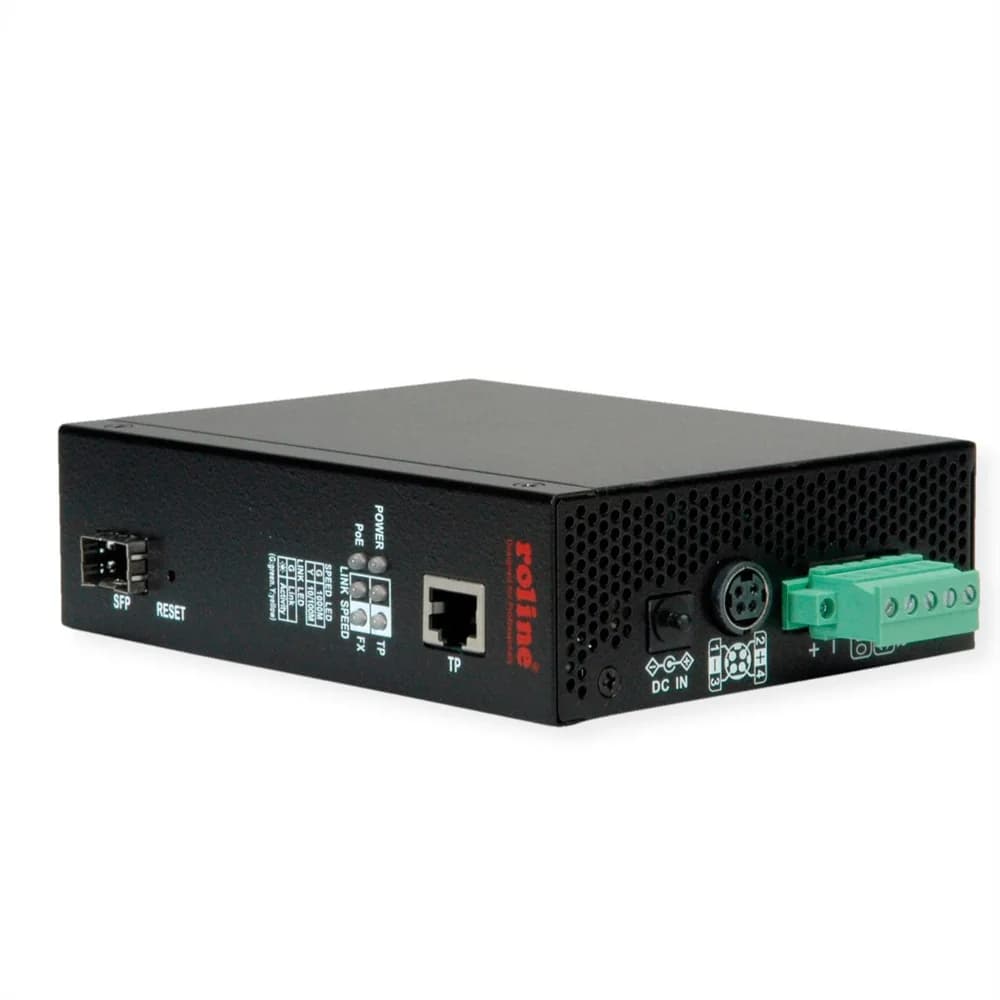

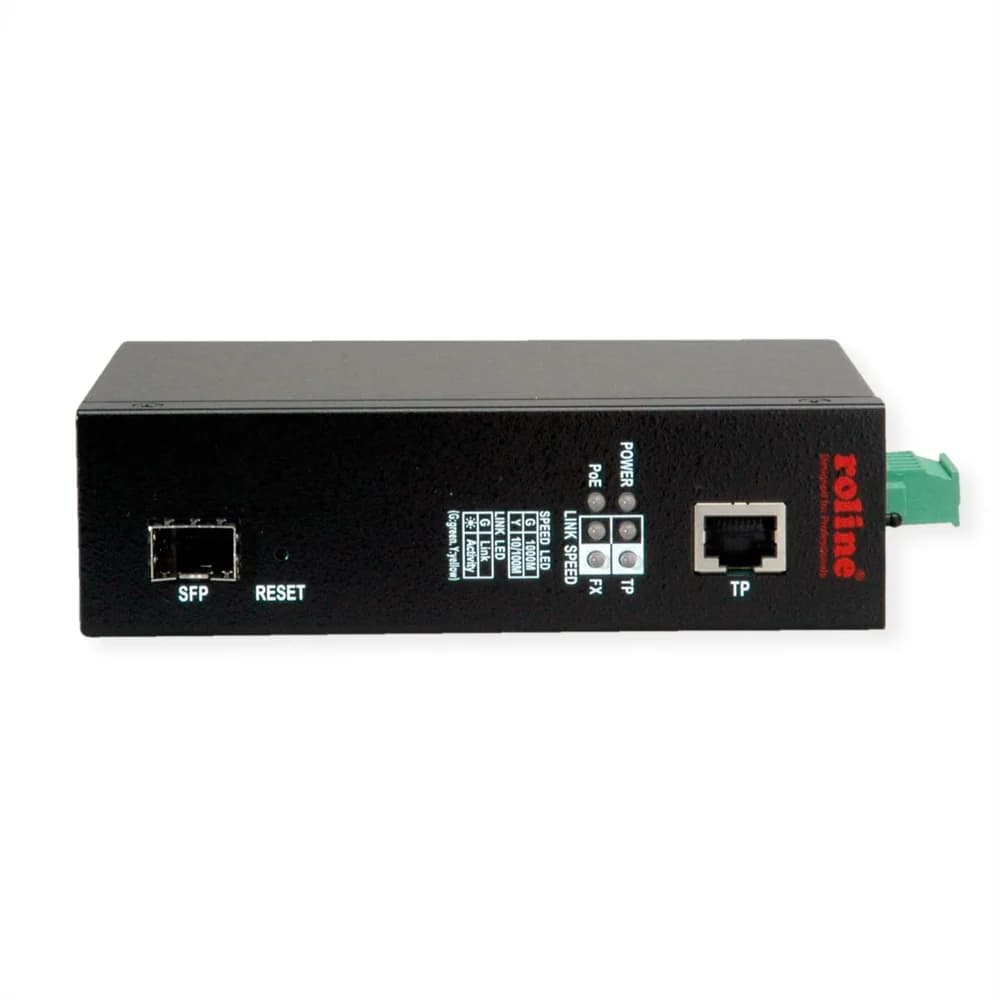

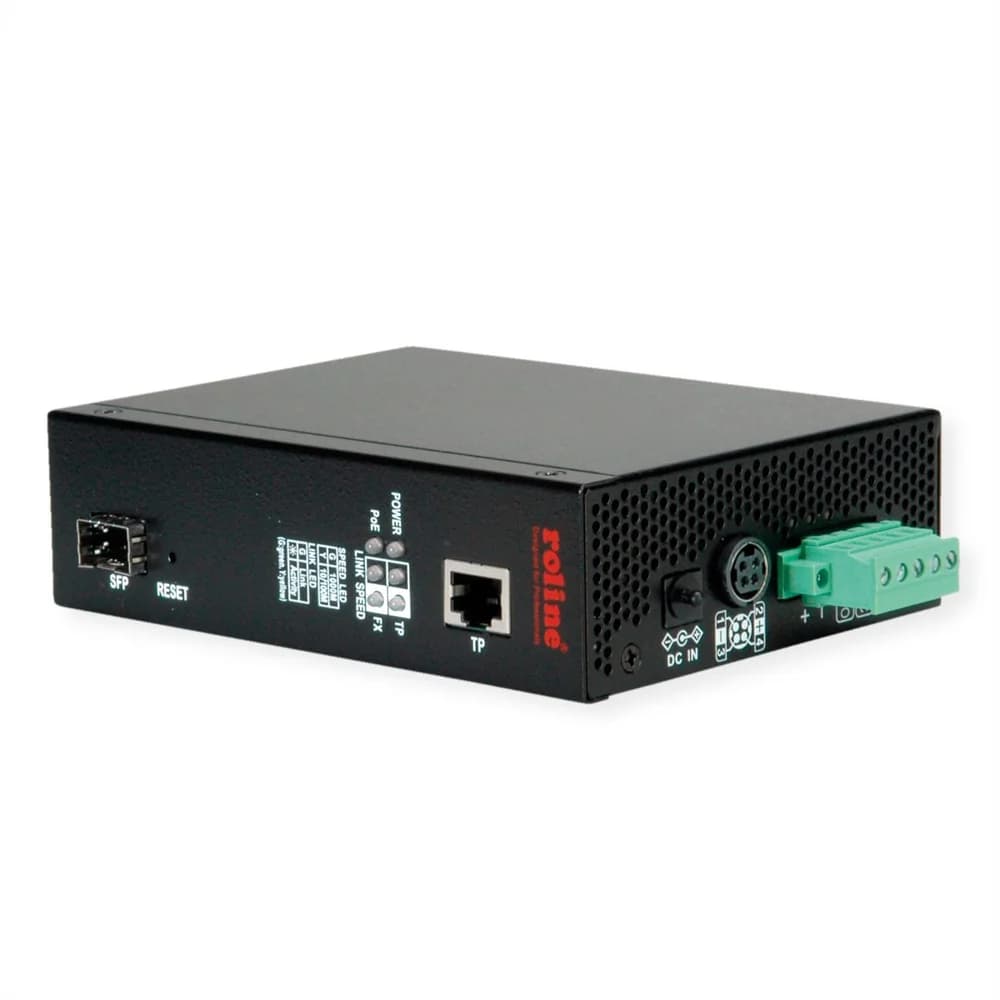

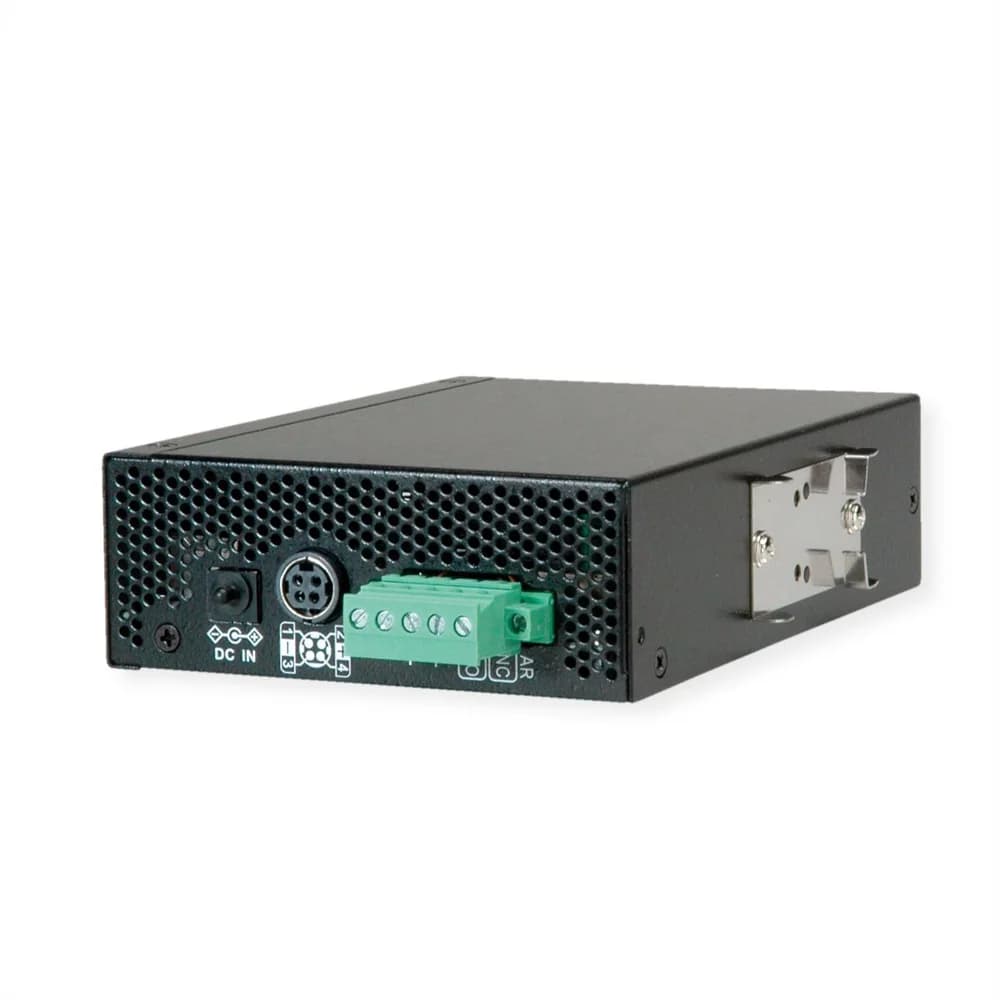

ROLINE Industrial Managed Media Converter Gigabit Ethernet with PoE++ PSE Support
- Item number
- 21.13.1135-1
- Part number
- 21.13.1135
- EAN
- 7630049621541
- Brand
- ROLINE
- Weight
- 474.8 g
Industrial Media Converter with PoE++ PSE for general applications Tri-speed 10/100M/1Gbps copper to dual-speed 100M/1Gbps fiber conversion Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3bt…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Industrial Media Converter with PoE++ PSE for general applications
- Tri-speed 10/100M/1Gbps copper to dual-speed 100M/1Gbps fiber conversion
- Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3bt standard
- Support full wire speed conversion for Gigabit copper to Gigabit fiber
- Provide dual-speed SFP on fiber port for mounting variety of fiber options
- Provide important LFPT (Link Fault Pass Through) media converter function
- Support Jumbo frame conversion
- Energy Efficient Ethernet (EEE) support
- Alarm events relay output
- Optical Power Alarm (OPA) function
- Auto Laser Shutdown (ALS) function
- Fiber support for multimode, short reach up to long reach single mode fiber, Bi-Di applications
- Web-based configuration management support
- Support SNMP management
- Provide variety of PoE options for different power level applications
- PoE shutdown protection for incompliant PD, disconnection, over-current and short-circuit
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- RJ-45 Port (Mbps/s)
- 1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Quantity of fibre LC ports
- 1
- Fibre
- Multi mode
- Ethernet fibre standard
- 1000Base-SX
- Max. range 50 µm fibre
- 500 m
- Max. range 62.5 µm fibre
- 220 m
- Managed
- no
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Height
- 40 mm
- Width
- 106 mm
- Depth
- 140 mm
- Weight
- 474.8 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.6 kg
