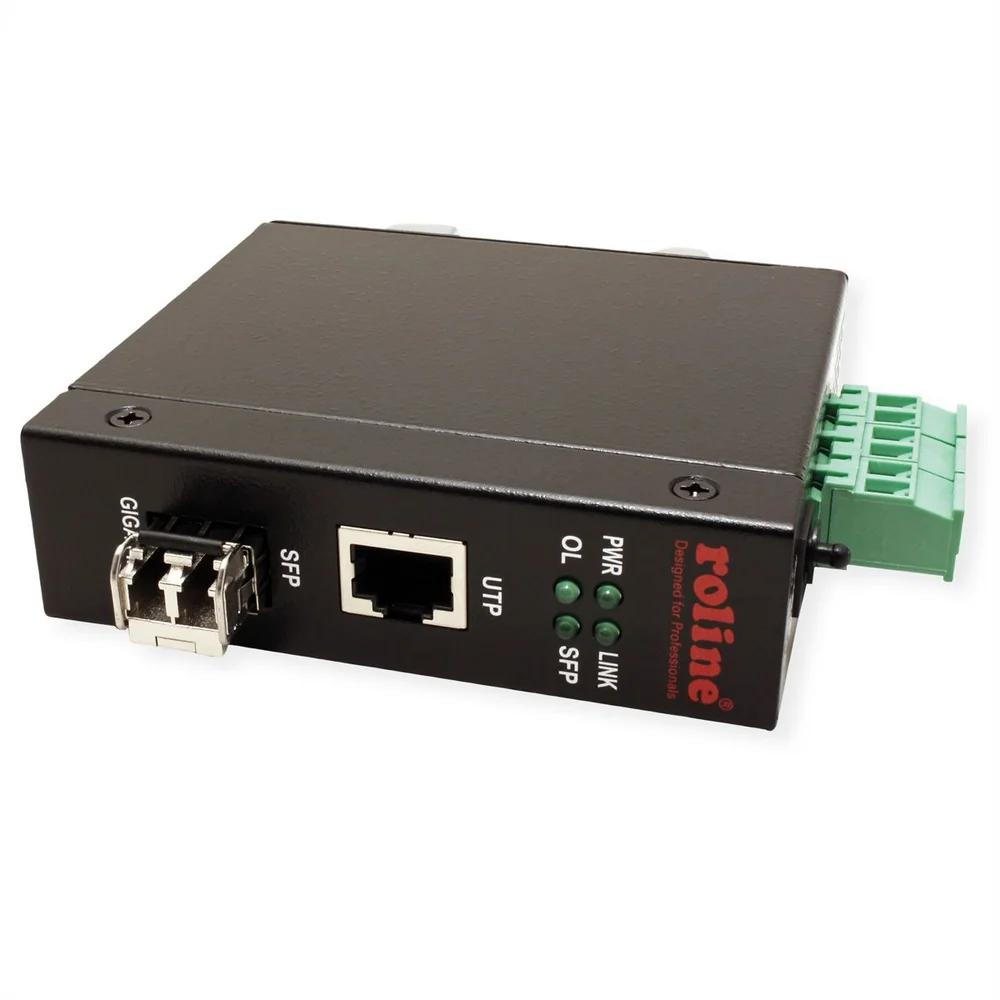

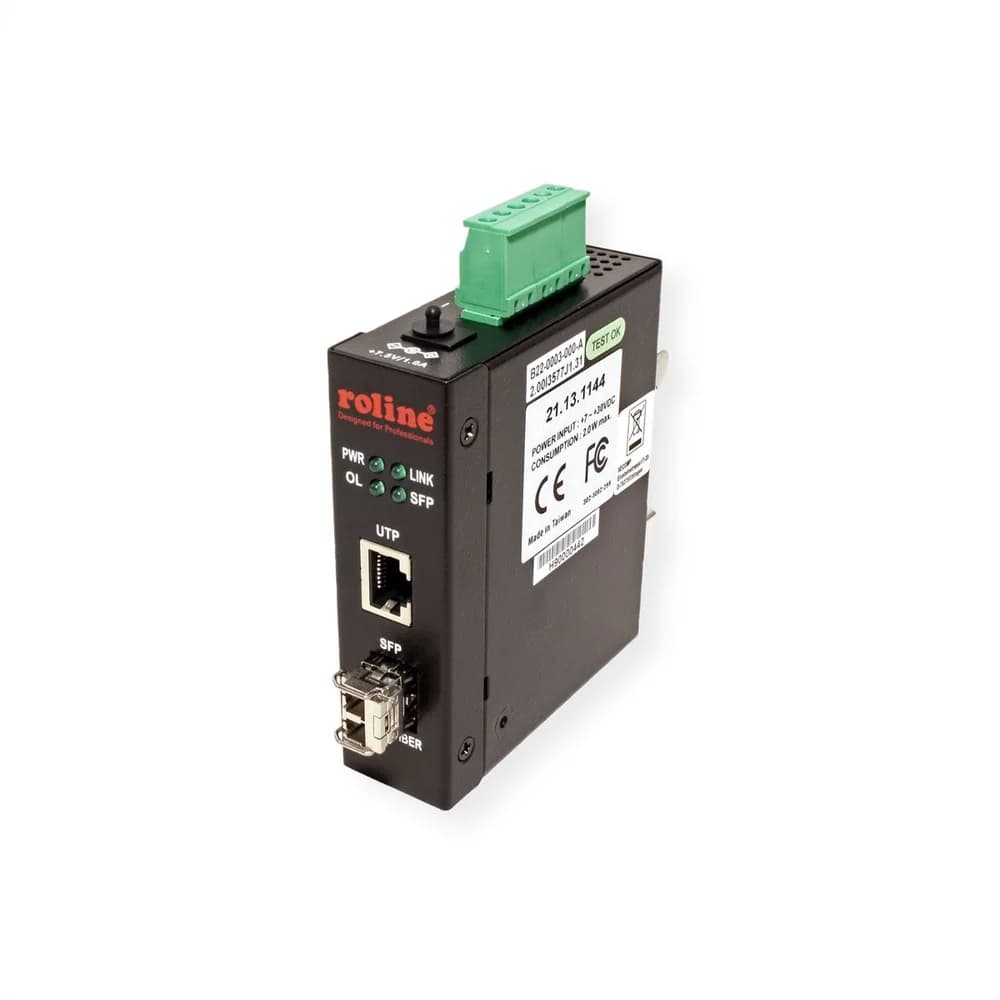

ROLINE Industrial Converter RJ-45, incl. mini GBIC, Fiber Optic 1000SX/LC
- Item number
- 21.13.1144-1
- Part number
- 21.13.1144
- EAN
- 7611990976676
- Brand
- ROLINE
- Weight
- 279.55 g
Provides direct media conversion for Gigabit copper and Gigabit fiber Plug and play design with no configuration setting Support DIN-rail mounting and panel mounting Two power interface types: screw terminal block and…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Provides direct media conversion for Gigabit copper and Gigabit fiber
- Plug and play design with no configuration setting
- Support DIN-rail mounting and panel mounting

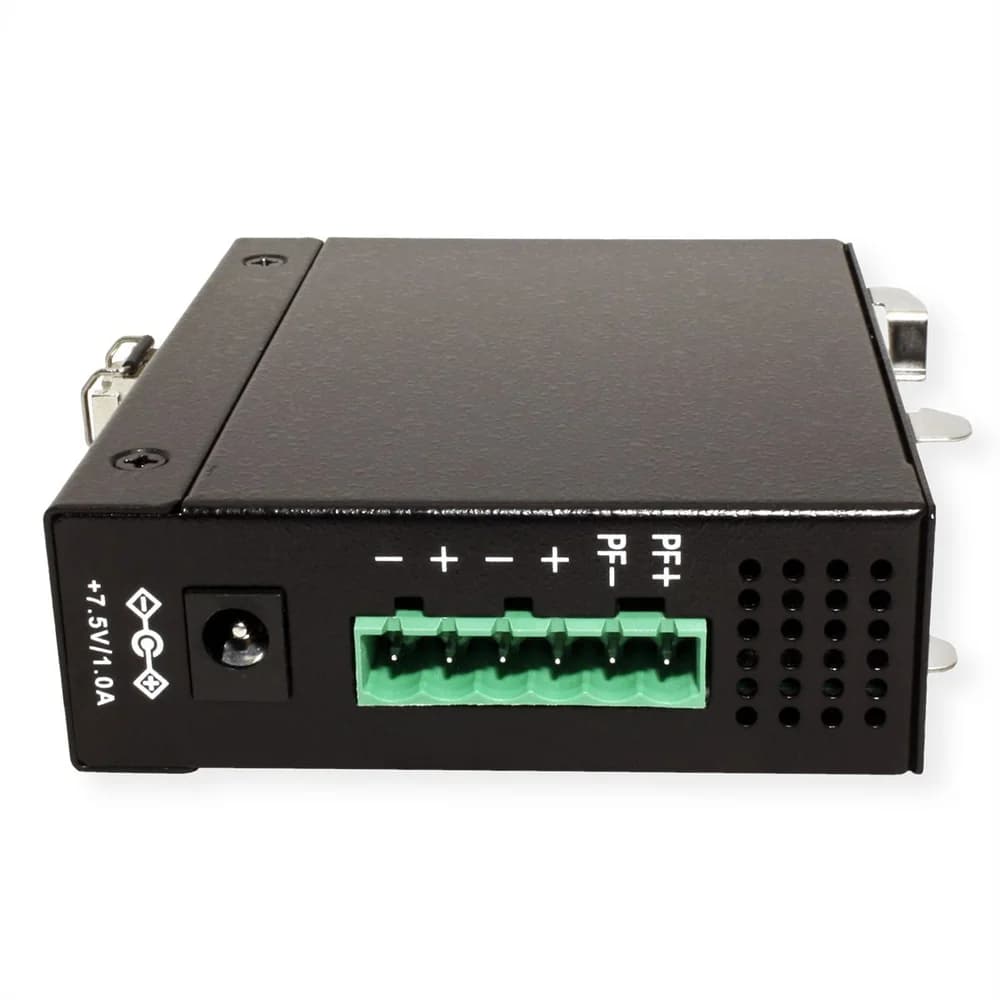

- Two power interface types: screw terminal block and DC Jack
- Low power consumption
- Support full wire speed conversion
- Support transparent conversion of any packet types with no packet length limitation
- Support auto-negotiation with link partners
- Provide link pass through between copper and fiber link

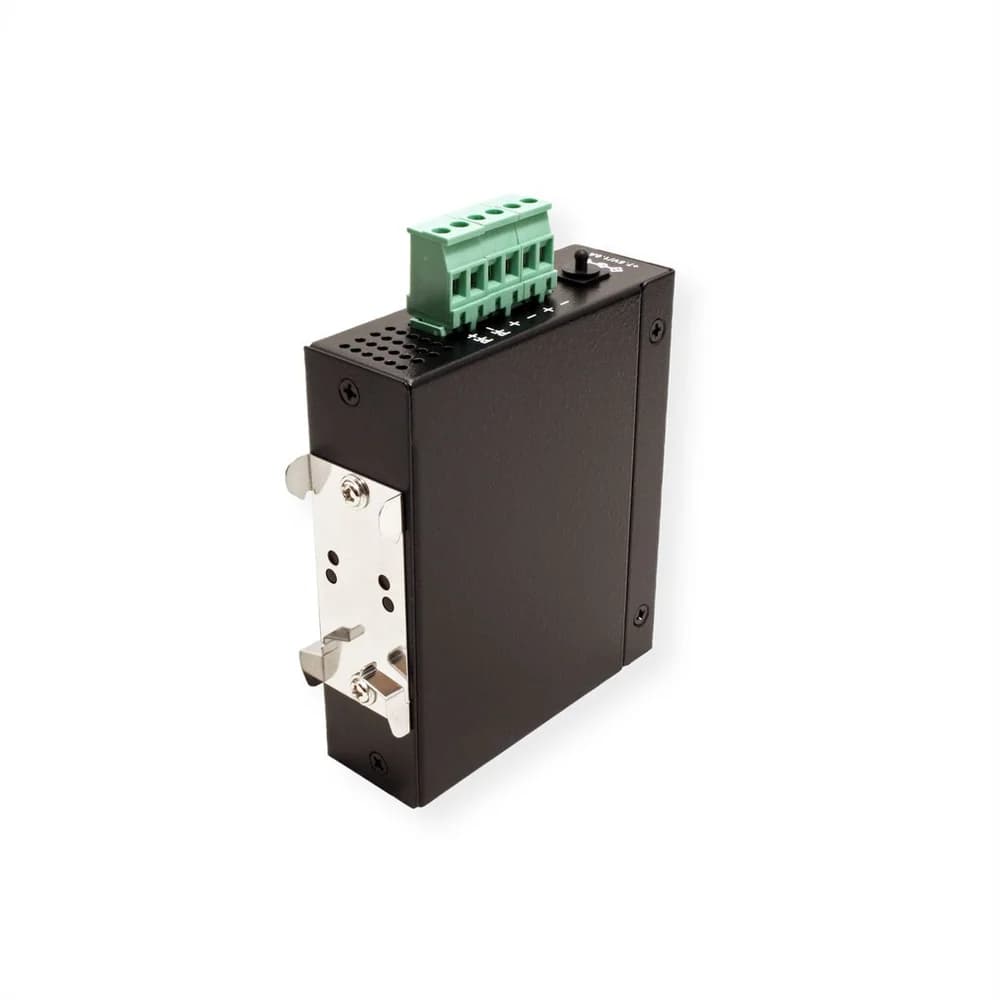

- Supports DIN-rail mounting
- Copper port:
- Auto-negotiation capable
- Auto-MDI/MDI-X crossover function
- Fiber port:
- Far End Fault support
- Power: Input: 7 - 30V DC, consumption: 2,5W (max.)
- Operating Temperature: - 20 °C - +70 °C
- Dimensions: 28 x 82 x 95 mm (WxDxH)
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery

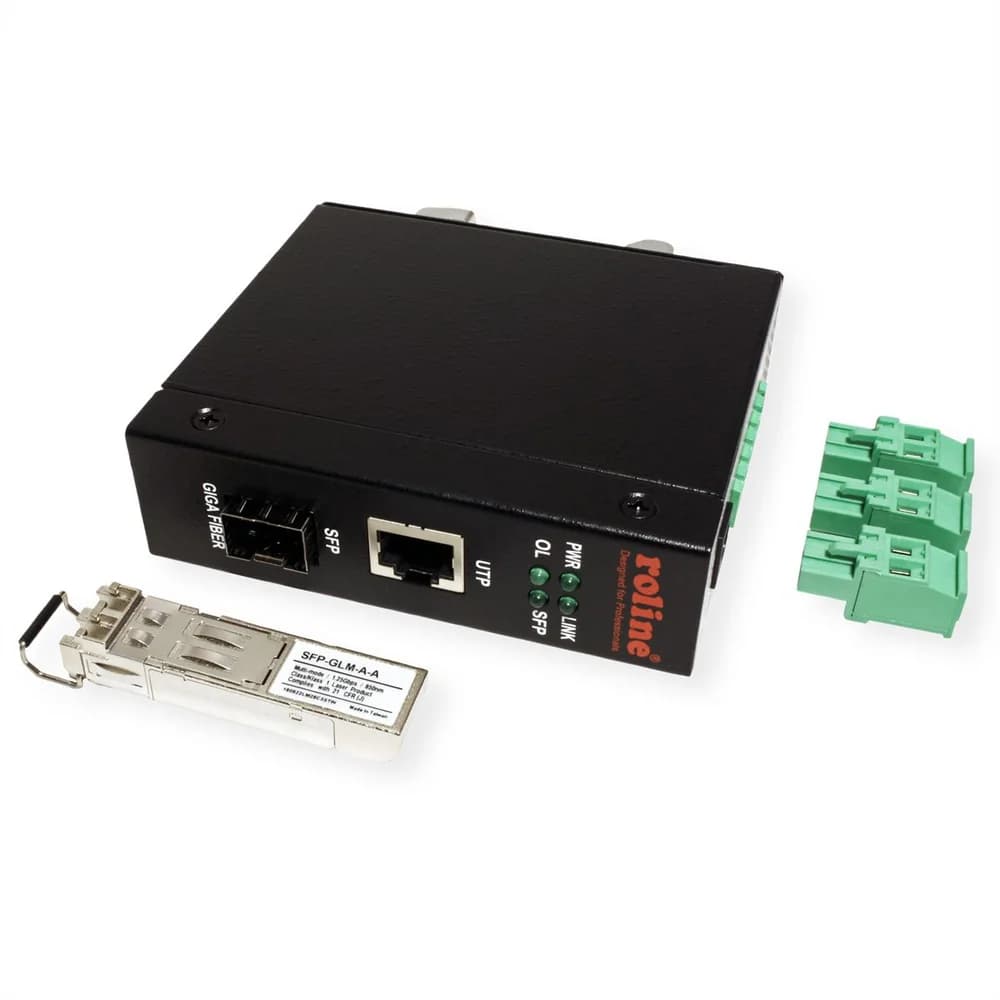

- 1x converter, 1x terminal block, 1x product CD-ROM
- RJ-45 Port (Mbps/s)
- 1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Quantity of fibre LC ports
- 1
- Fibre
- Multi mode
- Ethernet fibre standard
- 1000Base-SX
- Max. range 50 µm fibre
- 500 m
- Max. range 62.5 µm fibre
- 220 m
- Managed
- no
- Operating temperature min.
- -20 °C
- Operating temperature max.
- 70 °C
- Height
- 95 mm
- Width
- 28 mm
- Depth
- 82 mm
- Weight
- 279.55 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 170 mm
- Package weight (single piece)
- 0.346 kg
