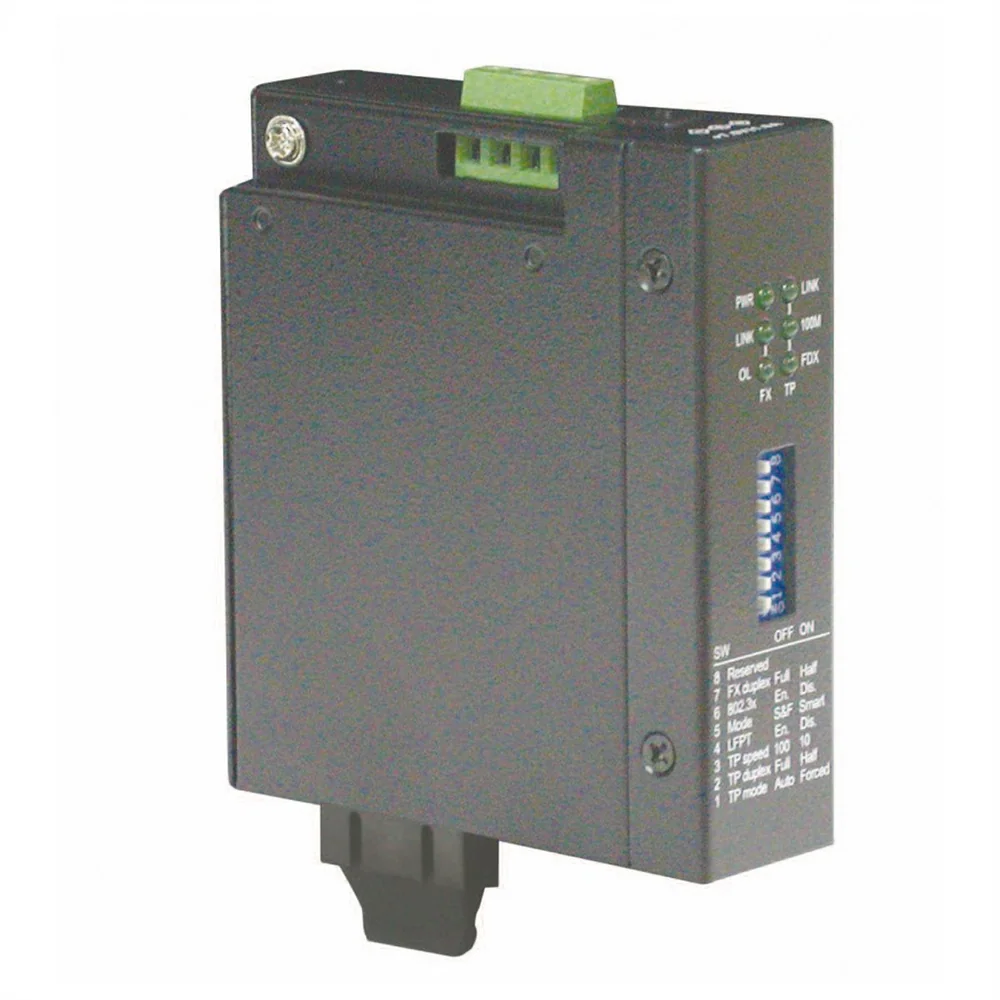

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, SC
- Item number
- 21.13.1143-1
- Part number
- 21.13.1143
- EAN
- 7611990176663
- Brand
- ROLINE
- Weight
- 277.2 g
Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types Support auto-negotiation 10/100Mbps or forced mode on TP copper port Auto MDI/MDI-X crossover function on the TP copper…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
- Support auto-negotiation 10/100Mbps or forced mode on TP copper port
- Auto MDI/MDI-X crossover function on the TP copper port
- Provide Link Fault Pass Through function
- Provide comprehensive manual configuration settings
- Transparent conversion to 802.1Q VLAN tagged packets
- Provides Far End Fault function on FX (fiber) port
- Low power consumption
- DC Input via terminal block or DC power jack (6.3mm/2.0mm)
- Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
- Operating Temperature: - 10 °C - +70 °C
- Supports DIN rail mounting
- Industrial-rated Emission and Immunity performance
- Dimensions: 28 x 82 x 95 mm (WxDxH)
- As according Power Supply Unit we recommend 21.13.1226
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- 1x converter, 1x top-hat rail, 1x product CD-ROM, 1x installation guide
- RJ-45 Port (Mbps/s)
- 10/100
- Fibre Ports (Mbps)
- 100
- Quantity of RJ45 ports
- 1
- Quantity of fibre SC ports
- 1
- Fibre
- Multi mode
- Ethernet fibre standard
- 100Base-FX
- Max. range 50 µm fibre
- 2 km
- Max. range 62.5 µm fibre
- 2 km
- Managed
- no
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 70 °C
- Height
- 95 mm
- Width
- 28 mm
- Depth
- 82 mm
- Weight
- 277.2 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.2 kg
