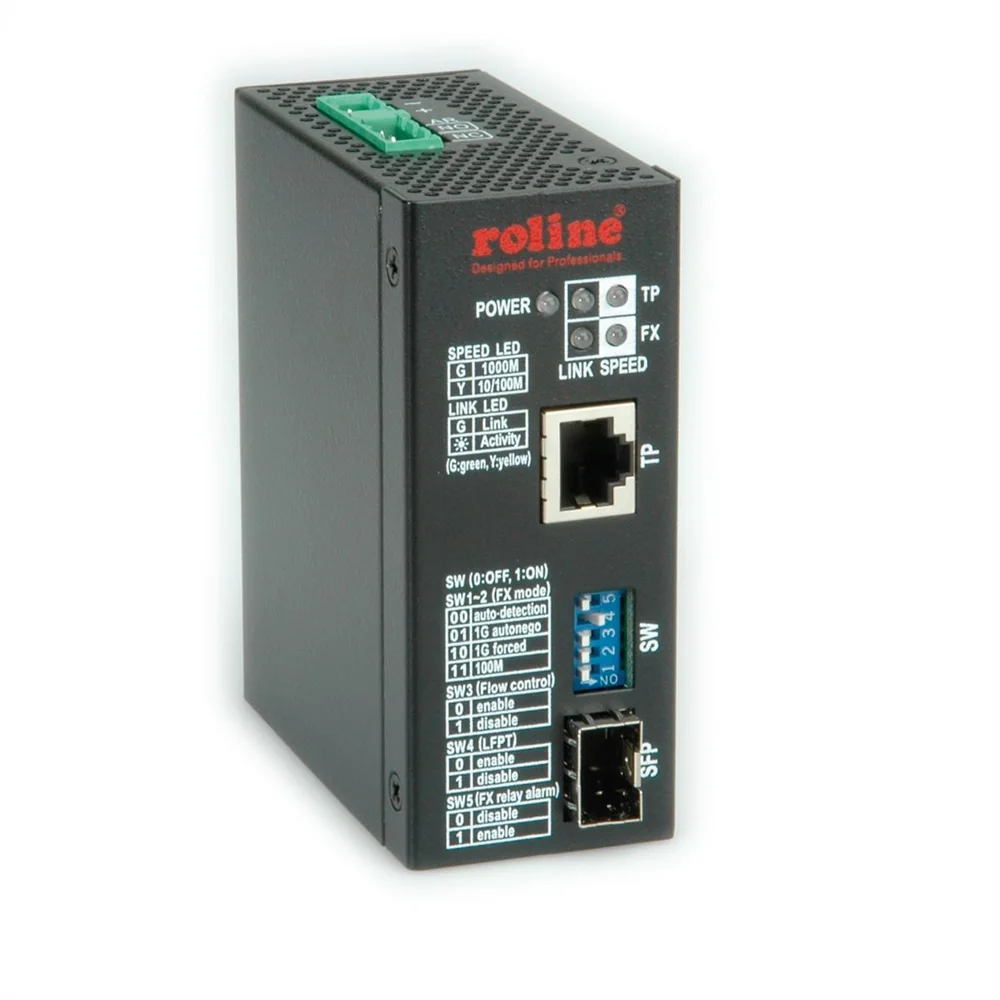

ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber
- Item number
- 21.13.1149-1
- Part number
- 21.13.1149
- EAN
- 7611990124695
- Brand
- ROLINE
- Weight
- 314.4 g
Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types Tri-speed 10/100M/1Gbit/s copper to dual-speed 100M/1Gbit/s fiber conversion Comply with IEEE 802.3, 802.3u, 802.3ab,…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
- Tri-speed 10/100M/1Gbit/s copper to dual-speed 100M/1Gbit/s fiber conversion
- Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z standard
- Choice for SFPs for 100Base-FX (21.14.3499) or for Gigabit Ethernet (Mini-GBICs: 21.14.3500, 21.14.3501, 21.14.3502)
- Support full wire speed conversion for Gigabit copper to Gigabit fiber SFP port
- Support auto-negotiation with link partners
- Supports auto-negotiation 10/100Mbps or forced mode on the copper port
- Auto-MDI/MDIX on the copper port
- Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di applications
- Provide dual-speed SFP on fiber port for mounting variety of fiber options
- Provide important LFPT (Link Fault Pass Through) media converter function
- Support Jumbo frame conversion
- Energy efficient ethernet (EEE) support
- Alarm events relay output
- Operation temp. : - 20 ºC - +70 ºC
- Supports DIN rail mounting
- DC Input via terminal block
- As PSU u order : 21.13.1311
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- 1x converter, 2x terminal blocks, 1x declaration of conformity, 1x product CD-ROM
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 75 °C
- Height
- 95 mm
- Width
- 40 mm
- Depth
- 80 mm
- Weight
- 314.4 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 0.428 kg
