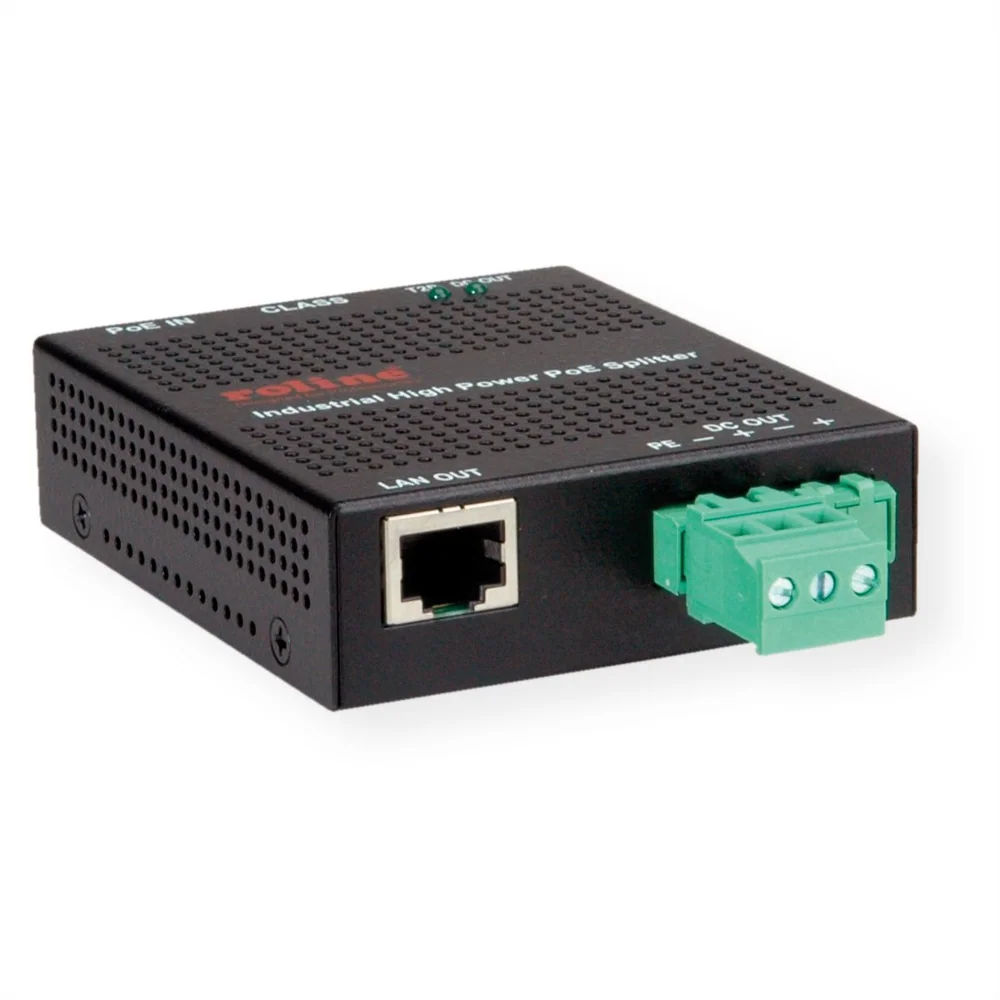

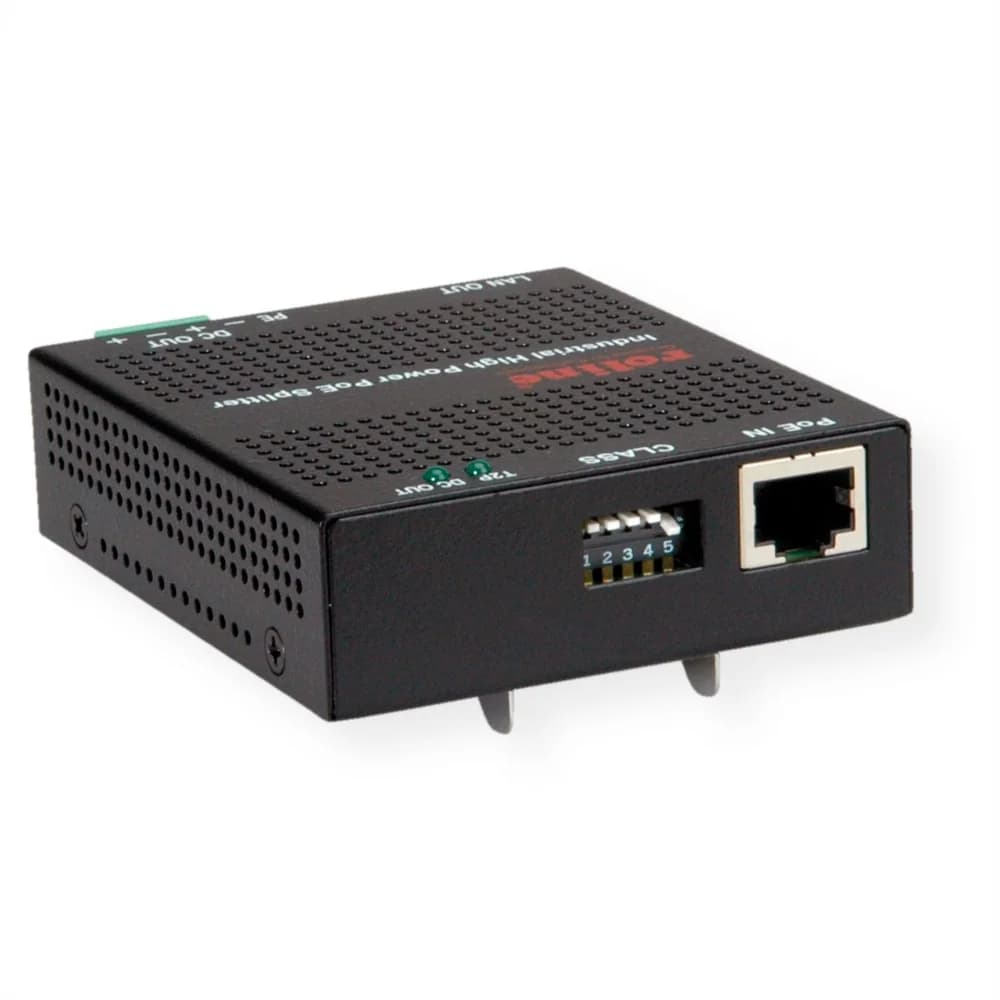

ROLINE High Power PoE Splitter, 30W
- Item number
- 21.13.1175-1
- Part number
- 21.13.1175
- EAN
- 7630049623644
- Brand
- ROLINE
- Weight
- 193.4 g
High power PoE splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single Cat.5 cable for both power and data transaction For easier, cost-effective PoE network…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- High power PoE splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single Cat.5 cable for both power and data transaction
- For easier, cost-effective PoE network installation, the PoE splitter is the best solution to protect original investment.
- IEEE 802.3at and 802.3af compliance
- Support 10BASE-T, 100BASE-TX, and 1000BASE-T
- Support Alternative A or Alternative B PoE input over Cat.5
- Provide a power class selection DIP for demanding power from PSE
- Support Type 1 PSE classification (for power up to 13 Watts min.) and Type 2 PSE 2-event classification (for power up to 30 Watts)
- Regulated DC power output
- Flexible mounting support, light weight and compact
- Metal housing
- Dimension: 73 x 85 x 24 mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- PoE adapter
- Product type
- PoE-Splitter
- Colour
- black
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 1
- Power over Ethernet (PoE)
- PoE (IEEE 802.3af)
- Quantity of PoE ports
- 1
- Max. PoE output power per port
- 30 W
- Max. PoE output power (total)
- 30 W
- Technical particularity
- 12 VDC (output voltage)
- Mains connection
- Loose cable / screw terminals
- Height
- 24 mm
- Width
- 85 mm
- Depth
- 73 mm
- Weight
- 193.4 g
Packaging
- Height of packaging (single piece)
- 160 mm
- Width of packaging (single piece)
- 60 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.34 kg
