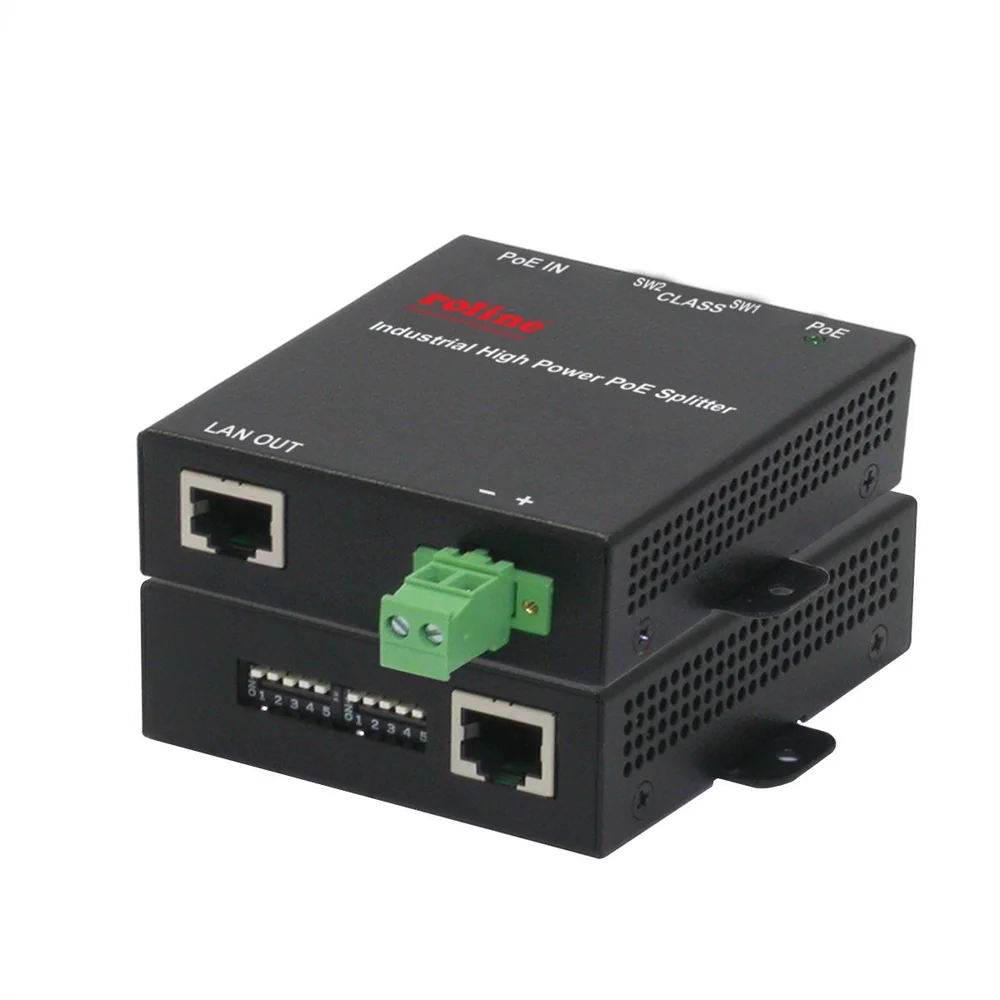

ROLINE High Power PoE++ Splitter, 128W
- Item number
- 21.13.1173-1
- Part number
- 21.13.1173
- EAN
- 7630049612457
- Brand
- ROLINE
- Weight
- 175.4 g
High power PoE++ splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single twisted pair cable for both power and data transaction.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
High power PoE++ splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single twisted pair cable for both power and data transaction.
- Enables PoE incapable network device with PoE capability
- IEEE 802.3at PoE+ and 802.3af PoE compliance
- Supports proprietary high power PoE++ up to 128W
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
- Supports Alternative A or Alternative B PoE input over Cat.5/6
- Provides power class selection DIP for demanding power from PSE - allows user to select one from nine different classes for demanding power from a remote PoE switched port or mid-span injector
- Supports Type 1 PSE classification and Type 2 PSE 2-event classification
- Short-circuit protection, low voltage lock out, inrush current limit and thermal protection
- Flexible mounting support, light weight and compact
- Metal housing
- Dimension: 73 x 85 x 24 mm
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- PoE adapter
- Product type
- PoE-Splitter
- Colour
- black
- Network standard
- Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000
- Quantity of ports
- 1
- Power over Ethernet (PoE)
- PoE (IEEE 802.3af)
- Quantity of PoE ports
- 1
- Max. PoE output power (total)
- 128 W
- Mains connection
- Loose cable / screw terminals
- Height
- 24 mm
- Width
- 85 mm
- Depth
- 73 mm
- Weight
- 175.4 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 160 mm
- Package weight (single piece)
- 0.267 kg
