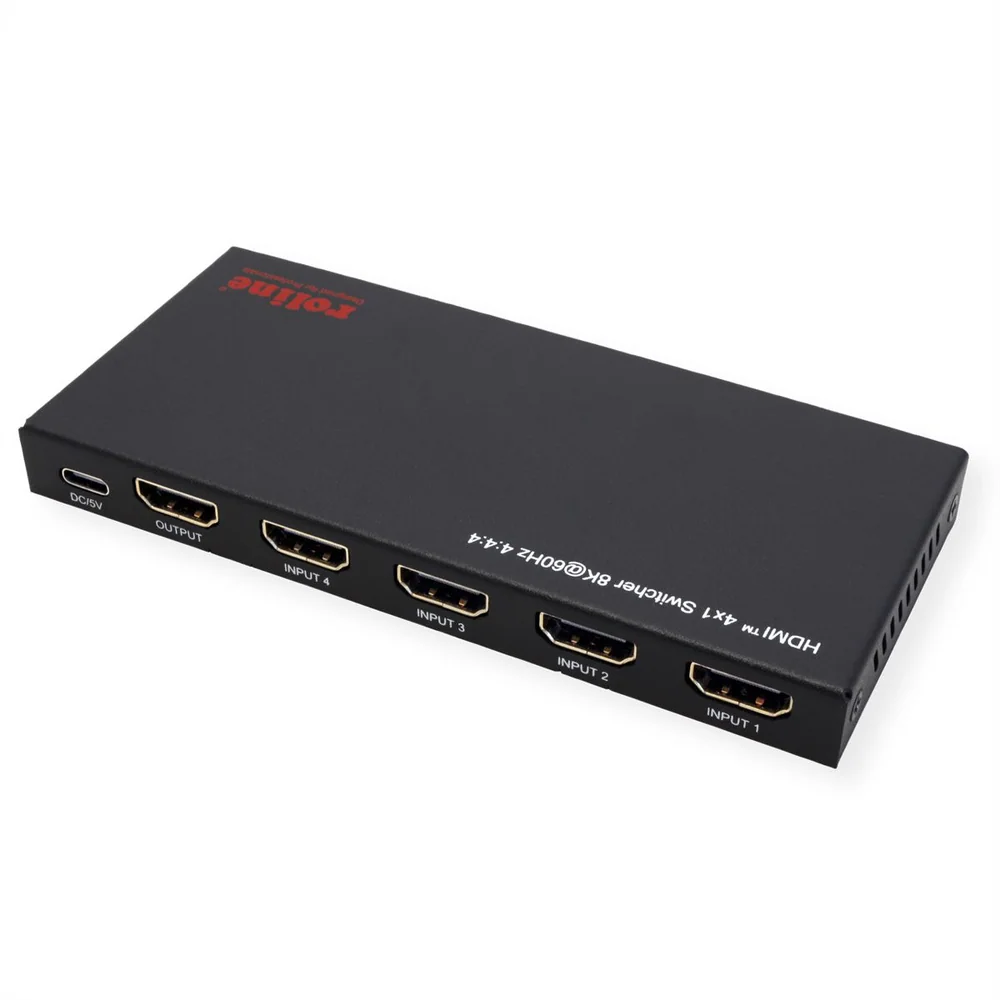

ROLINE HDMI Switch, 4x1, 8K60Hz, with Remote Control
- Item number
- 14.01.3587-5
- Part number
- 14.01.3587
- EAN
- 7630049673328
- Brand
- ROLINE
- Weight
- 173 g
This ROLINE HDMI Switch lets you use one display (monitor, projector, etc.) with four HDMI sources (PC, notebook, etc.) with a resolution of up to 8K@60Hz.
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
This ROLINE HDMI Switch lets you use one display (monitor, projector, etc.) with four HDMI sources (PC, notebook, etc.) with a resolution of up to 8K@60Hz.
- Switching between the PCs is done with a button on the switch, with remote control or automatically
- Supports 8K (7680x4320 @60Hz)
- Installation is easy - no software neede - just connect the cables and you're done.
- HDCP 2.3, and backwards compatible with HDCP2.2 and HDCP1.4
- Consumer Electronics Control
- Input: 4x HDMI A socket
- Output: 1x HDMI A socket
- Powered by USB Cable Type A - C (included)
3 different switching modes:
1. Manual Port Switching: Enables you to manually select your HDMI source with button on the switch.
2. Remote Control Switching: Enables you to control the switch from distance.
3. Automatic Port Switching: Enables your most recently activated video source to be displayed automatically.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI-Video-Switch
- Colour
- black
- Scope of delivery
- HDMI Switch, USB Power Cable Type A - C, Remote Control (2*AAA batteries not included), User Manual
- Interface
- HDMI
- Inputs
- 4
- Outputs
- 1
- Video input
- 4x HDMI A Female
- Video output
- 1x HDMI A Female
- Max. resolution (nom.)
- 8K (7680x4320 @60Hz)
- Dimensions (HxWxD)
- 15 x 136 x 62
- Technical particularity
- Switching via button on the device
- Battery category
- Portable battery
- Number of batteries
- 2 pieces
- Battery type
- AAA
- Battery
- required, not included
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Height
- 15 mm
- Width
- 136 mm
- Depth
- 62 mm
- Weight
- 173 g
Packaging
- Height of packaging (single piece)
- 40 mm
- Width of packaging (single piece)
- 120 mm
- Depth of packaging (single piece)
- 180 mm
- Package weight (single piece)
- 0.3 kg
