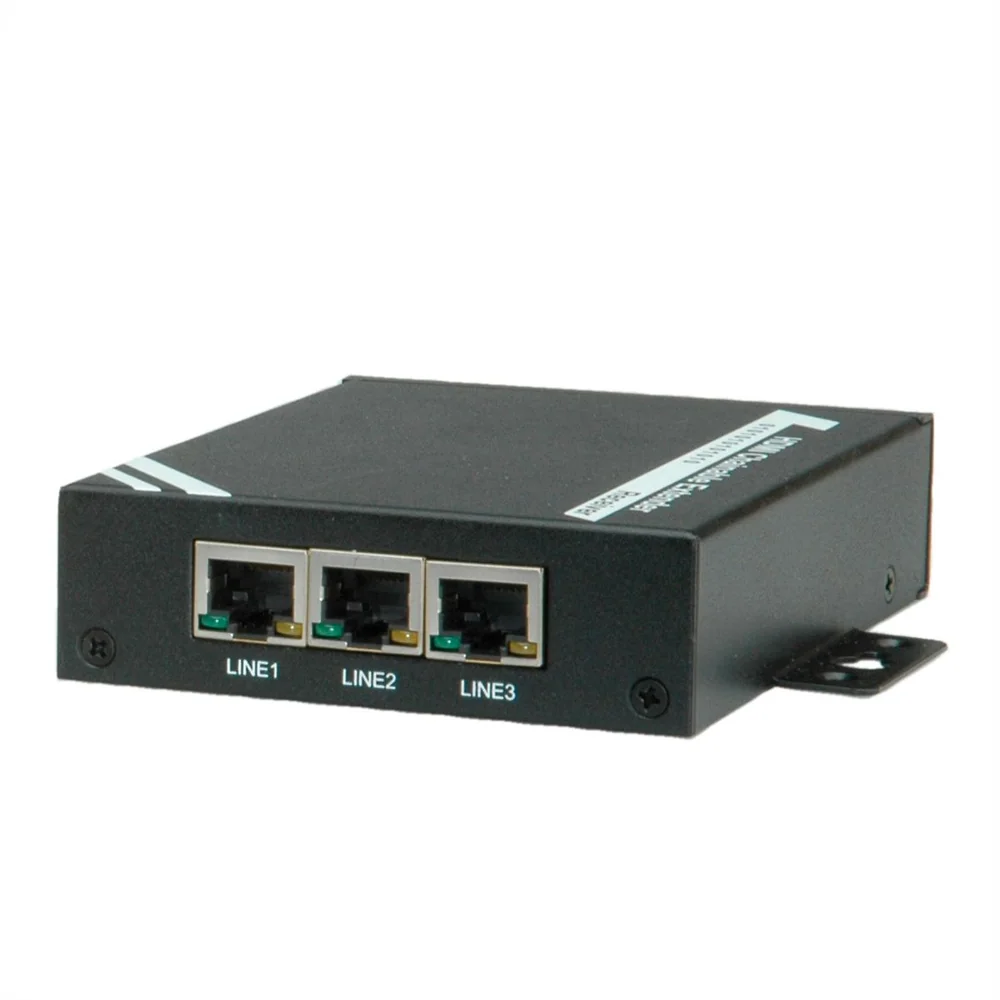

ROLINE HDMI Receiver over TP, for 14.01.3468, 100 m
- Item number
- 14.01.3469-1
- Part number
- 14.01.3469
- EAN
- 7611990123742
- Brand
- ROLINE
- Weight
- 562.87 g
The transmission distance of the HDMI signal can be extended (chained) up to 100 m by using one Cat.5e or Cat.6 cable in combination with 14.01.3468 Easily connect the receiver to a second receiver unit with a twisted…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
The transmission distance of the HDMI signal can be extended (chained) up to 100 m by using one Cat.5e or Cat.6 cable in combination with 14.01.3468
- Easily connect the receiver to a second receiver unit with a twisted pair cable of up to 100 m length in combination with 14.01.3468
- Max. resolution (nominal) over 100 m: 1920 x 1200, 1080p
- Supports uncompressed HDMI signal
- Supports CEC pass-through
- Supports uncompressed audio stereo
- External infrared emitter - allow using the remote control of the source device
- Metal housing
- Power supply included in content of delivery
- Contents: Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, 1x cables IR (1.1m), 1x serial cables (3.5mm/DB9F, 1.1m), manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- Receiver (3x RJ-45 F, 1x HDMI F), infrared extender receiver, 1x power supply, manual
- Interface
- HDMI
- Max. distance
- 100 m
- Video input
- HDMI
- Audio input
- HDMI
- Video output
- HDMI
- Audio output
- HDMI
- Max. resolution (nom.)
- 1.920 x 1.080
- Max. resolution
- 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
- Dimensions (HxWxD)
- 28 x 115 x 91 mm
- Power supply unit
- 1
- Technical particularity
- External infrared emitters allow using the remote control of the source device
- Mains connection
- Appliance Europlug, Type-C
- Height
- 28 mm
- Width
- 115 mm
- Depth
- 91 mm
- Weight
- 562.87 g
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 240 mm
- Package weight (single piece)
- 0.707 kg
