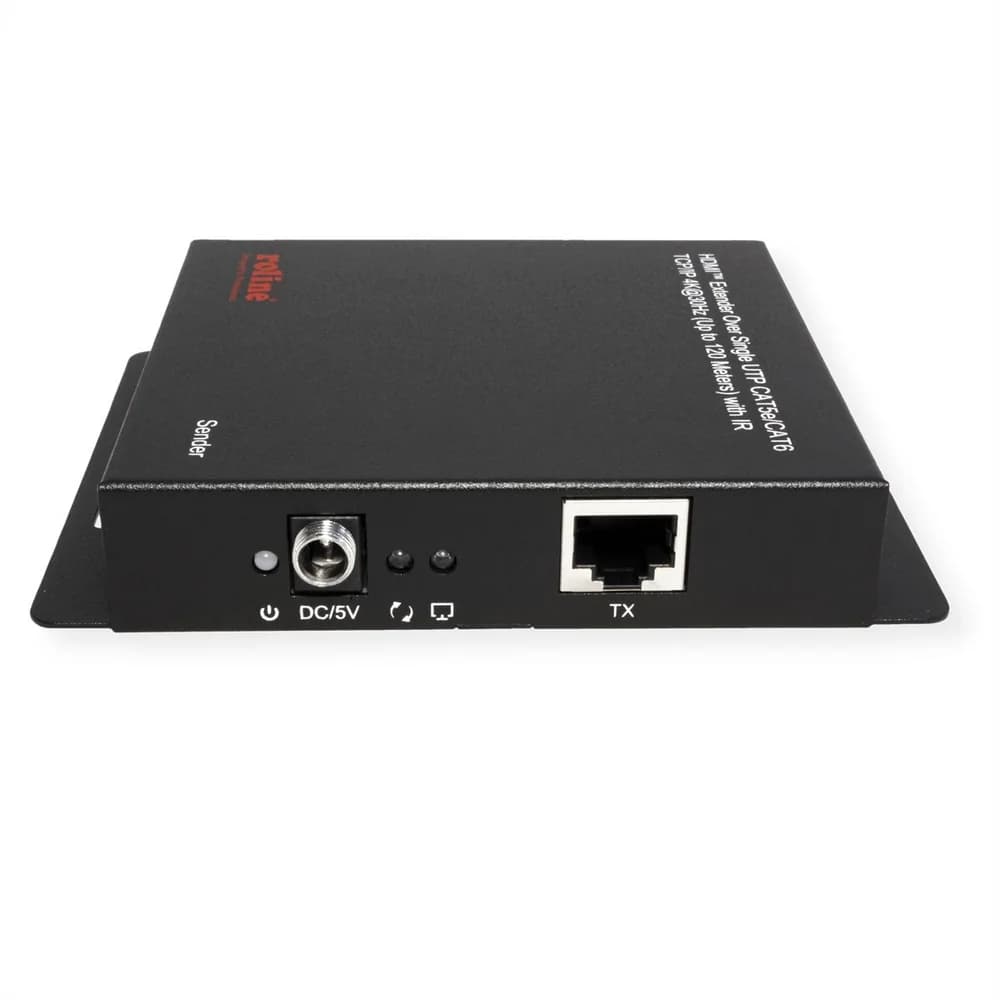

ROLINE HDMI over IP Extender, 4K30Hz, 120m, W/IR
- Item number
- 14.01.3642-2
- Part number
- 14.01.3642
- EAN
- 7630049673397
- Brand
- ROLINE
- Weight
- 428 g
With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription

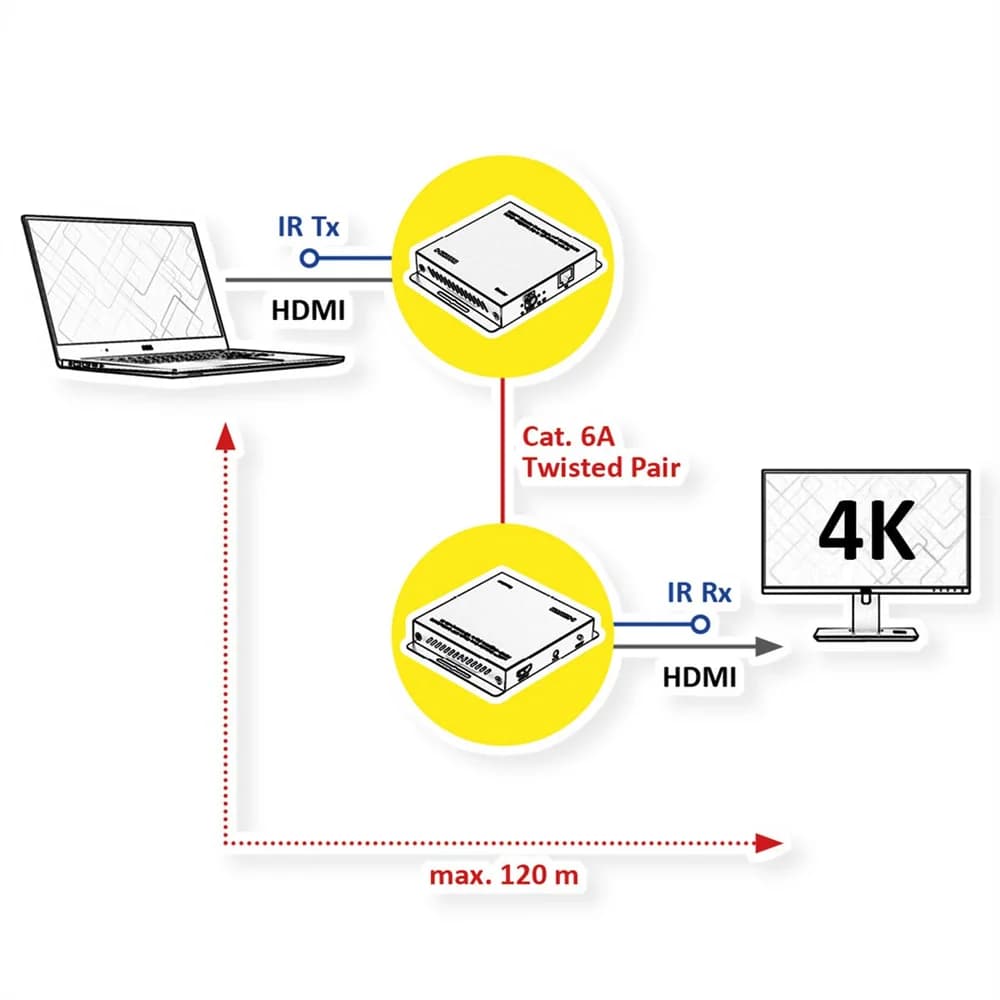

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.
Suitable for advertising, studios, multimedia classrooms, etc.- Following TCP/IP standard
- Supports resolutions up to 4K@30Hz
- Max. distance is 120m
- Supports max video bandwidth of 3.4Gbps/340MHz per channel (10.2 Gbps all channels)
- Cat5e/6 cable needs to follow the standard of IEEE-568B

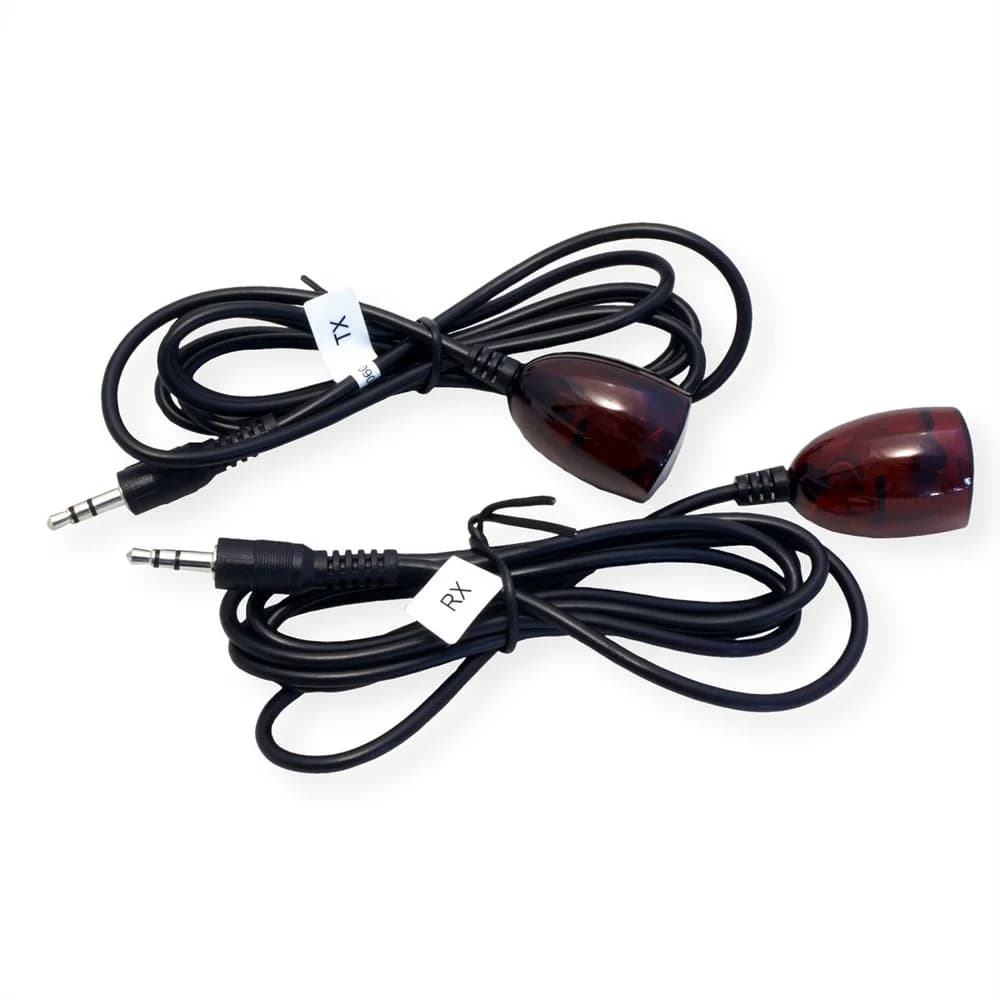

- Features IR return, which enables you to control the video source from your video destination

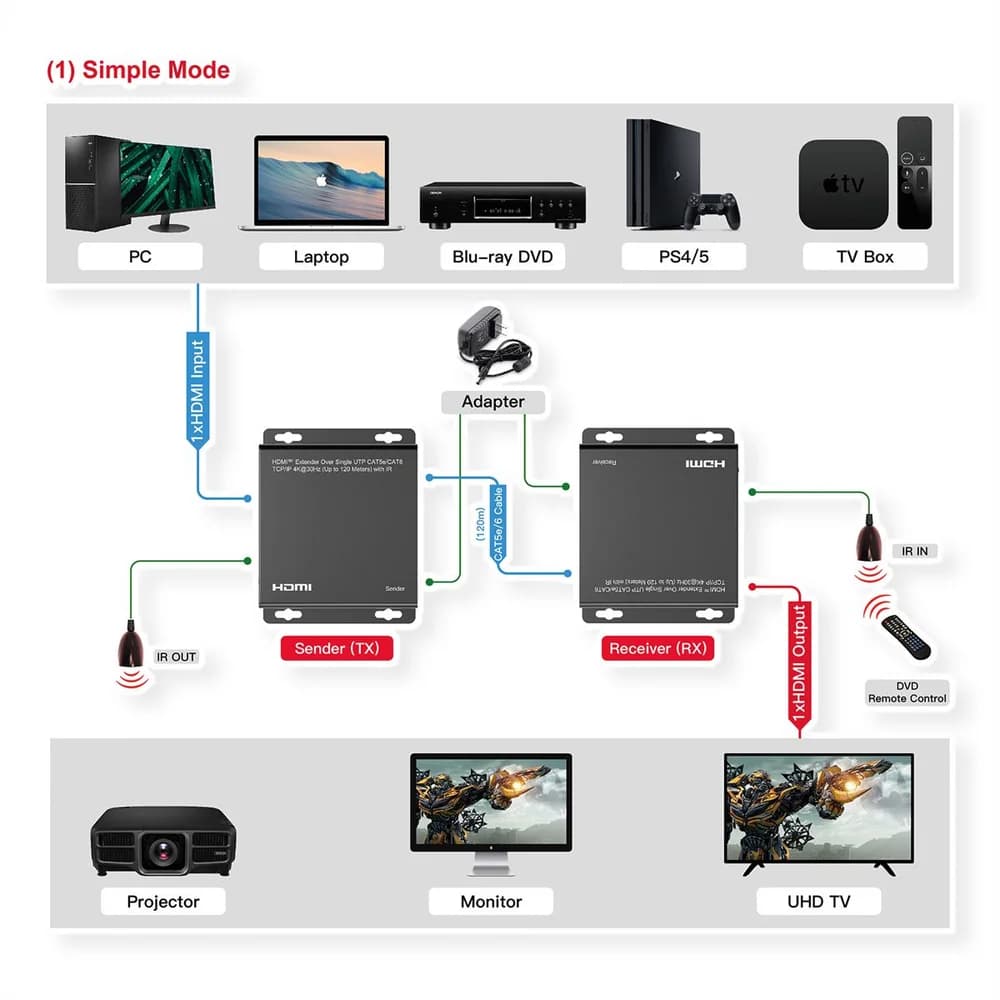

- Features 2 extension modes: simple mode (1:1) and allocation mode (1:N)
- Stable metal casing
- Dimensions: TX/RX: 24 x 94 x 120 mm
- Weight: TX/RX: 214 g

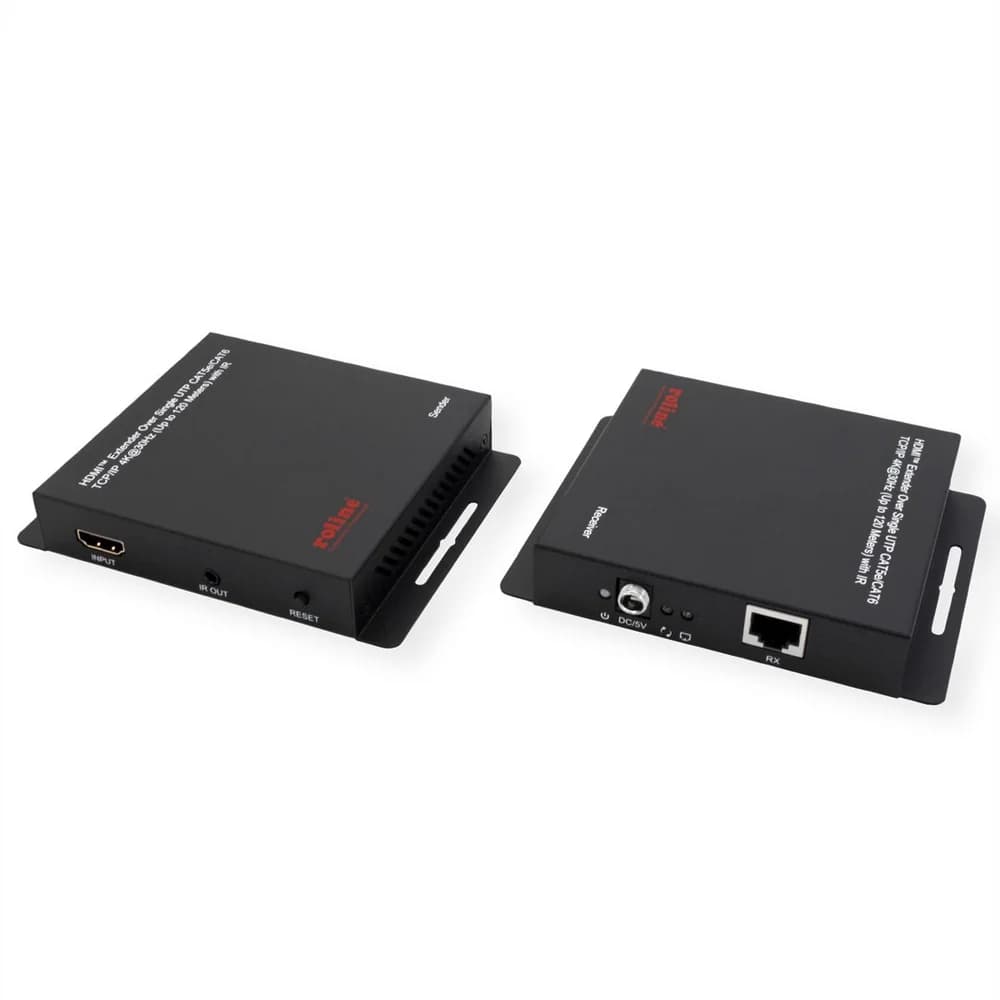

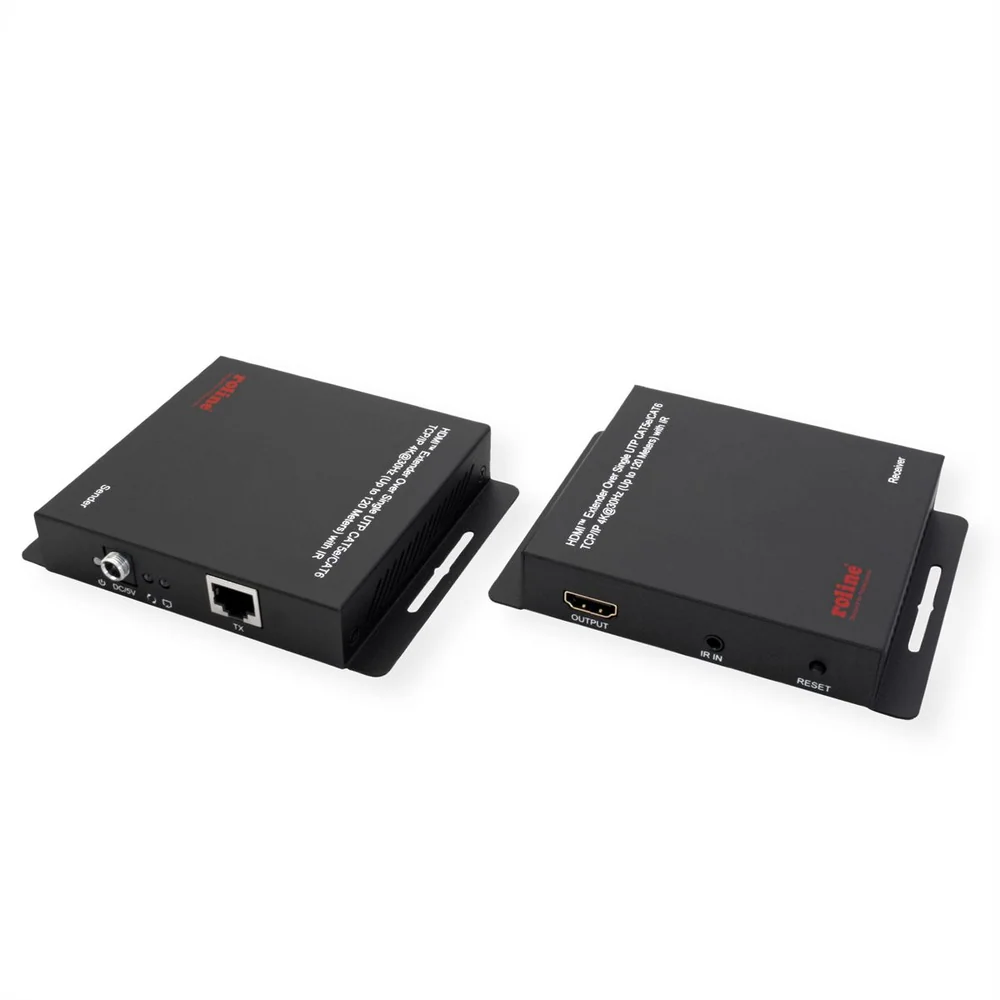

- Contents: 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5VDC 1A), User Manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Splitters and selectors
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5 VDC 1A), User Manual
- Interface
- HDMI
- Audio
- HDMI
- Inputs
- 1
- Outputs
- 1
- Max. distance
- 120 m
- Video input
- HDMI
- Audio input
- HDMI
- Video output
- HDMI
- Audio output
- HDMI
- Video band width
- 10.2 Gbps
- Max. resolution (nom.)
- 3840 x 2160 @30Hz
- Max. resolution
- 3840 x 2160 @30Hz (4K, Full HD)
- Dimensions (HxWxD)
- TX: 24 x 94 x 120 mm, RX: 24 x 94 x 120 mm
- Power supply unit
- 2x
- Power supply output
- DC 5V 1A
- Technical particularity
- Extends the signal up to 120m
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Height
- 24 mm
- Width
- 94 mm
- Depth
- 120 mm
- Weight
- 428 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 230 mm
- Depth of packaging (single piece)
- 300 mm
- Package weight (single piece)
- 1 kg
